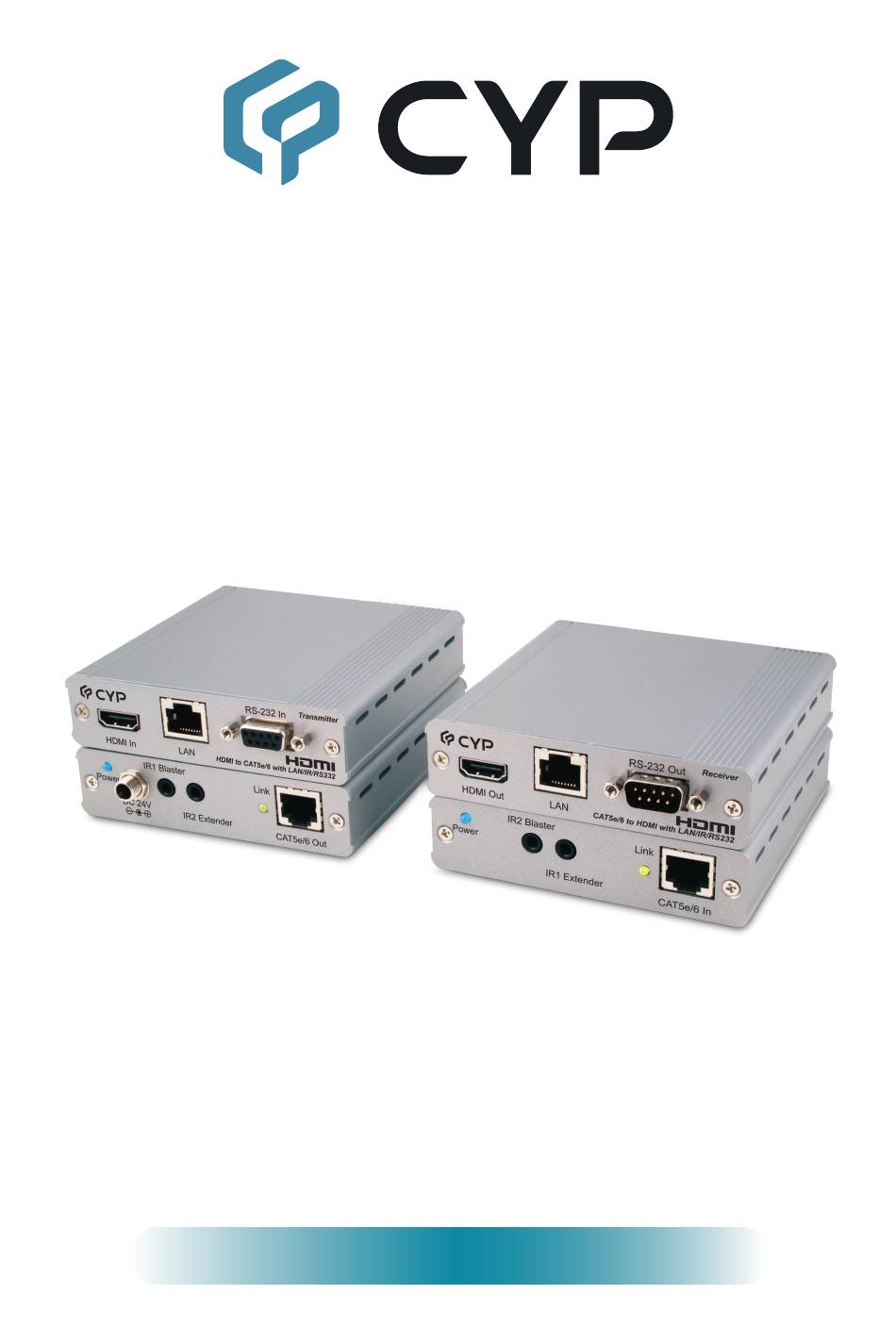

- Page 1 CH-507TX & RX HDMI over CAT5e/6/7 Transmitter and Receiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features...........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 IR Cable Pin Assignment ....5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over CAT5e/6/7 Transmitter and Receiver set can send uncompressed video/audio and IP data over an single run of CAT5e/6/7 cable up to 100m at 1080p and 70m at 4K. It has the added benefi t of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. -
Page 7: Features
5. FEATURES • HDMI 1.x and DVI 1.0 compliant • HDCP compliant • Supports HDMI 3D and 4K x 2K features • Supports HDCP repeater and CEC bypass • Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Front Rear Rear RS-232 In RS-232 In Transmitter Transmitter HDMI In HDMI In HDMI to CAT5e/6 with LAN/IR/RS232 HDMI to CAT5e/6 with LAN/IR/RS232 HDMI In: Connect to HDMI source equipment such as a DVD or Blu-ray player. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Front Front Rear Rear Receiver Receiver IR2 Blaster IR2 Blaster RS-232 Out RS-232 Out Power Power IR1 Extender IR1 Extender HDMI Out HDMI Out CAT5e/6 to HDMI with LAN/IR/RS232 CAT5e/6 to HDMI with LAN/IR/RS232 HDMI Out: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Extender IR Blaster Cable Cable Power Infrared Infrared Power Not Used Ground ASSIGNMENT (TX/RX) TxD / RxD RxD / TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Internet Internet Modem or Modem or Router Router DVD or Blu-ray Player DVD or Blu-ray Player RS-232 Equipped RS-232 Equipped PC or Notebook PC or Notebook HDMI HDMI Input Input Serving Serving 1.5m 1.5m 60° 60° RS-232 RS-232 Blaster Blaster... -
Page 12: Specifications
8. SPECIFICATIONS HDMI Bandwidth 10.2Gbps HDBaseT Bandwidth 10.2Gbps Transmitter Input Ports 1×HDMI, 1×LAN, 1×IR Extender, 1×RS-232 Output Ports 1×CAT5e/6/7, 1×IR Blaster Receiver Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×LAN, 1×RS-232, 1×IR Blaster IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate up to 115200 Power Supply... -
Page 13: Cable Specifi Cations
8.1 Cable Specifi cations 1080p 4K30 4K60 (4:4:4) (4:2:0) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 100m Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Defi nition Multimedia Interface Infrared Power over Cable... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
