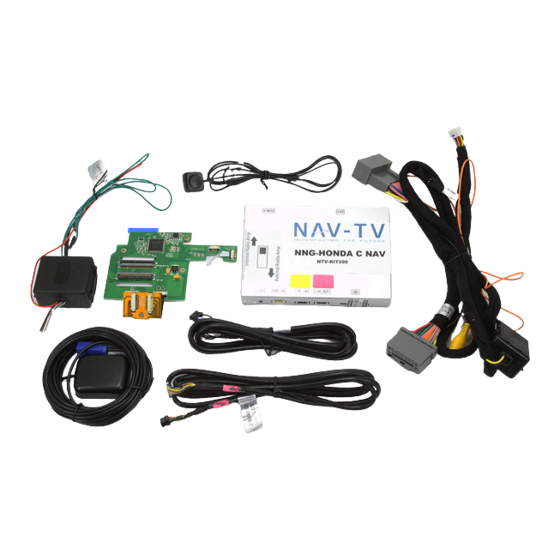

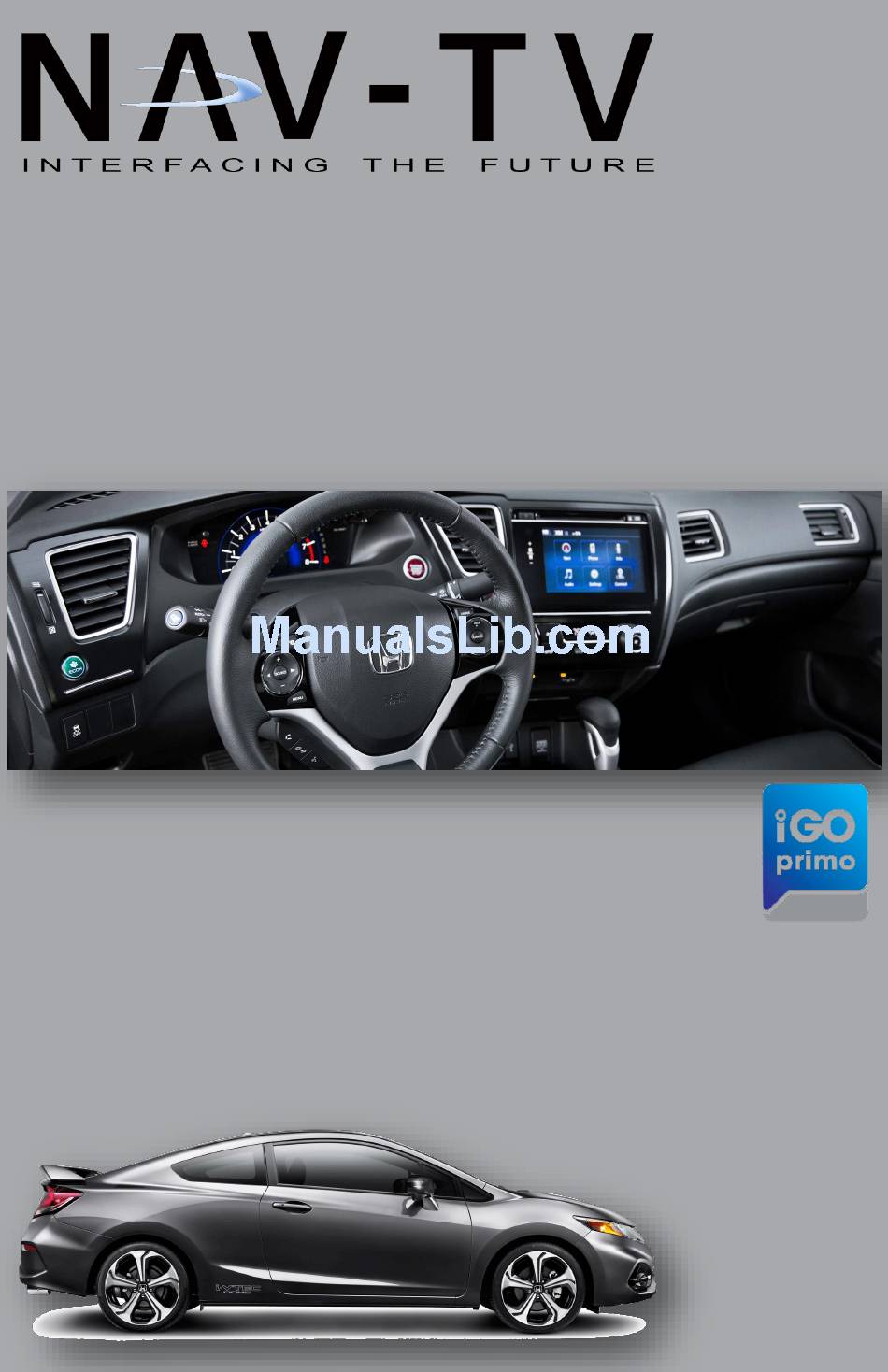

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 NNG-HONDA C Navigation interface for select Honda vehicles NTV-KIT599 NTV-DOC224...
- Page 2 NTV-DOC224 Honda Civic / Fit 2014-2015 Installation Honda C navigation system application guide 2014 – 2015 Civic (with factory 7” touch radio) 2014 – 2015 (with factory 7” touch radio) ** Honda_C navigation system only compatible to vehicles listed above. All compatible radio should be factory equipped 7”...
- Page 3 NTV-DOC224 Honda Civic / Fit 2014-2015 Installation Carefully remove factory radio from dash Carefully separate the radio front panel from radio chassis Carefully disconnect (2) ribbon cables as shown above Remove (3) screws from factory PCB board as shown above Insert the supplied ribbon cable to factory PCB board as shown (Noted the metal contact should face downward) P a g e...
- Page 4 NTV-DOC224 Honda Civic / Fit 2014-2015 Installation Route the wide ribbon cables thru the slots of the new supplied PCB board and connect to new PCB board accordingly as shown Connect the new small ribbon cables from the new PCB board to the factory PCB board as shown on the right side of image above Re-use the factory screws to secure the new PCB board to the radio panel Correct orientation of wide ribbon cables...
- Page 5 NTV-DOC224 Honda Civic / Fit 2014-2015 Installation Reuse (3) screws to secure the board Connect the factory small ribbon cable to the new board Recheck all connections and secure of the board Tape on the supplied plastic protection sheet on top of the PCB board as shown Notice the extension board at the bottom before reinstall the radio chassis P a g e...
- Page 6 NTV-DOC224 Honda Civic / Fit 2014-2015 Installation Carefully reinstall the radio chassis and use the factory screws and tape to secure the extension board outside of the radio Refer to the following diagram for wiring connections P a g e...
- Page 7 NTV-DOC224 Honda Civic / Fit 2014-2015 Installation Honda_C wiring schematic P a g e...
- Page 8 NTV-DOC224 Honda Civic / Fit 2014-2015 Installation P a g e...
- Page 9 NTV-DOC224 Honda Civic / Fit 2014-2015 Installation Honda_C System with Factory Premium Sound External Amplifier Please refer to the following modification if vehicle is equipped with factory premium sound external amplifier Unwrap the navigation main harness to access the wires illustrated above Cut and Connect the Gray(+), Gray/Blk(-) and White(+), White/Blk(-) wires as shown Extend the wires as indicated above to the factory amp location P a g e...
- Page 10 NTV-DOC224 Honda Civic / Fit 2014-2015 Installation Locate factory premium sound external amplifier Locate driver side door speaker output wires from external amplifier Connect Audio-IN wires (+pos and –neg) to audio output from factory amplifier Connect Audio-OUT wires (+pos and –neg) to speaker wires P a g e...
-
Page 11: Troubleshooting
NTV-DOC224 Honda Civic / Fit 2014-2015 Installation Trouble Shooting Please follow all the steps in this installation manual, failure to do so might void the product warranty and damage the factory radio Power Navigation system should have (2) led lights on the module box for indication of power and data connections.
