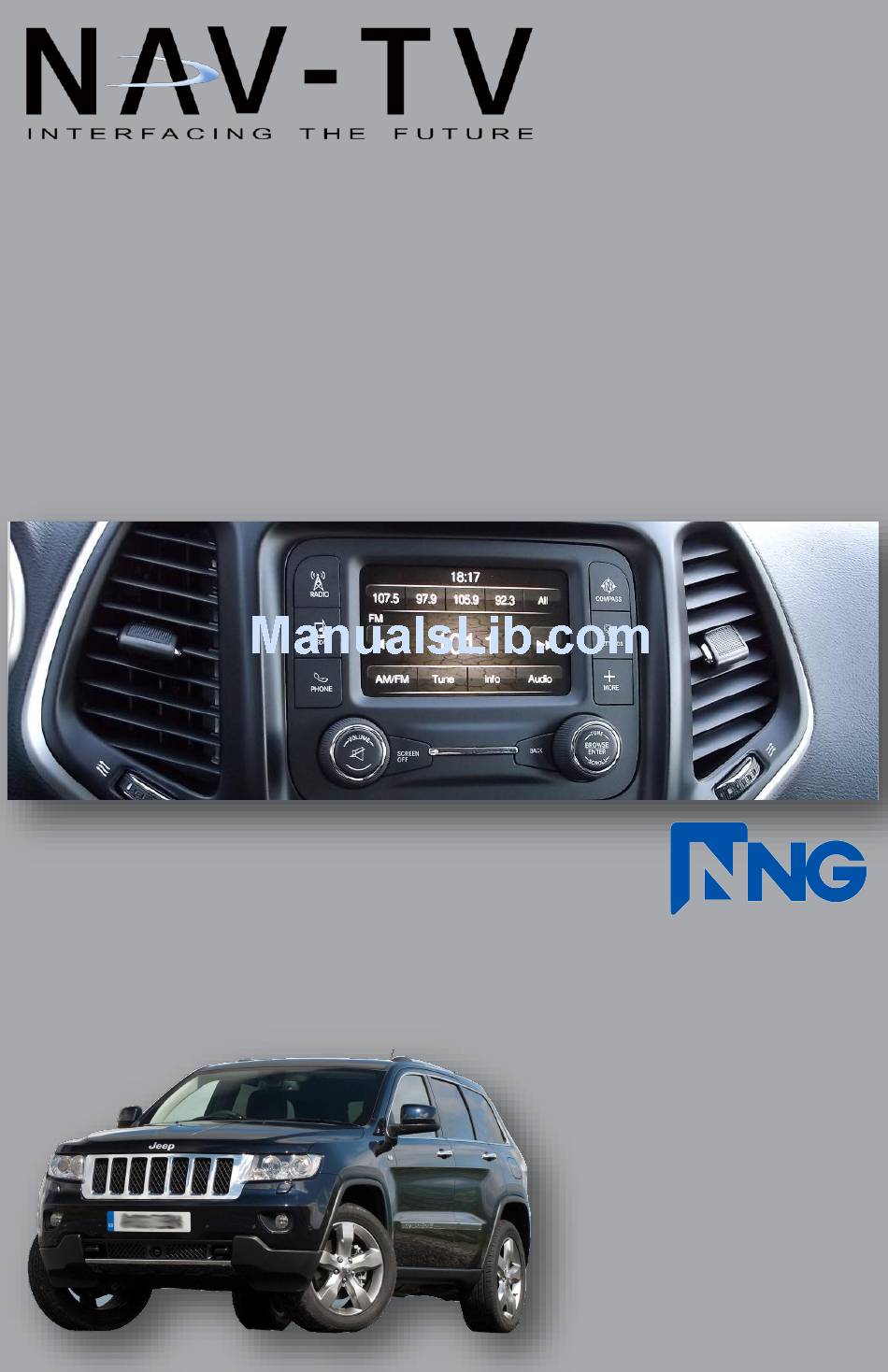

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 NNG-Jeep GC Navigation interface for Jeep GC 5” RA2 NTV-KIT581 NTV-DOC219...
- Page 2 NNG-JEEP GC Kit Content 1. JEEP GC GPS/Interface 2. JEEP GC internal Modification PCB 3. Audio Switching module 4. JEEP GC Plug & Play T-Harness 5. TP/LCD Y-Cables 6. Rear-LCD Harness Optional NAV/OEM switch GPS Antenna Note: This kit is only compatible with HARMAN 5" Jeep Grand Cherokee radios. If your radio does not possess heat sinks (see below), this kit is NOT compatible.
- Page 3 NTV-DOC219 Jeep Grand Cherokee 5” Touch Radio Removal WARRANTY DISCLAIMER NOTICE! Radio removal, disassembly, installation of Navigation Electronics, and Radio re-assembly / re-installation is the responsibility of the installer. It is recommended that you contact a professional installer that is experienced with proper work methods involving electronics and knowledgeable of specific procedures for radio disassembly, Navigation Electronics installation, and re- assembly / re-installation of the Radio Head Unit in the vehicle.
- Page 4 NTV-DOC219 Jeep Grand Cherokee 5” PCB Installation Remove (2) T-10 screws from left side Remove (2) T-10 screws from right side Lift and remove the radio housing Remove (4) T-8 screws under the board Carefully pry (3) tabs, (1) at the top and (2) at the bottom, to remove the radio housing from the LCD screen plastic housing P a g e...
- Page 5 NTV-DOC219 Jeep Grand Cherokee 5” PCB Installation (cont.) You should see the last board with cables Locate the (2) ribbon cables as shown Release the touch ribbon cable by lifting the silver tab away from the cable. Release the LCD ribbon cable by lifting the black clip on top of the cable Carefully lift the circuit board as shown Place the NEW circuit board as shown.
- Page 6 NTV-DOC219 Flip the factory circuit on top of the new board. Connect the new ribbon cables to the factory board as shown in left image. Then, connect the TP and LCD cables to the new board as shown in the right image. Pay attention to the plugs orientations, metal pins are facing upward. Route TP and LCD cables to the right side before closing the metal housing carefully.
- Page 7 NTV-DOC219 Jeep Grand Cherokee 5” GPS Module Installation Review the overall wire connections in the figure above Data Out / LCD Out extension connections (noted the orientation of plugs) Connect GPS Antenna to GPS Module (best GPS Antenna location is under passenger side A-pillar cover, on top of dash OR inside the center console, above the radio and under the dash cover) Test system thoroughly before re-assemble of the radio and dash...
- Page 8 NTV-DOC219 Jeep Grand Cherokee 5” Camera Trigger Wire Inside the passenger kick panel, you will find the white plug as shown Release the clips and you will find the reverse light trigger wire (white / green). Tap the wire and connect to the orange wire from the GPS main harness for reverse signal.
- Page 9 NTV-DOC219 Jeep Grand Cherokee 5” Center Speaker Connection (cont.) Remove the speaker white plug Red / Gray is SP+ and Black / Gray is SP- Locate the GPS Audio Box 6-pin connector Pin definition of the plug GPS Audio Box wire definitions Orange = GPS Audio –...
- Page 10 NTV-DOC219 Center Dash Speaker connection diagram Jeep Grand Cherokee 5” NAV Mode Switching Press the momentary switch for activation of navigation screen ** From backup camera to NAV mode, you might see a flash image of the radio screen before NAV mode, it is a normal operation ** P a g e...
- Page 11 NTV-DOC219 Jeep Grand Cherokee 5” Trouble Shooting Please follow all the steps in this installation manual, failure to do so might void the product warranty and damage the factory radio Power 2014 Jeep Grand Cherokee 5” navigation should have (2) led lights on the module box for indication of power and data connections.
