Summary of Contents for Nav TV NNG-GM2 2016

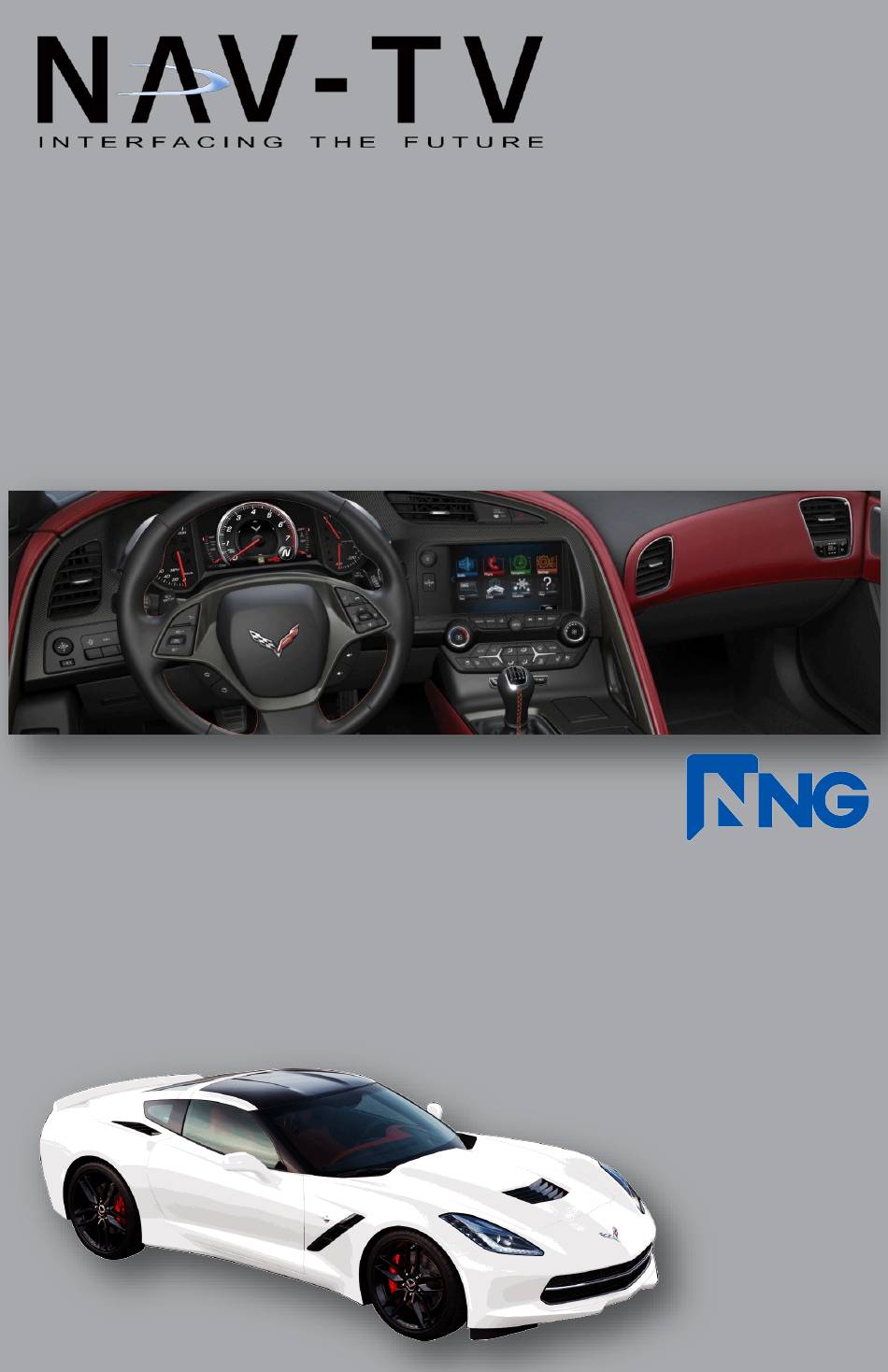

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 NNG-GM2 (2016) Navigation interface for GM vehicles equipped with LVDS MYLink/CUE NTV-KIT718 NTV-DOC216...

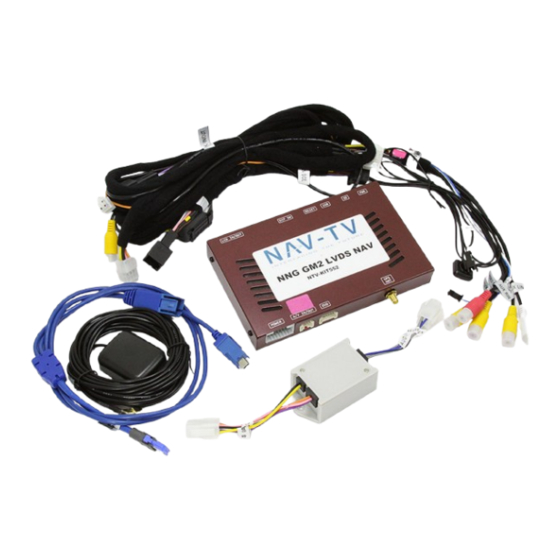

- Page 2 NTV-KIT718 Kit Content 1. GM2 LVDS Interface/GPS combo 2. Plug & Play T-Harness 3. Audio Switch Box 4. LVDS I/O Cable 5. GPS Antenna 6. NAV Transition switch 7. AUX IN/DTV Cable NTV-KIT718 Vehicle-Specific T-Harnesses...
- Page 3 NTV-DOC216 NNG-GM2 (LVDS MYLINK/CUE) 8” Navigation Installation GM2 Module Dip Switch settings 4: Rear 1: Vehicle 7: Reset camera Type Module settings WARRANTY DISCLAIMER NOTICE! Radio removal, disassembly, installation of Navigation Electronics, and Radio re-assembly / re-installation is the responsibility of the installer.
- Page 4 NTV-DOC216 NNG-GM2 (LVDS MYLINK/CUE) 8” Navigation Installation NNG-GM2 Component Connection Diagram ** Ensure correct main harness prior any installation to avoid delay ** P a g e...
- Page 5 NTV-DOC216 NNG-GM2 (LVDS MYLINK/CUE) 8” Navigation Installation NNG-GM2 Installation Steps 1. Remove factory radio touch screen assembly from dash 2. Locate (1) video plug and (1) screen power / data plug 3. Plug in the LCD T-harness cable (blue) to factory screen and factory harness 4.
- Page 6 NTV-DOC216 NNG-GM2 (LVDS MYLINK/CUE) 8” Navigation Installation Camera Setting Setup Rear View Camera (DO NOT USE DIP SW#1 as camera option) By default, the rear view camera setting as retain OEM Camera. For add-on aftermarket camera, please follow the instruction below. Turn off system Set DIP SW #4 to ON (DOWN) Turn on system...
-
Page 7: Troubleshooting
NTV-DOC216 NNG-GM2 (LVDS MYLINK/CUE) 8” Navigation Installation Trouble Shooting Please follow all the steps in this installation manual, failure to do so might void the product warranty and damage the factory radio Power GPS Module has (2) led lights as indicators when system is power on. Both led lights should lit with good power. - Page 8 If you see an error when switching to NAV mode that states: 'OUT OF MEMORY' 'REG 996886x0000' (or any other numbers) Follow these steps to fix the issue: Access the map micro SD (or standard size SD) card from the module and remove Use an SD card adapter for the PC to load the content Access the map software from the PC from adapt...
