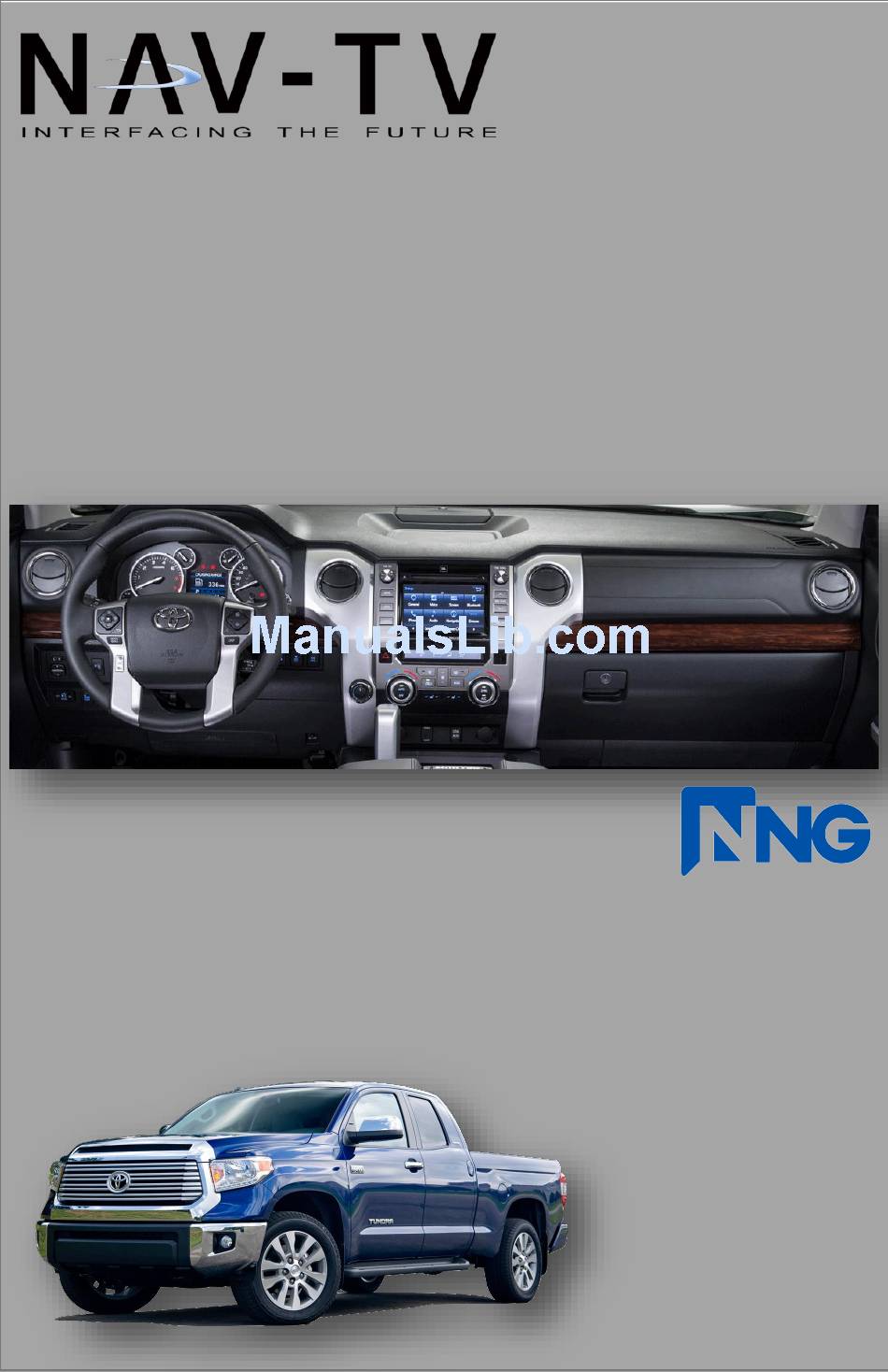

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL: 561-955-9770 FAX: 561-955-9760 NNG Toyota 3/3s Navigation System for select Toyota NTV-KIT553/598 NTV-DOC217...
- Page 2 NNG-Toyota 3/3s Kit Content 1. Toyota 3 or 3s GPS/Interface 2. Toyota 3 or 3s internal Modification PCB with Y-adapter 3. Audio Switching module 4. Toyota 3 Plug & Play T-Harness 5. Toyota 3 secondary Plug & Play T-Harness 6. Rear-LCD Harness TP and LCD Harnesses 8.
- Page 3 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Toyota 3 navigation system application guide 2014 – 2015 Tundra (7” Entune Plus Apps Radio) 2014 – 2015 Tacoma (6.1” Entune Plus Apps Radio) 2014 – 2015 Sequoia (6.1” Entune Plus Apps Radio) 2015 Avalon (6.1”...
-
Page 4: Installation
NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation WARRANTY DISCLAIMER NOTICE! Radio removal, disassembly, installation of Navigation Electronics, and Radio re-assembly / re-installation is the responsibility of the installer. It is recommended that you contact a professional installer that is experienced with proper work methods involving electronics and knowledgeable of specific procedures for radio disassembly, Navigation Electronics installation, and re- assembly / re-installation of the Radio Head Unit in the vehicle. - Page 5 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Remove screws as indicated from back and top of radio Disconnect the (2) ribbon cables carefully Remove (4) screws from panel before separating the radio front plate Disconnect the (2) ribbon cables carefully Install (4) spacers provided P a g e...
- Page 6 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Toyota 3 Installation Connect the small touch ribbon cable to the PCB as shown. Notice the metal contacts should be facing downward P a g e...
- Page 7 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Connect the wide LCD ribbon cable to the PCB as shown. Notice the metal contacts should be facing downward Connect the factory ribbon cables to the PCB board as indicated P a g e...
- Page 8 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Install (4) screws provided. Check all connections carefully Connect the LCD/TP harness to the PCB board as shown. Notice the metal pins are facing up Toyota 3 dip switch setting Dip switch 1 6 8 2 3 4 5 7 with factory equipped camera...
- Page 9 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Toyota 3S Installation Toyota 3S (non-apps) Radio should have the wide ribbon cable on the left side of PCB board Disconnect the ribbon cables as shown Connect the small touch ribbon cable P a g e...
- Page 10 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Connect the wide ribbon cable to the PCB board P a g e...
- Page 11 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Connect the factory ribbon cables to the PCB board as shown Install (4) screws to secure the board as shown Toyota 3S dip switch setting Dip switch 2 3 4 5 6 7 8 OFF with factory equipped camera Turn dip switch 1 OFF if installing after-market camera End of Toyota 3S Installation...
- Page 12 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Run the LCD/TP harness as shown through the radio chassis Trim the radio cover as shown Harness exit as shown 10 | P a g e...
- Page 13 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Refer to previous page for system wiring connections Connect GPS Antenna to GPS Module (best GPS Antenna location is under passenger side A- pillar cover, on top of dash) Test system thoroughly before re-assemble of the radio and dash Test reverse camera function Test driver side speaker integration function (mute and voice from navigation software) 11 |...
- Page 14 NTV-DOC217 Toyota 3 and Toyota 3S Navigation System Installation Please follow all the steps in this installation manual, failure to do so might void the product warranty and damage the factory radio Power GPS Module has (2) led lights as indicators when system is power on. Both led lights should lit with good power.
