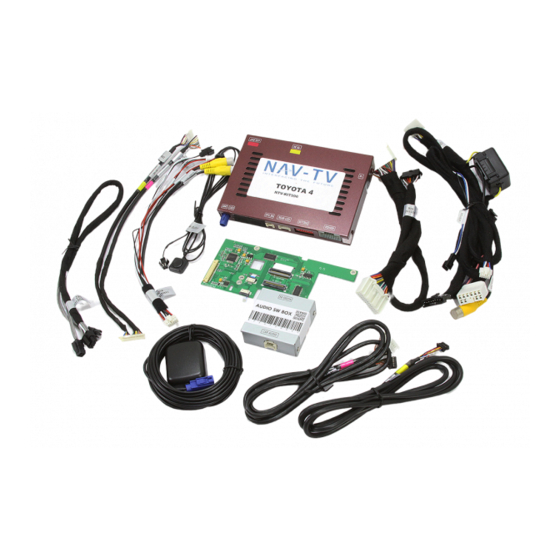

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 NNG-Toyota 4 Navigation interface for select Toyota vehicles NTV-KIT596 NTV-DOC227...
- Page 2 NTV-DOC227 Toyota 4 Navigation System Installation 2014 – 2015 Highlander (non-apps Pioneer Radio) 2015 Camry (non-apps Pioneer Radio) ** Toyota 4 navigation system only compatible to vehicles listed above. All compatible radio should be non-apps radio (basic Pioneer radio with 6.1” touch screen).
- Page 3 NTV-DOC227 Toyota 4 Navigation System Installation Remove both air vents from dash Remove (4) 10 mm bolts from radio bracket Remove radio brackets from both side and remove (8) small screws from back plate PCB Installation Remove (3) screws as indicated and release (2) ribbons cables from sockets carefully P a g e...
- Page 4 NTV-DOC227 Toyota 4 Navigation System Installation Carefully route supplied PCB ribbon cable thru the slot. Then connect both display and touch ribbon cable to factory board as shown Connect factory ribbon cables to the PCB as shown above and secure the board with supplied studs and screws A + B Connect the 2in1 cable to the socket with METAL pin facing up and route cable to...
- Page 5 NTV-DOC227 Toyota 4 Navigation System Installation 2in1 cable should exit the radio as shown. There is a small gap for it. Be carefully not to interfere with the screw hole as it might damage the cable when put screw back in. Refer to previous page for system wiring connections P a g e...
-
Page 6: Troubleshooting
NTV-DOC227 Toyota 4 Navigation System Installation Connect GPS Antenna to GPS Module (best GPS Antenna location is under passenger side A-pillar cover, on top of dash) Test system thoroughly before re-assemble of the radio and dash Test reverse camera function Test driver side speaker integration function (mute and voice from navigation software) Trouble Shooting Please follow all the steps in this installation manual, failure to do so might...
