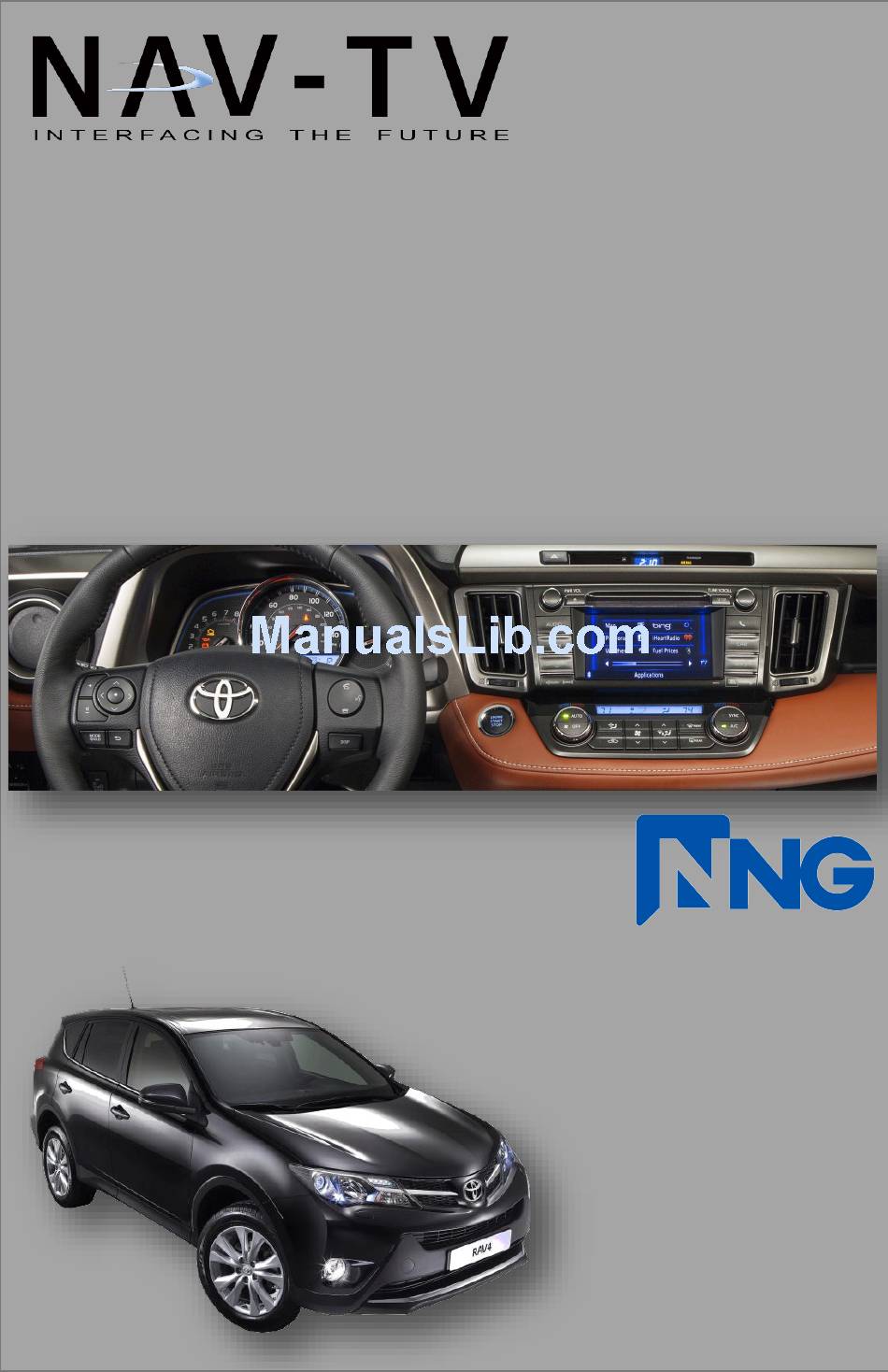

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL: 561-955-9770 FAX: 561-955-9760 NNG-Toyota RAV4 Navigation System for Toyota RAV4 (with APPs) NTV-KIT604 NTV-DOC222...
- Page 2 NNG-Toyota Rav4 Kit Content 1. Toyota Rav4 GPS Interface 2. Toyota Rav4 Internal Modification PCB 3. Toyota Rav4 Plug & Play T-Harness 4. LCD/TP PCB Y-Cable 5. LCD/TP I/O Cables 6. Audio Switch Module 7. GPS Antenna...
- Page 3 NTV-DOC222 2014 Toyota RAV 4 (with APPS) Dash / Radio Removal WARRANTY DISCLAIMER NOTICE! Radio removal, disassembly, installation of Navigation Electronics, and Radio re-assembly / re-installation is the responsibility of the installer. It is recommended that you contact a professional installer that is experienced with proper work methods involving electronics and knowledgeable of specific procedures for radio disassembly, Navigation Electronics installation, and re- assembly / re-installation of the Radio Head Unit in the vehicle.
- Page 4 NTV-DOC222 2014 Toyota RAV 4 (with APPS) Dash / Radio Removal (cont.) Remove (4) 10 mm bolts from radio bracket (2) bolts on top and (2) on the sides Remove (3) screws from side mounts Remove (6) screws from side brackets Trim RIGHT side mount as shown for cable exit Wire exit location Carefully pry (9) tabs around the radio front LCD panel and carefully remove from radio...
- Page 5 NTV-DOC222 2014 Toyota RAV 4 (with APPS) PCB Installation Lay New PCB on top as shown Remove factory touch screen and display ribbon cable; connect NEW ribbon cables to factory board; RECONNECT factory ribbon cables to NEW PCB connections. (All ribbon locations and connections should align coordinately) Remove ribbon cable from side control board;...
- Page 6 NTV-DOC222 2014 Toyota RAV 4 (with APPS) PCB Installation (cont.) 2in1 TP LCD Cable should exit as shown with modified right side mount Carefully RECONNECT the radio chassis ribbon cable at the center of the unit Close the radio chassis with care and re-install all the mounts, bracket and XM/HD radio module P a g e...
- Page 7 NTV-DOC222 2014 Toyota RAV 4 (with APPS) GPS Module Installation Review the overall wire connections in the figure above (3) T-Harness for Radio Connections for Audio Box Connection at GPS Module Data Out / LCD Out connections P a g e...
-
Page 8: Navigation Screen
NTV-DOC222 2014 Toyota RAV 4 (with APPS) GPS Module Installation (cont.) Data Out / LCD Out extension connections (noted the orientation of plugs and wire color coordination) Connect GPS Antenna to GPS Module (best GPS Antenna location is under passenger side A- pillar cover, on top of dash) Test system thoroughly before re-assemble of the radio and dash Test reverse camera function... - Page 9 NTV-DOC222 2014 Toyota RAV 4 (with APPS) Trouble Shooting Please follow all the steps in this installation manual, failure to do so might void the product warranty and damage the factory radio Power 2014 Toyota Rav4 Radio will have factory loading screen whenever the power is disconnected.
