User Manual
th
3950 NW 120
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
NNG-Toyota 5

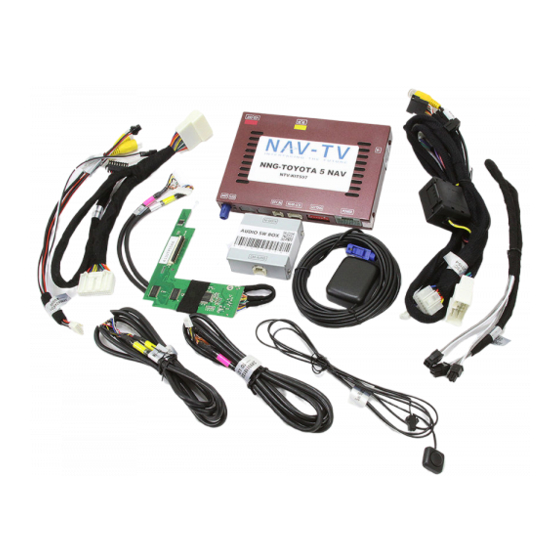

Navigation interface for select Toyota vehicles
NTV-KIT597
NTV-DOC226
Advertisement
Related Manuals for Nav TV NTV-KIT597
Summary of Contents for Nav TV NTV-KIT597
- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 NNG-Toyota 5 Navigation interface for select Toyota vehicles NTV-KIT597 NTV-DOC226...
- Page 2 NTV-DOC226 Toyota 5 Navigation System Installation Toyota 5 navigation system application guide 2014 – 2015 Corolla (non-apps Radio) 2014.5 Camry (non-apps Radio) 2014 – 2015 Rav4 (non-apps Radio) ** Toyota 5 navigation system only compatible to vehicles listed above. All compatible radio should be non-apps radio (basic Entune radio with 6.1”...
- Page 3 NTV-DOC226 Toyota 5 Navigation System Installation Remove the access plate from bottom of the radio as shown Disconnect the (2) ribbon cables carefully before separating the radio front plate P a g e...
- Page 4 NTV-DOC226 Toyota 5 Navigation System Installation Disconnect the (2) ribbon cables carefully as shown. Remove (2) screws as arrow indicated Connect the wide video ribbon cable to the underside of the navigation PCB board as shown. Ribbon cable’s length is limited. Use extreme caution when handling the connections P a g e...
- Page 5 NTV-DOC226 Toyota 5 Navigation System Installation Connect the supplied ribbon cables from the PCB board to the factory radio board as shown. Noted the orientation of the ribbon cables, metal contacts should be facing downward. Laydown the PCB board as shown. Noted the tab penetration and line up the screw holes P a g e...
- Page 6 NTV-DOC226 Toyota 5 Navigation System Installation Connect 2in1 TP/LCD to the PCB as shown. Noted the metal pin should be facing upward. Camry PCB Installation Place the supplied foam tapes as indicated above P a g e...
- Page 7 NTV-DOC226 Toyota 5 Navigation System Installation Install the supplied spacer to this location Use the long spacer as indicated Secure the PCB with supplied screws (use the top slot instead of the bottom screw hole) DO NOT OVER TIGHTENED THE SCREWS, YOU MIGHT DAMAGED THE PCB TRACES!!! P a g e...
- Page 8 NTV-DOC226 Toyota 5 Navigation System Installation RAV4 PCB Installation Place the supplied foam tapes as indicated (see pic from Camry PCB installation) Install the supplied spacer to this location Secure the PCB with supplied screw (only one is needed, use the top slot instead of the screw hole) DO NOT OVER TIGHTENED THE SCREWS, YOU MIGHT DAMAGED THE PCB TRACES!!!
- Page 9 NTV-DOC226 Toyota 5 Navigation System Installation Trim radio access plate as shown for PCB Route the wire as shown and re-connect the wires exit (tape trimmed edges for protection) factory ribbon cables Re-install the access plate with wire exit from cut-out. Toyota 5 dip switch setting Dip switch 2 3 4 5 6 8...
- Page 10 NTV-DOC226 Toyota 5 Navigation System Installation Refer to previous page for system wiring connections Connect GPS Antenna to GPS Module (best GPS Antenna location is under passenger side A-pillar cover, on top of dash) Test system thoroughly before re-assemble of the radio and dash Test reverse camera function Test driver side speaker integration function (mute and voice from navigation software) P a g e...
-
Page 11: Troubleshooting
NTV-DOC226 Toyota 5 Navigation System Installation Trouble Shooting Please follow all the steps in this installation manual, failure to do so might void the product warranty and damage the factory radio Power GPS Module has (2) led lights as indicators when system is power on. Both led lights should lit with good power.
