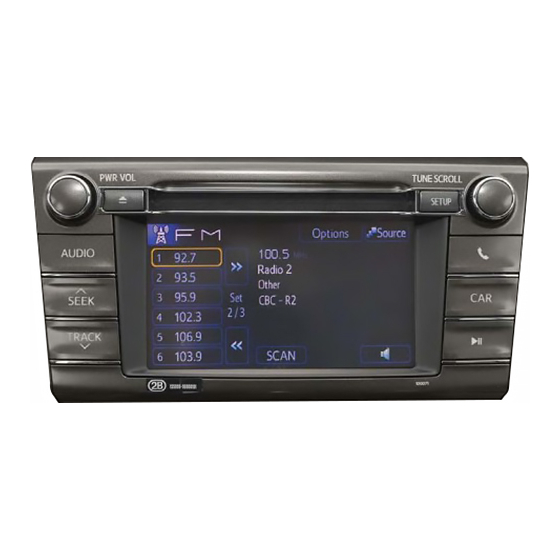

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 NNG-Toyota 2 Navigation interface for select Toyota vehicles NTV-KIT607 NTV-DOC229...
- Page 2 Installation Guide NTV-DOC229 Navigation For RAV4 STEP 2 STEP 1 Remove A/C VENT Remove 4 Screws from radio STEP 3 STEP 4 REMOVED RADIO Remove radio mount STEP 5 STEP 6 REMOVED CLIP REMOVED CLIP Remove all screws to open up the LCD screen...
- Page 3 NTV-DOC229 Installation Guide Navigation For RAV4 Drill a Hole to run Video Cable 1. Place Mask tape on radio to avoid drilling scrap 2. At bottom of the radio, center of the radio, drill a hole 1. Place the LCD ribbon in the factory LCD Screen board 2.
- Page 4 NTV-DOC229 Installation Guide Navigation For RAV4 Install Video Board Place 3 Spacers and 3 Screwsn to the red circle position Place Radio ribbon from Radio side to video board socket Run the Video Cable from inside video board to outside the radio...
- Page 5 Installation Guide NTV-DOC229 Navigation For RAV4 Overall Wiring Figure Connect the Following: TP IN (Yellow) LCD OUT (PINK) REAR LCD Power Connector GPS Antenna External Speaker External Switch 1. Place the 10PIN (NON-JBL ) or 20PIN ( JBL) Power Harness 2.
- Page 6 NTV-DOC229 Installation Guide Navigation For RAV4 Activate OEM Camera/ After Market Camera IF 28PIN T-Harness DO NOT include in the package Please connect reverse wire manually Manually Connect 28 PIN Connector PIN#2 ((Orange Wire) From the Radio to Black 8 Pin Connector PIN#5 (Orange Wire) Reverse Signal is on 28PIN #2 (Orange Wire) DIP SW Setting 1 ON...
- Page 7 NTV-DOC229...
-
Page 8: Gps Monitor
NTV-DOC229 WEAK /NO GPS SIGNAL? Tips to Improve GPS Antenna Signal if vehicle equipped Metallized Windshield* “GPS MONITOR Tools” Exit IGO MAP by press SHUT DOWN BUTTON Console> SETUP GPS MONITOR Locate the Antenna with minimum 5 bars in dark blue or Gray bar (Always suggest mounting the GPS antenna on the roof) Press “!”... - Page 9 NTV-DOC229 PROPER GPS ANTENNA POSITION if vehicle equipped *Metallized Windshield SUV/Coupe Sedan TRUCK (Shown as Tundra) Alternatively, installer might choose to mount Antenna inside the headliner or inside vehicle using GPS monitor tools (see instruction). However, stay away from the windshield.
- Page 10 IGO PRIMO MAP PATH SETTING 1. Press Setup ‐> Navigate Setup 2. Press on the Folder Icon 3. Select the following path in Storage Card ‐> cyb_navi.exe 4. Press HOME button on the top left corner and press NAVIGATION 5. System should able to run into “IGO PRIMO”...
