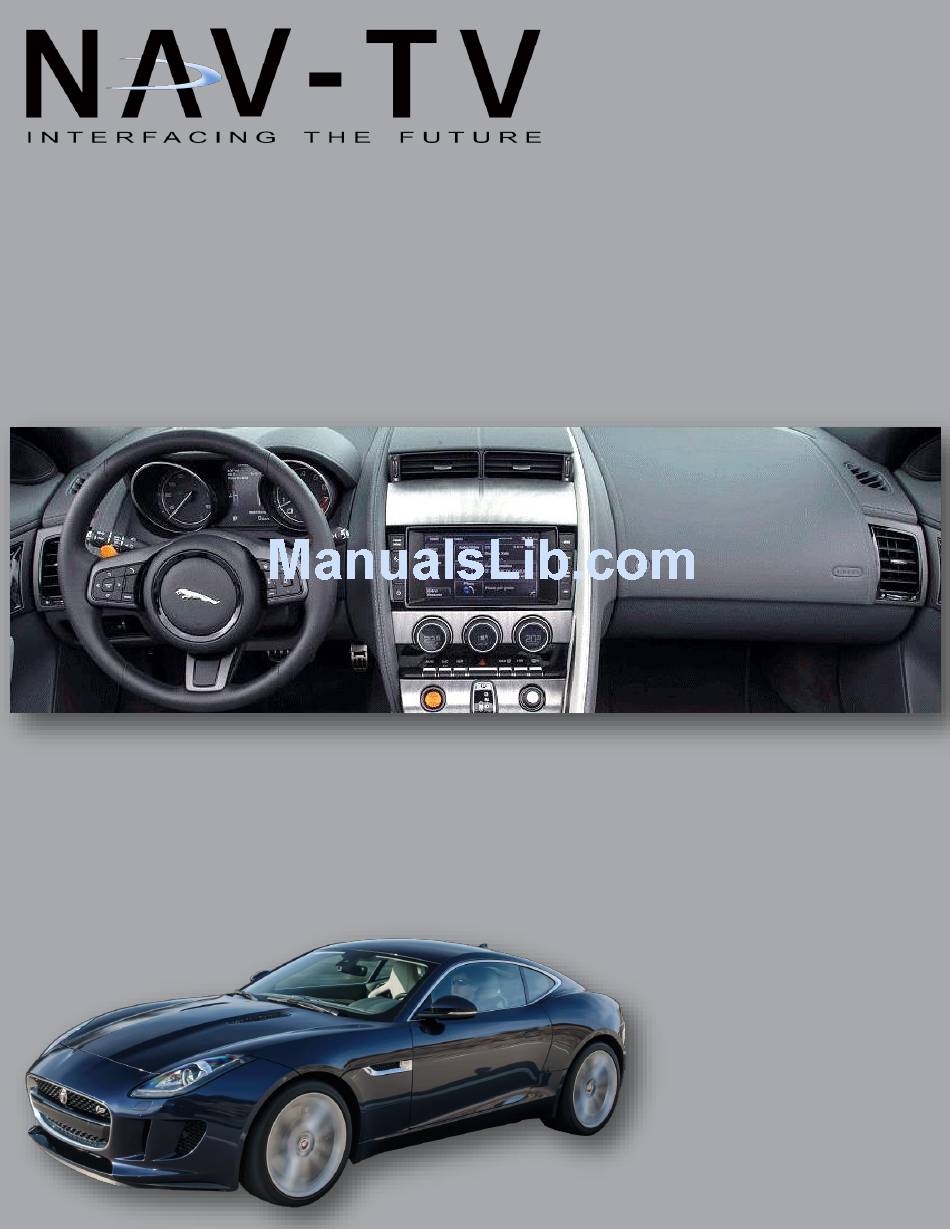

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 Jaguar F-TYPE CAM Dual Camera interface for select ’14+ Jaguar vehicles NTV-KIT589 06/03/14 NTV-DOC207...

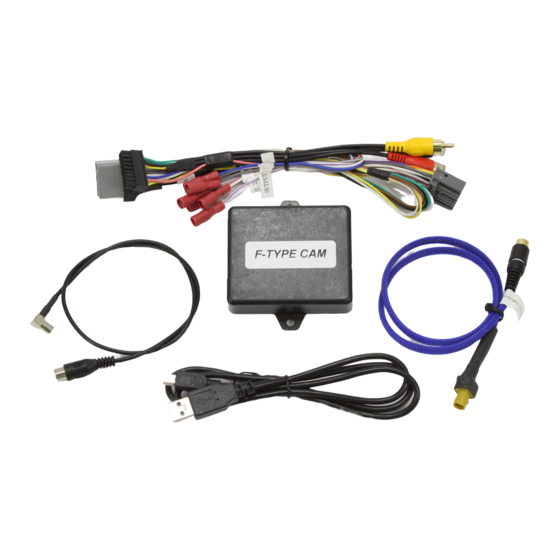

- Page 2 04/13/15 NTV-DOC207 Overview Jaguar F-Type CAM interfaces 2 cameras (front & rear) and enables video and navigation control in motion (if equipped). Forcing either camera to display is activated via the factory touch screen or optional wired inputs. This interface is currently only compatible with the 2014+ F-Type. Kit Contents FAKRA-RCA SMB-RCA...
- Page 3 04/13/15 NTV-DOC207 Dash Removal (F-Type) 1. Using a plastic tool, pry up the plastic trim surrounding the shifter. It is secured with clips only. 2. Disconnect the cigarette lighter plug and the push button ignition switch plug. It helps to remove the push button ignition switch and reconnect it to the plug (for testing).
- Page 4 04/13/15 NTV-DOC207 3. Remove (2x) Torx t20 screws securing the bottom half of the climate control. 4. On top of the dash, in front of the motorized vents, remove the beauty panel secure by clips with a plastic tool. 5. Remove (2x) Torx t20 screws securing the screen bezel: Using a plastic tool and hook tool,...
- Page 5 04/13/15 NTV-DOC207 7. Remove (2x) Torx t20 screws beneath this panel (not shown). 8. Both the climate control and screen surround should now be free, remove these and disconnect all associated harnesses. 9. Remove (4x) Torx t20 screws securing the screen. Disconnect all associated harnesses and set the screen aside in a safe place.
- Page 6 04/13/15 NTV-DOC207 Module Installation 1. With the screen removed, locate the main 16-pin connector that powers the screen. Connect this plug to the female side of the provided Plug & Play T-Harness. 2. Connect the provided SMB-RCA Adapter to the screen at the port (typically purple) closest to the M.O.S.T Fiber Optic connector.
- Page 7 04/13/15 NTV-DOC207 6. Optional: If installing 2 cameras: a. Connect the only male RCA from the provided Plug & Play T-Harness to the free end of the SMB-RCA Adapter (from step 2). b. Connect the signal from the rear camera to the RCA labeled ‘REAR’ located on the Plug & Play T-Harness.
- Page 8 04/13/15 NTV-DOC207 Installation Diagram Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 9 04/13/15 NTV-DOC207 F-TYPE CAM Operation Reverse Camera will automatically display whenever the vehicle is placed in reverse. Video & Nav Control in Motion is always enabled, no user interaction is required. Video’s will playback in any gear from the DVD player (if equipped) and the USB port. Force Rear Camera can be activated by sending 12v (+) to INPUT 1 through a toggle switch (not included), or using the touch screen (detailed below).
- Page 10 04/13/15 NTV-DOC207 Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
- Page 11 04/13/15 NTV-DOC207 Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger entertainment only.
