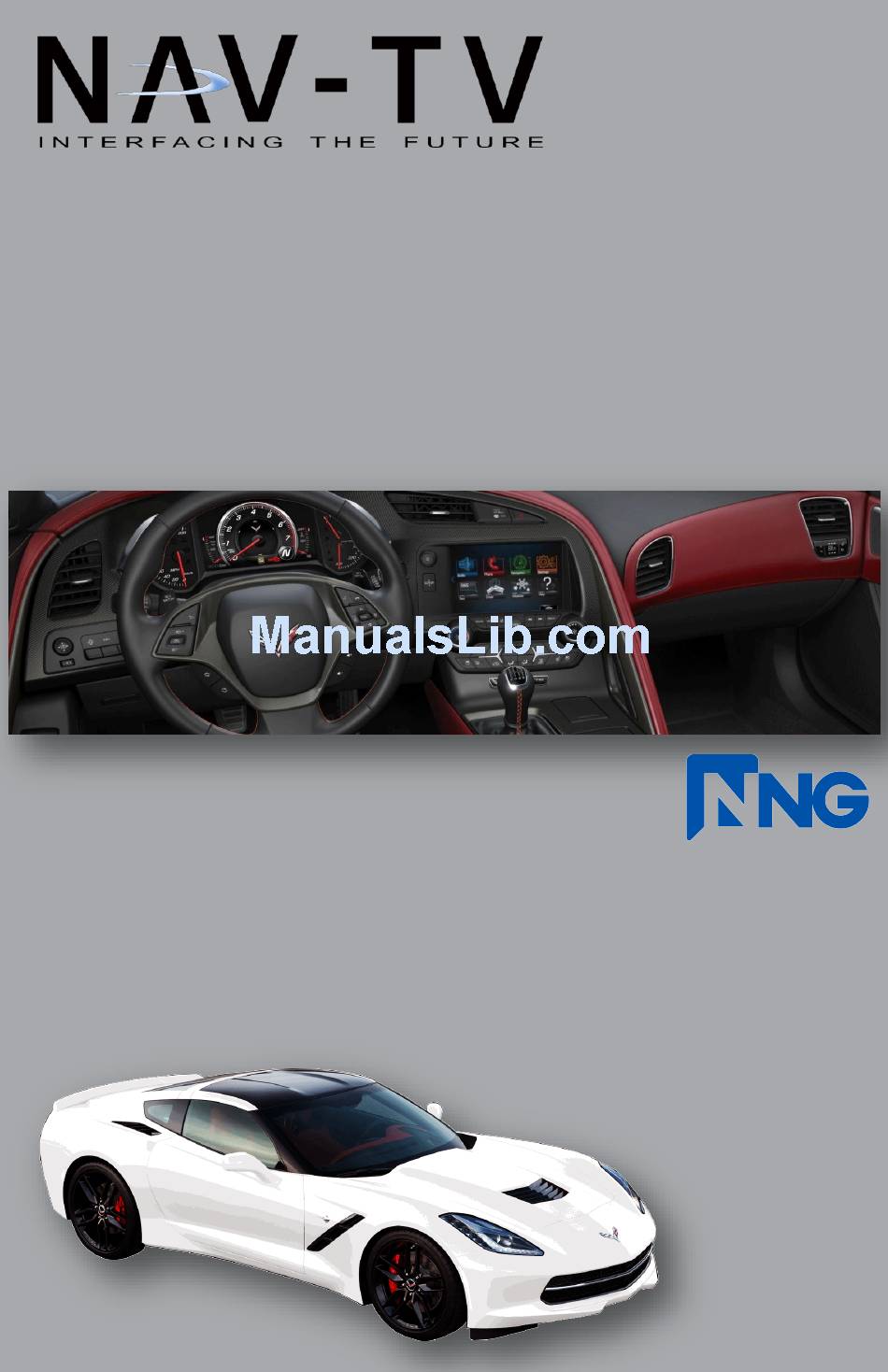

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 NNG-GM2 Navigation interface for GM vehicles equipped with LVDS MYLink/CUE NTV-KIT552 NTV-DOC216...

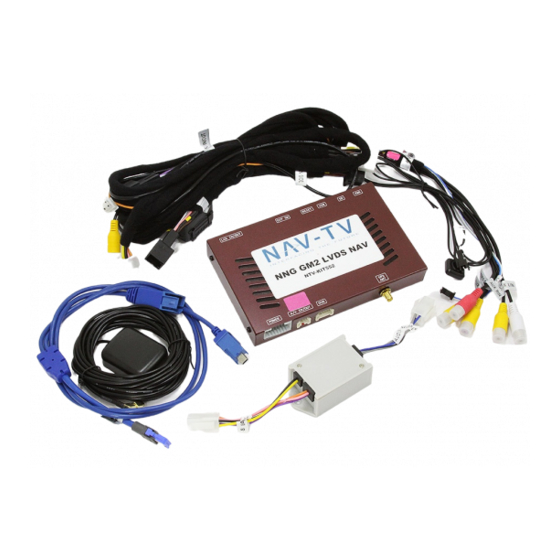

- Page 2 NTV-KIT552 Kit Content 1. GM2 LVDS Interface/GPS combo 2. Plug & Play T-Harness 3. Audio Switch Box 4. LVDS I/O Cable 5. GPS Antenna 6. NAV Transition switch 7. AUX IN/DTV Cable NTV-KIT552 Vehicle-Specific T-Harnesses...
- Page 3 NTV-DOC216 NNG-GM2 (LVDS MYLINK/CUE) 8” Navigation Installation NNG-GM2 This installation manual is for Navigation Add-on System. Due to the extended application list for this model, this manual only covers the installation and connection of the navigation system. Please refer to factory manual for dash and screen removal.
- Page 4 NTV-DOC216 NNG-GM2 (LVDS MYLINK/CUE) 8” Navigation Installation NNG-GM2 Component Connection Diagram ** Ensure correct main harness prior any installation to avoid delay ** P a g e...
- Page 5 NTV-DOC216 NNG-GM2 (LVDS MYLINK/CUE) 8” Navigation Installation NNG-GM2 Installation Steps 1. Remove factory radio touch screen assembly from dash 2. Locate (1) video plug and (1) screen power / data plug 3. Plug in the LCD T-harness cable (blue) to factory screen and factory harness 4.
- Page 6 NTV-DOC216 NNG-GM2 (LVDS MYLINK/CUE) 8” Navigation Installation Camera Setting Setup Rear View Camera (DO NOT USE DIP SW#1 as camera option) By default, the rear view camera setting as retain OEM Camera. For add-on aftermarket camera, please follow the instruction below. Turn off system Set DIP SW #4 to ON (DOWN) Turn on system...
-
Page 7: Trouble Shooting
NTV-DOC216 NNG-GM2 (LVDS MYLINK/CUE) 8” Navigation Installation Trouble Shooting Please follow all the steps in this installation manual, failure to do so might void the product warranty and damage the factory radio Power GPS Module has (2) led lights as indicators when system is power on. Both led lights should lit with good power.
