3950 NW 120

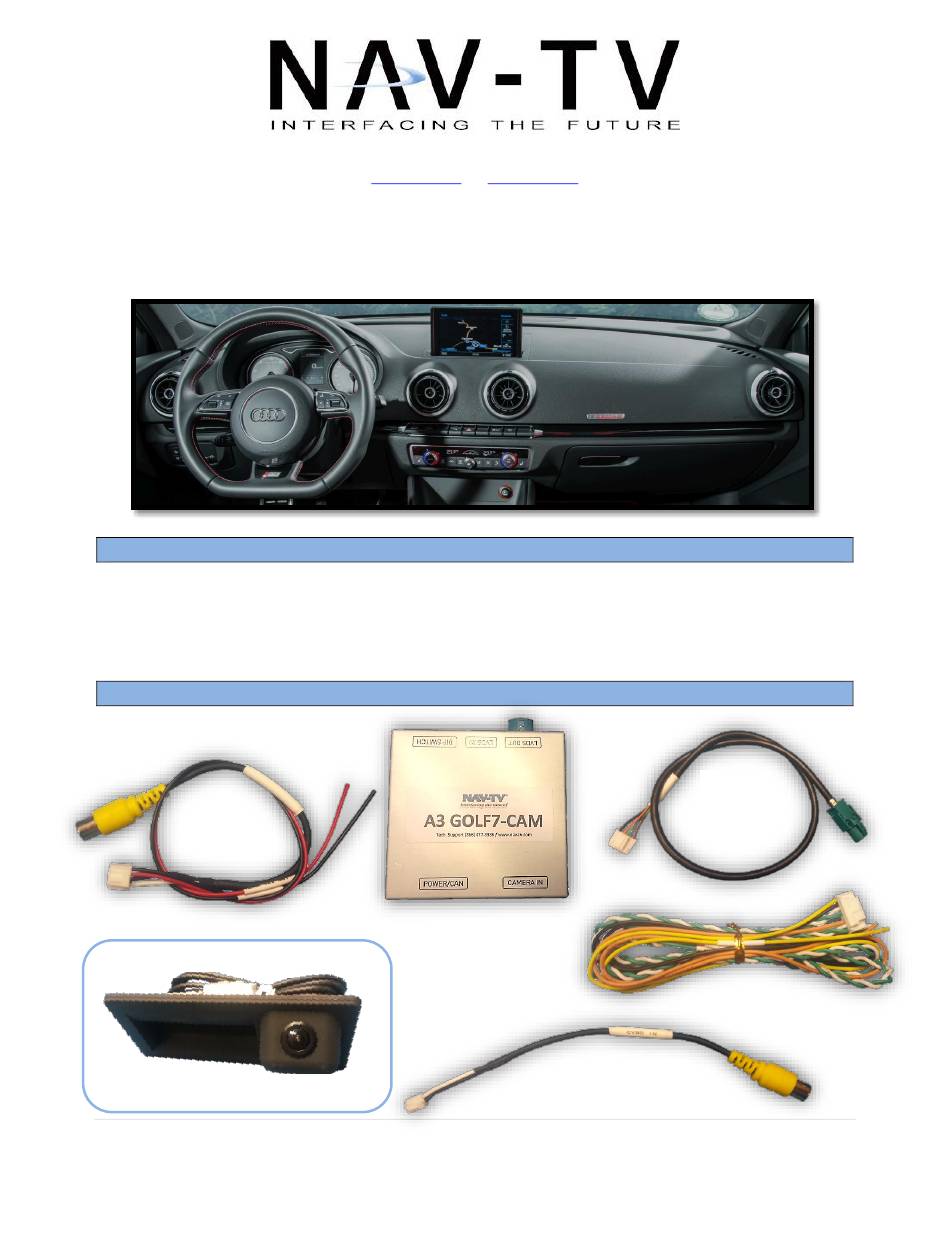

The A3/GOLF7-CAM Kit allows the user to add 1 video input and a backup camera input (with
active parking lines!) to the factory media screen in the 2014 Audi A3 or VW Golf 7. Installation
is performed behind the MMI (inside glove box).
CAM Input
Harness
Optional: NTV-KIT496
AUDI 3G-CAM NTV-CAM072
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
th
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
A3/GOLF 7-CAM
NTV-KIT500
Overview

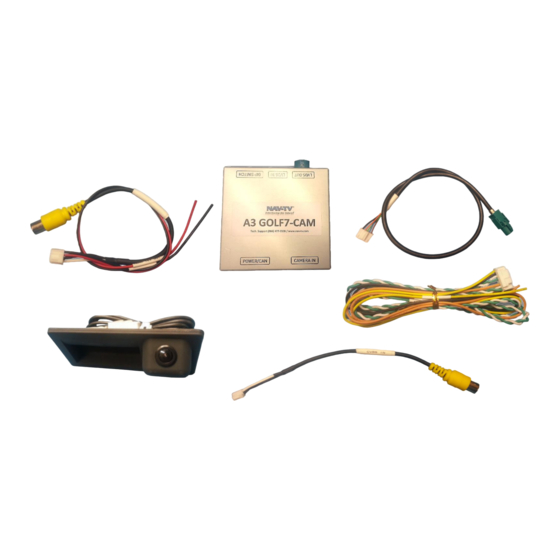

Kit Contents
A3/GOLF7 Interface
Power/CAN Harness
Aux Video in Cable
BHM
12/10/14
NTV-DOC184
LVDS
Video
Cable
1 |
P a g e
Advertisement
Related Manuals for Nav TV A3/GOLF 7-CAM
Summary of Contents for Nav TV A3/GOLF 7-CAM
- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 www.nav-tv.com info@nav-tv.com A3/GOLF 7-CAM NTV-KIT500 Overview The A3/GOLF7-CAM Kit allows the user to add 1 video input and a backup camera input (with active parking lines!) to the factory media screen in the 2014 Audi A3 or VW Golf 7. Installation is performed behind the MMI (inside glove box).
- Page 2 12/10/14 NTV-DOC184 Interface Connectors Video IN Power/CAN OUOUT Rear-CAM IN/CAM Power Dip Switches LVDS OUT LVDS IN (from (to screen) radio) Dip Switch Settings Quick Reference AUDI A3 VW GOLF VII without NAV without NAV VW GOLF VII AUDI A3 with NAV with NAV Settings shown here are with MENU set to ON and AUX VIDEO set to OFF.
- Page 3 12/10/14 NTV-DOC184 Dip Switch Settings* Extended Information Car Select Aux Video Resolution Menu Audi A3 Dip SW: (No NAV) DOWN Car Select Aux Video Resolution Menu Audi A3 Dip SW: (With NAV) DOWN Car Select Aux Video Resolution Menu Golf VII Dip SW: (No NAV) DOWN...
-
Page 4: Installation
12/10/14 NTV-DOC184 Installation 1. With VW radio keys, remove the MMI located in glove box. Disconnect any associated harnesses and set the radio aside. 2. Gather the provided ‘Power/CAN Harness’ from the A3/GOLF7 kit. Connect the following wires to the car radio’s main power plug*: Interface wires Connect to car Radio Plug... - Page 5 12/10/14 NTV-DOC184 4. Connect the smaller white plug side of the provided LVDS Video Cable to the port on the A3/GOLF7 interface labeled ‘LVDS- IN’. 5. Connect the free end of the provided LVDS Video Cable back to the factory radio at the appropriate port.
- Page 6 12/10/14 NTV-DOC184 GOLF VII ONLY: If this car does not have OEM PDC (Parking sensors in the rear bumper), you MUST setup this module differently. Follow the steps below: a. Disconnect the main Power/CAN connector from the module b. Locate the dip switches on the side of the module and verify that dip switch 6 is DOWN (the rest are less important).
- Page 7 12/10/14 NTV-DOC184 A3 Controls (MMI knob) Press quickly: DISPLAY Rotate/Click: VIDEO To navigate MENU/Select option Press: Return to previous menu Hold for 5 seconds: ENTER MENU Not shown: iNAV button on steering wheel: hold for 3 seconds to display AUX Video (DIP SW 2 must be down) GOLF 7 Controls (steering wheel) Hold for 5 seconds:...
