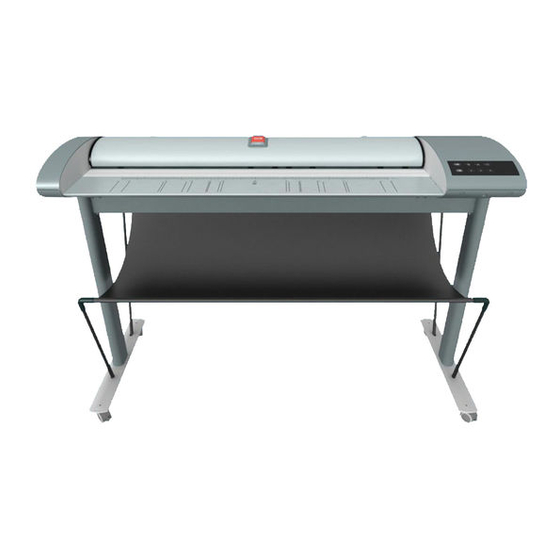

Océ CS4236
o
User Manual Océ CS4236

Advertisement

Table of Contents
loading

Related Manuals for Oce CS4236

Summary of Contents for Oce CS4236

  • Page 1 Océ User manual Océ CS4236 User Manual Océ CS4236...
  • Page 2 Océ-Technologies B.V. © 2008, Océ-Technologies B.V. Venlo, The Netherlands. All rights reserved. No part of this work may be reproduced, copied, adapted, or transmitted in any form or by any means without written permission from Océ. Océ-Technologies B.V. makes no representation or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.
  • Page 3 Trademarks Trademarks Océ, Océ CS4236 ® are registered trademarks of Océ-Technologies B.V. Adobe ® , Acrobat ® , Reader ® and Distiller ® are registered trademarks of Adobe ® Systems Incorporated. PostScript ® 3™ is a registered trademark of Adobe ® Systems Incorporated.

  • Page 4: Notes For The Reader

    This manual helps you to use the Océ CS4236. The manual contains a description of the product and guidelines to use and operate the Océ CS4236. There are also tips to increase your knowledge of the product and to help you manage the workflow.

  • Page 5: Table Of Contents

    Contents Contents Chapter 1 About this Manual......................7 About this Manual....................8 Chapter 2 Overview of the Scanner...................9 Overview of the scanner..................10 Chapter 3 Installation.........................13 Installation......................14 Chapter 4 Switch the scanner ON and OFF................21 Main Power switch...................22 Sleep and wake modes..................24 Chapter 5 Loading an original....................27 Loading Originals into the...
  • Page 6 Contents Chapter 10 Trouble Shooting......................81 Trouble Shooting General................82 Problems Related to Scanner Installation............83 Problems Related to Operation of the scanner..........85 Problems Related to Scanning Results............86 Problems Related to Océ Copy Easy..............87 Technical Assistance..................88 Chapter 11 Appendix........................91 Important safety instructions................92 Regulations.......................94 Reader's comment sheet ................96 Addresses of local Océ...

  • Page 7: Chapter 1 About This Manual

    Chapter 1 About this Manual...

  • Page 8: About This Manual

    About this Manual About this Manual Introduction This manual explains how to operate and maintain your Océ CS4236 scanner. The manual assumes basic knowledge of your computer and operating system and does not repeat material from their documentation. This user's guide covers the following models: Océ...

  • Page 9: Overview Of The Scanner

    Chapter 2 Overview of the Scanner...

  • Page 10: Overview Of The Scanner

    Overview of the scanner Overview of the scanner Introduction Below: The parts, buttons and areas you need to recognize for using the scanner. Scanner front view Scanner front view Scanner lid Release buttons for opening the scanner lid (for maintenance) Operator Panel Insert slot for document feeding Scanner bed - paper feed area...

  • Page 11: Chapter 2

    Overview of the scanner Operators panel Power button and indicator One Touch buttons Paper backwards button Scanner backside view Scanner backside view Connection panel Release buttons for opening the scanner lid (for maintenance) Connection panel Connection panel USB interface connection 4 Diagnostic LEDS (for reporting to service provider) Main power connection socket Main power switch...
  • Page 12 Overview of the scanner Chapter 2 - Overview of the Scanner...

  • Page 13: Chapter 3 Installation

    Chapter 3 Installation...

  • Page 14: Installation

    Installation Installation Introduction Follow the steps below for a quick and easy installation of your scanner and scanner drivers. Attention: : Do not connect the scanner to the power or the PC. Attention: : You must install your scanner's drivers and tools before you connect the scanner or install any scanner software applications.
  • Page 15 Installation Installation step by step Action Remarks Your scanner should be placed either on the specially designed Note: stand-alone floor stand or on a : DO NOT YET CONNECT sturdy table. Make sure there is THE SCANNER TO POWER enough space behind the scanner OR PC.
  • Page 16 Installation Action Remarks Disconnect the power plug. Note: This step is to ensure your own personal safety and to help protect your device from potential damage. Clean the scanner feeding bed. This is the flat surface in front of the insertion slot. Wipe thor- oughly so dirt and dust are not dragged into the scan area with the original.
  • Page 17 Installation Action Remarks Open the scanner lid. - Pull the lid back. Retain pressure on the lid release buttons and your grip on the lid edge as you pull the lid back- wards towards your body. Open the scanner lid all the way back.
  • Page 18 Installation Action Remarks Connect the power cable to the scanner. Connect the scanner power cable to the scanner's main power connection socket. The main power connection socket is at the scanner's back- side. Connect power to the wall out- let. Connect the other end of the scanner power cable to the power outlet.
  • Page 19 Installation Action Remarks Switch on your PC and start Windows. Windows will detect the new hardware (scanner) during start- up and the drivers you installed in step 2. will be recognized. Follow Windows' hardware in- stallation instructions should any appear on your screen. Verify correct scanner installa- tion: 1.
  • Page 20 Installation Chapter 3 - Installation...

  • Page 21: Switch The Scanner On And Off

    Chapter 4 Switch the scanner ON and OFF...

  • Page 22: Main Power Switch

    Main Power switch Main Power switch Introduction The main power switch is at the back side of the scanner. Switch the scanner ON and OFF Action Remarks Press the upper half of the switch (marked "I") to turn the mains power to ON.
  • Page 23 Main Power switch Scanner ready to scan Step Action Remarks The scanner is ready for scan- ning when the power LED turns green. The scanner starts up in Wake mode (see ‘Sleep and wake modes’ on page 24). You can leave the main power switch permanently ON and control scanner power through its Sleep and Wake modes.

  • Page 24: Sleep And Wake Modes

    Sleep and wake modes Sleep and wake modes Introduction With the mains power switch ON, scanner power can be set in Sleep mode and Wake mode. Sleep mode is the energy saving mode. The scanner cannot scan when in the Sleep mode. Wake mode is the full power ON mode for scanner operation.

  • Page 25: Chapter 4

    Sleep and wake modes Step Action Remarks Scanner in Wake mode – Power LED is green Chapter 4 - Switch the scanner ON and OFF...

  • Page 26: Chapter 4

    Sleep and wake modes Chapter 4 - Switch the scanner ON and OFF...

  • Page 27: Chapter 5 Loading An Original

    Chapter 5 Loading an original...

  • Page 28: Loading Originals Into The Scanner

    Loading Originals into the scanner Loading Originals into the scanner Introduction Load your document with the image side facing upwards. Align the center of the document with the center arrow marking on the scanner bed. Use the standard size markings to help align the document for a straight scan path. You can use automatic loading or manual loading.

  • Page 29: Chapter 5

    Loading Originals into the scanner A delay factor can be set in the scanning application. The delay will give you time to control straight positioning of the document if you feel the scanner is grabbing the original too fast. Manual loading Make sure the Paper handling option “Manual”...

  • Page 30: Chapter 5

    Loading Originals into the scanner Press the Paper Forward button if you wish to eject the original out the back of the scanner. Soft handling The Soft-handling option can be selected in your scan application. Softhandling means that feeding and scanning are slowed down. You can use the option with both Manual and Automatic loading.

  • Page 31: Chapter 5

    Loading Originals into the scanner Setting the input size The Input size defines the scan area. You enter the input size in your application’s input size dialogs. Note: NOTE: The availability of the Input size options described below will depend on your scan/copy software and its level of compatibility with the scanner model.
  • Page 32 Loading Originals into the scanner Chapter 5 - Loading an original...

  • Page 33: Chapter 6 Scan An Original

    Chapter 6 Scan an original...

  • Page 34: Scan An Original

    Scan an original Scan an original Software applications for scanning Your scanner is controlled through scan, copy or imaging software installed on your PC. Optimal full featured scanning functionality is obtainable through scan and copy software specifically developed for compatibility with your scanner model. See the scanner manu- facturer's website for information on scanner software and compatible third-party appli- cations.
  • Page 35 Scan an original Batch scanning Batch scanning involves jobs where you want to feed and scan a whole set of originals that require equal scan settings. The basic steps are: 1. Set your scan settings (size, type, image adjustments..) for the batch. Your settings will apply to ALL the documents in the batch.
  • Page 36 Scan an original Chapter 6 - Scan an original...
  • Page 37 Scan an original With Océ Scanner agent you can: View the scanner's status. Move the mouse over the scanner icon on the system tray. Status messages include whether or not the scanner is detected, connection and runtime errors and readiness for scanning. View Error messages and logs.
  • Page 38 Scan an original Chapter 6 - Scan an original...

  • Page 39: Chapter 7 Maintenance

    Chapter 7 Maintenance...

  • Page 40: Maintenance Overview

    This should be carried out when a worn glass plate affects your results. You may need a new glass plate if streaks still appear on the image even after cleaning the glass. See ‘Replac- ing the glass plate’ on page 52 Request a replaceable part at mediaguide.oce.com. Chapter 7 - Maintenance...
  • Page 41 Maintenance Overview Cleaning the scan area How often you should clean your scanner will largely depend on how much you use the scanner and the condition of your documents. Generally, be sure to clean at least once a month and always right before important jobs that require a high degree of precision.

  • Page 42: Cleaning

    Cleaning Cleaning Introduction The illustration below shows the scanner from above with its lid open. The illustration indicates the key points (parts and areas) you need to recognize when cleaning the scanner. Instructions regarding the cleaning tasks that involve these points follow below. Caution: Always disconnect power before cleaning the scanner.
  • Page 43 Cleaning Cleaning Action Remarks Turn the main power to OFF. Press the main power switch at the back of the scanner to the OFF position ("0"). Disconnect the power plug. Note: Always disconnect pow- er before cleaning the scanner. This step is to ensure your own person- al safety and to help protect your device from...
  • Page 44 Cleaning Action Remarks Open the scanner lid. - Press the lid release buttons. The next steps involve cleaning the scan area under the scanner lid so you have to open it. The scanner lid release buttons are at the back of the lid. 1.
  • Page 45 Cleaning Action Remarks Clean the scanner's glass plate. Make sure you use 2 fresh and clean lint-free cloths for cleaning the glass plate. Do not reuse the cloth you used to wipe the scanner bed. 1. Spray/apply a mild, streak- free, glass cleaner onto a lint-free cloth.
  • Page 46 Cleaning Action Remarks Clean the upper precision rollers. The upper precision rollers are in the lid, aligned in two rows on each side of the glass plate. Their function to keep the docu- ment on a straight path as it moves forward in the scanner.
  • Page 47 Cleaning Action Remarks Clean the white pressure rollers. The white pressure rollers are the long rollers between the black transport rollers. They function to hold docu- ments flat in the scanner. 1. Spray/apply a mild, streak- free, glass cleaner onto a lint-free cloth.
  • Page 48 Cleaning Action Remarks Clean the black transport rollers. The black transport rollers are placed in two rows on each side of the white pressure rollers. The black transport rollers are motor- ized and function to move the document through the scanner. 1.

  • Page 49: Calibration - Scanner Maintenance Program

    Calibration - Scanner Maintenance program Calibration - Scanner Maintenance program Introduction Scanner calibration is very easy to perform with the Scanner Maintenance program you installed with your drivers. You just insert a calibration sheet, start the Scanner Mainte- nance program and let the wizard take over. Note: Be sure to clean the scanner and scan area before calibrating.
  • Page 50 Calibration - Scanner Maintenance program Action Remarks Launch the Océ Scanner Mainte- nance program 1. On your PC - Right click on the scanner icon. 2. Select Launch Scanner Main- tenance to open the program’s welcome dialog. Follow the steps described by the wizard.
  • Page 51 Calibration - Scanner Maintenance program Action Remarks The program calibrates the scanner. The program works in steps to analyze and correct the status of the sensors, calibrate black and white values and calibrate color (on color scanners). The calibration sheet will be res- canned a number of times as the program processes data.

  • Page 52: Replacing The Glass Plate

    Replacing the glass plate Replacing the glass plate Introduction Replacing the glass plate: Your documents move against the glass plate as they pass the scanner's sensors. After long-term use, the glass plate can become worn or scratched and this can affect image capture precision. Changing the glass will renew your scanner and ensure optimal results.
  • Page 53 Replacing the glass plate Replace the glass plate Step Action Remarks Turn the main power to OFF. Press the main power switch at the back of the scanner to the OFF position. Disconnect the power plug. CAUTION: This step is to en- sure your own personal safety and to help protect your device from potential damage...

  • Page 54: Replacing The Glass

    Replacing the glass plate Step Action Remarks Open the scanner lid ( Pull the lid back). 1. Retain pressure on the lid re- lease buttons and your grip on the lid edge as you pull the lid backward towards your body. 2.

  • Page 55: Replacing The Glass

    Replacing the glass plate Step Action Remarks Detaching the glass plate (free the 2nd latch). After freeing the first latch in the previous step, freeing the remain- ing latches is easy. 1. Press down on the latch re- lease button in the 2nd square hole from the right.

  • Page 56: Replacing The Glass

    Replacing the glass plate Step Action Remarks Detaching the glass plate (Tip the glass plate edge upwards). After releasing all the latches, the glass plate is now free for re- moval. 1. Stand at the front side of the scanner. 2.
  • Page 57 Replacing the glass plate Step Action Remarks Insert a new glass plate (lower a new glass plate into the scanner). 1. Pick up the new glass plate in the same manner as you removed the old one - with two hands holding the glass on each end so you avoid touching the glass surface.

  • Page 58: Replacing The Glass

    Replacing the glass plate Step Action Remarks Insert a new glass plate (fit into bottom position groove). 1. The glass plate will rest in the scanner's lid between the bottom and top position grooves. Locate the glass plate's bottom position groove in the lid.

  • Page 59: Replacing The Glass

    Replacing the glass plate Step Action Remarks Clean the new glass plate. Make sure you use 2 fresh and clean lint-free cloths for cleaning your new glass plate. 1. Spray/apply a mild, streak- free, glass cleaner onto a lint-free cloth. 2.

  • Page 60: Downloading New Firmware

    Your scanner is shipped with the latest firmware available. You can afterwards upgrade your original firmware with newer firmware and continue to do so as they are released. Firmware upgrades can be downloaded from Océ's website (See www.oce.com). Upgrade your firmware when: 1.
  • Page 61 Downloading new firmware How to install new firmware? New firmware is installed by opening the firmware .exe file. The firmware .exe file must first reside on your machine. Select the Save target (or Save Link) option if downloading from the web. Chapter 7 - Maintenance...
  • Page 62 Downloading new firmware Chapter 7 - Maintenance...

  • Page 63: Chapter 8 Océ Scanner Agent

    Chapter 8 Océ Scanner Agent...

  • Page 64: Introduction

    Introduction Introduction Introduction Océ Scanner Agent is a program designed to integrate your wide format scanner with your overall system through the following two central functions: Océ Scanner Agent contains the drivers necessary to run you scanner. Océ Scanner Agent is an application designed to monitor and control the functional- ity of your wide format scanner.

  • Page 65: Installation Of Océ Scanner Agent

    Installation of Océ Scanner Agent Installation of Océ Scanner Agent Introduction The Océ Scanner Agent setup program includes the installation of the scanner drivers and of the scanner control utility, Océ Scanner Agent. Caution: It is essential that you install Océ Scanner Agent before you connect the scanner or install any other scanner applications.

  • Page 66: Interface Of Océ Scanner Agent

    Interface of Océ Scanner Agent Interface of Océ Scanner Agent Start of Océ Scanner Agent There are two ways to start the program: From the Windows 'Start' menu, select 'Programs'/ 'Océ Scanner Agent' Chapter 8 - Océ Scanner Agent...
  • Page 67 Interface of Océ Scanner Agent or double-click the Océ Scanner Agent icon on the system tray: Status The Status tab displays useful messages about what the scanner is currently doing and displays error messages when relevant. Scanner mode What the scanner is doing at any given moment. Here is a list of the different scanner modes: Chapter 8 - Océ...
  • Page 68 Interface of Océ Scanner Agent Scanner mode Description "<N/A>" Scanner not accessible. Océ Scanner Agent has not (yet) detected the scanner. "Scanner is unsup- The connected scanner is not a model compatible with Océ ported" Scanner Agent. "Scanner is busy or This message is displayed while downloading firmware to the turned off"...
  • Page 69 Interface of Océ Scanner Agent Error Message Description / Solution "Invalid Smart Check your smart card in the smart card drawer. Make sure it Card for this scan- is positioned/inserted correctly and then reboot. ner type" "Correction of The scanner is continuously monitoring your cameras. This Camera X (A, B, problem often arises when the internal glass plate or white C, or D..) failed"...
  • Page 70 Interface of Océ Scanner Agent Info Info When you click this tab, information about your scanner is displayed. Info Tab Item Description Usage Firmware release Upgradeable firmware version. User Version numbers are increased each time a new OFFICIAL firmware is released. Firmware revision Internal to manufacturer.
  • Page 71 Interface of Océ Scanner Agent Info Tab Item Description Usage Serial number The scanner’s serial number. User/Support Service ID ID number that relates to first- Support time operation. The Log tab displays summarized values related to your scanner’s runtime. Log Tab Item Description Number of scans Used to monitor the use of your scanner.
  • Page 72 Interface of Océ Scanner Agent Note: 7 days is an average assessment for normal scanning. If you scan old originals that leave smudges on the glass plate or if you have high quality requirements for precise colour/graytones, you can calibrate more often. Timer The Timer tab allows you to program the scanner's internal clock that controls your scanner's power-on and power-off schedule.
  • Page 73 Interface of Océ Scanner Agent Step Action Click the checkmark fields for each day you want to set automatic power on and off. For each day selected, in the ON column, choose the time (hour and minutes) you want the scanner to be powered on. Repeat the same procedure in the OFF column to set the power off times.
  • Page 74 Interface of Océ Scanner Agent Scanner Agent will automatically detect a single scanner. On multiple attachment config- urations, the first scanner will be detected automatically. Rescan Hardware Bus(es) Use this option to redetect the scanner or detect a new scanner attached to your USB interface, after you boot your system.

  • Page 75: Océ Scanner Maintenance

    Chapter 9 Océ Scanner Maintenance...

  • Page 76: Installation Of The Software

    Installation of the software Installation of the software Introduction The Océ Scanner Maintenance software enables to perform almost automatically the maintenance tasks on your wide format scanner: Camera alignment Basic calibration Colour calibration It is essential that you install Océ Scanner Agent before you connect the scanner or install any other scanner applications (see ).

  • Page 77: Océ Scanner Maintenance Program

    Océ Scanner Maintenance program Océ Scanner Maintenance program Why maintain the scanner Regular Scanner Maintenance is a sure way to minimize costly downtime. The three routine maintenance procedures Cleaning, Camera alignment and Calibration will improve image quality and reduce service costs. These three maintenance functions are closely entwined and they should all be performed in a single maintenance session, starting with cleaning the scan area and ending with calibration.
  • Page 78 Océ Scanner Maintenance program One is fixed and the other is adjustable. Calibration After Camera alignment, the Scanner Maintenance program goes straight to Basic (black and white point) and Colour Calibration (colour scanners only) on its own. You don't have to insert extra sheets or find camera positions on the scanner. The Maintenance program detects the scanner model and makes all the necessary calculations.
  • Page 79 Océ Scanner Maintenance program The following dialog appears when the Océ Scanner Maintenance program cannot find the IT8 calibration sheet reference file that corresponds to the maintenance sheet being used: Selecting this button activates a search on the internet and downloads the right IT8 cali- bration reference data file to your system.
  • Page 80 Océ Scanner Maintenance program Chapter 9 - Océ Scanner Maintenance...

  • Page 81: Chapter 10 Trouble Shooting

    Chapter 10 Trouble Shooting...

  • Page 82: Trouble Shooting General

    Trouble Shooting General Trouble Shooting General Introduction This section describes trouble-shooting procedures for the most common issues that can arise with your scanner. Please look for a problem description that matches your actual situation. If found, perform the recommended trouble-shooting procedures before requesting a service call.

  • Page 83: Problems Related To Scanner Installation

    Problems Related to Scanner Installation Problems Related to Scanner Installation Introduction Overview of the problems related to scanner installation. Problems Related to Scanner Installation Problem Possible cause and solution “Unknown device Your interface is not enabled on the PC or set up correctly. is found“...

  • Page 84: Trouble Shooting

    Agent from the CD-ROM that came with your scanner. If not available, download the newest version from www.oce.com. Océ Scanner Agent was not installed before connecting the scanner. Shut down the scanner and PC, unplug the connec- tions and restart the installation from step 1 as described above.

  • Page 85: Problems Related To Operation Of The Scanner

    Problems Related to Operation of the scanner Problems Related to Operation of the scanner Introduction Overview of the problems related to the operation of the scanner. Problems Related to Operation of the Scanner Problem Possible cause and solution Error Indicator An error was detected.

  • Page 86: Problems Related To Scanning Results

    Problems Related to Scanning Results Problems Related to Scanning Results Introduction Overview of the problems related to Scanning Results. Problems Related to to Scanning Results Problem Possible cause and solution Not whole image Check in your scanning application that your size settings scanned are either for Auto detection or correspond to the size of the whole original.

  • Page 87: Problems Related To Océ Copy Easy

    Problems Related to Océ Copy Easy Problems Related to Océ Copy Easy Introduction Overview of the problems related to Océ Copy Easy. Problems Related to to Océ Copy Easy The following steps are possible to troubleshoot Océ Copy Easy: Check the scanner indicator (coloured circle): - Green colour: The system is OK - Other colour: Move the cursor on the text of the scanner.

  • Page 88: Technical Assistance

    Technical Assistance Technical Assistance Introduction Before you report the problem to Océ, make sure you have done the necessary troubleshoot- ing steps, as indicated in the previous steps. Check that you have the following information is available for the Océ Helpdesk: Serial number of the printer.
  • Page 89 Technical Assistance Step Action Remarks Before calling technical assis- tance prepare the following: 1. Write down your scanner model name and serial number. The serial number is the 5 char- acter string printed on a label on the back of the scanner. 2.
  • Page 90 Technical Assistance Chapter 10 - Trouble Shooting...

  • Page 91: Chapter 11 Appendix

    Chapter 11 Appendix...

  • Page 92: Important Safety Instructions

    Important safety instructions Important safety instructions Important safety instructions Note: Read all of these instructions and save them for later use. Follow all warnings and instruc- tions marked on the scanner. A. Do not place the scanner on an unstable surface, stand, cart or table. Serious damage can be caused if the unit falls.
  • Page 93 Important safety instructions When the power cord or plug is damaged or frayed. If liquid has been spilled into the scanner. If the scanner has been exposed to rain or water. If the scanner does not operate normally when operating instructions are followed then adjust only those controls covered by the instructions in this manual.

  • Page 94: Regulations

    Regulations Regulations Introduction FCC Regulations This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea- sonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 95 Regulations Part name Toxic or hazardous Substances or Elements O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363-2006. X: Indicates that this toxic or hazardous substance contained in at least one of the ho- mogeneous materials used for this part is above the limit requirement in SJ/T11363- 2006.

  • Page 96: Reader's Comment Sheet

    Reader's comment sheet Reader's comment sheet Questions Have you found this manual to be accurate? O Yes O No Were you able to operate the product, after reading this manual? O Yes O No Does this manual provide sufficient background information? O Yes O No Is the format of this manual convenient in size, readability and arrangement (page layout,...
  • Page 97 Please return this sheet to: Océ-Technologies B.V. For the attention of ITC User Documentation. P.O. Box 101, 5900 MA Venlo The Netherlands Send your comments by E-mail to: itc-userdoc@oce.com For the addresses of local Océ organisations see: http://www.oce.com Chapter 11 - Appendix...

  • Page 98: Addresses Of Local Océ Organisations

    Océ-Australia Ltd. Océ-Österreich GmbH P.O. Box 363 Postfach 95 Ferntree Gully MDC 1233 Vienna Vic 3165 Austria Australia http://www.oce.at/ http://www.oce.com.au/ Océ-Belgium N.V./S.A. Océ-Brasil Comércio e Indústria Ltda. J. Bordetlaan 32 Av. das Nações Unidas, 11.857 1140 Brussel Brooklin Novo Belgium São Paulo-SP 04578-000...
  • Page 99 Addresses of local Océ organisations Océ-Hungaria Kft. Océ-Ireland Ltd. 1241 Budapest 3006 Lake Drive Pf.: 237 Citywest Business Campus Hungary Saggart http://www.oce.hu/ Co. Dublin Ireland http://www.oce.ie/ Océ-Italia S.p.A. Océ Japan Corporation Strada Padana Superiore 2/B 3-25-1, Nishi Shinbashi 20063 Cernusco sul Naviglio (MI)
  • Page 100 5450 North Cumberland Avenue Chicago, IL 60656 http://www.oceusa.com/ Note: The web site http://www.oce.com gives the current addresses of the local Océ organisa- tions and distributors. Note: The addresses of local Océ organisations for information about the Wide Format Printing Systems and the Production Printing Systems can be different from the addresses above.
  • Page 101 Index Error indicator Index ................85 Firmware ................52 ................60 Attention Glass plate ................4 ..............40, 52 Automatic loading ................28 image ................86 Batch scanning Information ................34 ................66 installation ................76 Installation scanner Calibrate ................14 ................40 Calibration ................77 ..............49, 77 Camera allignment ................77 Caution ................4 ................85 Clean Load original...
  • Page 102 Index Océ Copy Easy ................87 Operators panel ................10 Safety information ................4 scan ................86 Scan original ................34 Scanner Agent ................66 Scanner backside view ................10 Scanner front view ................10 Scanner installation ................83 scanner maintenance ................76 Selftest procedure ................22 Set input size ................28 Sleep mode ................24 Status...
