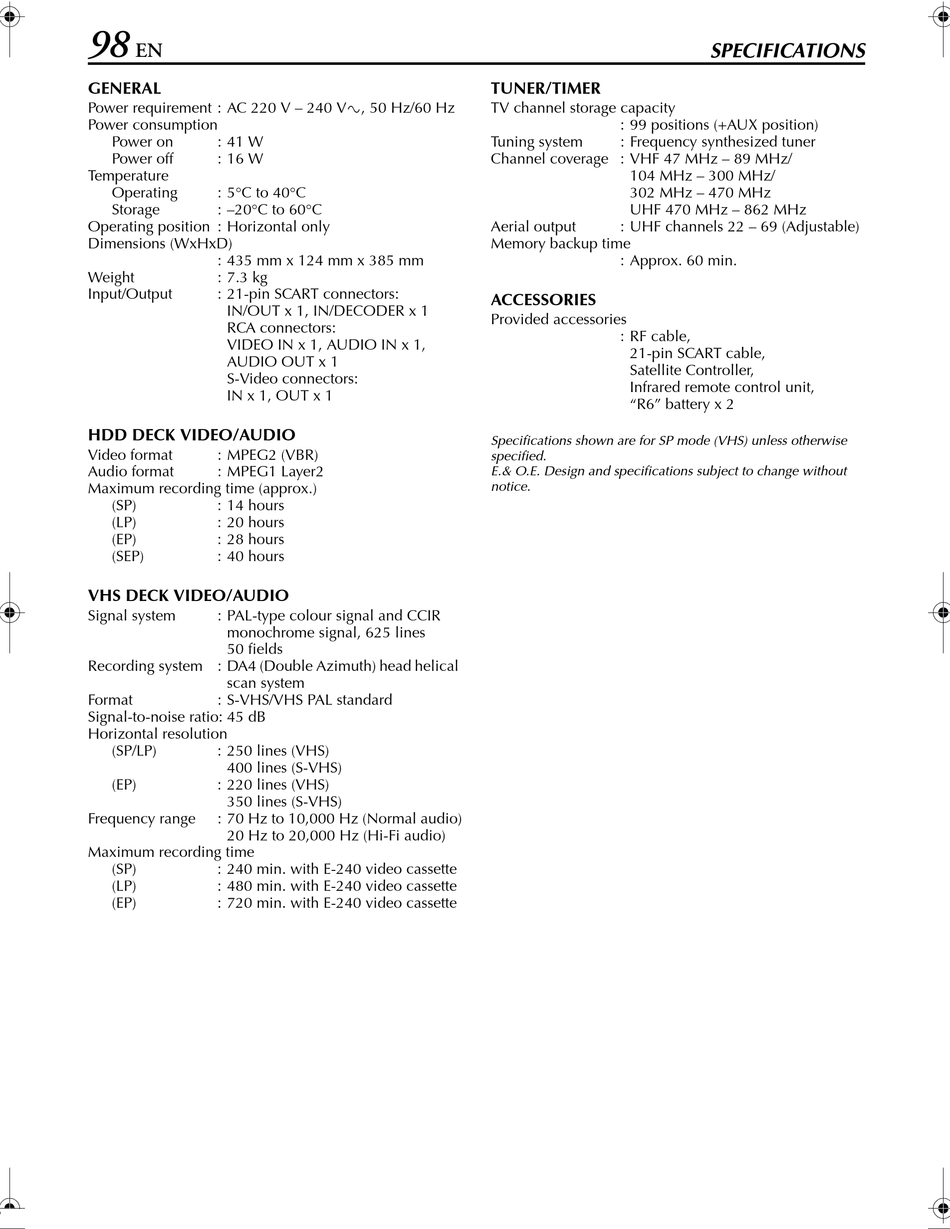

Specifications - JVC HM-HDS1EU Instructions Manual

98
EN
GENERAL
Power requirement : AC 220 V – 240 V
Power consumption
Power on : 41 W
Power off : 16 W
Temperature
Operating : 5°C to 40°C
Storage : –20°C to 60°C
Operating position : Horizontal only
Dimensions (WxHxD)
: 435 mm x 124 mm x 385 mm
Weight : 7.3 kg
Input/Output : 21-pin SCART connectors:
IN/OUT x 1, IN/DECODER x 1
RCA connectors:
VIDEO IN x 1, AUDIO IN x 1,
AUDIO OUT x 1
S-Video connectors:
IN x 1, OUT x 1
HDD DECK VIDEO/AUDIO
Video format : MPEG2 (VBR)
Audio format : MPEG1 Layer2
Maximum recording time (approx.)
(SP) : 14 hours
(LP) : 20 hours
(EP) : 28 hours
(SEP) : 40 hours
VHS DECK VIDEO/AUDIO
Signal system : PAL-type colour signal and CCIR
monochrome signal, 625 lines
50 fields
Recording system : DA4 (Double Azimuth) head helical
scan system
Format : S-VHS/VHS PAL standard
Signal-to-noise ratio: 45 dB
Horizontal resolution
(SP/LP) : 250 lines (VHS)
400 lines (S-VHS)
(EP) : 220 lines (VHS)
350 lines (S-VHS)
Frequency range : 70 Hz to 10,000 Hz (Normal audio)
20 Hz to 20,000 Hz (Hi-Fi audio)
Maximum recording time
(SP) : 240 min. with E-240 video cassette
(LP) : 480 min. with E-240 video cassette
(EP) : 720 min. with E-240 video cassette
TUNER/TIMER
, 50 Hz/60 Hz TV channel storage capacity
d
Tuning system
Channel coverage : VHF 47 MHz – 89 MHz/
Aerial output
Memory backup time
ACCESSORIES
Provided accessories
Specifications shown are for SP mode (VHS) unless otherwise
specified.
E.& O.E. Design and specifications subject to change without
notice.

SPECIFICATIONS

: 99 positions (+AUX position)
: Frequency synthesized tuner
104 MHz – 300 MHz/
302 MHz – 470 MHz
UHF 470 MHz – 862 MHz
: UHF channels 22 – 69 (Adjustable)
: Approx. 60 min.
: RF cable,
21-pin SCART cable,
Satellite Controller,
Infrared remote control unit,
"R6" battery x 2
