Icom ID-RP2 Service Manual page 16

SECTION 5
[CHASSIS PARTS]
REF. ORDER
NO. NO.
W1 8900013310 Cable OPC-1324
W2 8900013300 Cable OPC-1325
W3 8900013290 Cable OPC-1326
W4 8900013280 Cable OPC-1327
W5 8900013270 Cable OPC-1328
W6 8900013260 Cable OPC-1329
MP1 8110008160 2730 cover (NC)
MP2 8010019610 2730 chassis assembly (NC)
MP5 8210020720 2730 panel (NC)
MP6 8930063100 Handle BH-26S
MP7 8850002050 Washer Z-6S
MP8 8930058750 Insulation plate (HH)
MP9 8930048350 2146 lens
Setscrew C M3 × 12
MP10 8810005060
Setscrew C M3 × 6
MP11 8810003360
Screw BiH M3 × 6 SUS
MP12 8810002950
MP13 8830000110 Nut M4
Flat washer M3 (3 × 8 × 0.5) NI BS
MP14 8850000130
MP15 8950000180 Cable tie -80
MP16 8850000140 Flat washer M4 NI BS
[MAIN UNIT]
REF. ORDER
NO. NO.
J1 6510016170 Connector 52018-8835
J10 6510022960 Connector 3012S-04
J12 6510023330 Connector 3012S-2
J13 6510023330 Connector 3012S-2
J19 6450002100 Connector CMS1410-010010
J20 6450002100 Connector CMS1410-010010
Screw abbreviations BiH: Binding head
SUS: Stainless
BS: Brass
MECHANICAL PARTS AND DISASSEMBLY
DESCRIPTION QTY.
12
11
DESCRIPTION QTY.
NI: Nickel

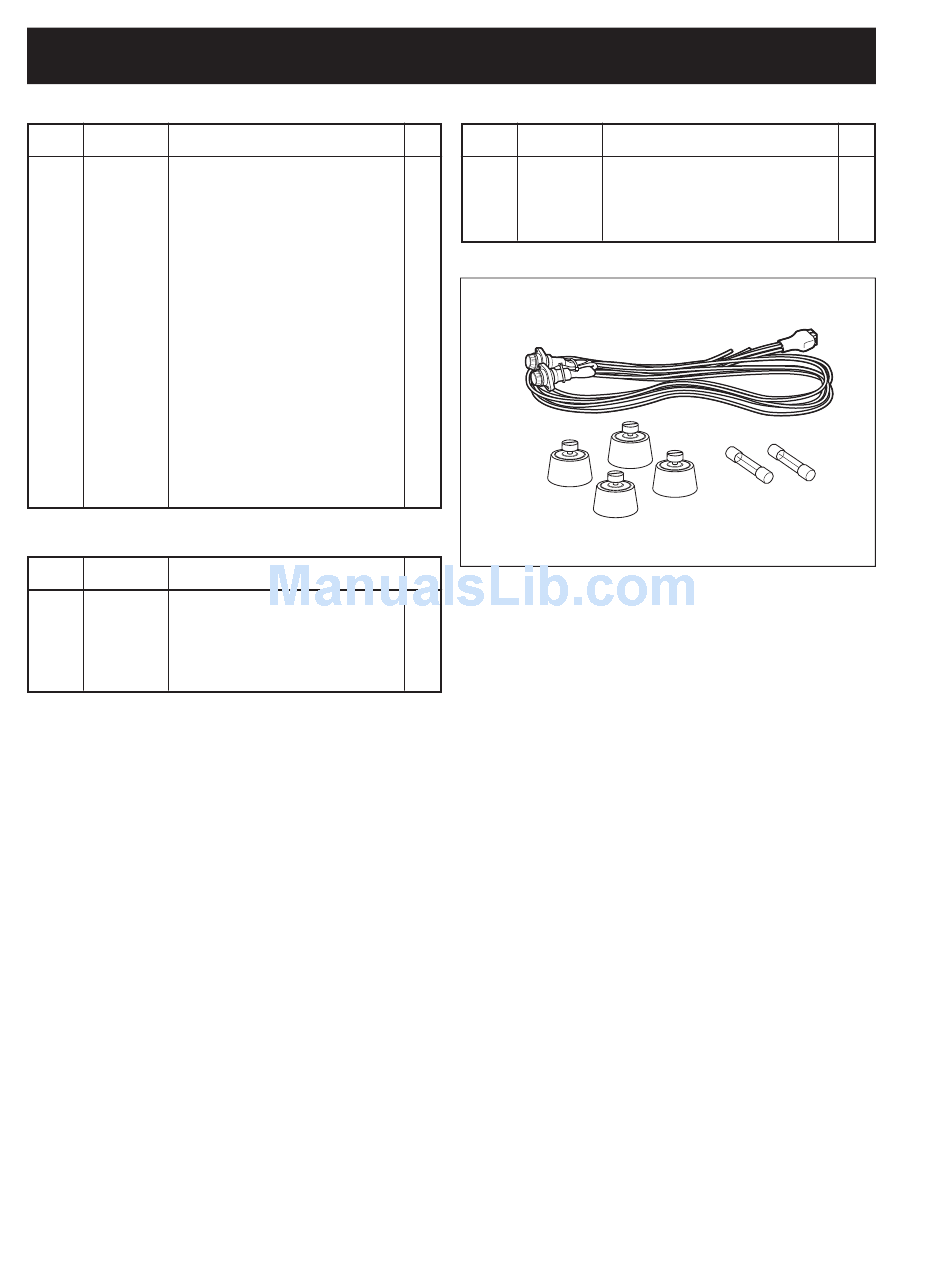

[ACCESSORIES]
REF. ORDER
NO. NO.
1 F1 5210000930
1
1 W1 8900013250
2
1 MP1 8930057680
1
1
1
1
1
4
1
3
4
1
1
1
1
1
1
1
1
1
1
B - 5 - 1
DESCRIPTION
Fuse FGB01 250V 30A
Cable OPC-1380
Rubber stand (O)
W1
F1
MP1
QTY.
2
1
4
