Removing Gearbox Cover - BMW R 1100 RT Repair Manual

23 4 632
4
Clean Bearing

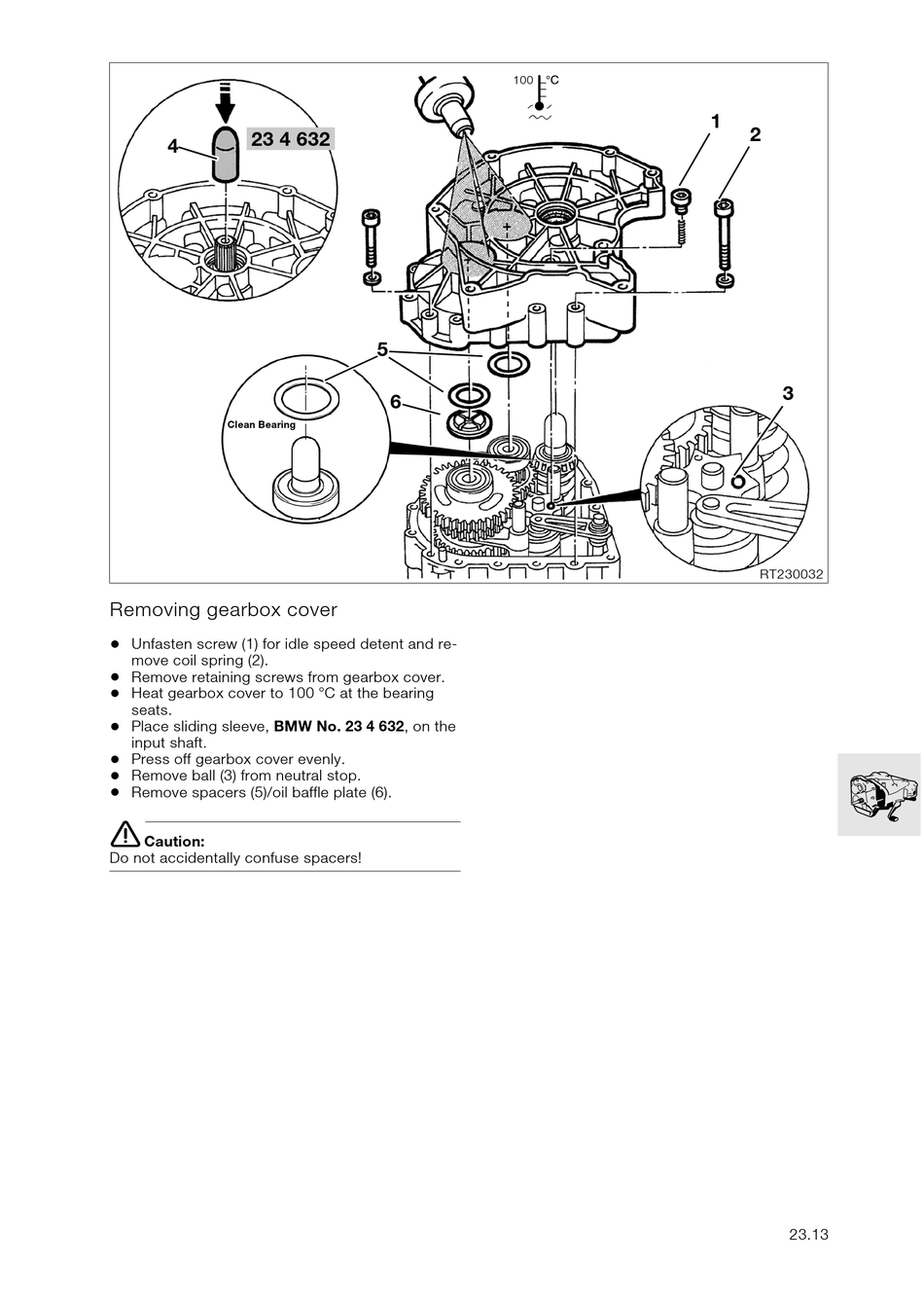

Removing gearbox cover

•
Unfasten screw (1) for idle speed detent and re-
move coil spring (2).
•
Remove retaining screws from gearbox cover.
•
Heat gearbox cover to 100 °C at the bearing
seats.
•
Place sliding sleeve, BMW No. 23 4 632, on the
input shaft.
•
Press off gearbox cover evenly.
•
Remove ball (3) from neutral stop.
•
Remove spacers (5)/oil baffle plate (6).
e
Caution:
Do not accidentally confuse spacers!
j
100
5
6
1
2
3
RT230032
23.13
