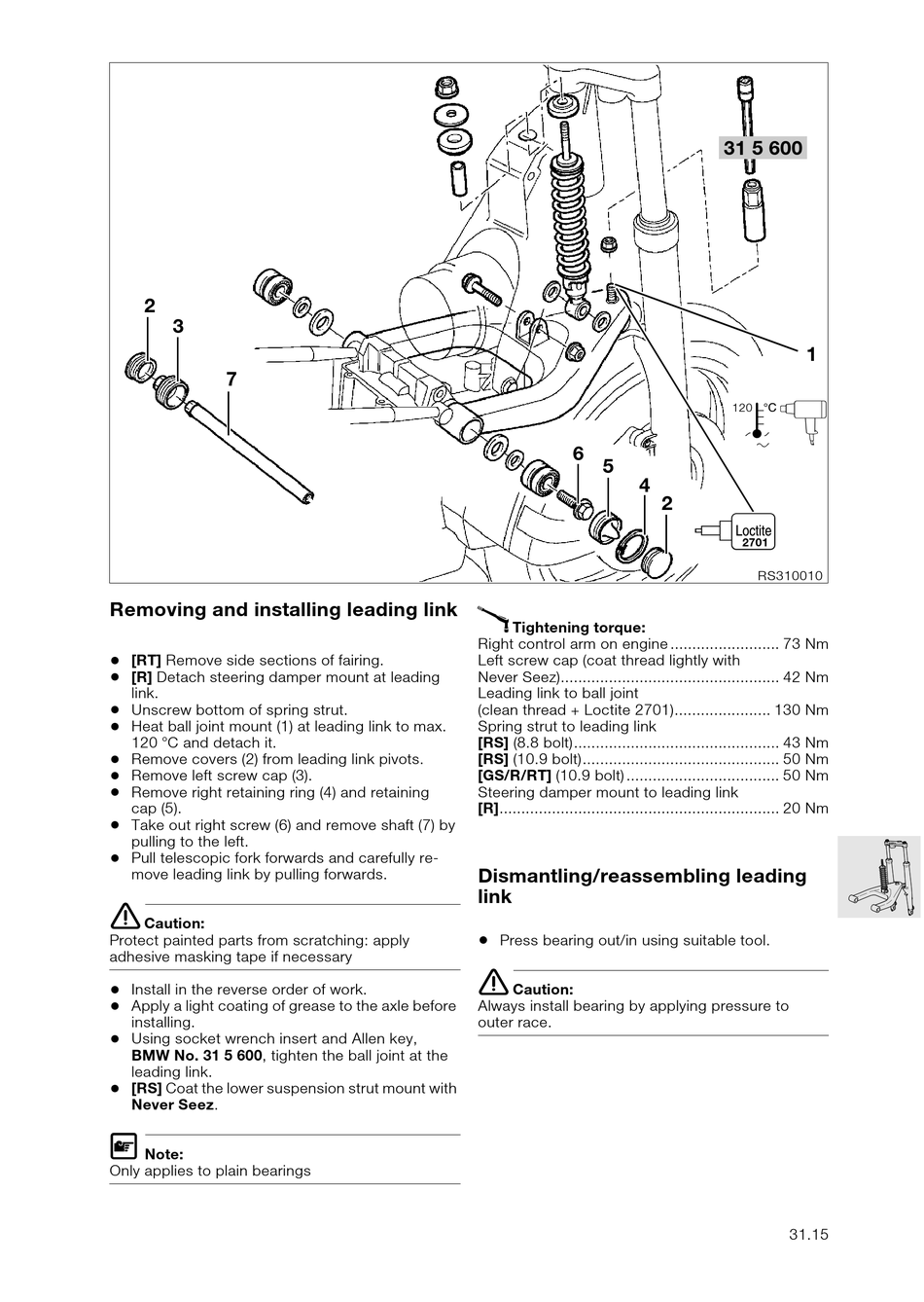

Removing and installing leading link

•
[RT] Remove side sections of fairing.
•
[R] Detach steering damper mount at leading
link.
•
Unscrew bottom of spring strut.
•
Heat ball joint mount (1) at leading link to max.
120 °C and detach it.
•
Remove covers (2) from leading link pivots.
•
Remove left screw cap (3).
•
Remove right retaining ring (4) and retaining
cap (5).
•
Take out right screw (6) and remove shaft (7) by
pulling to the left.
•
Pull telescopic fork forwards and carefully re-
move leading link by pulling forwards.
e
Caution:
Protect painted parts from scratching: apply
adhesive masking tape if necessary
•
Install in the reverse order of work.
•
Apply a light coating of grease to the axle before
installing.
•
Using socket wrench insert and Allen key,
BMW No. 31 5 600, tighten the ball joint at the
leading link.
•
[RS] Coat the lower suspension strut mount with
Never Seez.
L
Note:
Only applies to plain bearings
6
5
4
X
Tightening torque:
Right control arm on engine ......................... 73 Nm
Left screw cap (coat thread lightly with
Never Seez).................................................. 42 Nm
Leading link to ball joint
(clean thread + Loctite 2701)...................... 130 Nm
Spring strut to leading link
[RS] (8.8 bolt)............................................... 43 Nm
[RS] (10.9 bolt)............................................. 50 Nm
[GS/R/RT] (10.9 bolt) ................................... 50 Nm
Steering damper mount to leading link
[R]................................................................ 20 Nm
Dismantling/reassembling leading
link
•
Press bearing out/in using suitable tool.
e
Caution:
Always install bearing by applying pressure to
outer race.
31 5 600
1
w
j
120
2
v
2701
RS310010
31.15
