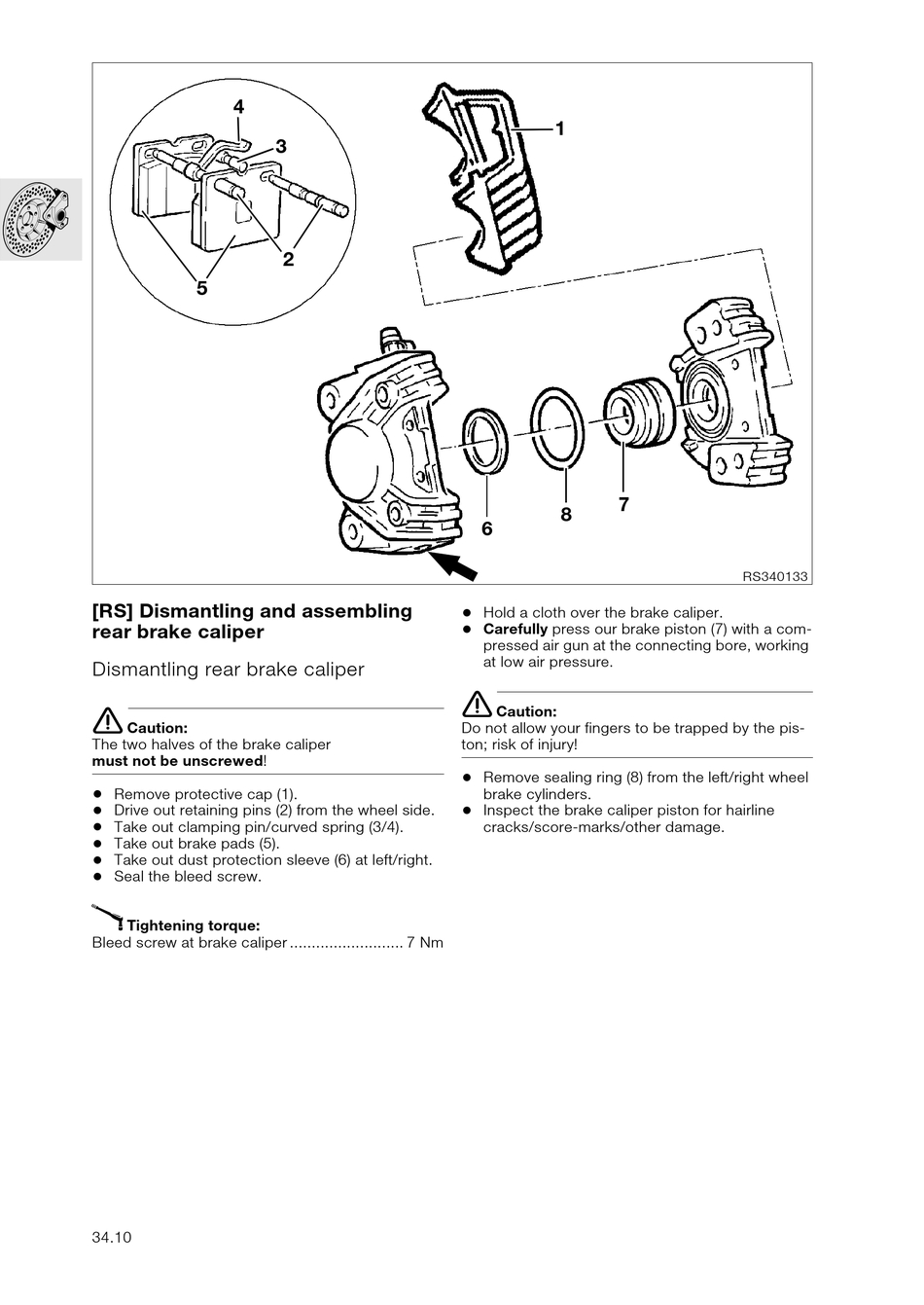

[RS] Dismantling and assembling
rear brake caliper
Dismantling rear brake caliper
e
Caution:
The two halves of the brake caliper
must not be unscrewed!
•
Remove protective cap (1).
•
Drive out retaining pins (2) from the wheel side.
•
Take out clamping pin/curved spring (3/4).
•
Take out brake pads (5).
•
Take out dust protection sleeve (6) at left/right.
•
Seal the bleed screw.
X
Tightening torque:
Bleed screw at brake caliper .......................... 7 Nm
34.10
3
2
1
7
8
6
•
Hold a cloth over the brake caliper.
•
Carefully press our brake piston (7) with a com-
pressed air gun at the connecting bore, working
at low air pressure.
e
Caution:
Do not allow your fingers to be trapped by the pis-
ton; risk of injury!
•
Remove sealing ring (8) from the left/right wheel
brake cylinders.
•
Inspect the brake caliper piston for hairline
cracks/score-marks/other damage.
RS340133
