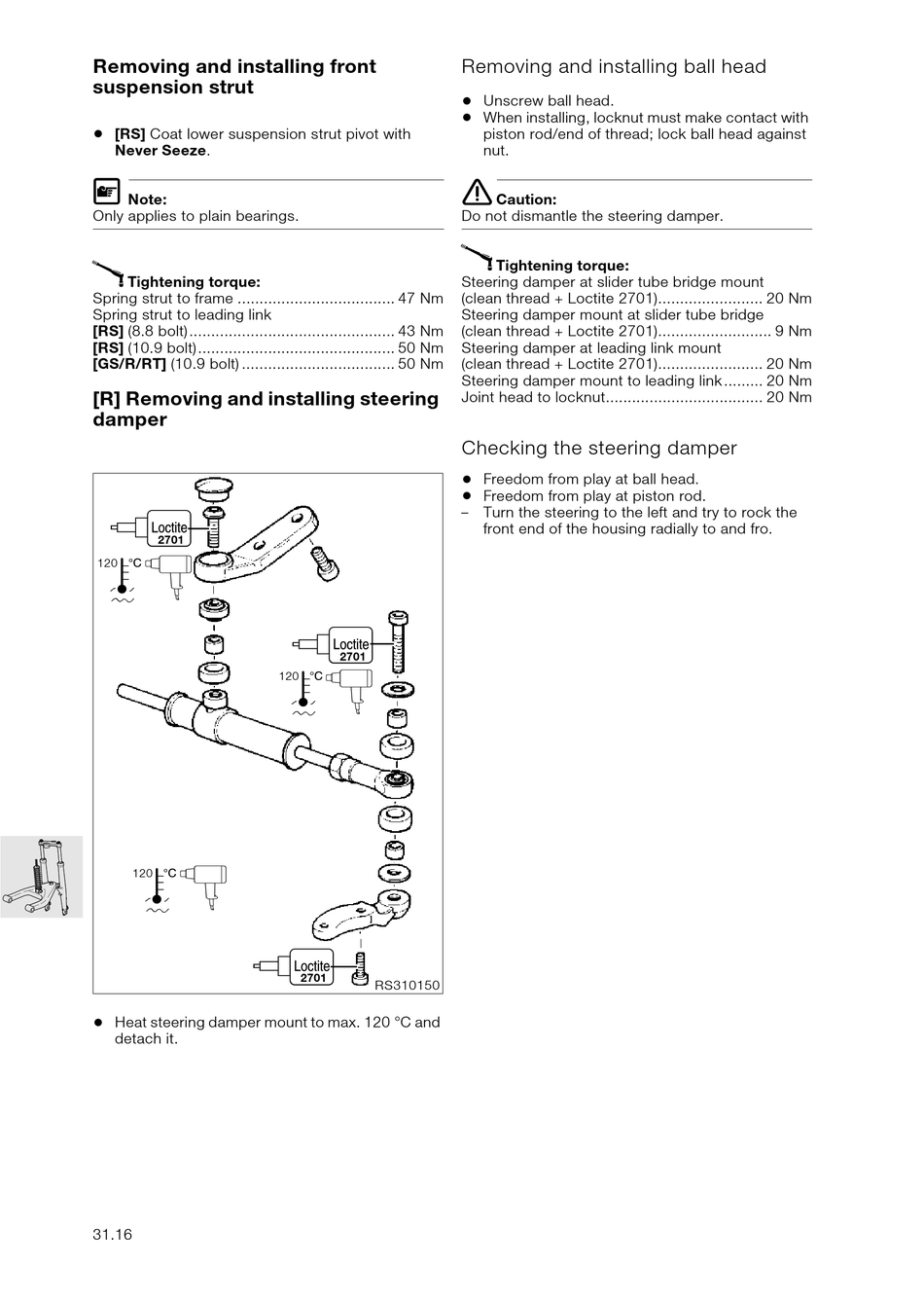

Removing and installing front
suspension strut
•
[RS] Coat lower suspension strut pivot with
Never Seeze.
L
Note:
Only applies to plain bearings.
X
Tightening torque:
Spring strut to frame .................................... 47 Nm
Spring strut to leading link
[RS] (8.8 bolt) ............................................... 43 Nm
[RS] (10.9 bolt) ............................................. 50 Nm
[GS/R/RT] (10.9 bolt) ................................... 50 Nm
[R] Removing and installing steering
damper
v
2701
w
j
120
w
j
120
v
•
Heat steering damper mount to max. 120 °C and
detach it.
31.16
v
2701
w
j
120
2701
RS310150
Removing and installing ball head
•
Unscrew ball head.
•
When installing, locknut must make contact with
piston rod/end of thread; lock ball head against
nut.
e
Caution:
Do not dismantle the steering damper.
X
Tightening torque:
Steering damper at slider tube bridge mount
(clean thread + Loctite 2701)........................ 20 Nm
Steering damper mount at slider tube bridge
(clean thread + Loctite 2701).......................... 9 Nm
Steering damper at leading link mount
(clean thread + Loctite 2701)........................ 20 Nm
Steering damper mount to leading link ......... 20 Nm
Joint head to locknut.................................... 20 Nm
Checking the steering damper
•
Freedom from play at ball head.
•
Freedom from play at piston rod.
–
Turn the steering to the left and try to rock the
front end of the housing radially to and fro.
