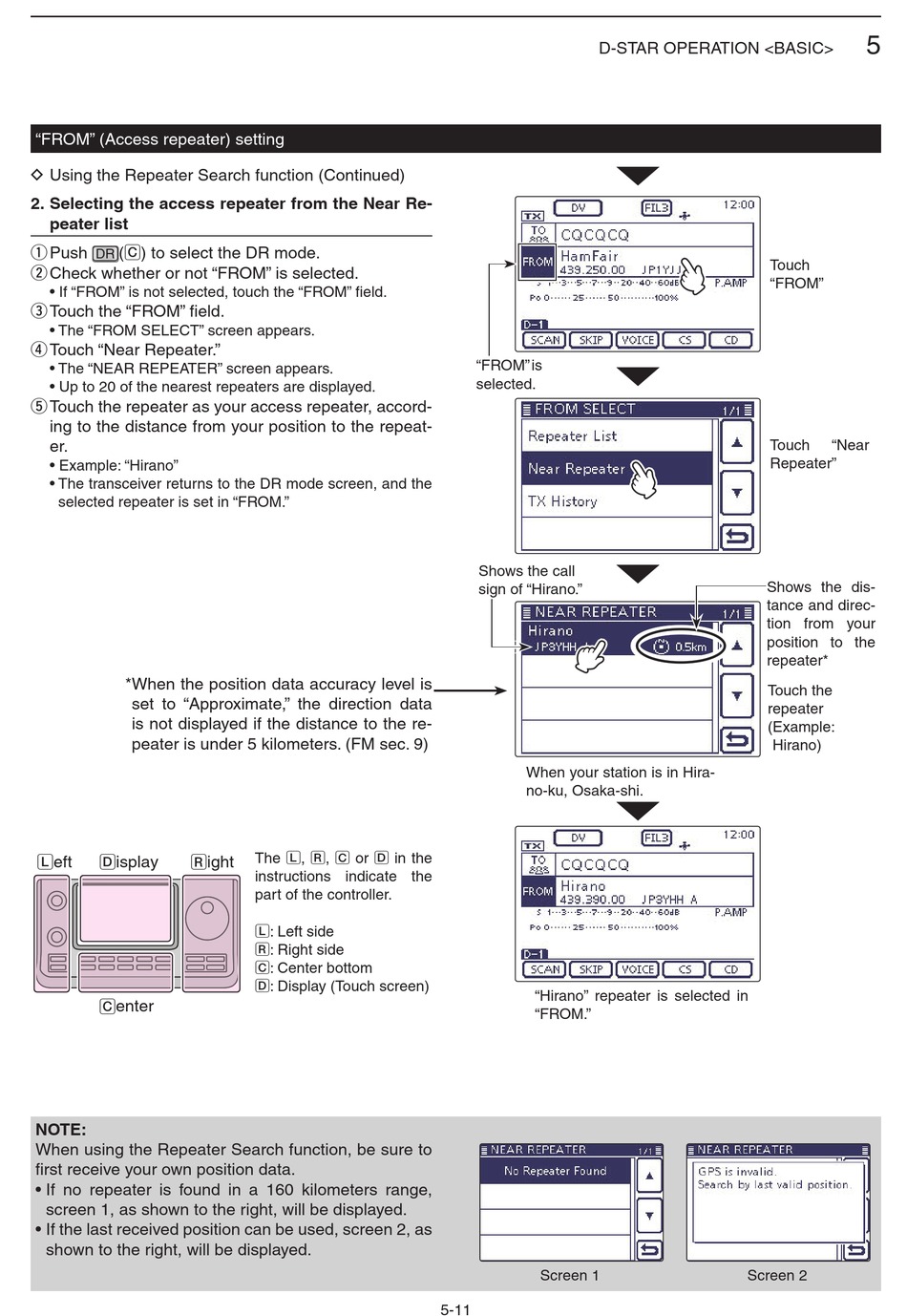

Icom IC-7100 Basic Manual page 73

"FROM" (Access repeater) setting
D
Using the Repeater Search function (Continued)
2. Selecting the access repeater from the Near Re-
peater list
Push (C) to select the DR mode.
q
DR
Check whether or not "FROM" is selected.
w
• If "FROM" is not selected, touch the "FROM" field.
Touch the "FROM" field.
e
• The "FROM SELECT" screen appears.
Touch "Near Repeater."
r
• The "NEAR REPEATER" screen appears.
• Up to 20 of the nearest repeaters are displayed.
Touch the repeater as your access repeater, accord-
t
ing to the distance from your position to the repeat-
er.
• Example: "Hirano"
• The transceiver returns to the DR mode screen, and the
selected repeater is set in "FROM."
* When the position data accuracy level is
set to "Approximate," the direction data
is not displayed if the distance to the re-
peater is under 5 kilometers. (FM sec. 9)
L eft D isplay R ight
C enter
NOTE:
When using the Repeater Search function, be sure to
first receive your own position data.
• If no repeater is found in a 160 kilometers range,
screen 1, as shown to the right, will be displayed.
• If the last received position can be used, screen 2, as
shown to the right, will be displayed.
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
D-STAR OPERATION <BASIC>
"FROM" is
selected.
Shows the call
sign of "Hirano."
When your station is in Hira-
no-ku, Osaka-shi.
"Hirano" repeater is selected in
"FROM."
Screen 1
5-11
5
Touch
"FROM"
Touch "Near
Repeater"
Shows the dis-
tance and direc-
tion from your
position to the
repeater*
Touch the
repeater
( Example:
Hirano)
Screen 2
