Operation, cont'd

View mode

To view the switcher's current mode and microphone power settings, press and
hold the Mode button for more than 2 seconds. The LEDs on the front panel change
from input indication to setting indication.
To change a setting, continue to hold the Mode button, and press the button that
corresponds to the setting you want to change. Figure 3-3 shows the front panel
buttons and LEDs that are active during View mode. Release the Mode button and
the front panel LEDs resume input indication.
Press and hold the
Mode button for more
than 2 seconds to
enter View mode.
Press and hold the Mode button and press the
Separate button to select Separate Switcher mode.
NOTE

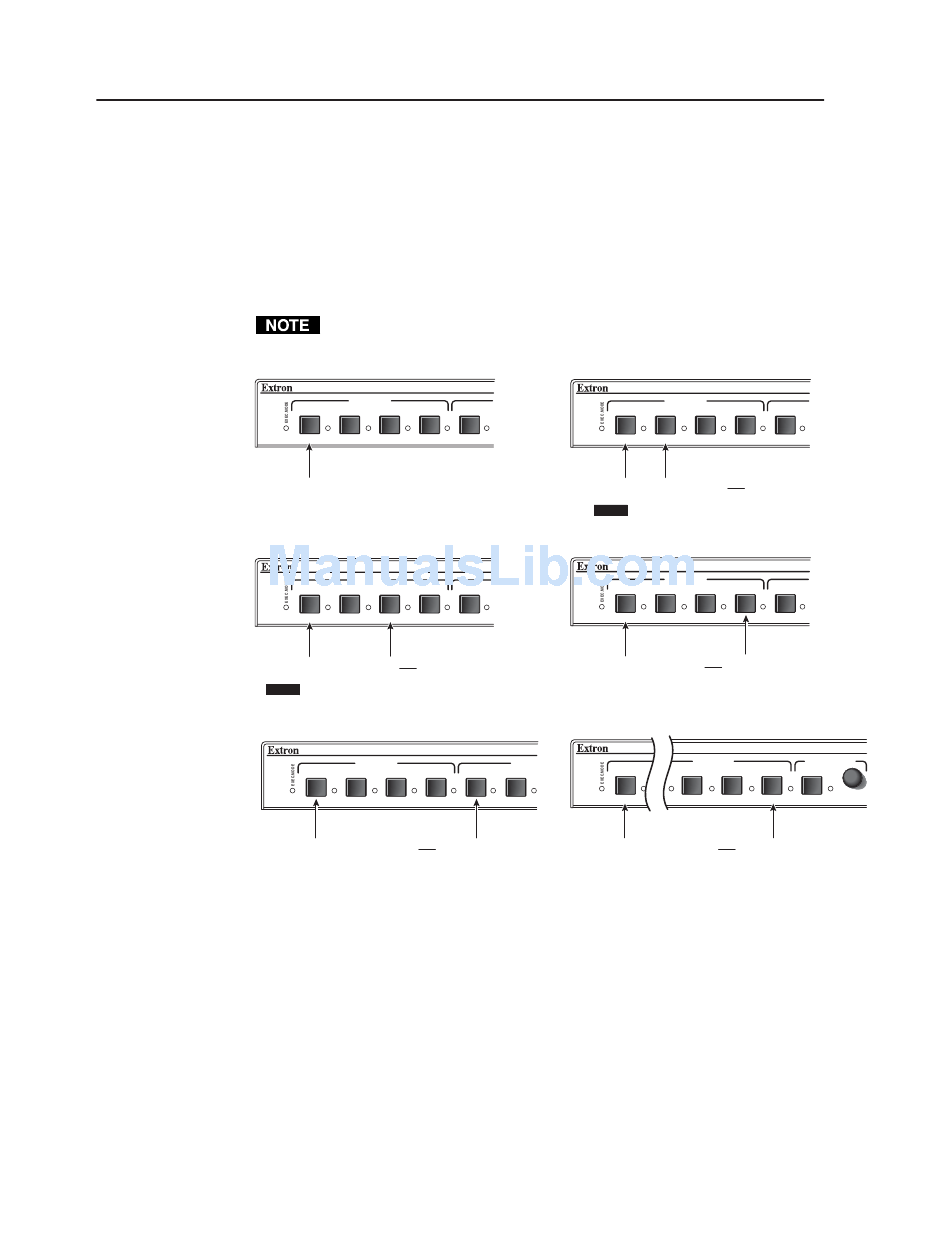

Figure 3-3 — Front panel button/LED functions during View mode

Determining and selecting the switcher mode

The current switcher mode is indicated by the input LEDs. If the unit is in Separate
Switcher mode, up to four LEDs can be lit. In Single Switcher mode, only 1 LED is
lit and the other 11 input LEDs are off.
To change modes, press and hold the Mode button for more than 2 seconds, then
press either the Single (to enter the Single Switcher mode) or Separate (to enter the
Separate Switcher mode) button. Release the Mode button when your selection has
been made.
3-4 MPS 112 Series • Operation
Changes to the Single Switcher mode and Separate Switcher mode do not take
effect until the Mode button is released.
VGA / AUDIO
1 2 3 4
MODE SINGLE SEPARATE
VGA / AUDIO
1 2 3 4
MODE SINGLE SEPARATE
The mode does not change until the Mode
button is released.
VGA / AUDIO
1 2 3 4
MODE SINGLE SEPARATE
Press and hold the Mode button and press the S-video/Audio
input 1 button to toggle Follow sub-mode on and off.
The LED lights when the mode is on. See pg. 3-6.
1 1
MODE
Press and hold the Mode button and press the
Single button to select Single Switcher mode.
NOTE The mode does not change until the
Mode button is released.
1 1
MODE
Press and hold the Mode button and press the VGA/Audio
input 4 button to toggle Executive mode (front panel
lockout) on and off. The LED lights when the mode is on.
S-VIDEO
1
1 2
MODE
Press and hold the Mode button and press the Mic Power On/Off
button to toggle the microphone power on and off.
The LED lights when microphone power is on.
VGA / AUDIO
2 3 4 1
SINGLE SEPARATE
VGA / AUDIO
2 3 4 1
SINGLE SEPARATE
VIDEO / AUDIO PROGRAM AUDIO
2 3 4
PROG VOL RESET MIC VOL RESET MIC POWER ON/OFF MUTE
VOLUME
