Pro-Form CrossXover User Manual page 7

5, 5

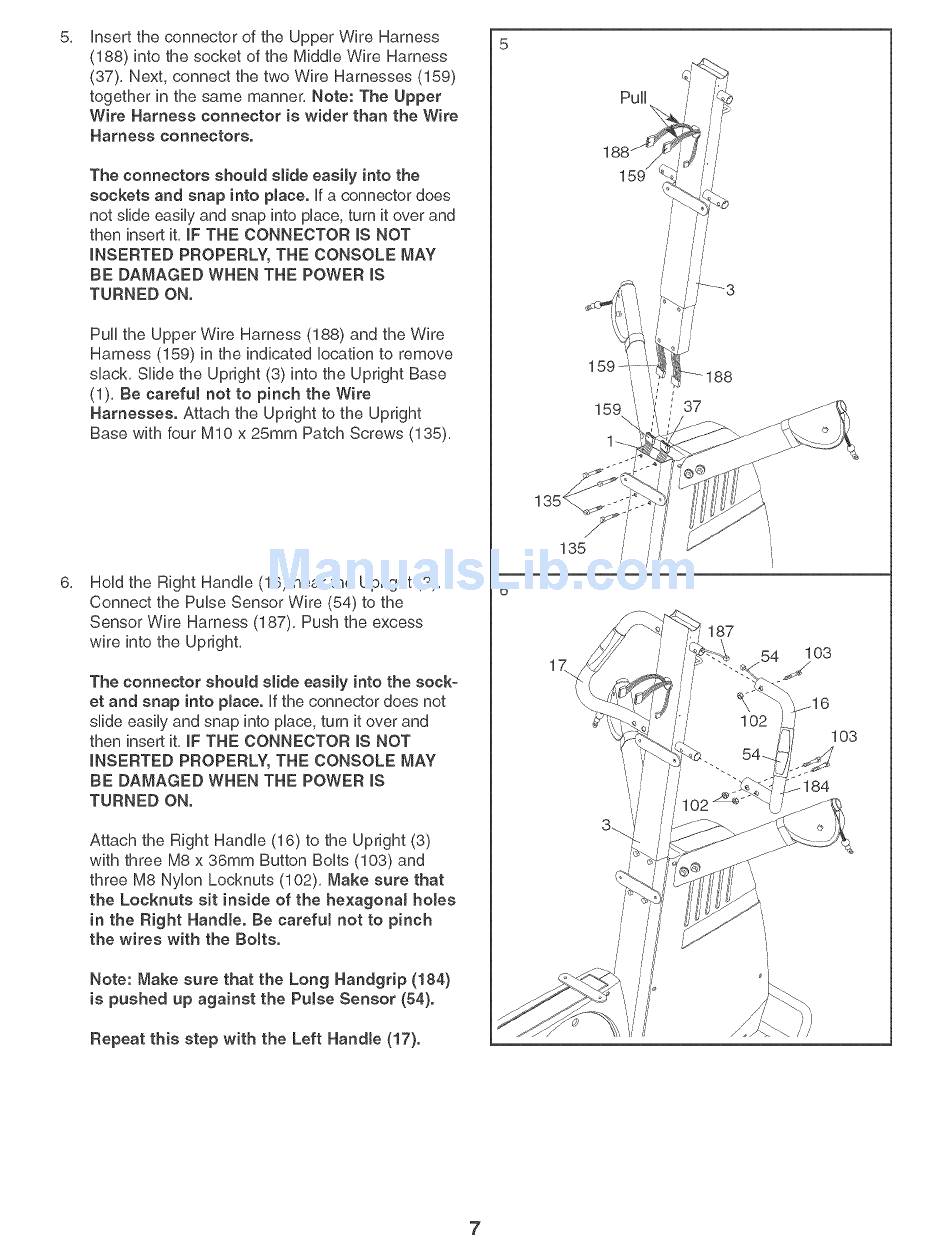

insert the connector of the Upper Wire Harness
(188) into the socket of the Middb Wire Harness
(37), Next, connect the two Wire Harnesses (189)
together in the same manner, Note: The Upper
Wire Harness connector is wider than the Wire
Harness connectors.
The connectors should slide easily into the
sockets and snap into place, ff a connector does
not slide easily and snap into place, turn it over and
then insert it, IF THE CONNECTOR IS NOT
INSERTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON.
Pull the Upper Wire Harness (188) and the Wire
Harness (159) in the indicated location to remove
slack, Slide the Upright (3) into the Upright Base
(1), Be carefut not to pinch the Wire
Harnesses. Attach the Upright to the Upright
Base with four bt10 x 25mm Patch Screws (135),
Hold the Right Handle (16) near the Upright (3),
Connect the Pulse Sensor Wire (54) to the
Sensor Wire Harness (187), Push the excess
wire into the Upright,
The connector shoutd slide easily into the sock-
et and snap into place, if the connector does not
slide easily and snap into place, turn it over and
then insert it, IF THE CONNECTOR IS NOT
INSERTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON.
Attach the Right Handle (16) to the Upright (3)
with three M8 x 36mm Button Bolts (103) and
three M8 Nylon Locknuts (102), Make sure that
the Locknuts sit inside of the hexagona! holes
in the Right Handle. Be careful not to pinch
the wires with the Botts.
Note: Make sure that the Long Handgrip (184)
is pushed up against the Pulse Sensor (54}.
Repeat this step with the Left Handle (17).
/
//
135
187
103
7
