Rack Mounting

The SymSafe is easily rack-mountable with the purchase of the model number SymSafe-RK rack mount kit.
To install, do the following:
1. Attach the 2 small rack ears as shown with the supplied 10-32 x 1/2" screws.
2. Attach the 2 large rear support brackets to the rear rails with 10-32 x 3/4" screws.
3. Attach the SymSafe to the front rails with 10-32 x 3/4" screws.

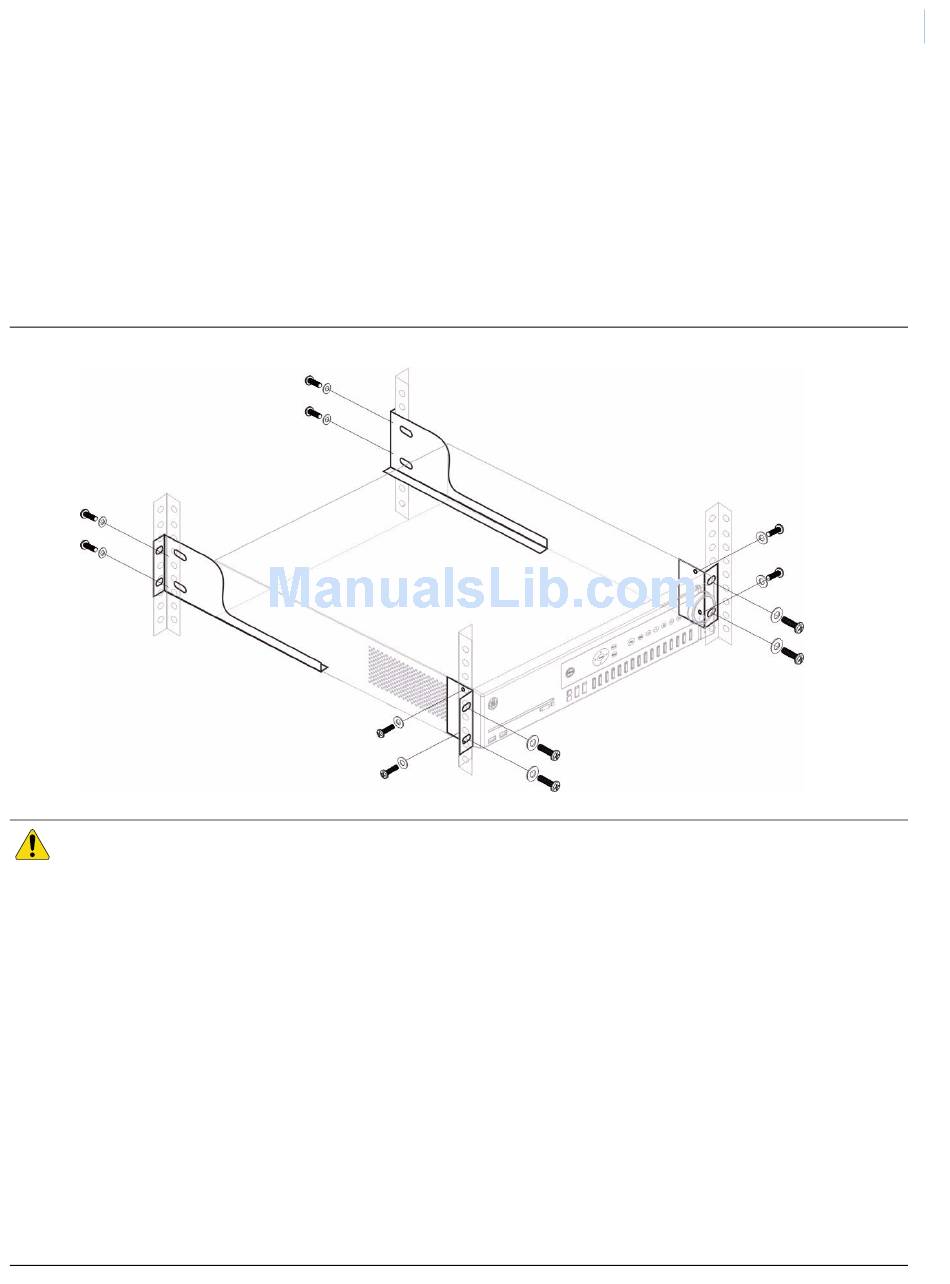

Figure 2. Rack mount installation
Do not rackmount the SymSafe without the rear rails installed. Failure to install the rear rails can damage the
CAUTION
SymSafe.
Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient. Therefore, consideration should
be given to installing the equipment in an environment compatible with the maximum ambient temperature
(40?) specified by the manufacturer.
Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised.
Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is
not achieved due to uneven mechanical loading.
Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of the circuits might have on overcurrent protection and supply
wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this
concern.
Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to the branch circuit (e.g. use
of power strips).
