Maintenance
Booklet Maker Staple Replacement for Booklet Maker Finisher
Note
The booklet maker uses two staple cartridges labeled R2 and R3. Booklet stapling requires
that both staple cartridges contain staples.
Warning
Do not perform this procedure when the printer is copying or printing.

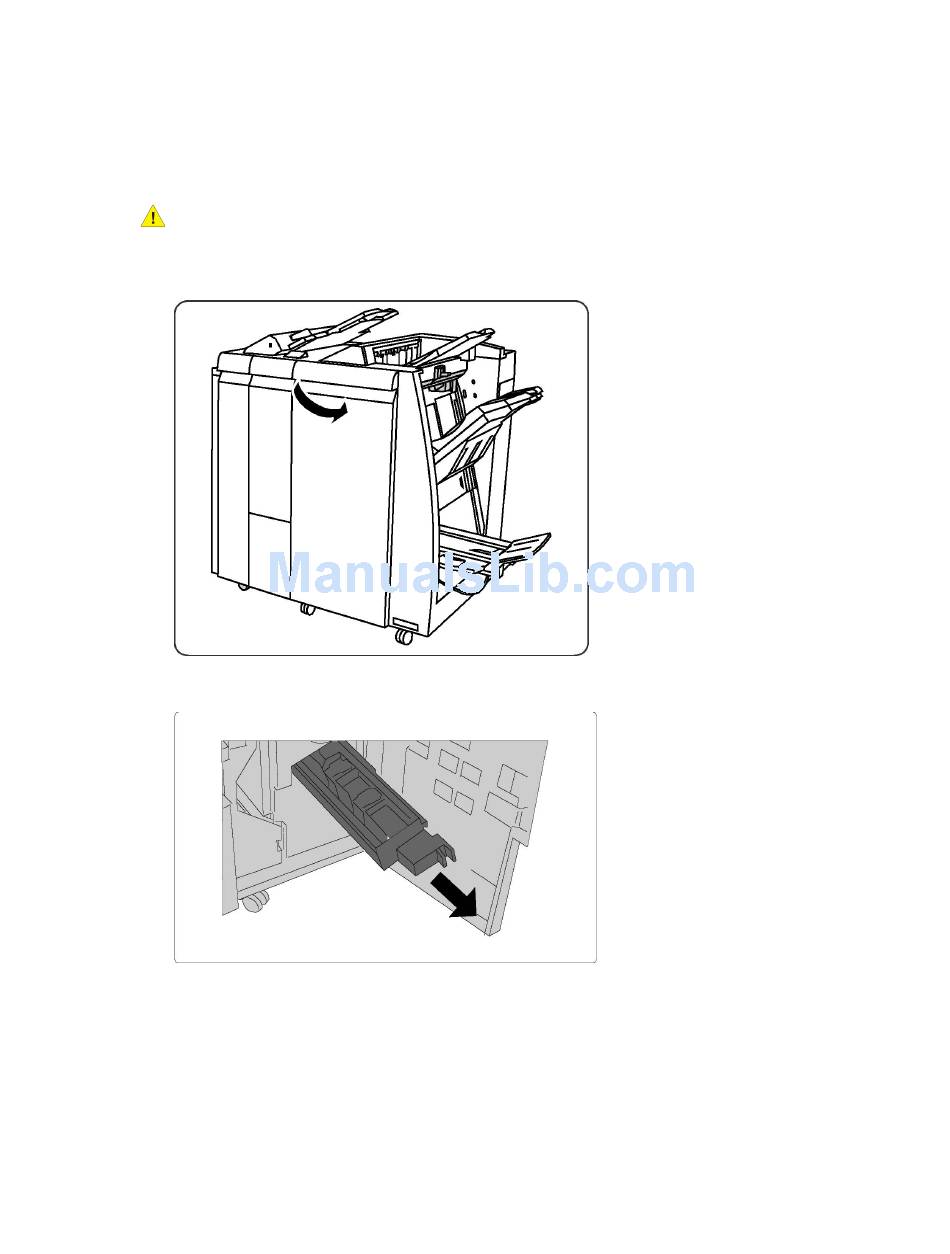

1. Open the Finisher Front Door.
2. Pinch the levers on the Booklet Maker Staple Unit, then extend the unit to access
the Booklet Maker Staple Cartridges.
3. Hold the tabs of the Booklet Maker Staple Cartridge, and then lift to remove it.
