Starting up and operation
5.1.2.3

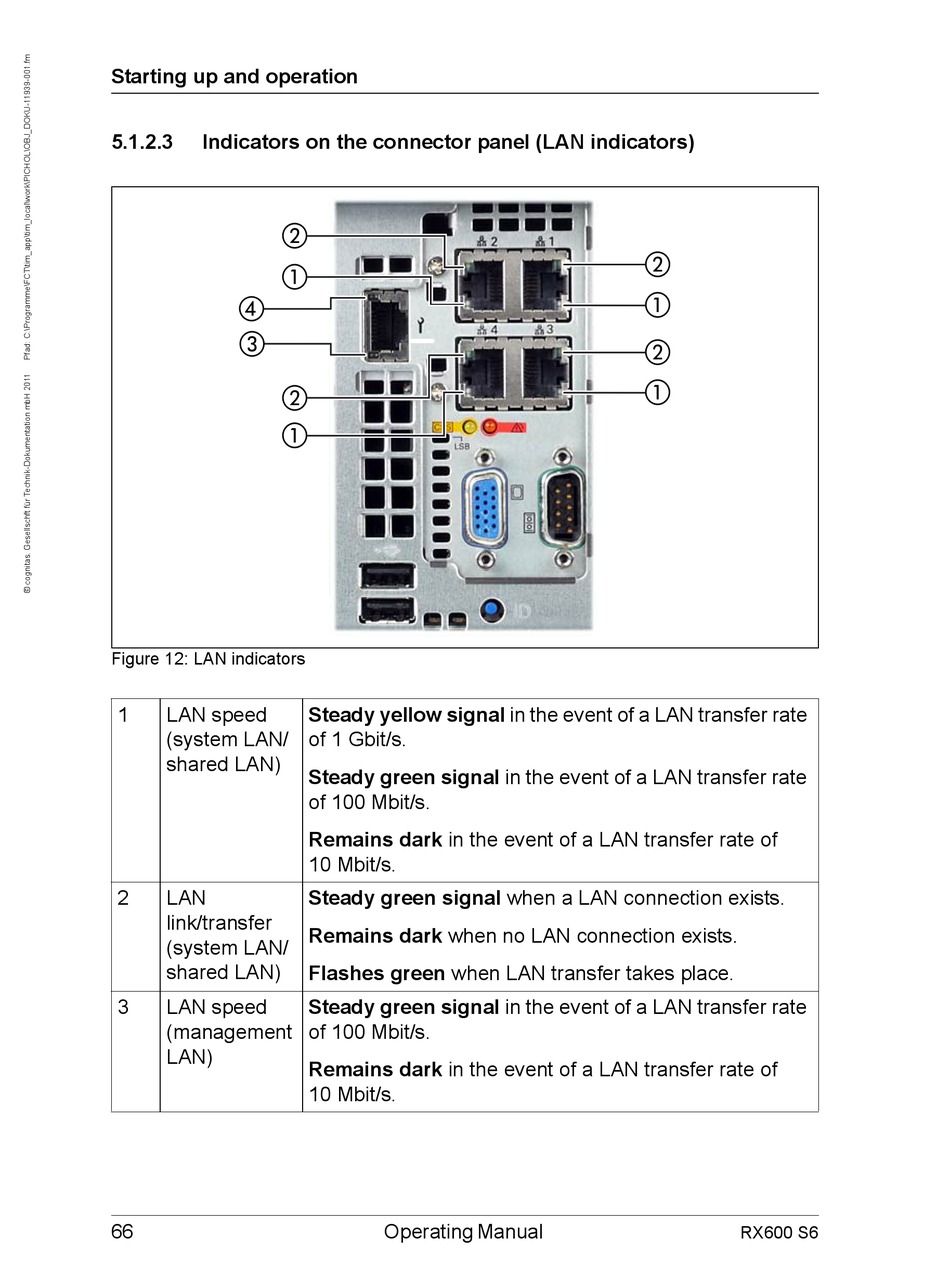

Indicators on the connector panel (LAN indicators)
Figure 12: LAN indicators
1
LAN speed
(system LAN/
shared LAN)
2
LAN
link/transfer
(system LAN/
shared LAN)
3
LAN speed
(management
LAN)
66
Steady yellow signal in the event of a LAN transfer rate
of 1 Gbit/s.
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
Operating Manual
RX600 S6
