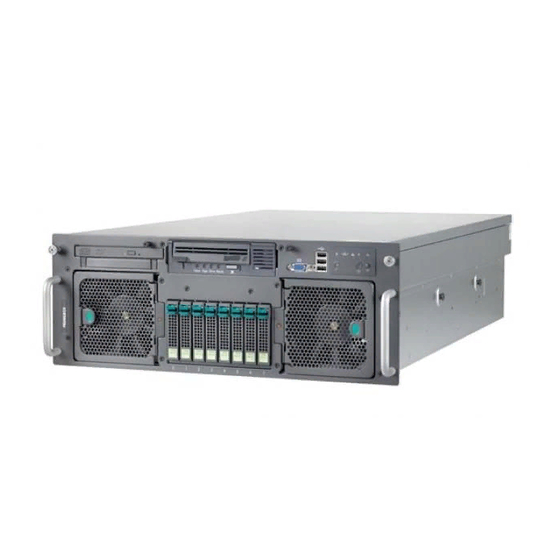

PRIMERGY RX600 S4 Server
Options Guide
Edition January 2008

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu PRIMERGY RX600 S4

Summary of Contents for Fujitsu PRIMERGY RX600 S4

  • Page 1 PRIMERGY RX600 S4 Server Options Guide Edition January 2008...

  • Page 2: Copyright And Trademarks

    Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright and Trademarks Copyright © 2008 Fujitsu Siemens Computers GmbH. All rights reserved. Delivery subject to availability; right of technical modifications reserved. All hardware and software names used are trade names and/or trademarks of their respective...

  • Page 3: Table Of Contents

    Contents Preface ......5 Concept and target group of this manual ... . 5 Documentation overview .
  • Page 4 Contents Battery for the RAID5 controller ....43 Installing the battery (iBBU) ....43 Completion .

  • Page 5: Preface

    Preface The PRIMERGY RX600 S4 server is an Intel-based server for mid-size and large companies. It is suitable for use as a file server as well as an application, information, or Internet server. The server offers a high degree of reliability and availability through highly developed hardware and software components.
  • Page 6 – The “Ergonomics” manual (PDF file available on the ServerBooks DVD supplied) – The operating manual for the PRIMERGY RX600 S4 server (PDF file available on the ServerBooks DVD supplied) – The technical manual for the system board D2244 (PDF file available on the ServerBooks DVD supplied) –...

  • Page 7: Extensions And Conversions

    Preface Extensions and conversions Extensions and conversions Additional processors The system board can be upgraded to include up to four processors. You may only use processors of the same type; all processors must have the same frequency and cache size. Extending the main memory The system board provides slots for four memory boards, each of which can accommodate up to eight memory modules.

  • Page 8: Notational Conventions

    ServerView Remote Management Remote Management is the remote-management solution for PRIMERGY systems from Fujitsu Siemens Computers. Remote Management and the associated hardware components integrated in the system allow remote monitoring and servicing as well as rapid recovery of the system in the event of an error.

  • Page 9: Procedure

    Procedure CAUTION! The actions described in this manual should only be performed by engineers, service personnel or technical specialists. Equipment repairs must only be performed by qualified staff. Any failure to observe the guidelines in this manual, and any unautho- rized opening or improper repairs could endanger the user (through electric shock, fire hazards) or damage the equipment.

  • Page 11: Safety Instructions

    Safety instructions The following safety instructions are also provided in the manual “Safety notes and other important information”. This device meets the relevant safety regulations for IT equipment. If you have any questions about whether you can install the server in the intended environment, please contact your sales outlet or our customer service team.
  • Page 12 Safety instructions Installation and operation CAUTION! If the device is integrated in an installation that receives power from an industrial (public) power supply network with the IEC309 connector, the (public) power supply protection must comply with the requirements for the non-industrial (public) power supply networks for the type A connector.
  • Page 13 Safety instructions CAUTION! Make sure that no objects (such as bracelets or paper clips) fall into or liquids spill into the device (risc of electric shock or short circuit). In emergencies (e.g. damaged casing, controls or cables, penetration of liquids or foreign matter), switch off the device immediately, remove the power plug from the safety socket and contact your sales outlet or customer service team.
  • Page 14 Safety instructions Batteries CAUTION! Incorrect replacement of batteries may result in a risk of explosion. The batteries may only be replaced with identical batteries or with a type recommended by the manufacturer (see the technical manual for the system board). Replace the lithium-battery on the system board in accordance with the instructions in the technical manual for the system board.
  • Page 15 Safety instructions Laser information The CD/DVD drive complies with IEC 60825-1 laser class 1. CAUTION! The CD/DVD drive contains a light-emitting diode (LED), which under certain circumstances produces a laser beam stronger than laser class 1. Looking directly at this beam is dangerous. Never remove parts of the CD/DVD drive casing! Modules with electrostatic-sensitive components Systems and components that might be damaged by electrostatic discharge...
  • Page 16 Safety instructions Place all components on a static-safe base. You will find a detailed description for handling ESD components in the relevant European or international standards (DIN EN 61340-5-1, ANSI/ESD S20.20). Options Guide RX600 S4...

  • Page 17: Preparation

    Preparation CAUTION! Make sure you observe the safety notes in the chapter “Safety instruc- tions” on page 11ff. Ê Exit all applications and shut down the server properly. Ê If your operating system has not switched off the server, press the On/Off button.
  • Page 18 Opening the server Preparation Figure 3: Removing the housing cover Ê Undo the two captive screws on the front (1). Ê Push the housing cover back a few centimeters (2). Ê Take off the housing cover. Options Guide RX600 S4...

  • Page 19: Main Memory

    Main memory CAUTION! Make sure you observe the safety notes in the chapter “Safety instruc- tions” on page 11ff. The system board provides slots for four memory boards, each of which can accommodate up to eight memory modules. The slots are suitable for DDR-II / 533 or 667 MHz FBDIMM modules with up to 8 Gbytes capacity per memory module, allowing a maximum memory configu- ration of 256 Gbytes.

  • Page 21: Processors

    Processors CAUTION! Make sure you observe the safety notes in the chapter “Safety instruc- tions” on page 11ff. Processors are components which are extremely sensitive to electro- static discharge and must therefore be handled with caution. After removing a processor from its protective wrapper or from a socket, always place it on an insulated, antistatic surface and always with the smooth side down.
  • Page 22 Installing additional processors Processors Removing the processor cover Figure 4: Removing the processor cover Ê Hold the processor cover as shown in the figure above and lift it off. Options Guide RX600 S4...
  • Page 23 Processors Installing additional processors Removing the dummy heat sink CPU 4 CPU 3 CPU 2 CPU 1 Figure 5: Heat sink dummies on the CPU sockets 2 - 4 Ê Remove the heat sink dummy from the relevant processor socket. To do this, undo the four captive screws at the bottom of the dummy.
  • Page 24 Installing additional processors Processors Installing the processor Figure 6: Opening the socket lever Ê Release the socket lever by pressing it sideways ; then lift it up as far as it will go. Figure 7: Inserting the processor CAUTION! The processor can only be installed in one direction. Note the marking on one of the corners (see diagram above).
  • Page 25 Processors Installing additional processors Installing the heat sink CAUTION! Never install a processor without a heat sink, as the processor may overheat, causing itself and the complete system board to fail. Ê Carefully place the heat sink onto the processor. Make sure you do not touch or damage the thermal paste on the underside of the heat sink.
  • Page 26 Installing additional processors Processors Mounting the processor cover Figure 9: Mounting the processor cover Ê Reinstall the processor cover. Make sure the processor cover engages properly by pressing the points marked "Memory" (see circles) on the cover. Ê Close the server, plug in the power plugs, and switch on the server as described in the chapter “Completion”...

  • Page 27: Replacing A Processor

    Processors Replacing a processor Replacing a processor CAUTION! You may only use processors of the same type on the system board. Ê Open the server as described in the chapter “Preparation” on page 17f. Ê Remove the processor cover (see page Figure 10: Removing the heat sink Ê...
  • Page 28 Replacing a processor Processors Ê Remove the residual thermal paste from the underside of the heat sink. Ê Clean the underside of the heat sink using a lint-free cloth. Figure 11: Removing the old processor Ê Release the socket lever by pressing it sideways, and lift it up as far as it will go (1).
  • Page 29 Processors Replacing a processor Make sure the thermal paste on the underside of the heat sink is not damaged. Ê Fasten the heat sink with four screws (see page 25). First fasten two diago- nally opposite screws, then the other two. Ê...

  • Page 31: Accessible Drives

    “Safety instruc- tions” on page 11ff. The PRIMERGY RX600 S4 server offers a total of two bays for accessible drives. You can install a tape drive and a CD/DVD drive. Installing the CD/DVD drive Figure 13: CD/DVD drive with module frame A CD/DVD drive (B) can be installed in the server.
  • Page 32 Installing the CD/DVD drive Accessible drives Figure 14: Removing the module frame Ê Press the blue lever (A) and push the module frame forward out of the server. Mounting a CD/DVD drive Figure 15: Mounting the interface board Ê Insert the interface board (B) into the opening (A) on the rear of the CD/DVD drive housing.
  • Page 33 Accessible drives Installing the CD/DVD drive Figure 16: Mounting the drive in its frame Ê Place the CD/DVD drive in the frame such that it engages in the two openings of the module frame (see circles). Figure 17: The pre-mounted CD/DVD drive (back) Ê...
  • Page 34 Installing the CD/DVD drive Accessible drives Figure 18: Connecting a CD/DVD drive Ê Plug the power cable (A) and the data cable (B) into the interface board of the CD/DVD drive. Ê Close the server, plug in the power plugs, and switch on the server as described in the chapter “Completion”...

  • Page 35: Installing A Tape Drive

    Accessible drives Installing a tape drive Installing a tape drive A tape drive can be installed in the bay in the middle of the server. If no device is installed in the bay, it contains only the module frame. Removing the module frame Ê...
  • Page 36 Installing a tape drive Accessible drives Figure 20: Module frame with sliding rails Ê Remove the two sliding rails attached to the sides by undoing the 4 screws. CAUTION! Keep the module frame for future use. If you remove the drive without installing a new one, you must reinstall the module frame to comply with EMC regulations and to satisfy cooling requirements and fire protection measures.
  • Page 37 Accessible drives Installing a tape drive Figure 21: Fastening the sliding rails on the drive Ê Fasten the two sliding rails on both sides of the drive to be installed using two screws for each. Figure 22: Inserting the tape drive Ê...
  • Page 38 Installing a tape drive Accessible drives Mounting the tape drive Figure 23: Connecting the tape drive Ê Connect the data cable (A) to the drive. Ê Connect the power cable (B) to the drive. Options Guide RX600 S4...
  • Page 39 Accessible drives Installing a tape drive Figure 24: Cable routing from the tape to the PCI controller Ê Route the data cable as shown in figure Ê Connect the other end of the data cable to an unused connector on a PCI- SCSI controller.

  • Page 41: Controllers In Non-Hot-Plug Pci Slots

    Controllers in non-hot-plug PCI slots CAUTION! Make sure you observe the safety notes in the chapter “Safety instruc- tions” on page 11ff. The system board has three non-hot-plug PCIe slots (slots 5 through 7), each with a bandwidth of 2 GB/s and a mounting length of max. 315 mm. When replacing/installing non-hot-pluggable components, you must proceed as follows: Ê...
  • Page 42 Installing controllers Controllers in non-hot-plug PCI slots Figure 25: Installing a controller in a non-hot-plug PCI slot Ê Insert the controller in the slot and press it in carefully. Close the locking mechanism of the slot (A). Ê If necessary, plug in the cables on the board and other components. Ê...

  • Page 43: Battery For The Raid5 Controller

    Battery for the RAID5 controller CAUTION! Make sure you observe the safety notes in the chapter “Safety instruc- tions” on page 11ff. The iBBU (intelligent battery backup unit) is an intelligent battery for protecting the data of the RAID5 controller in the event of power failure or voltage dips. The data is saved for several hours.
  • Page 44 Installing the battery (iBBU) Battery for the RAID5 controller Figure 27: Position of the SAS riser card in the server Ê Remove the SAS riser card (A) from the server. Ê Place the SAS riser card on a suitable antistatic surface with the component side facing down.
  • Page 45 Battery for the RAID5 controller Installing the battery (iBBU) Figure 28: SAS riser card (top) and battery iBBU (bottom) Ê Plug the connector (B) of the battery onto the connector (A) on the SAS riser card. Ê Fasten the battery to the SAS riser card with the three supplied screws. Ê...

  • Page 47: Completion

    Completion CAUTION! Make sure you observe the safety notes in the chapter “Safety instruc- tions” on page 11ff. 10.1 Closing the server Figure 29: Mounting the housing cover Ê Position the cover on the server in such a way that the rear edge protrudes 1-2 cm from the housing (see circle).

  • Page 49: Abbreviations

    Abbreviations The specialist terms and abbreviations listed here are not a complete list of all common terms or abbreviations. Alternating Current ACPI Advanced Configuration and Power Interface ANSI American National Standards Institute ASR&R Automatic Server Reconfiguration and Restart Battery Backup Unit BIOS Basic Input-Output System Baseboard Management Controller...
  • Page 50 Abbreviations Communications Central Processing Unit Direct Current DIMM Dual Inline Memory Module Dual Inline Package Direct Memory Access Desktop Management Interface Digital Versatile Disk Errror Checking and Correcting Extended Capabilities Port EEPROM Electrically Erasable Programmable Read-Only Memory Extensible Firmware Interface Electronic Industries Alliance Electromagnetic Compatibility Options Guide...
  • Page 51 Abbreviations Emergency Management Port Enhanced Parallel Port EPROM Erasable Programmable Read-Only Memory ElectroStatic Discharge File Allocation Table Front Panel Controller Field Replaceable Unit Front Side Bus Global Array Manager Graphical User Interface Hard Disk Drive Hot-Swap Controller Height Unit I²C Inter-Integrated Circuit Options Guide RX600 S4...
  • Page 52 Abbreviations Input/Output iBBU Intelligent Battery Backup Unit Intelligent Chassis Management Identification Integrated Drive Electronics International Electrotechnical Commission Integrated Mirroring Enhanced IPMB Intelligent Platform Management Bus IPMI Intelligent Platform Management Interface IRMC Intelligent Remote Management Controller Interrupt Request Line Local Area Network Logical Block Address Liquid Crystal Display Options Guide...
  • Page 53 Abbreviations Light Emitting Diode Low Profile Logical Unit Number Low-Voltage Differential SCSI Multi Mode Faser Manual Retention Latch Non Maskable Interrupt NTFS New Technology File System NVRAM Non Volatile Random Access Memory Operating System Promise Array Management Peripheral Component Interconnect Prefailure Detection and Analysing Portable Data Format Options Guide...
  • Page 54 Abbreviations Prefailure Detection (ServerView) POST Power-On Self Test PS/2 Personal System/2 RAID Redundant Array of Independent Disks Random Access Memory RoHS Restriction of the Use of Certain Hazardous Substances (Waste from Electric and Electronic Equipment, EU Directive) Read-Only Memory RoMB RAID on Motherboard Remote Service Board Real Time Clock...
  • Page 55 Abbreviations Single-Bit Error Single-Connector Attachment SCSI Small Computer System Interface System Configuration Utility Sensor Data Record SDRAM Synchronous Dynamic Random Access Memory System Event Log S.M.A.R.T Self-Monitoring, Analysis, and Reporting Technology System Management Interrupt System Setup Utility SVGA Super Video Graphics Adapter Universal Serial Bus Video Graphics Adapter Voltage Regulator Down...
  • Page 56 Abbreviations Voltage Regulator Module WEEE Waste from Electric and Electronic Equipment (EU Directive) Wakeup on LAN Options Guide RX600 S4...

  • Page 57: Index

    Index accessible drives, add laser information light-emitting diode (LED) accessible drives lithium battery battery for RAID5 controller CD/DVD drive main memory, add controller module frame iBBU for CD/DVD drive main memory for tape drives non-hot-plug PCI controllers multi-processor operating system processor multi-processor operation additional documentation...
