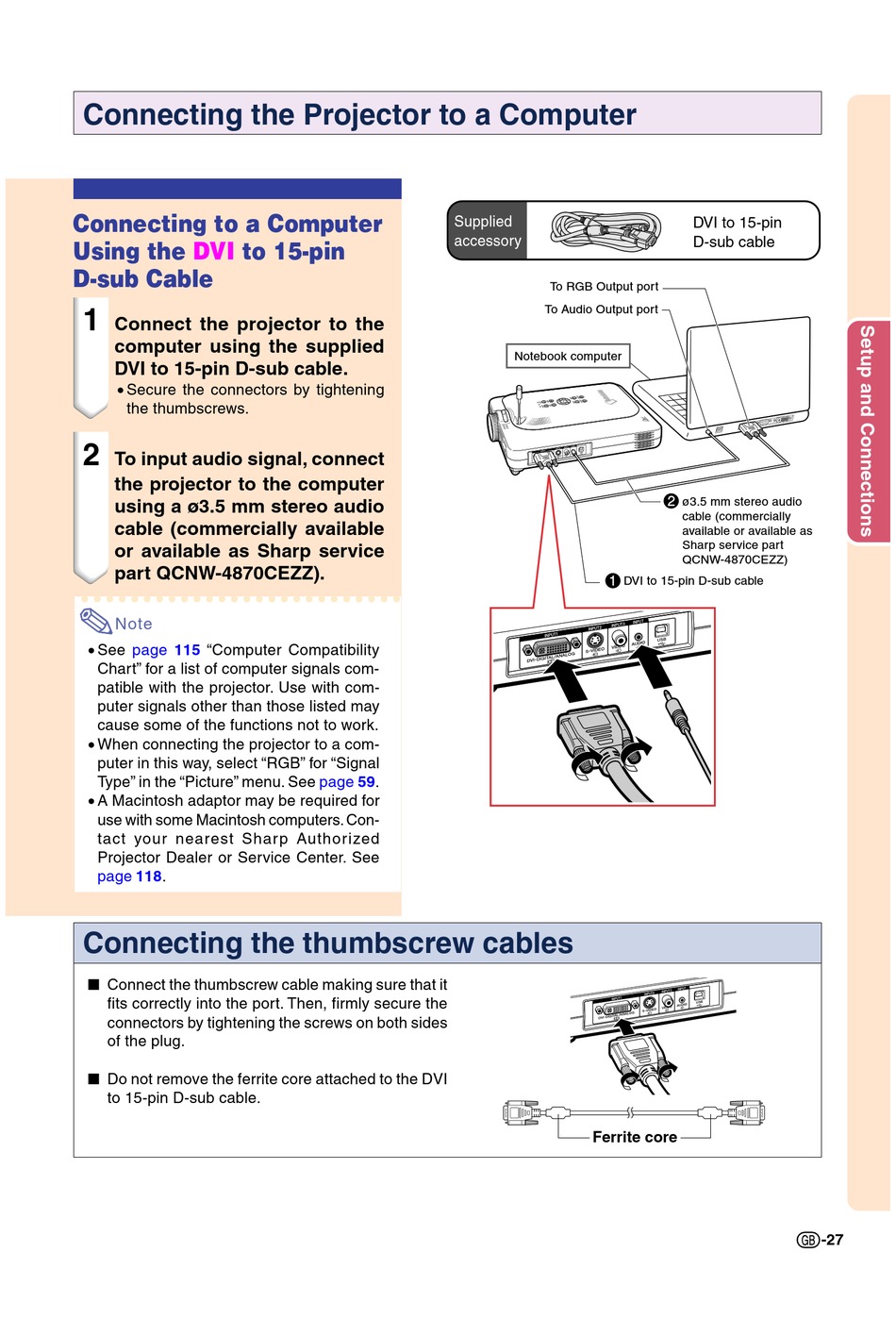

Connecting the Projector to a Computer

Connecting to a Computer
Using the DVI to 15-pin
D-sub Cable
1
Connect the projector to the
computer using the supplied
DVI to 15-pin D-sub cable.
• Secure the connectors by tightening
the thumbscrews.
2
To input audio signal, connect
the projector to the computer
using a ø3.5 mm stereo audio
cable (commercially available
or available as Sharp service
part QCNW-4870CEZZ).
Note
• See
page 115 "Computer Compatibility
Chart" for a list of computer signals com-
patible with the projector. Use with com-
puter signals other than those listed may
cause some of the functions not to work.
• When connecting the projector to a com-
puter in this way, select "RGB" for "Signal
Type" in the "Picture" menu. See
• A Macintosh adaptor may be required for
use with some Macintosh computers. Con-
tact your nearest Shar p Authorized
Projector Dealer or Service Center. See
page 118.
Connecting the thumbscrew cables
■ Connect the thumbscrew cable making sure that it
fits correctly into the port. Then, firmly secure the
connectors by tightening the screws on both sides
of the plug.
■ Do not remove the ferrite core attached to the DVI
to 15-pin D-sub cable.
Supplied
accessory
page 59.
To RGB Output port
To Audio Output port
Notebook computer
2
ø3.5 mm stereo audio
cable (commercially
available or available as
Sharp service part
QCNW-4870CEZZ)
1
DVI to 15-pin D-sub cable
Ferrite core
DVI to 15-pin
D-sub cable
