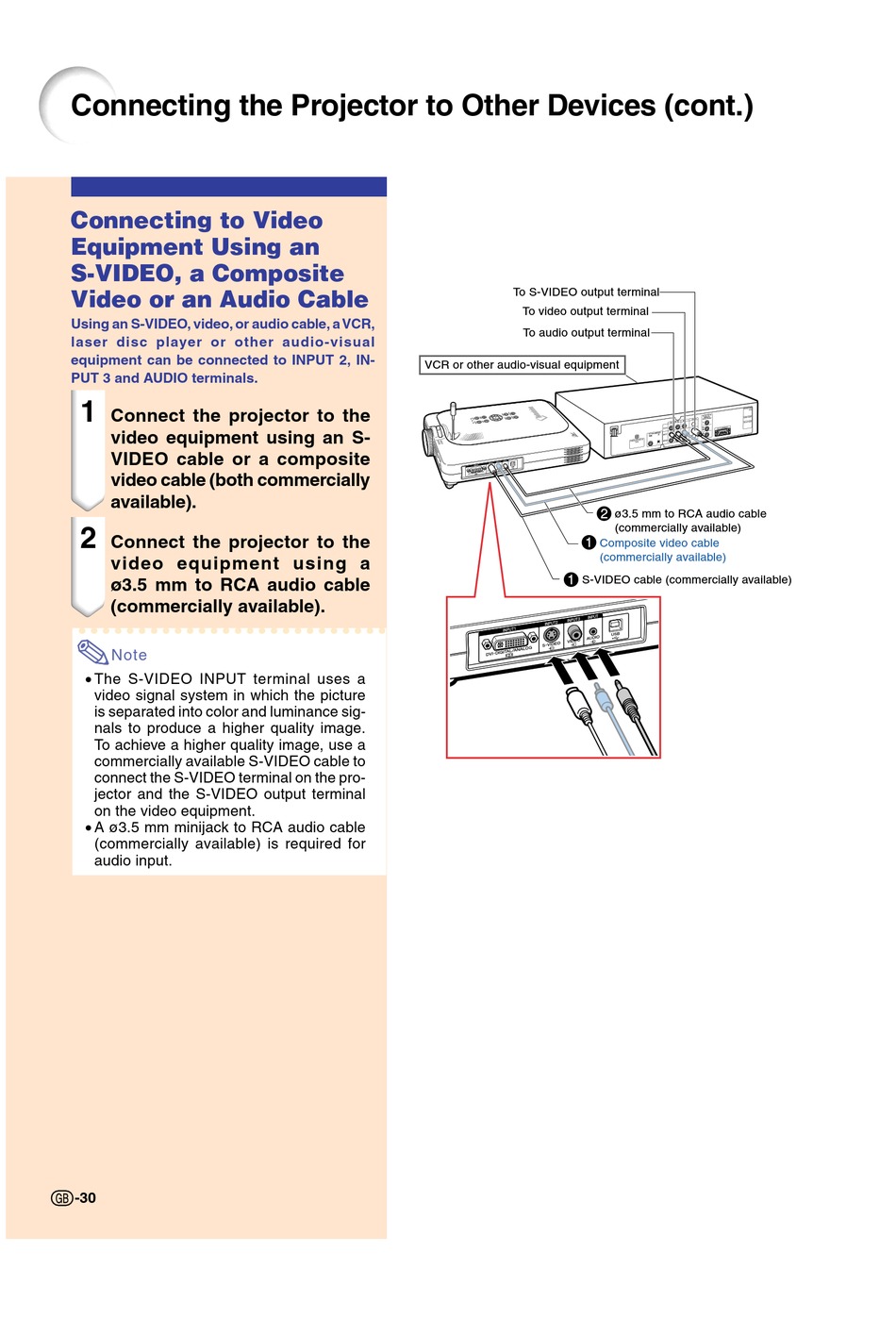

Connecting the Projector to Other Devices (cont.)
Connecting to Video
Equipment Using an
S-VIDEO, a Composite
Video or an Audio Cable
Using an S-VIDEO, video, or audio cable, a VCR,
laser disc player or other audio-visual
equipment can be connected to INPUT 2, IN-
PUT 3 and AUDIO terminals.
1
Connect the projector to the
video equipment using an S-
VIDEO cable or a composite
video cable (both commercially
available).
2
Connect the projector to the
video equipment using a
ø3.5 mm to RCA audio cable
(commercially available).
Note
• The S-VIDEO INPUT terminal uses a
video signal system in which the picture
is separated into color and luminance sig-
nals to produce a higher quality image.
To achieve a higher quality image, use a
commercially available S-VIDEO cable to
connect the S-VIDEO terminal on the pro-
jector and the S-VIDEO output terminal
on the video equipment.
• A ø3.5 mm minijack to RCA audio cable
(commercially available) is required for
audio input.
-30
To S-VIDEO output terminal
To video output terminal
To audio output terminal
VCR or other audio-visual equipment
1
1
S-VIDEO cable (commercially available)
2
ø3.5 mm to RCA audio cable
(commercially available)
Composite video cable
(commercially available)
