Part Names (cont.)

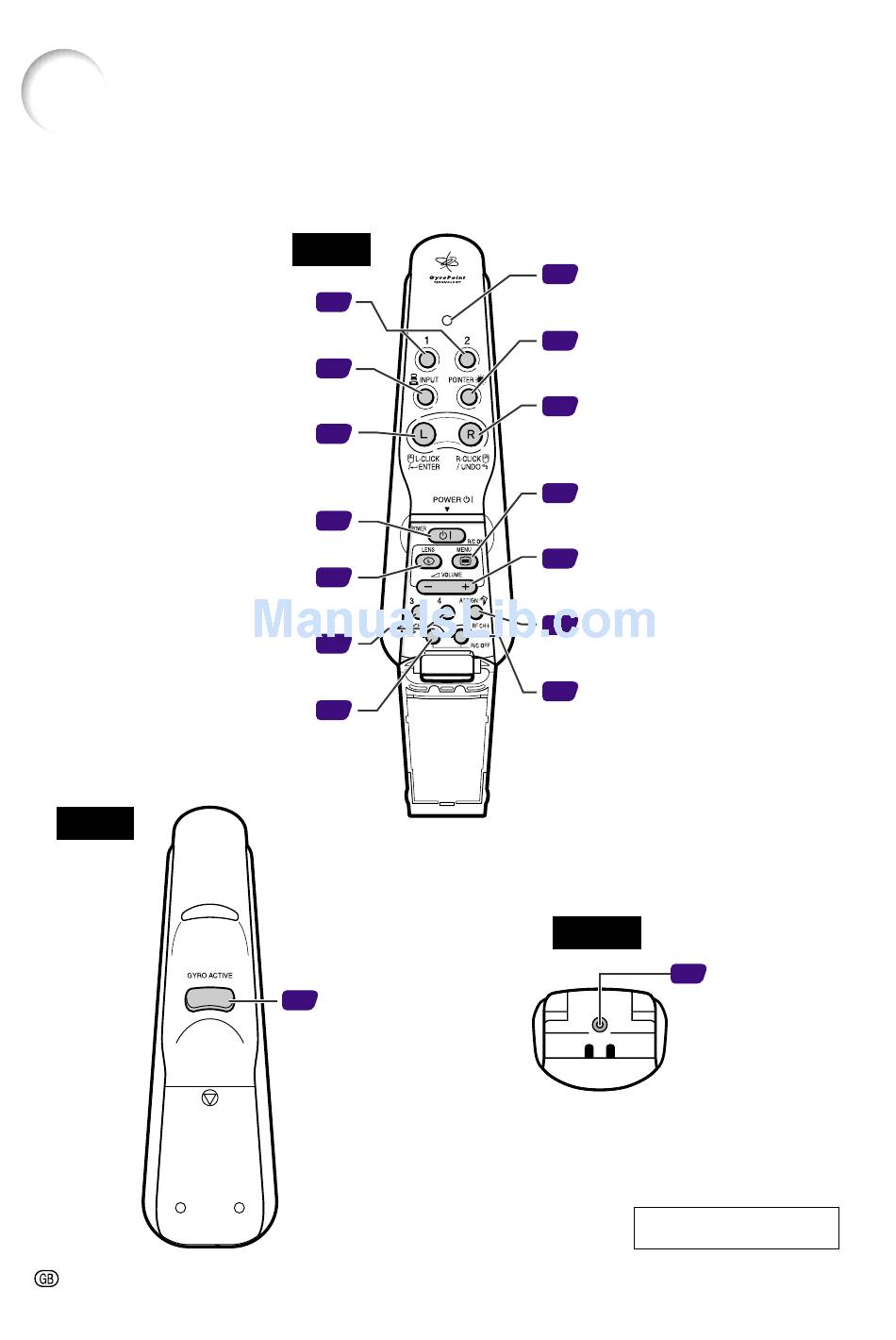

GyroRemote

Function 1 / 2 buttons
For specifying the button assignments
for Function 1 and Function 2
INPUT button
For switching between inputs 1,2,3
and 4.
L-CLICK/ ENTER button
For entering menu items or to perform
a left click when using the
wireless mouse.
POWER button
For turning the power on or off.
LENS button
For adjusting Keystone or Digital Shift
setting.
Function 3 / 4 buttons
For specifying the button assignments
for Function 3 and Function 4
TEACH (OK) button
For registering the GyroRemote in the
projector.
Rear
-16
Front
41
35
47
34
38
41
43
44 GYRO ACTIVE button
For moving the Gyro
function for actions such
as moving tool icons
(such as stamp), selecting
menus in the OSD, or
moving the cursor using
the wireless mouse.
LED indicator
42
Lights up when the GyroRemote is in
motion.
POINTER button
44
Holding this button down displays a
pointer on the screen.
R-CLICK / UNDO button
47
For undoing an operation or to
perform a right click when using the
wireless mouse.
MENU button
54
For displaying adjustment and
setting screens.
VOLUME buttons
35
For adjusting the speaker sound
level.
ASSIGN button
41
Switches the button assignment
function group.
RF CH+ button
42
For checking the current RF channel
as well as switching the channel.
Bottom
Wired remote
48
terminal
(ø2.5 mm
minijack)
WIRE R/C JACK
Gyration U.S. Patents
5698784, 5825350, 5898421
