Projector (Side View) - Sharp Notevision PG-M25X Operation Manual

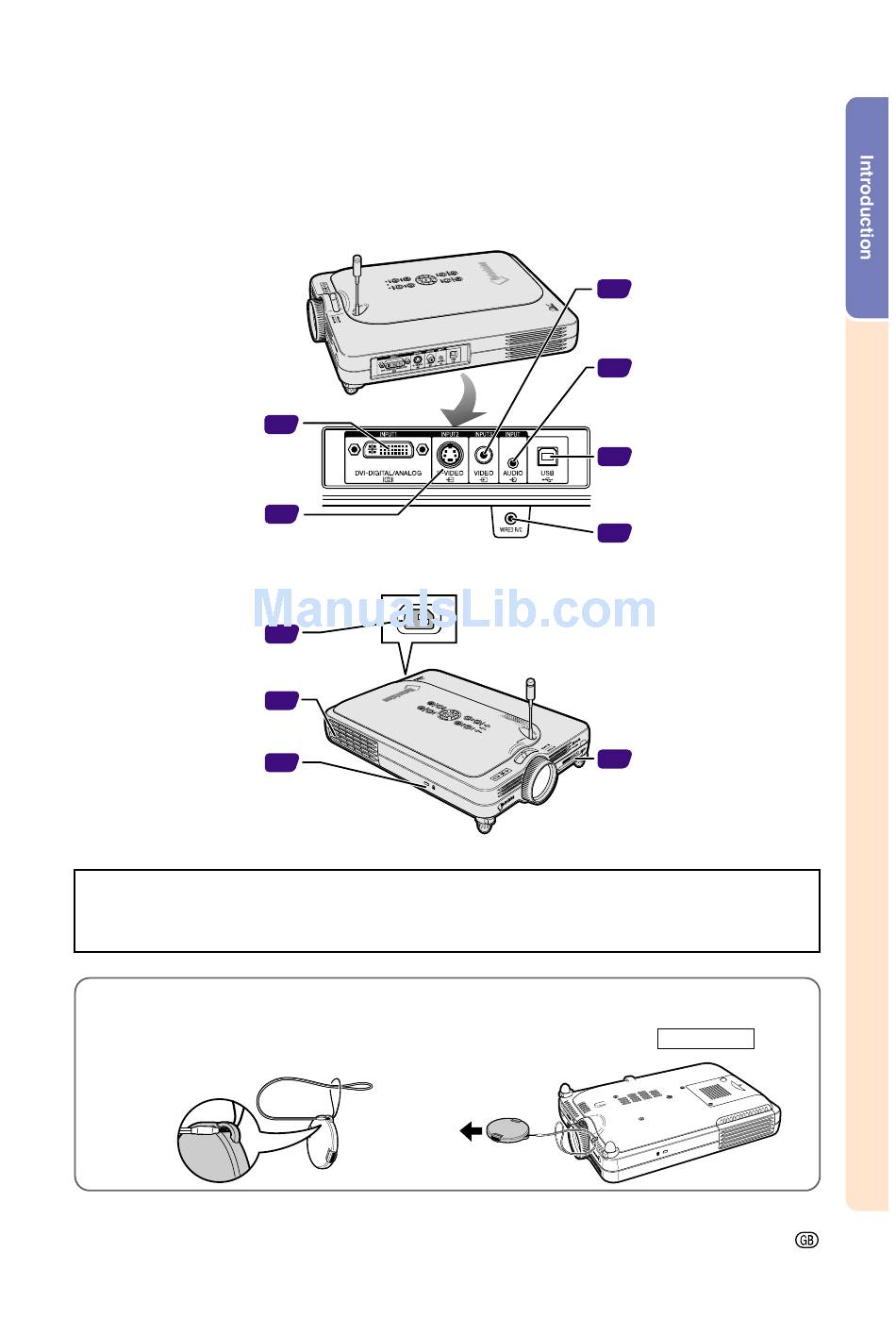

Projector (Side View)

INPUT 1 terminal
DVI Port for DVI digital,
analog RGB, and COMPO-
NENT signals.
INPUT 2 terminal
Terminal for connecting video
equipment with an S-VIDEO
terminal.
AC socket
Exhaust vent
Kensington Security
Standard connector
Using the Kensington Lock
•
This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the system for instructions on how to use it to secure the
projector.
Attaching the lens cap
After putting the lens cap strap on the lens cap, pass
the other end of the strap through the hole under the
projector, next to the lens, as shown in the illustration.
27
30
26
11
15
INPUT 3 terminal
30
For connecting video
equipment.
27 INPUT AUDIO terminal
Shared audio terminal for
INPUT 1, INPUT 2,
INPUT 3 and INPUT 4.
USB port
47
For connecting a computer
using a USB cable.
48
Wired remote contorl
input terminal (ø3.5 mm
minijack)
31 INPUT 4 PC card slot
For inserting a wireless
LAN PC card or a memory
card.
Bottom View
-15
