Ripping

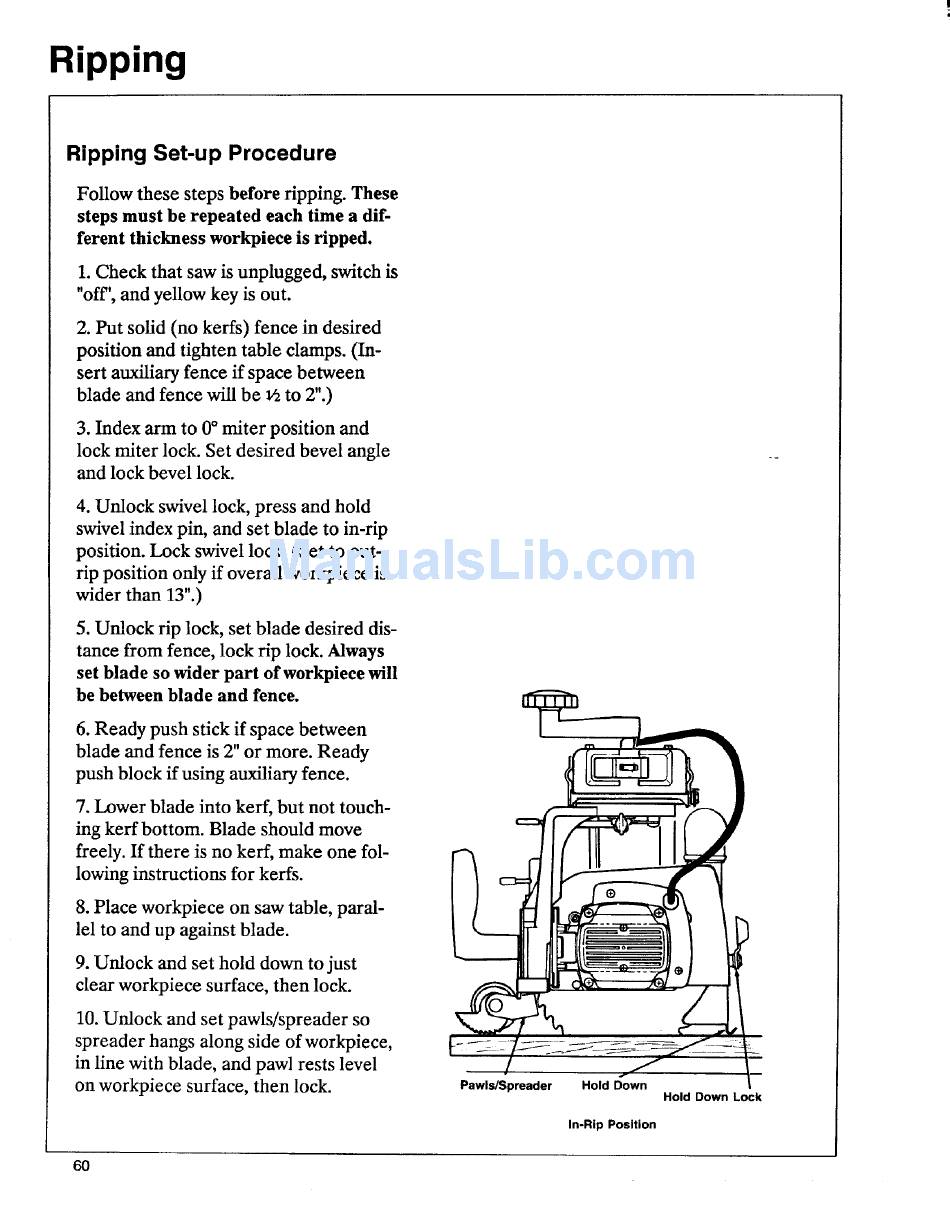

Ripping Set-up Procedure
Follow these steps before ripping. These
steps must be repeated each time a dif-
ferent thickness workpiece is ripped.
1. Check that saw is unplugged, switch is
"oft", and yellow key is out.
2. Put solid (no kerfs) fence in desired
position and tighten table clamps. (In-
sert amdliary fence if space between
blade and fence will be _ to 2".)
3. Index arm to 0° miter position and
lock miter lock. Set desired bevel angle
and lock bevel lock.
4. Unlock swivel lock, press and hold
swivel index pin, and set blade to in-rip
position. Lock swivel lock. (Set to out-
rip position only if overall workpiece is
wider than 13".)
5. Unlock rip lock, set blade desired dis-
tance from fence, lock rip lock. Always
set blade so wider part ofworkplece will
be between blade and fence.
6. Ready push stick if space between
blade and fence is 2" or more. Ready
push block if using auxiliary fence.
7. Lower blade into kerf, but not touch-
ing kerf bottom. Blade should move
freely. If there is no kerf, make one fol-
lowing instructions for kerfs.
8. Place workpiece on saw table, paral-
lel to and up against blade.
9. Unlock and set hold down to just
clear workpiece surface, then lock.
10. Unlock and set pawls/spreader so
spreader hangs along side of workpiece,
in line with blade, and pawl rests level
on workpiece surface, then lock.
f,
Pawls/Spreader Hold Down
In-Rip Position
Hold Down Lock
6O
