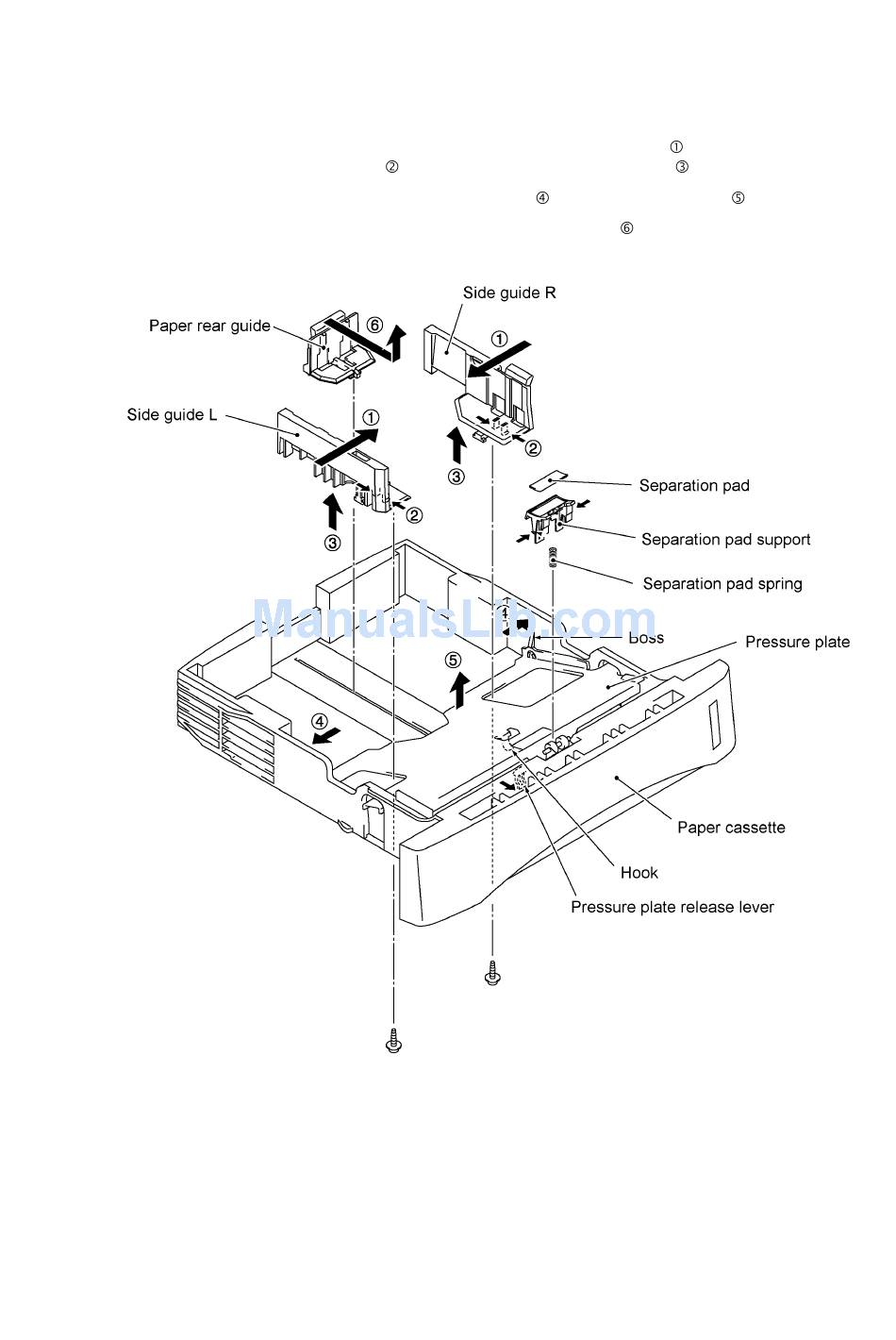

1.28 Paper Cassette

(1) Pull the pressure plate release lever to the front to release the pressure plate.
(2) Fully slide the side guide (R or L) inwards (in the direction of arrow
Then release the latches (arrow
(3) Release the pressure plate from the bosses (arrow
(4) Fully slide the paper rear guide to the front and lift it up (arrow
) and pull up the side guide (arrow
) and remove it (arrow
Screw, pan cup B M2.6x5
(Tightening torque: 0.3 ±0.1 N•m)
IV - 62
) and remove the screw.
).
).
).
