CONTROL ELECTRONICS

The hardware configuration of the facsimile equipment is shown below.
1
* Provided on models supporting LAN interface.
2
* Models supporting the video capture are not available now.
3
* Provided on models equipped with a handset.
4
* Provided on models available with a 2nd paper cassette (as an option or standard).
5
* Provided on European models.

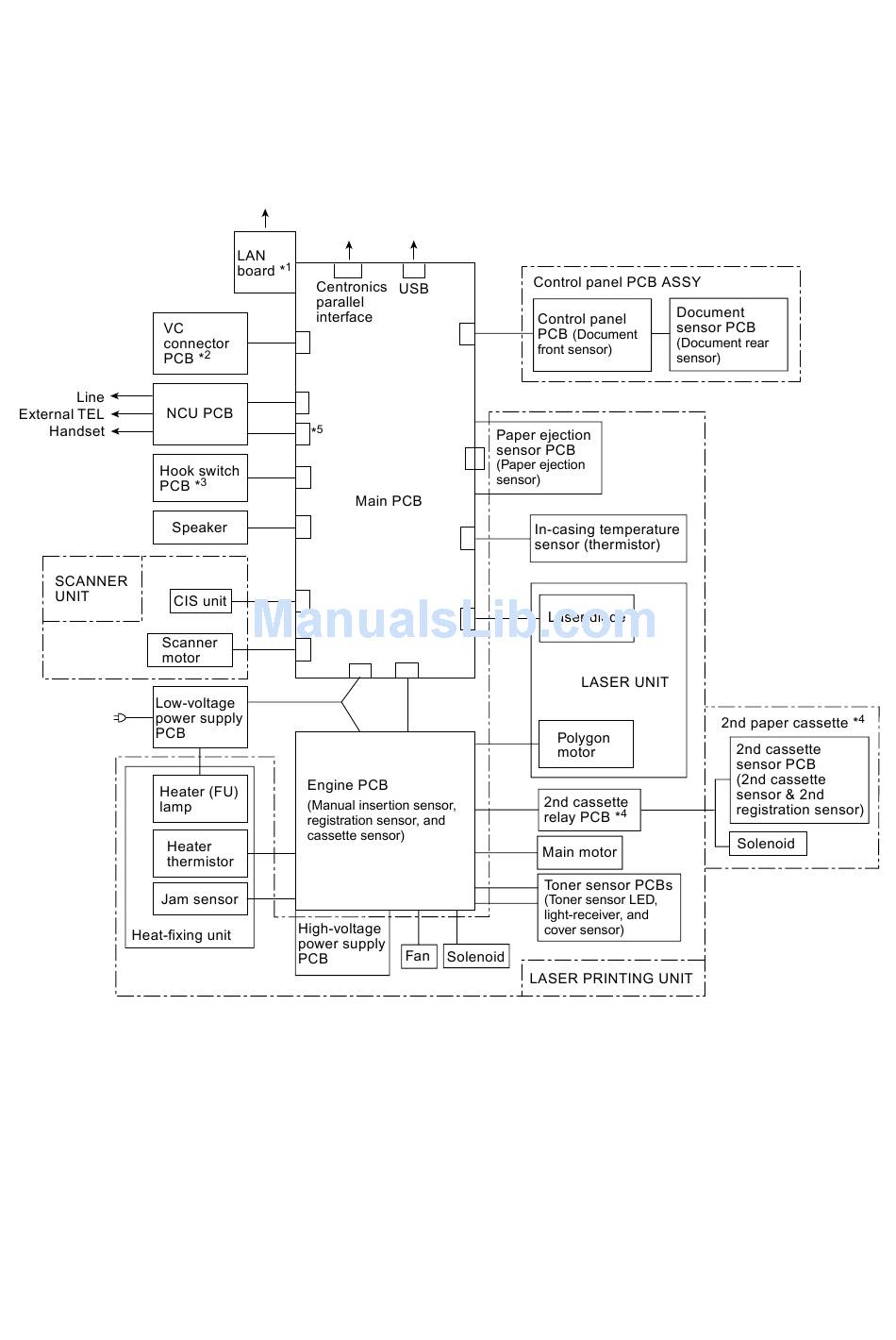

Configuration of Facsimile Equipment
