Scanner components

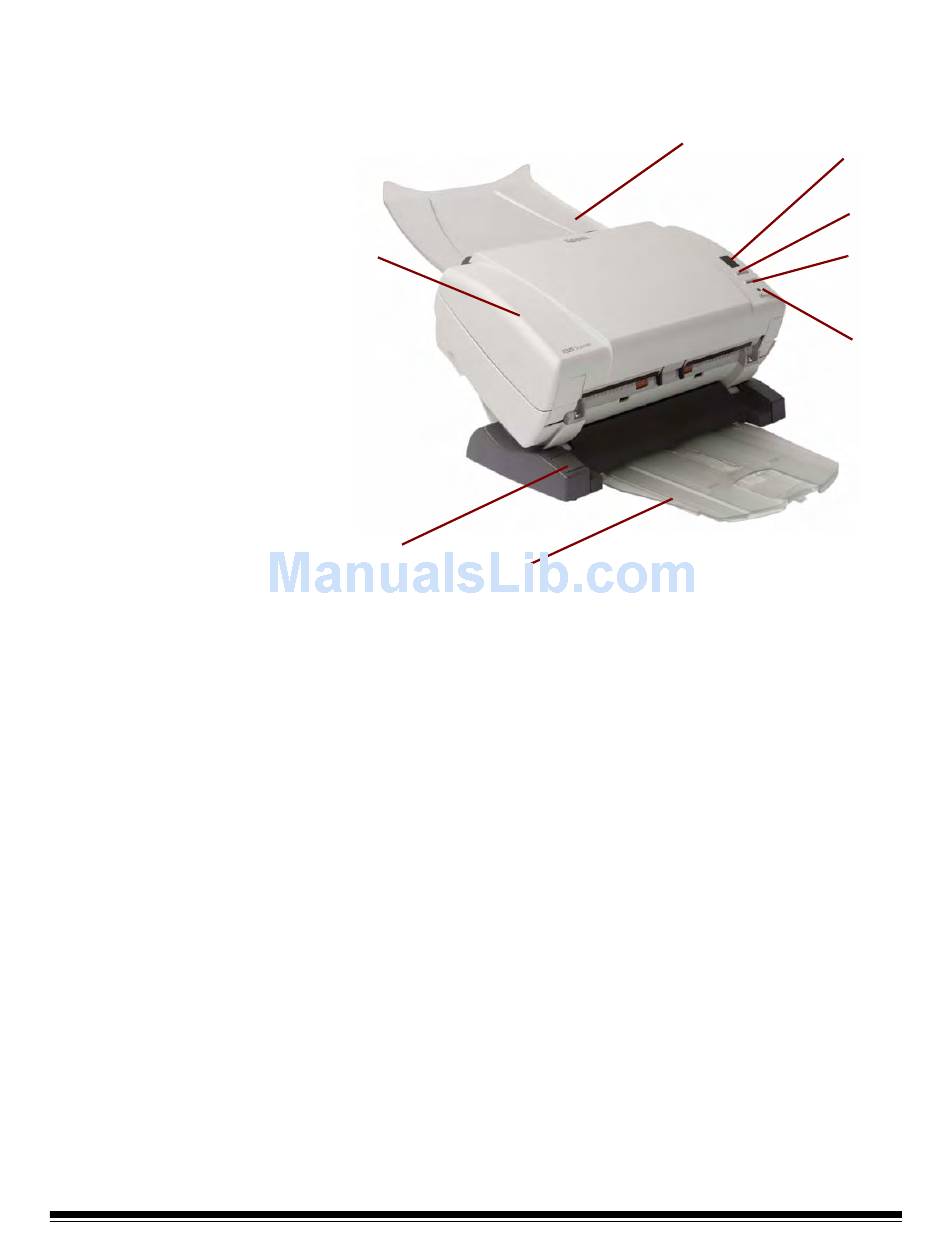

Front view
A-61601 February 2010
Scanner
cover
Tilt
button
Standard output tray
Scanner cover — provides access to internal components; such as,
the imaging area and the feed and separation modules.
Tilt button — allows you to rotate the scanner into a downward
position. The scanner should be left in the downward position for
scanning photos.
Standard output tray — collects the scanned photos. Use this tray
when you are scanning 5 photos or less; otherwise, use the optional
output tray kit included with the s1220 Photo Scanning System.
Input tray — holds up to 25 photos or 75 documents.
Function window, Scroll button and Start button are available for
use with document scanning when using Smart Touch functionality on
the system.
LED Indicator — illuminates or flashes indicating scanner status.
• Steady green: ready to scan
• Flashing green: preparing to scan
• Steady red: scanner not communicating with the PC
• Flashing red: error indication such as, Scanner Cover Open, in
conjunction with the Function window displaying an "E".
See Chapter 7, Troubleshooting for error code descriptions.
Input
tray
Function
indicator
window
Scroll
button
Start
button
LED
1-3
