Page 1 FW740 Operating Instructions...
Page 2 For good copy quality, Ricoh recommends that you use genuine Ricoh toner. Ricoh shall not be responsible for any damage or expense that may result from the use of parts other than genuine Ricoh parts in your Ricoh office product.
Page 3 Note: Some illustrations may be slightly different from your machine. Overseas Affiliates U.S.A. France RICOH CORPORATION RICOH FRANCE S.A. 5 Dedrick Place 383 Avenue de General de Gaulle, West Caldwell, New Jersey 07006 B.P. 307, 92143 Clamart Cedex (TEL) 201-882-2000...
Page 4: Safety Information
SAFETY INFORMATION Safety During Operation We’ve identified all safety messages in this manual with the words warn- ing and caution . These words mean the following. WARNING: Important information to alert you to a situation that might cause serious injury and damage to your property if instructions are not followed properly.
Page 5: General Safety Information
While copying, do not unplug the power cord. Keep corrosive liquids, such as acid, off the machine. Do not allow paper clips, staples, or other small metallic objects to fall inside the machine. General Safety Information Always turn the copier off when you’ve finished copying for the day, but leave it plugged in.
Page 6 COPYING Making One Copy To make a copy, you should first open the lower table of the copier (the copy table); then pull out the original guides at the exit; place the copy paper on the copy table; and last of all set the original on the top table of the copier (the original table).
Page 7 COPYING Making One Copy 5. Wait until the Set Paper indicator lights up on the operation panel. 6. Place the sheet of copy paper on the copy table. Slide the paper straight into the copier until it stops. The copier will soon pull it in. Once the paper is set, the beeper will sound.
Page 8 Making One Copy COPYING 9. The original comes out from the opening just under the original ¬ table . The copy is delivered from the slot on top of the copier ¬ About the original guides... The original guides you pulled out at the exit keep the original from going into the copy paper entrance.
Page 9 COPYING Copying With The Roll Feeder Copying With The Roll Feeder To make a copy using the roll feeder option, you do not need to set pa- per on the copy table; the paper will be fed to the copier from the roll feeder.
Page 10 Copying With The Roll Feeder COPYING 3. When the RF Select indicator lights up on the panel, press the RF Select key. The roll feeder starts. Once the copier has set the copy paper, the beeper will sound. 4. Wait until the Set Original indi- cator lights up on the operation panel.
Page 11 COPYING Making Several Copies Of The Same Original Making Several Copies Of The Same Original To make more than one copy of the same original, you have to reload the original after each copy. If you’re not using the roll feeder option, you also have to set the copy paper for each copy.
Page 12 Making Copies Darker Or Lighter COPYING Making Copies Darker Or Lighter To make darker or lighter copies, you should change the copier’s den- sity setting. There are 14 density levels: the standard density level, three darker levels, and 10 lighter levels. Set the density with the Lighter and Darker keys ( &...
Page 13 COPYING Leaving A Blank Margin At The Leading Edge Leaving A Blank Margin At The Leading Edge You can create a blank margin at the top of the copy (fig. a, the leading edge), or have the leading edge of the image bleed off the copy (fig. b). The copier does this by shifting the entire image backward or forward according to the margin you set.
Page 14 Leaving A Blank Margin At The Leading Edge COPYING ¶ · Press the Function Select key until the ar- The margin is displayed here, row points at Lead Margin. in millimeters. ¸ Press the + key until the display shows 5.0. When you have the margin you want, continue as for any other copy.
Page 15 COPYING Copying Only A Selected Portion Of The Original Copying Only A Selected Portion Of The Original You can copy a portion of the original instead of the entire original. Press and hold the Function Select key for at least three seconds to tell the copier to copy only a portion of the original.
Page 16 Copying Only A Selected Portion Of The Original COPYING Example: copying the middle band of an A2 poster Suppose you are copying an A2 size poster (about 17" x 22") of a sea- shell, as shown on the previous page, and you want to copy only the middle portion of the shell.
Page 17 COPYING Using The Rear Table—Originals That Can’t Be Bent Using The Rear Table—Originals That Can’t Be Bent You can feed originals from the rear of the copier. This way, the original will not turn inside the machine, but will travel straight through. Use the rear table to copy originals that can’t or shouldn’t be bent.
Page 18 Copying To Different Media COPYING Copying To Different Media If you copy to film or vellum (translucent or tracing paper) you need to set the copy media, otherwise the copy might come out creased or wavy. To make a copy, the copier deposits a layer of black resin powder, called toner, on the copy paper.
Page 19 COPYING Programming Settings You Often Use Programming Settings You Often Use There are two ways of programming settings you often use. First, you can link a collection of settings to the Program key ; this way the copier will recall your settings whenever you press that key. Second, you can change the copier’s default settings so that those you want appear every time you turn the copier on or press the Clear Modes key.
Page 20 Programming Settings You Often Use COPYING 4. To retrieve the programmed set- tings, press the Program key be- fore copying. 2–Changing The Copier’s Default Settings You might find that you never use the copier’s default settings, that you always set a lead margin of 10 or 20 mm, or that you always use the roll feeder with a particular length of paper.
Page 21: What Your Service Representative Can Change
COPYING What Your Service Representative Can Change 3. Input the settings you want. 4. Turn off the main switch. The next time you turn the copier on or press the Clear Modes key, the settings you programmed in step 3 will be in effect. What Your Service Representative Can Change Your service representative can adjust some of your copier’s features.
Page 22 What Your Service Representative Can Change COPYING Lead edge increase/decrease speed: The speed at which the lead edge setting scrolls up or down can be changed. The time for one increment (or decrement) can be set to 0.02, 0.05, 0.10, 0.25, or 0.5 second.
Page 23: Maintaining Your Copier
MAINTAINING YOUR COPIER Changing The Toner Bottle WARNING: You must change the toner bottle whenever you see FULL in the copy counter. NEVER clear this condition by only opening and closing the copier or turning it on and off. If the toner bottle overflows, toner particles could get inside the copier and cause damage.
Page 24 Changing The Toner Bottle MAINTAINING YOUR COPIER 4. Place a new bottle in the copier (supplied by your service repre- sentative). Close the door. 6. Close the upper unit. 7. If needed, turn the copier back on, and press the clear modes key to clear the FULL message.
Page 25: Adding Toner
MAINTAINING YOUR COPIER Adding Toner Adding Toner The add toner indicator blinks when toner is running short. When the in- dicator starts blinking, you can still copy about 16 m (about 53’, or 27 A4 size copies). When the indicator stays on, you can’t copy until a new cartridge is put in.
Page 26 Adding Toner MAINTAINING YOUR COPIER 4. Put the old toner cartridge in a vi- nyl bag and discard it. WARNING: Do not incinerate used toner cartridges. Toner dust can ig- nite suddenly. 5. Shake the new toner cartridge lightly 5 to 6 times to remove lumps.
Page 27 MAINTAINING YOUR COPIER Adding Toner 8. Take the right edge of the seal and slowly remove it. 9. Push the toner cartridge all the way to the left. 10. Turn the toner cartridge all the way in, as shown. 11. Close the toner cartridge cover and the original table.
Page 28: Loading A Roll Of Paper
Loading A Roll Of Paper MAINTAINING YOUR COPIER Loading A Roll Of Paper When the load paper indicator lights, it’s time to install a new roll of pa- per. You’ll need to open the top and bottom covers of the roll feeder, re- move any remaining paper, take the old roll out and take it off the spool, insert the spool in a new roll, and finally load the new roll into the roll feeder.
Page 29 MAINTAINING YOUR COPIER Loading A Roll Of Paper 4. Flip the two latches on each side of the paper spool. 5. Remove the spool. 6. Press and hold the lock on the spool and pull the spool out of the roll. Throw the old roll away. 7.
Page 30 Loading A Roll Of Paper MAINTAINING YOUR COPIER 8. While holding the lock down, align the paper roll with the size marks on the spool. 9. Load the spool back in the roll feeder so that the paper comes off the roll from the front, not from the rear, as shown below.
Page 31 MAINTAINING YOUR COPIER Loading A Roll Of Paper 12. Turn the wheel on the right side to bring the paper further in. 13. Lower the top unit of the roll feeder. a) Hold the two handles. b) Squeeze and hold the lock on the left. c) Lower the unit just a bit.
Page 32: Things To Do Every Day
Things To Do Every Day MAINTAINING YOUR COPIER Things To Do Every Day Clean the exposure glass & the platen roller Clean the exposure glass with a damp cloth, then wipe it with a dry cloth. Clean the platen with a damp cloth, then wipe it with a dry cloth.
Page 33: Troubleshooting
TROUBLESHOOTING If Something Goes Wrong If you have problems with your copier, consult the following pages. If a service indicator lights up, read the section below; if the original or the copy is stuck in the copier, see page 29; if the copier won’t start, or if copies don’t look right, see page 34.
Page 34: If Jams Occur
If Jams Occur TROUBLESHOOTING If Jams Occur If the original is jammed in the feed-in slot Very gently pull the original out of the feed-in slot. Be careful not to tear it. CAUTION: If the original sticks in the ma- chine, or if you don’t think you can remove it without tearing, remove the original from the...
Page 35 TROUBLESHOOTING If Jams Occur 3. Close the original table. Press firmly on both sides until it clicks into place. If sheet paper is jammed in the feed-in slot 1. Squeeze the locks on each side of the copier and lift the unit. 2.
Page 36 If Jams Occur TROUBLESHOOTING If sheet paper is jammed at the paper exit 1. Squeeze the locks on each side of the copier and lift the middle unit between the original table and the copy table. 2. Open the fusing unit cover. CAUTION: The fusing unit can be very hot.
Page 37 TROUBLESHOOTING If Jams Occur If roll paper jams If roll paper jams anywhere in the machine, you still might need to check everywhere to remove the entire length of paper. 1. Open the roll feeder top cover. 2. Slide the blade across. 3.
Page 38 If Jams Occur TROUBLESHOOTING 6. Open the fusing unit cover. CAUTION: The fusing unit can be very hot. Do not touch any parts under the fusing cover. If necessary, wait until the fusing unit has cooled down. 7. Slowly pull the paper out. If there are scraps left inside, open the inner cover, wait for the copier to cool, and remove the scraps.
Page 39 TROUBLESHOOTING Others Others If a puzzling or recurring problem occurs, check the following before calling a service representative. It’s also a good idea to check the Do’s and Don’ts section on page 36 to make sure the paper and originals match what the copier can handle.
Page 40 Others TROUBLESHOOTING Is the image skewed? Make sure to insert the paper and the original straight into the machine. If you have the original and copy guides (option), use them. White spots appear On the copy: try setting your copy paper with the other side fac- ing up.
Page 41 DO’S & DON’TS Copying Do not set more than one sheet of paper at a time on the copy paper table. Center your paper on the copy table using the size marks. Then slide the paper straight into the copier until it stops. When copying to a long sheet of paper, lightly hold the sheet as the copier pulls it in so that it goes in well.
Page 42 Others DO’S & DON’TS Paper Keep open reams of paper in the package and store as you would unopened packages. Avoid storing paper in humid areas. When it’s hot and humid, store paper in a vinyl bag. Do not use copy media made of a material other than paper, vellum, or film.
Page 43 WHERE IS IT & WHAT IS IT Displays and Keys 10 11 Ref. What it is What it does The top indicator lights when the lead margin is being set. Select with key 9. Function The middle indicator lights when the number of copies is indicators being set.
Page 44 Displays and Keys WHERE IS IT & WHAT IS IT Ref. What it is What it does Set Paper These usually light up together. They light when you can set paper on the table or select and start the roll feeder. If RF Select you don’t have the roll feeder option, the RF Select indicators...
Page 45 WHERE IS IT & WHAT IS IT The Outside Of The Copier The Outside Of The Copier 10 11...
Page 46 The Outside Of The Copier WHERE IS IT & WHAT IS IT Ref. What it is What it does Locks Squeeze both locks to open the unit. Open the unit to 1, 1a empty the used toner bottle and to remove jammed paper. Front cover Open this cover (and the unit) to access the toner cartridge.
Page 47: Where To Put Your Copier
WHERE TO PUT YOUR COPIER Your copier needs to be installed by a qualified technician. If you need to transport your copier to a distant location, call your service center be- fore the move. You can of course move your copier around your office without calling the service center.
Page 48 WHERE TO PUT YOUR COPIER Power connection Connect the copier to a power source meeting the specifica- tions given on the inside front cover of this manual. Do not set anything on the power cord. Voltage must not fluctuate more than 10%. Make sure the copier is grounded.
Page 49 APPENDIX: PAPER CUTTING RAIL Cutting a Sheet of Paper The paper cutting rail allows you to buy paper in rolls and cut your own sheets. Follow the steps below. 1. Pull a bit of paper out and insert it between the rail and the double rod.
Page 50 Loading a New Roll APPENDIX: PAPER CUTTING RAIL 4. With your other hand, insert the blade of a paper knife between the two rods and slide across the length of the rail. 5. Make your copy as shown on page 1. Make sure the curl of the paper faces down.
Page 51 APPENDIX: PAPER CUTTING RAIL Loading a New Roll 3. Remove one of the end caps and slide the old roll off the spool. 4. Slide the new roll on the spool and put the cap over the end of the roll. 5.
Page 52: Specifications
SPECIFICATIONS Configuration: Table top Copy process: Electrostatic transfer system Scanning: Original moving over a fixed fiber op- tics array. Originals: Sheet Original size: Maximum, 914 x 2000 mm (36" x 80") Minimum, A4 (8.5" x 11") lengthwise Copy size: Maximum, 914 x 2000 mm (36" x 80") Minimum, 210 x 280 mm (8.5"...
Page 53 SPECIFICATIONS Noise emission: Stand by, less than 57 dB Measurements made following ISO 7779 Copy cycle, less than 72 dB (copier only) Dimensions (W x D x H): 1080 mm x 570 mm x 490 mm (42.1" x 22.2" x 19.1") Weight: 76 kg (167.4 lb) Optional equipment:...
Page 54 INTRODUCTION This copier is a console plain papercopier carefully manufactured to exacting standards of high performance. it consistently yields high contrast copies with a superior finish. This manual contains detailed instructions on the operation and maintenance of this copier. To get maximum versatility from this copier, all operators should carefully read and follow the instruc- tions in this manual.
Page 55 R R WARNING: • Only connect the machine to the power source described on the inside front cover of this manual. • Avoid multi-wiring. • Do not damage, break or make any modifications to the power cord. Do not place heavy objects on it, pull it hard or bend it more than necessary.
Page 56 • Do not incinerate used toner, toner bottles or toner cartridges. Toner dust might ignite when exposed to an open flame. Dispose of the used toner cartridges according to local regulations for plastics.
Page 57 R R CAUTION: • Keep the machine away from humidity and dust. A fire or an electric shock might occur. • Do not place the machine on an unstable or tilted surface. If it topples over, it could cause injury. •...
Page 58 • Deliver to collection point for waste products. Do not be disposed of via domestic refuse collection.
Page 59: Table Of Contents
TABLE OF CONTENTS 1. GETTING STARTED ........... 1 HOW TO USE THIS COPY MACHINE ......1 WHERE IT IS & WHAT IT IS ..........4 Copier Exterior ............. 4 Operation Panel ............6 RECOMMENDED ORIGINALS ........8 RECOMMENDED PAPER ..........10 TONER .................
Page 60 USER TOOLS ...............36 Semi Synchro Cut Adjustment ........36 WHAT YOUR SERVICE REPRESENTATIVE CAN CHANGE ...............37 4. MAINTAINING YOUR COPIER ........39 CHANGING THE TONER BOTTLE .........39 ADDING TONER ............42 LOADING A ROLL OF PAPER ........45 LOADING A NEW ROLL (ONTO ROLL CUTTING RAIL) ........49 5.
Page 61: Getting Started
1. GETTING STARTED HOW TO USE THIS COPY MACHINE Turn the machine switch on. When the “Wait “ indicator goes off and the ”Set Paper” indicator goes on, the copier enter the ready condition. Clear Modes/ Energy Energy Saver Saver Original Paper Select...
Page 62 face up Set the Original Guides (option) to match the original size mark. Set the original slide it straight into the copier along the Original Guides. PB002 PB003 The original comes out from the opening just under the original table À. The copy is delivered from the slot on top of the copier Á.
Page 63 Notes p If you want to catch copies the back of the machine, change the copy delivery directions as shown in the figure. SB011...
Page 64: Where It Is & What It Is
WHERE IT IS & WHAT IT IS Copier Exterior SB001 Set the Manual Pocket as shown in the figure. SB002...
Page 65: Operation Panel
1a & 1b Locks Squeeze both locks to open the unit. Open the unit to empty the used toner bottle and to remove jammed paper. 2. Front Cover Open the cover(and the unit) to access the toner cartridge. 3. Original Table Place your original here, face up.
Page 66: Operation Panel
Operation Panel Clear Modes/ Paper Length Energy Energy Saver Cut Select Saver Original Semi Synchro Preset/ Paper Select Variable Program Preset Cut Wait Lighter Copy Vellum Leading Edge Film Copy Counter Function Select RF Select /Cut Copy Media Lighter Darker Clear/Stop Emergency Stop 1 5 1 6...
Page 67 The Set Paper indicator on the left lights when the copier is ready 9. Set Paper or RF to receive an paper. The RF Select indicator on the right lights when Select indicator you select the Roll Paper. Cancels all of current settings. When you hold down this key for 10.
Page 68: Recommended Originals
RECOMMENDED ORIGINALS You can set originals with weight in the range 21g/m , 6 lb to 157 g/m , 41 lb in this copier. Feedable size is between 914×2,000mm (W×L), 36”×80” (maximum width that can be fed: 960mm, 38.4”) and 210×297mm (W×L), 8.5”×11” for minimum. You can not use the Repeated Copying function in the following cases.
Page 69 Non-recommended originals p The following types of originals are not recommended. • Wet originals • Originals with cardboard stuck on the leading edge • Originals with clips or staples • Originals with wet ink or white-out • Carbon paper • Originals made of materials other than paper or film (thermosensitive paper, aluminum foil,etc) Notes For Originals p Margins on the leading and side edges of originals are not copied as shown in the illustration.
Page 70: Recommended Paper
RECOMMENDED PAPER p Standard paper sizes that can be used in this copier are shown below. Metric version Inch version Bypass Roll Feeder E (36” 48”) D (24” 36”) C (18” 24”) B (12” 18”) A ( 9” 12”) p When you make a copy on a non-standard size of paper, set the paper on the Copy Paper Table.
Page 71 p If copying to natural tracing paper (all pulp,translucent paper)at a relative humibity of 35% or less. a)If the paper was left out of its package for 5 minutes or more, remove the first 700mm(28”) before copying. b)If copies come out wavy or with white spots, use vellum tracing paper instead of natural tracing paper.
Page 72: Toner
TONER Handling Toner R WARNING: • Do not incinerate used toner, toner bottle or toner cartridge. • Toner dust might ignite when exposed to an open flame. • Dispose of the toner bottle and the used toner cartridge according to local regulations for plastics. R Caution: •...
Page 73: Copying
2. COPYING BASIC COPYING (COPYING TO SHEETS) Use the Copy Paper Table to copy onto paper. Notes For acceptable types of original and paper see page 8 and 10. Set one sheet of paper at a time on the Copy Paper Table. Never insert more than one sheet of paper.
Page 74 Pull down the Copy Paper Table. SB003 Set the Paper Guides(options) on the Copy Paper Table, and set the Original Guides (option) on the Original Table. SB004 Open the guides to keep original away from the paper entrance so that the edge cannot slip into the paper entrance.
Page 75 Make sure that the “Set Paper” indicator is lit. If it is off, press the Energy Saver key to exit Energy Saving mode. If any previous settings remain, press the Clear Modes key. Set the density, the number of copies, and other optional settings you require such as Leading Edge.
Page 76 Set your original along the size indication on Clear Modes/ Energy Energy Saver Saver Original the Original Table. Or set the Original Guides Paper Select (option) to match the original width. Program Wait Make sure that the “Set Original” indicator is Lighter Copy Vellum lit.
Page 77 Notes p Do not hold down or pull out the original during copying. Do not put pressure on the original cover. p If you do not insert the original at a certain time after you have inserted the paper, the paper will exit automatically. If you do not insert the paper at a certain time after you have inserted the original, the original will exit automatically.
Page 78: Using The Rear Table
Using the Rear Table When you copy the following originals, set them in the Rear Table. • Thick originals (0.19mm, 35 1mm). • Originals which cannot be folded. • Originals less than 297mm (12”) in width and more than 1200mm (47”) in length. Notes p You cannot use the following function using the Rear Table.
Page 79: Copying Onto Roll Paper
COPYING ONTO ROLL PAPER (OPTION) To make a copy using the Roll Feeder option, you do not need to set paper on the Copy Paper Table; the paper will be fed to the copier from the Roll Feeder. You can copy onto roll paper using the following techniques: Semi Synchro cutting Preset cutting...
Page 80 Semi Synchro Cut This feature lets you cut the roll paper manually to a length that approximates to that of the original. This saves you having to measure and enter the length of every original. Notes p Semi Synchro Cut can handle the cut length in the range 410 ~ 2000mm, 16.5” ~ 80.0”. p If you set the number of copies, Semi Synchro Cut can handle automatically by the length at your setting for first copy.
Page 81 face up Center your original on the Original Table. Slide the original straight into the copier until the copier pulls it in. SB015 Just as the trailing edge of the original passes the horizontal line of the Semi-auto synchro cut mark, press the Cut key. SB016 Notes p To cancel copying, press the Clear/Stop key.
Page 82: Preset Cutting
Preset Cutting This function cuts roll paper to a selected length. The paper is cut to this length regardless of the original size. Notes p By the default Preset Cut length is as follows. For the change of the Preset Cut length pattern, please contact your service representatives.
Page 83: Variable Cutting
Variable Cutting This function cuts roll paper in a length you specify. Notes p The variable cut can handle the cut length from 245 to2,000mm,9.6”to 78.7”. Press the Preset Cut key. The “Preset/Variable” indicator lights up and the “Paper Length” display shows the default Preset Cut length.
Page 84: Using The Roll Cutting Rail
USING THE ROLL CUTTING RAIL (OPTION) The ROLL Cutting Rail allows you to buy paper in rolls and cut your own sheets. Pull a bit of paper out and insert it between the rail and the double rod. SB017 Pull the length of paper you want. SB018 With one hand, hold the paper firmly against the Original Table.
Page 85 4 With your other hand, insert the blade of a paper knife between the two rods and slide across the length of the rail. SB020 5 Make your copy as shown on page 14. Make sure the curl of the paper faces down . SB021...
Page 86: Copy Settings
3. COPY SETTINGS COPYING ONTO OTHER MEDIA To copy onto vellum (translucent or tracing paper) or film, select the Copy Media function to match the paper type (see below). Type of paper Media setting Plain paper Both indicators off Film Film indicator on Vellum Vellum indicator on...
Page 87 Adjusting the Fusing Temperature Manually Press the Copy Media key to turn on the Clear Modes/ Energy Energy Saver Saver Original “Vellum” or “Film” indicator that you want. Paper Select Hold down the Copy Media key for at least Program Wait 3 seconds.
Page 88: Adjusting Copy Image Density
ADJUSTING COPY IMAGE DENSITY To make copies darker or lighter, change the density setting. There are 14 density levels: the standard density level, three darker level, and 10 lighter levels. Set the density with the Lighter and Darker keys under the density indicator. Notes p The indicator shows seven levels at a time.
Page 89: Making Several Copies Of The Same Original
MAKING SEVERAL COPIES OF THE SAME ORIGINAL Repeated copying means making two or more copies of a original. To make more than one copy of the same original, you have to reload the original after each copy. If you’re not using the Roll Feeder (option), you also have to set the copy paper for each copy.
Page 90: Setting A Leading Edge Margin
SETTING A LEADING EDGE MARGIN You can set a margin at the leading edge of the copy. Leading Edge Margin Leading Edge Margin In the Semi Synchro Cut mode Using the Copy Paper Table, or in the Preset Cut mode, Variable cut mode Notes You can set up to ±99mm, ±4.0”...
Page 91: Partial Copying
PARTIAL COPYING The Partial Copy function copies only a part of an original. You need to enter start and end points in the original feed direction. Semi Synchro Cut Mode Original Copy Paper Table Preset/Variable Cut Mode Notes p You cannot use the Partial Copying function using the Rear Table. p You cannot use the Partial Copying function for originals shorter than 150mm.
Page 92 Slide the paper straight into the copier until it stops, or press the RF Select key to turn on the “RF Select “ indicator. Set the original. SB009 Press the Function Select key when the lead- ing edge of the area to be copied comes to the position where it is covered with the original table cover.
Page 93: Programming Setting You Often Use
PROGRAMMING SETTING YOU OF TEN USE There are two ways of programming settings you often use. A) Store the settings in the Program key. When you press this key, the settings will be restored instantly. B) Change the default settings to those you use most frequently. Whenever you turn on the machine or press the Clear Modes key, these settings will be ready to use.
Page 94: B) Changing The Default Setting
Recalling Settings Stored In The Program key Press the Program key before copying. Clear Modes/ Energy Energy Saver Saver Original Enter the number of copies required with the Paper Select plus and minus key. Program Wait Make a copy. Lighter Copy Vellum Film Copy Media Lighter...
Page 95: User Tools
USER TOOLS Access the User Tools to make the following adjustments: A1) Not in use A2) Semi Synchro Cut Adjustment; Allows you to adjust the cut length. –25 ~ +25mm (–1.0” ~ –1.0”) (by 1mm, or 0.1") Without the Roll Feeder, A2) is not in use. Hold down the Program key for at least 3 Clear Modes/ Energy...
Page 96: What Your Service Representative Can Change
WHAT YOUR SERVICE REPRESENTATIVE CAN CHANGE Your service representative can adjust some of your copier’s features. Here’s a list of changes the service representative can make for you. p Copy media default: The copy media setting can be adjusted to match the kind of paper you use.
Page 97 p Paper length count up/down, Paper length up/down speed, and Paper size pattern: When you press the preset length key, the copier scrolls through a selection of preset paper sizes. The copier can scroll through the preset lengths forward or backward, and at different speeds. There are many sets of sizes from which to choose.
Page 98: Maintaining Your Copier
4. MAINTAINING YOUR COPIER CHANGING THE TONER BOTTLE When “FULL” is displayed, it is time to changing the Toner Bottle. WARNING: Do not incinerate used toner, toner bottle or toner cartridge. Toner dust might ignite when exposed to an open flame. Dispose of the toner bottle and the used toner cartridge according to local regulations for plastics.
Page 99 Open the door on the right side of the copier. SM012 Carefully remove the plastic bottle and put the used toner in a vinyl bag. Dispose it according to local regulations for plastics. SM013 Place the bottle in the copier. SM014 Close the door.
Page 100 Close the upper unit. If needed, turn the copier back on, and press the Clear Modes key to clear the FULL message. SB023...
Page 101: Adding Toner
ADDING TONER When D is displayed, it is time to supply toner. When the indicator starts blinking, you can still copy about 53 feet of paper (16 m, 27 8½”×11” size copies). When the indicator stays on, you can’t copy until a new cartridge is put R WARNING: •...
Page 102 Open the toner cartridge cover. SB025 Turn the old cartridge towards you. Then, while pressing the cartridge to the right, lift the left end and remove the cartridge. Put the old toner cartridge in a vinyl bag and dispose it according to local regurations for plastics.
Page 103 Take the right edge of the seal and slowly remove it. SB029 Push the toner cartridge all the way to the left. Then turn the toner cartridge all the way in, as shown. SB030 Close the toner cartridge cover and the Origi- nal Table.
Page 104: Loading A Roll Of Paper
LOADING A ROLL OF PAPER When C is displayed, it is time to install a new roll of paper. R CAUTION: • Rolls of paper can be heavy, so you should be careful when loading one. Don’t strain yourself. Ask for help if you think you need it. Open the top and bottom covers of the Roll Feeder.
Page 105 Flip the two latches on each side of the paper spool. SM029 Remove the spool. SM030 Press and hold the lock on the spool and pull the spool out of the roll. Throw the old roll away. SM031 Press and hold the lock on the spool and in- sert the spool into a new roll.
Page 106 While holding the lock down, align the paper roll with the size marks on the spool. SM033 Load the spool back in the Roll Feeder so that the paper comes off the roll from the front, not from the rear, as shown below. SM034 Make sure the spool is pushed all the way in the grooves and flip the two latches back in...
Page 107 Turn the wheel on the right side to bring the paper further in. SM037 Lower the top unit of the Roll Feeder. a) Hold the two handles. b) Squeeze and hold the lock on the left c) Lower the unit just a bit. d) Hold on to the unit, but let go of the lock.
Page 108 LOADING A NEW ROLL (ONTO PAPER CUTTING RAIL) Lift the rail. SB045 Remove the spool from its support. SB046 Remove one of the end caps and slide the old roll off the spool. SB047 Slide the new roll on the spool and put the cap over the end of the roll.
Page 109 5 Place the spool on the holder so that the pa- per rolls off the front. Push it all the way in. SB021 6 Lower the rail. SB050...
Page 110: Troubleshooting
5. TROUBLESHOOTING If Something Goes Wrong If you have problems with your copier, consult the following pages. If a service indicator lights up, read the section below; if the original or the copy is stuck in the copier; see page 52; if the copier won’t start, or if copies don’t look right, see page 58.
Page 111: If Jams Occur
IF JAMS OCCUR If the original is jammed in the feed-in slot Very gently pull the original out of the feed-in slot. Be careful not to tear it. R CAUTION: SB032 • If the original sticks in the machine, or if you don’t think you can remove it without tearing, remove the original from the exit instead.
Page 112 Close the original table. Press firmly on both sides until it clicks into place. SB035 If sheet paper is jammed in the feed-in slot Squeeze the locks on each side of the copier and lift the unit. SB036 Pull out the copy paper. Do not leave any scraps of paper in the copier.
Page 113: If Sheet Paper Is Jammed At The Paper Exit
If sheet paper is jammed at the paper exit R CAUTION: • The fusing unit can be very hot. Do not touch any parts under the fusing cover. If necessary, wait until the fusing unit has cooled down. Squeeze the locks on each side of the copier and lift the moddle unit between the Original Table and the Copy Paper Table.
Page 114: If Roll Paper Jams
Close the unit and all covers. Press firmly on both sides until it clicks into place. SB023 If roll paper jams If roll paper jams anywhere in the machine, you still might need to check everywhere to remove the entire length of paper. R CAUTION: •...
Page 115 Close the roll feeder top cover. If your were able to remove all the paper, stop here. SB056 Squeeze the locks on each side of the copier and lift the unit. SB036 Open the fusing unit cover. SB038 Slowly pull the paper out. If there are scraps left inside, open the inner cover, wait for the copier to cool, and remove the scraps.
Page 116 Close the unit and all covers. Press firmly on both sides until it clicks into place. SB023...
Page 117: Others
OTHERS If a puzzling or recurring problem occurs, check the following before calling a service representa- tive. It’s also a good idea to check the Do’s and Don’ts section on page 61 to make sure the paper and originals match what the copier can handle. Absolutely nothing happens p Is the main switch on? p Is the cord plugged in?
Page 118: Copies Come Out Dog Eared
Creases p Try setting your copy paper sideways. p If long runny creases appear on copies, try setting your copy paper sideways, or try changing the copy media setting. p If creases appear on copies made to transparent film, try setting your film sheets sideways. Copies come out dog eared p Try setting your copy paper with the other side facing up.
Page 119 THINGS TO DO EVERY DAY Clean the exposure glass & the platen plate you should clean the copy and original tables with a damp cloth, then wipe them with a dry cloth. Clean the exposure glass and the Original Drive Roller with a damp cloth, then wipe it with a dry cloth.
Page 120 DO’S & DON’TS R CAUTION: • When you move the machine, unplug the power cord from the wall outlet to avoid fire or electric shock. • When the machine will not be used for a long time, unplug the power cord.
Page 121: Where To Put Your Copier
WHERE TO PUT YOUR COPIER Your copier needs to be installed by a qualified technician. If you need to transport your copier to a distant location, call your service center before the move. You can of course move your copier around your office without calling the service center. If you do, remember that the temperature, humidity, and cleanliness of the area around the copier may affect its performance.
Page 122: Environments To Avoid
Environments to avoid p Locations exposed to direct sunlight or strong light (more than 1500 lux); p Dusty areas. p Areas with corrosive gasses. p Altitudes of over 6500 feet (2000 m) above sea level; p Areas prone to strong vibrations. p Locations directly exposed to cool air from an air conditioner or heat from a nearby heater.
Page 123: Access To Machine
p Connect the copier to a power source meeting the specifications given on the inside front cover of this manual. p Do not set anything on the power cord. p Voltage must not fluctuate more than 10%. p Make sure the copier is grounded. p Make sure the plug is firmly inserted into the power outlet.
Page 124: Specifications
6. SPECIFICATIONS COPIER Configuration Console Process Dry electrostatic transfer system Scanning Original moving over a fixed fiber optics array Originals Sheet Original Reference Position Center Original Size Maximum: 914 (W) 2,000mm (L) (36” 80”) Minimum: A4 (210 (W) 297mm (L)) (8.5” 11”) Copy Size Maximum: 914 (W) 2,000mm (L) (36”...
Page 125: Options
OPTIONS • Roll feeder Number of loaded paper rolls 1 roll Acceptable Roll Size Maximum: 914mm (36”) Minimum: 210mm (8.5”) Roll Diameter Within 170mm (6.7”) Dimension(W D H) 1,080 475 295mm (42.5 18.7 11.6”) Weight 33kg (73lb) • Side Guides •...
Page 126: Index
INDEX installation, 62 altitude, 62 jams, frequent, 58 jams, original, 52 jams, roll paper, 55 background, dirty, 58 jams, sheet paper, 53 bending originals avoiding, 18 blanking margins, 31 bleeding image, 31 light copies, making, 29 light copies, problem, 58 light, surrounding, 62 clearance, 64 loading a roll, 45...
Page 127 selected area, copying a, 32 semi synchro cutting, 20 service indicators, 51 settings, default, 35 skewed image, 58 stiff originals, 18 temperature, 62 temperature, fusing, 28 thick and thin paper, 10 toner bottle, 12, 39 toner, adding, 42 toner, do’s & don’t, 12 toner, used, 39 troubleshooting, 51...
Page 128 INTRODUCTION This copier is a console plain paper copier carefully manufactured to exacting standards of high performance. it consistently yields high contrast copies with a superior finish. This manual contains detailed instructions on the operation and maintenance of this copier. To get maximum versatility from this copier, all operators should carefully read and follow the instruc- tions in this manual.
Page 129 R R WARNING: • Only connect the machine to the power source described on the inside front cover of this manual. • Avoid multi-wiring. • Do not damage, break or make any modifications to the power cord. Do not place heavy objects on it, pull it hard or bend it more than necessary.
Page 130 • Do not incinerate used toner, toner bottles or toner cartridges. Toner dust might ignite when exposed to an open flame. Dispose of the used toner cartridges according to local regulations for plastics.
Page 131 R R CAUTION: • Keep the machine away from humidity and dust. A fire or an electric shock might occur. • Do not place the machine on an unstable or tilted surface. If it topples over, it could cause injury. •...
Page 132 • Deliver to collection point for waste products. Do not be disposed of via domestic refuse collection.
Page 133 TABLE OF CONTENTS 1. GETTING STARTED ........... 1 HOW TO USE THIS COPY MACHINE ......1 WHERE IT IS & WHAT IT IS ..........4 Copier Exterior ............. 4 Operation Panel ............6 RECOMMENDED ORIGINALS ........8 RECOMMENDED PAPER ..........10 TONER .................
Page 134 4. MAINTAINING YOUR COPIER ........39 CHANGING THE TONER BOTTLE .........39 ADDING TONER ............42 LOADING A ROLL PAPER ..........45 5. TROUBLESHOOTING ..........49 If Something Goes Wrong ........... 49 If A Service Indicator Lights Up ........49 IF JAMS OCCUR ............50 OTHERS ...............56 THINGS TO DO EVERY DAY .........58 DO’S &...
Page 135: Getting Started
1. GETTING STARTED HOW TO USE THIS COPY MACHINE Turn the machine switch on. When the “Wait “ indicator goes off and the ”Set Original” indicator goes on, the copier enters the ready condition. Clear Modes/ Paper Length Energy Energy Saver Cut Select Saver Original...
Page 136 Set the Original Guide to match the original size mark. Set the original face down and slide it straight into the copier along the Original Guide. PM004 First, the original is fed through to the Rear Table. PM005 When the original is being sent back, the machine reads the original and starts copying. PM006 With Repeated Copying, the original is repeatedly fed through and sent back until all copies have been made.
Page 137 Copies are delivered at the rear of the machine. PM007 p Set the Manual Pocket as shown in the figure. SM062...
Page 138: Where It Is & What It Is
WHERE IT IS & WHAT IT IS Copier Exterior SM001 SM009...
Page 139 1a. & 1b. Locks Squeeze both locks to open the unit. Open the unit to empty the used toner bottle and to remove jammed paper. 2. Front Cover Open the cover(and the unit) to access the toner cartridge. 3. Original Guide Use the guide to keep the original going straight as you feed the original into the copier.
Page 140: Operation Panel
Operation Panel Clear Modes/ Paper Length Energy Energy Saver Cut Select Saver Original Synchro Preset/ Variable Program Preset Cut Wait Leading Edge Lighter Copy Vellum Trailing Edge Film Copy Counter Bypass Select/ Roll Paper Cut Darker Clear/Stop Function Select Copy Media Lighter Emergency Stop 1 3 1 4 1.
Page 141 9. Set Paper and RF The Set Paper indicator on the left lights when you select By- pass. Select indicators The RF Select indicator on the right lights when you select Roll Paper. 10. Clear Modes/Energy Cancels all current settings. When you hold down Saver key this key for three seconds or more, the copier enters Energy Saver mode allowing you to conserve power.
Page 142: Recommended Originals
RECOMMENDED ORIGINALS p You can set originals with weight in the range 21g/m , 6 lb to 157 g/m , 41 lb in this copier. p Feedable size is between 914×2,000 (W×L), 36”×80” (maximum width that can be fed: 960mm, 37.8”) and 210×297 (W×L), 8.3”×11.7”...
Page 143 Non-recommended originals p The following types of originals are not recommended. • Wet originals • Originals with cardboard stuck on the leading edge • Originals with clips or staples • Originals with wet ink or white-out • Carbon paper • Originals made of materials other than paper or film (thermosensitive paper, aluminium foil, etc.) Notes For Originals p Margins on the leading and side edges of originals are not copied as shown in the illustration.
Page 144: Recommended Paper
RECOMMENDED PAPER p Standard paper sizes that can be used in this copier are shown below. i r t e s r e n o i c n I s r e n o i s s a r e d "...
Page 145 p If copying to natural tracing paper (all pulp,translucent paper)at a relative humibity of 35% or less. a)If the paper was left out of its package for 5 minutes or more, remove the first 700mm(28”) before copying. b)If copies come out wavy or with white spots, use vellum tracing paper instead of natural tracing paper.
Page 146: Toner
TONER Handling Toner R WARNING: • Do not incinerate used toner, toner bottle or toner cartridge. • Toner dust might ignite when exposed to an open flame. • Dispose of the toner bottle and the used toner cartridge according to local regulations for plastics. R Caution: •...
Page 147: Copying
2. COPYING BASIC COPYING (COPYING TO SHEETS) Use the Bypass Table to copy onto sheets of paper. Notes p For acceptable types of original and paper, see page 8 and 10. p Set one sheet of paper at a time on the Copy Table. Never insert more than one sheet of paper. p If the copy paper is curled, set it with the curl facing downwards.
Page 148 Pull down the Bypass Table. SM002 Adjust the Paper Guides (options) on the Bypass Table to match the size of your copy paper. SB007 Open the guides to keep the original away from the paper entrance so that the edge can- not slip into the paper entrance.
Page 149 Make sure that the “Set Paper” indicator is lit. If it is off, press the Energy Saver key to exit Energy Saving mode. If any previous settings remain, press the Clear Modes key. Set the density, the number of copies, and other optional settings you requires such as Trailing Edge.
Page 150 Make sure that the “Set Original” indicator is Clear Modes/ lit. Energy Energy Saver Saver Original Program Wait Lighter Copy Vellum Film Copy Media Lighter Darker Clear/Stop Emergency Stop Center your original face down on the Origi- nal Table. Slide the original straight into the copier until the copier pulls it in.
Page 151 The copy is delivered at the back of the copier. SM008 After copying has finished, hold the original Clear Modes/ with one hand, press the Clear/Stop key, and Energy Energy Saver Saver Original remove the original. Program Wait Lighter Copy Vellum Film Copy Media Lighter...
Page 152: Using The Rear Table
Using the Rear Table Set thick originals (0.19mm, 35µ~1mm) or originals less than 297mm in width and more than 1200mm in length, on the Rear Table. Notes p You cannot use the following functions using the Rear Table. Repeated Copying Synchro cutting function with roll paper Partial Copying Choose any copy setting you require.
Page 153: Copying Onto Roll Paper
COPYING ONTO ROLL PAPER (OPTION) To make a copy using the Roll Feeder option, you do not need to set paper on the copy table; the paper will be fed to the copier from the Roll Feeder. You can copy onto roll paper using the following techniques: Synchro cutting Preset cutting...
Page 154: Synchro Cutting
Synchro Cutting This function cuts roll paper automatically according to the original length. Notes p This feature can cut paper lengths in the range of 245 to 2,000mm, 9.6” to 80.0”. Press the Bypass Select key to turn on the “RF Select” indicator. Press Cut Select key.
Page 155 Center your original face down on the Origi- nal Table. Slide the original straight into the copier until the copier pulls it in. SM059 After copying has finished, hold the original Clear Modes/ Energy with one hand, press the Clear/Stop key, then Energy Saver Saver Original...
Page 156: Preset Cutting
Preset Cutting This function cuts roll paper to a selected length. The paper is cut to this length regardless of the original size. Notes p By the default Preset Cut length is as follows. For the change of the Preset cut length pattern, please contact your service representatives.
Page 157: Variable Cutting
Variable Cutting This function cuts roll paper to a length you specify. Notes p You can have paper length cut in the range of 245 to 2,000mm, 9.6” to 78.9”. Press the Bypass Select key to turn on the “RF Select” indicator. Press the Preset Cut key.
Page 158: Copy Settings
3. COPY SETTINGS COPYING ONTO OTHER MEDIA To copy onto vellum (translucent or tracing paper) or film, select the Copy Media function to match the paper type (see below). Type of paper Media setting Plain paper Both indicators off Film Film indicator on Vellum Vellum indicator on...
Page 159 Adjusting the Fusing Temperature Manually Press the Copy Media key to turn on the Clear Modes/ “Vellum” or “Film” indicator that you want. Energy Energy Saver Saver Original Hold down the Copy Media key for at least 3 seconds. Program Wait The “Lighter Copy”...
Page 160: Adjusting Copy Image Density
ADJUSTING COPY IMAGE DENSITY To make copies darker or lighter, change the density setting. There are 14 density levels: the standard density level, three darker level, and 10 lighter levels. Set the density with the Lighter and Darker keys under the density indicator. Notes p The indicator shows seven levels at a time.
Page 161: Setting The Number Of Copies (Repeated Copying)
SETTING THE NUMBER OF COPIES (REPEATED COPYING) Repeated copying means making two or more copies of a original. This function allows you to make up to 10 copies. Notes p with this feature, the image might be copied at a slant. Whether this happens depends on the original size, type, and condition (e.g., curled, wavy, originals).
Page 162: Setting A Leading/Trailing Edge Margin
SETTING A LEADING/TRAILING EDGE MARGIN You can set a margin on the leading or trailing edge of the copy when you use Roll Feeder (option) in the Synchro Cut mode. When using the Bypass Table, and Preset/Variable Cut Mode you can only set the trailing edge margin.
Page 163 Paper Length Press the + key and - key to specify a edge Cut Select Synchro margin. Preset/ Variable To zero the value, press the Clear/Stop key. Preset Cut Leading Edge If you want to set both margins, press the Trailing Edge Function Select key and specify the other Copy Counter...
Page 164: Partial Copying
PARTIAL COPYING The Partial Copy function copies only a part of an original. You need to enter start and end points in the original feed direction. Synchro Cut Mode original Bypass Table Preset/Variable Cut Mode Notes p You cannot use the Partial Copying function using the Rear Table. p You cannot use the Partial Copying function for originals shorter than 255 mm.
Page 165 Slide the paper straight into the copier until it stops, or press the RF select key to turn on the “RF Select” indicator. Set the original. SM004 Press the Function Select key when the lead- ing edge of the area to be copied comes to the position where it is covered with the original table cover.
Page 166: Programming Setting You Often Use
PROGRAMMING SETTING YOU OF TEN USE There are two ways of programming settings you often use. A) Store the settings in the Program key. When you press this key, the settings will be restored instantly. B) Change the default settings to those you use most frequently. Whenever you turn on the machine or press the Clear Modes key, these settings will be ready to use.
Page 167 B) Changing The Default Setting Turn the main switch off. SM067 Hold down the Emergency Stop key, then Clear Modes/ turn the copier back on. Energy Energy Saver Saver Original The jam and service indicators will blink. Input the settings you want. Program Wait Turn the main switch off.
Page 168 USER TOOLS Access the User Tools to make the following adjustments: A.1) Magnification Adjustment; Allows you to adjust the degree of vertical magnification of copied image –1.0 ~ +1.0% (by 0.05% Initial Value: 0) A.2) Cut Length; Allows you to adjust the cut length. –...
Page 169 WHAT YOUR SERVICE REPRESENTATIVE CAN CHANGE Your service representative can adjust some of your copier’s features. Here’s a list of changes the service representative can make for you. p Copy media default: The copy media setting can be adjusted to match the kind of paper you use.
Page 170 p Paper length count up/down, Paper length up/down speed, and Paper size pattern: When you press the preset length key, the copier scrolls through a selection of preset paper sizes. The copier can scroll through the preset lengths forward or backward, and at different speeds. There are many sets of sizes from which to choose.
Page 171 4. MAINTAINING YOUR COPIER CHANGING THE TONER BOTTLE When “FULL” is displayed, it is time to changing the Toner Bottle. WARNING: Do not incinerate used toner, toner bottle or toner cartridge. Toner dust might ignite when exposed to an open flame. Dispose of the toner bottle and the used toner cartridge according to local regulations for plastics.
Page 172 Open the door on the right side of the copier. SM012 Carefully remove the plastic bottle. Put the the used toner in the vinyl bag and dispose of it according to local regulations for plastics. SM013 Place the bottle in the copier again. Close the door.
Page 173 If needed, turn the copier back on, and press the Clear Modes key to clear the FULL mes- sage. SM016...
Page 174 ADDING TONER When D is displayed, it is time to supply toner. When the indicator starts blinking, you can still copy about 53 feet of paper (16 m, 27 8½”×11” size copies). When the indicator stays on, you can’t copy until a new cartridge is put R WARNING: •...
Page 175 Open the toner cartridge cover. SM019 ! Turn the old cartridge towards you. Then, while pressing the cartridge to the right, lift the left end and remove the cartridge. " Put the old toner cartridge in a vinyl bag and dispose it according to local regulations for plastics.
Page 176 Take the right edge of the seal and slowly remove it. SM023 Push the toner cartridge all the way to the left. Then turn the toner cartridge all the way in, as shown. SM024 Close the toner cartridge cover and the Original Table.
Page 177 LOADING A ROLL OF PAPER When is displayed, it is time to install a new roll of paper. R CAUTION: • Rolls of paper can be heavy, so you should be careful when loading one. Don’t strain yourself. Ask for help if you think you need it. Open the top and bottom covers of the Roll Feeder.
Page 178 Flip the two latches on each side of the paper spool. SM029 Remove the spool. SM030 Press and hold the lock on the spool and pull the spool out of the roll. Throw the old roll away. SM031 Press and hold the lock on the spool and in- sert the spool into a new roll.
Page 179 While holding the lock down, align the paper roll with the size marks on the spool. SM033 Load the spool back in the Roll Feeder so that the paper comes off the roll from the front, not from the rear, as shown below. SM034 Make sure the spool is pushed all the way in the grooves and flip the two latches back in...
Page 180 Turn the wheel on the right side to bring the paper further in. SM037 Lower the top unit of the Roll Feeder. a) Hold the two handles. b) Squeeze and hold the lock on the left c) Lower the unit just a bit. d) Hold on to the unit, but let go of the lock.
Page 181 5. TROUBLESHOOTING If Something Goes Wrong If you have problems with your copier, consult the following pages. If a service indicator lights up, read the section below; if the original or the copy is stuck in the copier; see page 50; if the copier won’t start, or if copies don’t look right, see page 56.
Page 182: If The Original Is Jammed At The Exit
IF JAMS OCCUR If the original is jammed in the feed-in slot Notes p If the paper or original gets stuck in the copier, remove both the original and paper. Very gently pull the original out of the feed-in slot. Be careful not to tear it. SM042 R CAUTION: •...
Page 183 Close the original table. Press firmly on both sides until it clicks into place. SM045 If sheet paper is jammed in the feed-in slot Notes p If the paper or original gets stuck in the copier, remove both the original and paper. Squeeze the locks on each side of the copier and lift the unit.
Page 184 If sheet paper is jammed at the paper exit R CAUTION: • The fusing unit can be very hot. Do not touch any parts under the fusing cover. If necessary, wait until the fusing unit has cooled down. Notes p If the paper or original gets stuck in the copier, remove both the original and paper. Squeeze the locks on each side of the copier and lift the moddle unit between the Original Table and the Bypass Table.
Page 185 Close the unit and all covers. Press firmly on both sides until it clicks into place. SM050 If roll paper jams If roll paper jams anywhere in the machine, you still might need to check everywhere to remove the entire length of paper. R CAUTION: •...
Page 186 Close the roll feeder top cover. If your were able to remove all the paper, stop here. SM054 Squeeze the locks on each side of the copier and lift the unit. SM046 Open the fusing unit cover. SM048 Slowly pull the paper out. If there are scraps left inside, open the inner cover, wait for the copier to cool, and remove the scraps.
Page 187 Close the unit and all covers. Press firmly on both sides until it clicks into place. SM050...
Page 188: Absolutely Nothing Happens
OTHERS If a puzzling or recurring problem occurs, check the following before calling a service representa- tive. It’s also a good idea to check the Do’s and Don’ts section on page 59 to make sure the paper and originals match what the copier can handle. Absolutely nothing happens p Is the main switch on? p Is the cord plugged in?
Page 189 Creases p Try setting your copy paper sideways. p If long runny creases appear on copies, try setting your copy paper sideways, or try changing the copy media setting. p If creases appear on copies made to transparent film, try setting your film sheets sideways. Copies come out dog eared p Try setting your copy paper with the other side facing up.
Page 190 THINGS TO DO EVERY DAY Clean the exposure glass & the platen plate you should clean the copy and original tables with a damp cloth, then wipe them with a dry cloth. p Clean the exposure glass and the Original Drive Roller with a damp cloth, then wipe it with a dry cloth.
Page 191 DO’S & DON’TS R CAUTION: • When you move the machine, unplug the power cord from the wall outlet to avoid fire or electric shock. • When the machine will not be used for a long time, unplug the power cord.
Page 192: Machine Environment
WHERE TO PUT YOUR COPIER Your copier needs to be installed by a qualified technician. If you need to transport your copier to a distant location, call your service center before the move. You can of course move your copier around your office without calling the service center. If you do, remember that the temperature, humidity, and cleanliness of the area around the copier may affect its performance.
Page 193 Environments to avoid p Locations exposed to direct sunlight or strong light (more than 1500 lux); p Dusty areas. p Areas with corrosive gasses. p Altitudes of over 6500 feet (2000 m) above sea level; p Areas prone to strong vibrations. p Locations directly exposed to cool air from an air conditioner or heat from a nearby heater.
Page 194 p Connect the copier to a power source meeting the specifications given on the inside front cover of this manual. p Do not set anything on the power cord. p Voltage must not fluctuate more than 10%. p Make sure the copier is grounded. p Make sure the plug is firmly inserted into the power outlet.
Page 195 6. SPECIFICATIONS COPIER Configuration Console Process Dry electrostatic transfer system Scanning Original moving over a fixed fiber optics array Originals Sheet Original Reference Position Center Original Size Maximum: 914 (W) × 2,000mm (L) (36” × 80”) Minimum: A4 (210 (W) × 297mm (L)) (8.5” × 11”) Copy Size Maximum: 914 (W) ×...
Page 196 OPTIONS • Roll feeder Number of loaded paper rolls 1 roll Acceptable Roll Size Maximum: 914mm (36”) Minimum: 210mm (8.5”) Roll Diameter Within 170mm (6.7”) Dimension (W × D × H) 1,080 × 475 × 295mm (42.5 × 18.7 × 11.6”) Weight 33kg (73lb) •...
Page 197 INDEX installation, 60 altitude, 60 jams, frequent, 56 jams, original, 50 jams, roll paper, 53 background, dirty, 56 jams, sheet paper, 51 blanking margins, 29 bleeding image, 29 light copies, making, 27 light copies, problem, 56 clearance, 62 light, surrounding, 60 copy density, 27 loading a roll, 45 copy media, 25...
Page 198 selected area, copying a, 31 service indicators, 51 settings, default, 34 skewed image, 56 synchro cutting, 20 temperature, 60 temperature, fusing, 26 thick and thin paper, 10 toner bottle, 12, 39 toner, adding, 42 toner, do’s & don’t, 12 toner, used, 39 troubleshooting, 49...
Page 199: Operating Instructions

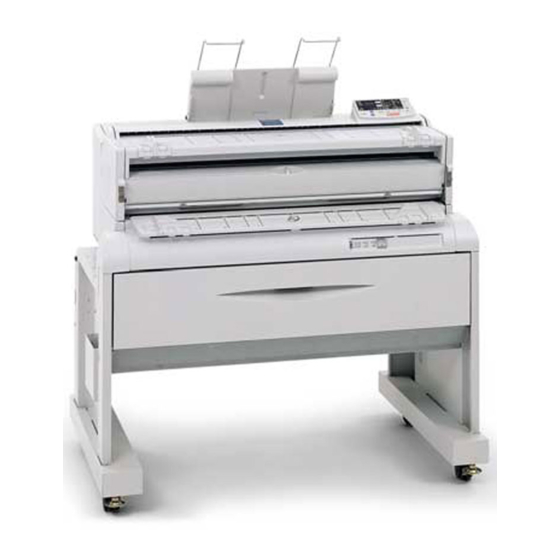

FW770 Operating Instructions Zfbh010e.eps Read this manual carefully before you use this product and keep it handy for future reference. For safety, please follow the instructions in this manual.
Page 200 Phone: +31-(0)20-5474111 37139 Verona Phone: +39-045-8181500 United Kingdom Hong Kong RICOH UK LTD. Ricoh House, RICOH HONG KONG LTD. 1 Plane Tree Crescent, Feltham, 21/F., Tai Yau Building, Middlesex, TW13 7HG 181, Johnston Road, Phone: +44-(0)20-8261-4000 Wan Chai, Hong Kong...
Page 201 For good copy quality, Ricoh recommends that you use genuine Ricoh toner. Ricoh shall not be responsible for any damage or expense that might result from the use of parts other than genuine Ricoh parts in your Ricoh office product.
Page 203 Safety Information When using your equipment, the following safety precautions should always be followed. Safety During Operation In this manual, the following important symbols are used: R WARNING: Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury. R CAUTION: Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.
Page 204 R WARNING: • Connect the power cord directly into a wall outlet and never use an extension cord. • Only connect the machine to the power source described on the inside front cover of this man- ual. • Avoid multi-wiring. •...
Page 205 R CAUTION: • When you pull out the plug from the socket, grip the plug to avoid damaging the cord and causing fire or electric shock. • Unplug the power cord from the wall outlet before you move the equipment. While moving the equipment, you should take care that the power cord will not be damaged under the equipment.
Page 206: Energy Star Program
For how to change the default interval before entering Auto Off mode, see “Auto Off Time” P.38 “User Tools” Specification FW770 Auto Off Power con- 1.0 W mode sumption...
Page 207: How To Read This Manual
How to Read this Manual Symbols In this manual, the following symbols are used: R WARNING: This symbol indicates a potentially hazardous situation that might result in death or serious injury when you misuse the machine without following the in- structions under this symbol.
Page 208 TABLE OF CONTENTS Guide to Components ................1 Copier Exterior ....................1 Operation Panel .................... 3 1. Basics Turning on the Power................5 Turn On the Main Power ................5 Turn Off the Main Power ................5 Recommended Originals ................6 Non-recommended Originals ................
Page 209 Settings You Can Change with User Tools........... 40 4. Maintaining Your Copier Changing The Used Toner Bottle............45 Adding Toner ................... 48 Changing The Roll Paper Size..............52 Removing the Roll Paper Holder..............52 Setting the Roll Paper Holder..............52 Loading A Roll Of Paper .................
Page 210 viii...
Page 211: Guide To Components
Guide to Components Copier Exterior Locks Operation Panel Squeeze both locks(1a&1b) to open the P.3 “Operation Panel”. unit. Open the unit to empty the used Rear Table toner bottle and to remove jammed pa- Place stiff originals face down here. per.
Page 212 Main switch Anti-humidity Heater Switch Use this switch to turn the copier on and When humidity is high, the paper in the off. The copier will need about 3 minutes paper roll tray may absorb moisture, to warm up, if it's been turned off for a which can effect the image quality of long time.
Page 213 Operation Panel Function indicators Troubleshooting indicators These indicators show which setting you P.61 “Troubleshooting” for details. are currently editing, Press the Function Wait indicator key to cycle through them. Shows that the copier is not yet ready to • The top indicator (Paper Length indi- copy.
Page 214 { { { { Function Select} } } } key { { { { Paper Feed} } } } key Press to change which setting you are ed- Press to feed the paper. iting. The current selection is shown by Paper Feed indicator(LED) lights up the indicators above the key: when the machine is ready to feed roll...
Page 215: Turning On The Power
1. Basics Turning on the Power To turn the machine on, press the main switch. Turn On the Main Power Make sure that the power cord is firmly plugged into the wall out- let. Turn on the main switch. Turn Off the Main Power Turn off the main switch.
Page 216 Basics Recommended Originals • You can set originals with weight in the range 21g/m (6 lb) to 157 g/m lb). • You can set original with sizes between 914 3,000mm (W L), 36" 118" and 210 297mm (W L), 8.5" 11". (The maximum width that can be fed: 960mm, 38.4") •...
Page 217 Recommended Originals Non-recommended Originals • The following types of originals are not recommended. • Wet originals • Originals with cardboard stuck on the leading edge • Originals with clips or staples • Originals with wet ink or white-out • Carbon paper •...
Page 218 Basics Recommended Paper • Standard paper sizes that can be used in this copier are shown below. Metric version Inch version Bypass Roll Feeder E (36" 48") D (24" 36") C (18" 24") B (12" 18") A (9" 12") • When you make a copy on a non-standard size of paper, set the paper on the Copy Paper Table.
Page 219 Recommended Paper • When you use paper in high humidity under hot conditions, take out only the necessary amount of paper from the bag. Do not take all the paper out of the bag. Anti-humidity Heater • When humidity is high, the paper in the paper roll tray may absorb moisture, which can effect the image quality of your copies.
Page 220 Basics Toner Handling Toner R WARNING: • Do not incinerate used toner, toner bottle or toner cartridge. • Toner dust might ignite when exposed to an open flame. • Dispose of the used toner and the used toner cartridge ac- cording to local regulations.
Page 221 2. Copying Basic Copying (Copying to sheets) Use bypass table or roll feeder to copy onto paper. Note For acceptable types of original and paper, P.6 “Recommended Originals” P.8 “Recommended Paper”. If you use bypass table, place one sheet of paper at a time on the bypass table and never insert more than one sheet of paper.
Page 222 Copying Turn on the main switch. Make sure that the Wait indicator goes off, and then Ready and the Set Pa- per indicator go on. Make sure that the Bypass Tray is selected. Select any copy settings you require, such as the media type or copy densi- Set the paper guide to match the width of the paper.
Page 223 Basic Copying (Copying to sheets) Slide the paper straight into the copier until it stops. The copier will soon pull it in. Note Center the paper face up on the bypass table and slide the paper straight into the copier.These illustrations show the copier with the Original Guides, the Paper Guides, and other optional equipment.
Page 224 Copying The copy is delivered from the slot on top of the copier (B). If you make several copies of the same original, when the copy comes out, re- move it and repeat from step C Note If you want to catch copies at the back of the machine, change the copy de- livery direction as shown in the figure.
Page 225: Using The Roll Feeder (Option)
Basic Copying (Copying to sheets) Using the Roll Feeder (Option) When the Wait indicator goes off and the Ready and the Set Paper indicator go on, the copier enters the ready condition. Make sure that the paper feed indicator lights up. Select any copy settings you require, such as the media type or copy densi- Press the {RF Select/Cut} key to select the Roll Feeder.
Page 226 Copying Make sure that the Set Original indicator goes on. Set the original guides to match the width of the original. Center your original face up on the original Table. Slide the original straight into the copier until the copier pulls it in.
Page 227 Basic Copying (Copying to sheets) The original comes from the opening just under the Original Table (A A A A ). The copy is delivered from the slot on top of the copier (B B B B ). Using the Rear Table When you copy the following originals, set them in the Rear Table.
Page 228 Copying Insert the original face down from the rear table. Hold and take the original which has been read and delivered in the front of the copier.
Page 229 Copying onto Roll Paper (Option) Copying onto Roll Paper (Option) The paper will be fed to the copier from the Roll Feeder. You can copy onto roll paper using the following functions: • Semi Synchro cutting • Preset cutting • Variable cutting Note If unused roll paper is left in the copier, cut 1000mm (39.4") from the edge of the paper before you start copying.
Page 230 Copying If you set the number of copies, Semi Synchro Cut can handle automatically by the length at your setting for first copy. Do not use carrier sheet and rear table when you use Semi synchro cutting. A fault might occur. Press the { { { { Cut Select} } } } key(1).
Page 231 Copying onto Roll Paper (Option) Press the { { { { Paper Feed} } } } key. Set the original guides to match the width of the original. Center your original face up on the original table. Slide the original straight into the copier until the copier pulls it in.
Page 232 Copying Just as the trailing edge of the original passes the table edge, press the { { { { RF Select/Cut} } } } key. Important To cancel copying, press the {Clear/Stop} key. The copier finishes the oper- ation in progress, and delivers the copy and the original. To cancel on-going copying, for example, when you have inserted a wrong blueprint, press the {RF Select/Cut} key.
Page 233 Copying onto Roll Paper (Option) Press the { { { { Preset Cut} } } } key (1). The Preset/Variable indicator lights up (2) and the Paper Length display shows the default preset cut length. (1189mm or 48.0"). Press the { { { { Preset Cut} } } } key several times until the indicator shows the value you want.
Page 234 Copying Press the { { { { Preset Cut} } } } key(1). The Preset/Variable indicator(2) lights up and the "Paper Length" display shows the default Preset Cut length. (1189mm or 48"). Press the { { { { Preset Cut} } } } key to display the nearest value to the one you want. Press { { { { +} } } } key or { { { { } } } } key to specify the most appropriate length.
Page 235 Copying onto Roll Paper (Option) Using The Roll Cutting Rail (Option) The Roll Cutting Rail allows you to use roll paper and cut your own sheets. For how to set the roll cutting rail, P.59 “Loading A New Roll Onto Paper Cutting Rail (Option)”...
Page 236 Copying With your other hand, insert the blade of a paper knife between the two rods and slide across the length of the rail. Make your copy as shown on P.27. Make sure the curl of the paper faces down.
Page 237: Copy Settings
3. Copy Settings Copying Onto Other Media To copy onto translucent or tracing paper or film, use the {Copy Media} key to match the paper type refer to the following table. Type of paper Media setting Plain paper Both indicators off Film Film indicator on Translucent paper...
Page 238 Copy Settings Adjusting the Fusing Temperature Manually Press the { { { { Copy Media} } } } key to turn on the Translucent or Film indicator that you want. Hold down the { { { { Copy Media} } } } key for 3 seconds until beep. The indicator show the current fusing temperature.
Page 239: Adjusting Copy Image Density
Adjusting Copy Image Density Adjusting Copy Image Density To make copies darker or lighter, change the density setting. There are 14 densi- ty levels (=7 notches 2). • Standard density level (Default) • 3 darker levels • 10 lighter levels Set the density with the {i} and {j} keys under the density indicator.
Page 240: Making Several Copies Of The Same Original
Copy Settings Making Several Copies of the Same Original You can preset the number of copies (1 to 99) you want to make. Repeated cop- ying means making two or more copies of an original. To make more than one copy of the original, you have to reload the original after each copy.
Page 241: Setting A Leading Edge Margin
Setting a Leading Edge Margin Setting a Leading Edge Margin You can set a margin at the leading edge of the copy. Leading Edge Margin Leading Edge Margin In the Semi Synchro Cut mode Using the Copy Paper Table, or in the Preset Cut mode, Variable cut mode Note You can set up to a 99mm, 4.0"...
Page 242: Partial Copying
Copy Settings Partial Copying The Partial Copy function copies only a part of an original. You need to enter start and end points in the feed direction of the original . Note You cannot use the Partial Copying function when using the Rear Table. You cannot use the Partial Copying function for originals shorter than 150mm.
Page 243 Partial Copying Slide the paper straight into the copier until it stops, or press the { { { { RF Select/ Cut} } } } key to turn on the RF Select indicator. Place the original. Press the { { { { Function Select} } } } key when the leading edge of the area to be cop- ied reaches the edge of the original table cover.
Page 244 Copy Settings The "P" will disappear.
Page 245: Programming Setting You Often Use
Programming Settings You Often Use Programming Settings You Often Use There are two ways of programming settings you often use. A) Store the settings in the {Program} key. When you press this key, the settings will be recalled instantly. B) Change the default settings to those you use most frequently. Whenever you turn on the machine or press the {Clear Modes/Energy Saver} key, these settings will be ready to use.
Page 246: B) Changing The Default Setting
Copy Settings Recalling Settings Stored in the Program key Press the { { { { Program} } } } key before copying. Enter the number of copies required with the { { { { +} } } } and { { { { —} } } } key. Make a copy.
Page 247 Programming Settings You Often Use Turn off the main switch. Note The next time you turn the copier on, the settings you programmed in step will take effect.
Page 248: User Tools
Copy Settings User Tools Access the User Tools to make the following adjustments: A1) Not in use A2) Semi Synchro Cut Adjustment; Allows you to adjust the cut length. 25mm ~ +25mm ( 1.0" ~ 1.0") (by 1mm or 0.1") Without the Roll Feeder, A2) is not in use.
Page 249 User Tools Use the { { { { +} } } } and { { { { } } } } key to change the value. Press the { { { { Program} } } } key to return to step B B B B Press the { { { { Clear Modes/Energy Saver} } } } key to exit this mode.
Page 250: Can Change
Copy Settings Settings You Can Change with User Tools This section is for the key operators in charge of this machine. You can change or set the machine's default settings. Note For how to enter the User Tools program, press the {Clear Modes/Energy Saver} key, and then press the {Clear/Stop} key for more than 3 seconds.
Page 251 Settings You Can Change with User Tools Default: 0 • Beeper On/Off(+05): The beeper can be turned off completely; turned off for setting the margin, multiple copies, and paper length; or left on to emit a tone whenever a key is pressed. Note 0: On, 1: All Off, 2: Partially Off Default: 2(The beeper does not work if you use leading edge margin.)
Page 252 Copy Settings • Auto Energy Saver Mode(+10): The fusing unit needs to be hot for copying. When the copier is idle, the fusing unit can be kept hot to save time or it can be allowed to cool to save energy. This feature can be set to start automatical- ly, but you can also turn it on yourself by pressing and holding the {Clear Modes/Energy Saver} key for three seconds.
Page 253 Settings You Can Change with User Tools • Semi-synchro Cut Original Scanning Mode(+18): Selects whether the roll paper cut key must be pressed at the appropriate time when the trailing edge of the original passes the Semi-synchro cut mark, or whether the original must be inserted again after the original is scanned and the length is meas- ured.
Page 254 Copy Settings Note 0: Standard Density 1: Darker Image Density Default: 0...
Page 255: Maintaining Your Copier
4. Maintaining Your Copier Changing The Used Toner Bottle When E is displayed, it is time to change the toner bottle. R WARNING: • Do not incinerate used toner, toner bottle or toner cartridge. • Toner dust might ignite when exposed to an open flame. •...
Page 256 Maintaining Your Copier Unplug the code from the machine. Open the door on the right side of the copier, and then carefully remove the plastic bottle. Note Put the used toner to the plastic bag and dispose of it according to local reg- ulations.
Page 257: Changing The Toner Bottle
Changing The Used Toner Bottle Close the upper unit.
Page 258: Adding Toner
Maintaining Your Copier Adding Toner When D is displayed, it is time to add toner. When the indicator starts blinking, you can still copy about 53 feet of paper (16 m, 27 8 " 11" size copies). When the indicator stays on, you can't copy until a new cartridge is installed.
Page 259 Adding Toner Open the toner cartridge cover. Turn the old cartridge towards you. Then, while pressing the cartridge to the right (A), lift the left end and re- move the cartridge (B). Put the old toner cartridge in a plastic bag and dispose of it according to lo- cal regulations.
Page 260 Maintaining Your Copier Make sure the cartridge is set well but don't push it in yet. Take the right edge of the seal and slowly remove it. Push the toner cartridge all the way to the left. Then turn the toner cartridge all the way in, as shown. Note If you can't close the toner cartridge cover, there might be problem setting the toner cartridge.
Page 261 Adding Toner The copier will need a few moments to warm up before it is ready to copy.
Page 262: Changing The Roll Paper Size
Maintaining Your Copier Changing The Roll Paper Size Change the size guides on the left and Setting the Roll Paper Holder right of the roll paper holder when you load different sized paper rolls. Insert the hook on the paper hold- Important er into (A A A A ), and then insert the Always follow the instructions be-...
Page 263 Changing The Roll Paper Size Metric version Roll Feeder...
Page 264: Loading A Roll Of Paper
Maintaining Your Copier Loading A Roll Of Paper When C is displayed, it is time to install a new roll of paper. R CAUTION: • Rolls of paper can be heavy, so you should be careful when load- ing one. •...
Page 265 Loading A Roll Of Paper Raise the lever on the paper holder (A A A A ), and then pull out the roll holder from the empty core (B B B B ). Set the paper holder (A A A A ) to the roll core, and then lower the lever (B B B B ). Note Insert the paper roll as far as it will go.
Page 266 Maintaining Your Copier If applicable, adjust the roll paper position and lock the lever. You may hardly to adjust the roll paper position when you set 914mm (“36 ). In this case, take out the paper holder, and then release the lock lever. Af- ter you adjust it, put it back to the roll feeder.
Page 267 Loading A Roll Of Paper Note Do not hold the paper knob from side. It may cause you touching a sticky oil. For how to turn the knob without any harm, see the illustration below: Make sure that the paper is not loose. Insert it straight into the roller. Watch carefully to make sure that the flap of the paper is inserted between feeder and the roller.
Page 268 Maintaining Your Copier Close the Roll Feeder.
Page 269: Loading A New Roll (Onto Roll Cutting Rail)
Loading A New Roll Onto Paper Cutting Rail (Option) Loading A New Roll Onto Paper Cutting Rail (Option) Lift the rail. Remove the spool from its support. Remove one of the end caps and slide the old roll off the spool.
Page 270 Maintaining Your Copier Slide the new roll on the spool and put the cap over the end of the roll. Place the spool on the holder so that the paper rolls off the front. Push it all the way in. Lower the rail.
Page 271: Troubleshooting
5. Troubleshooting If Something Goes Wrong If you have problems with your copier, consult the following pages. If a service indicator lights up, read the following section. If the original or copy is stuck in the copier; P.62; if the copier won't start, or if copies don't look right, P.70.
Page 272: If Jams Occur
Troubleshooting If Jams Occur If the Original is Jammed at the Exit Note If the paper or original gets stuck in the copier, remove both original and pa- per. Lift the original table. Very gently pull the original out of the feed-out slot. Be careful not to tear Close the original table.
Page 273 If Jams Occur If Sheet Paper is Jammed in the Feed-in Slot R CAUTION: • The fusing unit can be very hot. Do not touch any parts under the fusing cover. If necessary, wait until the fusing unit has cooled down.
Page 274 Troubleshooting If Sheet Paper is Jammed at the Paper Exit R CAUTION: • The fusing unit can be very hot. Do not touch any parts under the fusing cover. If necessary, wait until the fusing unit has cooled down. Squeeze the locks on each side of the copier and lift the moddle unit be- tween the original table and the bypass table.
Page 275 If Jams Occur Close the unit and all covers. Press firmly on both sides until it clicks into place. If Roll Paper Jams If roll paper jams anywhere in the machine, you still might need to check every- where to remove the entire length of paper. R CAUTION: •...
Page 276 Troubleshooting Note Slide the cutter one way only, otherwise paper waste may pile up inside the machine. Rotate the paper roll in the direction of the arrow until you can see the edge of the paper. Turn the knob anticlockwise about 1/4 to adjust the paper position. Slowly rotate the paper roll until the edge of the paper is fed into the rub- ber part of the roller(A A A A ).
Page 277 If Jams Occur Make sure that the paper is not loose. Insert it straight into the roller. Watch carefully to make sure that the flap of the paper is inserted between feeder and the roller. Close the Roll Feeder. If You Cannot See the Roll Paper Jam If roll paper jams inside the roll feeder, you still might need to check everywhere to remove the entire length of paper.
Page 278 Troubleshooting Hold the paper (B B B B ), and then slide the cutter (A A A A ). Note Slide the cutter one way only, otherwise paper waste may pile up inside the machine. Turn the knob anticlockwise about 1/4 to adjust the paper position. Slowly rotate the paper roll until the edge of the paper is fed into the rub- ber part of the roller (A A A A ).
Page 279 If Jams Occur Watch carefully to make sure that the flap of the paper is inserted between feeder and the roller. Close the Roll Feeder.
Page 280: Others
Troubleshooting Others If a puzzling or recurring problem occurs, check the following before calling a service representative. It's also a good idea to check the P.73 “Do's & Don'ts” to make sure the paper and originals match what the copier can handle. Absolutely nothing happens •...
Page 281 Others Creases • Try setting your copy paper sideways. • If long creases appear on copies, try setting your copy paper sideways, or try changing the copy media setting. • If creases appear on copies made to transparent film, try setting your film sheets sideways.
Page 282: Daily Maintenance
Troubleshooting Daily Maintenance Clean the Exposure Glass & the Platen Plate you should clean the copy and original tables with a damp cloth, then wipe them with a dry cloth. Clean the exposure glass and the Original Drive Roller with a damp cloth, then wipe it with a dry cloth.
Page 283: Do's & Don'ts
Do's & Don'ts Do's & Don'ts R CAUTION: • When you move the machine, unplug the power cord from the wall outlet to avoid fire or electric shock. • When the machine will not be used for a long time, unplug the power cord.
Page 284: Where To Put Your Copier
Troubleshooting Where to Put Your Copier Your copier should be installed by a qualified technician. If you need to trans- port your copier to a distant location, call your service center before the move. You can of course move your copier around your office without calling the serv- ice center.
Page 285 Where to Put Your Copier • Areas prone to strong vibrations • Locations directly exposed to cool air from an air conditioner or heat from a nearby heater(Sudden temperature changes may lead to condensation within the copier.) • Locations near a diazo copy machine. Power Connection R WARNING: •...
Page 286 Troubleshooting • Make sure the power outlet is close to the copier and easily accessible at all times. Access To Machine Place the copier near a power source and provide clearance as shown. 1. Rear: more than 60cm, 23.7” 2. Right: more than 60cm, 23.7” 3.
Page 287: Specifications
6. Specifications Copier Configuration Desktop Process Dry electrostatic transfer system Scanning Original moving over a fixed fiber optics array Originals Sheet Original Reference Position Center Original Size Maximum: 914mm (W) 3,000mm (L) (36" 118.0") Minimum: A4 K (210 (W) 297mm (L)) (8.5" 11") Copy Size Maximum: 914mm (W)
Page 288: Options
Specifications Options • Roll feeder Number of loaded paper 1 roll (Type 780A) 2 roll (Type 780B) rolls Acceptable Roll Size Width: 210, 257, 297, 364, 420, Width: 210, 257, 297, 364, 420, 515, 594, 660, 728, 800, 841, 515, 594, 660, 728, 800, 841, 880, 914mm 880, 914mm Roll length: less than 150mm...
Page 289: Index
INDEX Absolutely nothing happens , 70 If Copies Look Wrong , 70 Access To Machine , 76 If Indicator Lights Up , 61 Adding Toner , 48 If Jams Occur , 62 Adjusting Copy Image Density , 29 If Jams Occur Frequently , 70 Adjusting the Fusing Temperature If Roll Paper Jams , 65 Manually , 28...
Page 290 Safety Information , i Semi Synchro cutting , 19 Setting a Leading Edge Margin , 31 Settings You Can Change with User Tools , 40 Setting the Roll Paper Holder , 52 Something happens, but Set Paper or RF Select never appear , 70 Specifications , 77 Things To Do Everyday , 72 Toner , 10...
Page 291 FW780 Operating Instructions Zfah010e.eps Read this manual carefully before you use this product and keep it handy for future reference. For safety, please follow the instructions in this manual.
Page 292 Phone: +31-(0)20-5474111 37139 Verona Phone: +39-045-8181500 United Kingdom Hong Kong RICOH UK LTD. Ricoh House, RICOH HONG KONG LTD. 1 Plane Tree Crescent, Feltham, 21/F., Tai Yau Building, Middlesex, TW13 7HG 181, Johnston Road, Phone: +44-(0)20-8261-4000 Wan Chai, Hong Kong...
Page 293 For good copy quality, Ricoh recommends that you use genuine Ricoh toner. Ricoh shall not be responsible for any damage or expense that might result from the use of parts other than genuine Ricoh parts in your Ricoh office product.
Page 295 Safety Information When using your equipment, the following safety precautions should always be followed. Safety During Operation In this manual, the following important symbols are used: R WARNING: Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury. R CAUTION: Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.
Page 296 R WARNING: • Connect the power cord directly into a wall outlet and never use an extension cord. • Only connect the machine to the power source described on the inside front cover of this man- ual. • Avoid multi-wiring. •...
Page 297 R CAUTION: • When you pull out the plug from the socket, grip the plug to avoid damaging the cord and causing fire or electric shock. • Unplug the power cord from the wall outlet before you move the equipment. While moving the equipment, you should take care that the power cord will not be damaged under the equipment.
Page 298 ENERGY STAR Program As an ENERGY STAR Partner, we have determined that this machine model meets the ENERGY STAR Guidelines for energy efficiency. The ENERGY STAR Guidelines intend to establish an international energy-saving system for developing and introducing energy-efficient office equipment to deal with environmental is- sues, such as global warming.
Page 299 How to Read this Manual Symbols In this manual, the following symbols are used: R WARNING: This symbol indicates a potentially hazardous situation that might result in death or serious injury when you misuse the machine without following the in- structions under this symbol.
Page 300 TABLE OF CONTENTS Guide to Components ................1 Copier Exterior ....................1 Operation Panel .................... 3 1. Basics Turning on the Power................5 Turn on the Main Power................5 Turn off the Main Power ................5 Recommended Originals ................6 Non-recommended Originals ................
Page 301 4. Maintaining Your Copier Changing The Used Toner Bottle............47 Adding Toner ................... 50 Changing the Roll Paper Size..............54 Removing the Roll Paper Holder..............54 Setting the Roll Paper Holder..............54 Loading A Roll Of Paper ................. 56 5. Troubleshooting If Something Goes Wrong ..............
Page 302 viii...
Page 303: Guide To Components
Guide to Components Copier Exterior Locks Operation Panel Squeeze both locks (1a&1b) to open the P.3 “Operation Panel”. unit. Open the unit to empty the used Rear Table toner bottle and to remove jammed pa- Place stiff originals face down here. per.
Page 304 Main switch Use this switch to turn the copier on and off. The copier will need about 3 minutes to warm up, if it's been turned off for a long time. Copy Exit Guide Makes sure that copies don't fall off as they come out.
Page 305: Operation Panel
Operation Panel Function indicators Energy Saver indicator These indicators show which setting you Shows that the machine is in a state of are currently editing. Press the Function wait (Energy Saver). Press key 9. Select key to cycle through them. Troubleshooting indicators •...
Page 306 Density indicator and { { { { i i } } } } , The program indicator(LED) lights after j } } } } keys you store the setting. Shows the density level the copies will { { { { Function Select} } } } key have.
Page 307: Basics
1. Basics Turning on the Power To turn the machine on, press the main switch. Turn on the Main Power Make sure that the power cord is firmly plugged into the wall out- let. Turn on the main switch. Turn off the Main Power Turn off the main switch.
Page 308: Recommended Originals
Basics Recommended Originals • You can set originals with weight in the range 21g/m of(6 lb) to 157 g/m lb). • You can set original with sizes between 914 3,000mm (W L), 36" 118" and 210 297mm (W L), 8.5" 11". (The maximum width that can be fed is 960mm, 38.4") •...
Page 309: Non-Recommended Originals
Recommended Originals • Curled originals Non-recommended Originals The following types of originals are not recommended. • Wet originals • Originals with cardboard stuck on the leading edge • Originals with clips or staples • Originals with wet ink or white-out •...
Page 310: Recommended Paper
Basics Recommended Paper Standard paper sizes that can be used in this copier are shown below. Metric ver- Inch ver- Bypass Roll Feeder sion sion E (36" 48") K D (24" 36") KL C (18" 24") KL B (12" 18") KL A (9"...
Page 311: Anti-Humidity Heater
Recommended Paper • When you use paper in high humidity under hot conditions, take out only the necessary amount of paper from the bag. Do not take all the paper out of the bag. Anti-humidity Heater • When humidity is high, the paper in the paper roll tray may absorb moisture, which can effect the image quality of your copies.
Page 312: Toner
Basics Toner Handling Toner R WARNING: • Do not incinerate used toner, toner bottles or toner cartridg- • Toner dust might ignite when exposed to an open flame. • Dispose of toner bottles and the used toner cartridges ac- cording to local regulations. R CAUTION: •...
Page 313: Copying
2. Copying Basic Copying (Copying to sheets) Use bypass table or roll feeder to copy onto paper. Note For acceptable types of original and paper, P.6 “Recommended Originals” P.8 “Recommended Paper”. If you use bypass teble, place one sheet of paper and never insert more than one sheet of paper.
Page 314 Copying Do not lean on the copy table or lay heavy objects on it. Pick up a sheet of copy, everytime you finish copying. R CAUTION: • If during copying your original gets stuck in the copier, press the {Emergency Stop} key. •...
Page 315 Basic Copying (Copying to sheets) Press the {Paper Select/Cut} key to select either the Roll Feeder or Bypass Tray. Note If you select two roll feeder, select one of the roll. If you select the Bypass table, center the paper face up on the bypass table and slide the paper straight into the copier.
Page 316 Copying Set the original guide to match the width of the original. Center your original face down on the original table. Slide the original straight into the copier until the copier pulls it in. Note If you want to feed manually, use the manual feed mode. Press the {Start} key for more than 3 seconds to enter the mode.
Page 317 Basic Copying (Copying to sheets) The original is fed through to the rear table. When the original is being sent back, the machine scans the original and starts copying. The copy is delivered at the back of the copier. Note You must always pick up copies everytime, otherwise copy paper will pile up without rule.
Page 318: Manual Feed Mode
Copying After copying has finished, hold the original with one hand, press the Clear/Stop key, and remove the original. Note Do not hold down or pull out the original during copying. Do not put heavy object on the original table. If you do not insert the original in a certain interval after inserting the pa- per, the paper will be ejected automatically.
Page 319 Basic Copying (Copying to sheets) If any previous settings remain, press the { { { { Clear Modes/Energy Saver} } } } key. Press the { { { { Start} } } } key for more than 3 seconds. The green indicator, which is next to the start key, goes on. Note If you want to use this setting as a default, P.42 “Settings You Can Change...
Page 320 Copying If you select the Bypass table, Center the paper face up on the bypass table and slide the paper straight into the copier. Set the original guides to match the original size mark. Place the original face down and slide it straight into the copier along the original guides. Note Do not force to remove the original once you set it and if you want to change the position of your original or set another original.
Page 321: Using The Rear Table
Basic Copying (Copying to sheets) The original is fed through to the rear table. When the original is being sent back, the machine reads the original and starts copying. With Repeated Copying, the original is repeatedly fed through and sent back until all copies have been made.
Page 322 Copying • Synchro Cut with roll paper (The machine beeps.) • Partial Copying Choose any copy settings you require. For manual copying, set the paper. Pull up the guide to avoid paper misfeeds. Insert the original face down from the rear table. When the machine scans the original and starts copying, support the origi- nal with your hands at the front of the machine.
Page 323: Copying Onto Roll Paper (Option)
Copying onto Roll Paper Copying onto Roll Paper The paper will be fed to the copier from the Roll Feeder. You can copy onto roll paper using the following functions: • Synchro cutting • Preset cutting • Variable cutting Note If unused roll paper is left in the copier, cut 1000mm (39.3") from the edge of the paper before you start copying.
Page 324 Copying Press the { { { { Paper Select/Cut} } } } key. The Paper Select indicator lights up. Press the { { { { Cut Select} } } } key (1). The Synchro indicator (2) lights up. Press the { { { { Paper Select/Cut} } } } key to turn on the RF Select indicator. Select any copy settings you require.
Page 325 Copying onto Roll Paper Set the original guides to match the width of the original. Make sure that the wait indicator goes off and the ready and the set original indicator go on. Center your original face down on the original table. Slide the original straight into the copier until the copier pulls it in.
Page 326: Preset Cutting
Copying After copying has finished, hold the original with one hand, press the { { { { Clear/Stop} } } } key, and then remove the original. Note To cancel copying, press the {Clear/Stop} key. The copier finishes the oper- ation in progress, and delivers the copy and the original.
Page 327: Variable Cutting
Copying onto Roll Paper Press the { { { { Preset Cut} } } } key (1). The Preset/Variable indicator lights up (2) and the Paper Length display shows the default Preset Cut length. (1189mm or 48"). Press the { { { { Preset Cut} } } } key several times until the indicator shows the value you want.
Page 328 Copying Press the { { { { +} } } } key or the { { { { } } } } key to specify the most appropriate length. You can change the settings by 1mm (0.1”) steps. Choose any copy settings you require. Press the { { { { Paper Select/Cut} } } } key to turn on the Paper Select indicator.
Page 329: Copying Onto Other Media
3. Copy Settings Copying onto Other Media To copy onto translucent paper, film, use the {Copy Media} key to match the pa- per type refer to the following table. Type of pa- Media set- ting Plain paper Both indi- cators off Film Film indi- cator on...
Page 330: Adjusting The Fusing Temperature Manually
Copy Settings When the wait indicator goes off and the ready and the set original indica- tor go on, the copier enters the ready condition. Note Even if you select the media type correctly, creasing might occur depend- ing on the temperature or humidity. If this happens, adjust the fusing tem- perature manually.
Page 331 Copying onto Other Media Choose any copy settings you require, and then start copying. Note The new fusing temperature for the selected paper type is cleared when you press the {Clear Modes/Energy Saver} key or turn off the main switch.
Page 332: Adjusting Copy Image Density
Copy Settings Adjusting Copy Image Density To make copies darker or lighter, change the density setting. There are 14 densi- ty levels (=7 notches 2) . • Standard density level (Default) • 3 darker levels • 10 lighter levels Set the density with the {i} and {j} keys under the density indicator. Note The indicator shows seven levels at a time.
Page 333 Setting the Number of Copies (Repeated Copying) Setting the Number of Copies (Repeated Copying) You can preset the number of copies (1 to 10) you want to make. Repeated cop- ying means making two or more copies of an original. Note With this feature, the image might be copied at a slant.
Page 334 Copy Settings Setting a Leading/Trailing Edge Margin You can set a margin on the leading or trailing edge of the copy when you use Roll Feeder in the Synchro Cut mode. When using the bypass table, and Preset/ Variable Cut mode you can only set the trailing edge margin. Note You can set up to a 99mm, 4.0"...
Page 335 Setting a Leading/Trailing Edge Margin Using the original table, insert the leading edge of the original first. Note If you use the rear table, insert the original trailing edge first.
Page 336: Partial Copying
Copy Settings Partial Copying The Partial Copy function copies only a part of an original. You need to enter start and end points in the feed direction of the original . Synchro Cut Mode original Bypass Table Preset/Variable Cut Mode Note You cannot use the Partial Copying function when using the Rear Table.
Page 337 Partial Copying A "P" will blink in the copy counter display. Slide the paper straight into the copier until it stops, or press the { { { { Paper Se- lect/Cut} } } } key to turn on the Paper Select indicator. Set the original.
Page 338 Copy Settings The copier starts copying. Press the { { { { Function Select} } } } key when the trailing edge of the area to be cop- ied reaches the edge of the original table cover. The "P" will start blinking again. After the paper has been delivered, press the { { { { Clear/Stop} } } } key and remove the original.
Page 339: Programming Settings You Often Use
Programming Settings You Often Use Programming Settings You Often Use There are two ways of programming settings you often use. A) Store the settings in the {Program} key. When you press this key, the settings will be recalled instantly. B) Change the default settings to those you use most frequently. Whenever you turn on the machine or press the {Clear Modes/Energy Saver} key, these settings will be ready to use.
Page 340: B) Changing The Default Setting
Copy Settings Recalling Settings Stored in the Program key Press the { { { { Program} } } } key before copying. Enter the number of copies required with the { { { { +} } } } and { { { { —} } } } key. Make a copy.
Page 341 Programming Settings You Often Use While holding down the { { { { Emergency Stop} } } } key, turn the copier back on. The jam and service indicators will blink. Input the settings you want. Turn off the main switch. Note The next time you turn the copier on, the settings you programmed in step C will take effect.
Page 342: User Tools
Copy Settings User Tools Access the User Tools to make the following adjustments: A1) Magnification Adjustment: allows you to adjust the vertical degree. A2) Cut Length: allows you to adjust the cut length. 25mm ~ +25mm ( 1.0" ~ 1.0") (by 1mm or 0.1") Hold down the { { { { Program} } } } key for 3 seconds or more.
Page 343 User Tools Use the { { { { +} } } } and { { { { } } } } key to change the value Press the { { { { Program} } } } key to return to step B B B B . Press the { { { { Clear Modes/Energy Saver} } } } key to exit this mode.
Page 344: Settings You Can Change With User Tools
Copy Settings Settings You Can Change with User Tools This section is for the key operators in charge of this machine. You can change or set the machine's default settings. Note For how to enter the User Tools program, press the {Clear Modes/Energy Saver} key, and then press the {Clear/Stop} key for more than 3 seconds.
Page 345 Settings You Can Change with User Tools Default: 0 • Beeper On/Off(+05): The beeper can be turned off completely; turned off for setting the margin, multiple copies, and paper length; or left on to emit a tone whenever a key is pressed. Note 0: On, 1: All Off, 2: Partially Off Default: 2(The beeper does not work if you use leading edge margin.)
Page 346 Copy Settings • Auto Energy Saver Mode(+10): The fusing unit needs to be hot for copying. When the copier is idle, the fusing unit can be kept hot to save time or it can be allowed to cool to save energy. This feature can be set to start automatical- ly, but you can also turn it on yourself by pressing and holding the {Clear Modes/Energy Saver} key for three seconds.
Page 347 Settings You Can Change with User Tools • Auto Off Time(+15): You can set the time the machine waits after the last op- eration before switching itself off automatically. The time can be set by minute from 1 to 240 minutes. Note Default: 30min Auto Off cannot be used in the following cases.
Page 348 Copy Settings Note 0: 0.10 seconds, 1: 0.5 seconds, 2: 0.25 seconds, 3: 0.05 seconds, 4: 0.02 sec- onds, 5: 0.01 seconds Default: 0 • Fixed Paper Size Pattern Setting(+22): Select the fixed paper size pattern cho- sen when the “Preset Cut” key is press. For details about this setting, contact your service representative.
Page 349: Maintaining Your Copier
4. Maintaining Your Copier Changing The Used Toner Bottle When "E" is displayed, it is time to change the toner bottle. R WARNING: • Do not incinerate used toner, toner bottle or toner cartridge. • Toner dust might ignite when exposed to an open flame. •...
Page 350 Maintaining Your Copier Unplug the code from the mainframe. Open the door on the right side of the copier ,and then carefully remove the plastic bottle. Note Put the used toner to the plastic bag and dispose of it according to local reg- ulations.
Page 351 Changing The Used Toner Bottle Close the upper unit.
Page 352: Adding Toner
Maintaining Your Copier Adding Toner When D is displayed, it is time to add toner. When the indicator starts blinking, you can still copy about 53 feet of paper (16 m, 27 8 " 11" size copies). When the indicator stays on, you can't copy until a new cartridge is installed.
Page 353 Adding Toner Open the toner cartridge cover. Turn the old cartridge towards you. Then, while pressing the cartridge to the right (A), lift the left end and re- move the cartridge (B). Put the old toner cartridge in a plastic bag and dispose of it according to lo- cal regulations.
Page 354 Maintaining Your Copier Make sure the cartridge is set well but don't push it in yet. Take the right edge of the seal and slowly remove it. Push the toner cartridge all the way to the left. Then turn the toner cartridge all the way in, as shown. Note If you can't close the toner cartridge cover, there might be problem setting the toner cartridge.
Page 355 Adding Toner The copier will need a few moments to warm up before it is ready to copy.
Page 356: Changing The Roll Paper Size
Maintaining Your Copier Changing the Roll Paper Size Change the size guides on the left and Setting the Roll Paper Holder right of the roll paper holder when you load different sized paper rolls. Insert the hook on the paper hold- Important er into (A A A A ), and then insert the Always follow the instructions be-...
Page 357 Changing the Roll Paper Size Metric ver- Roll Feeder sion...
Page 358: Loading A Roll Of Paper
Maintaining Your Copier Loading A Roll Of Paper When C is displayed, it is time to install a new roll of paper. R CAUTION: • Rolls of paper can be heavy, so you should be careful when load- ing one. •...
Page 359 Loading A Roll Of Paper Raise the lever on the paper holder (A A A A ), and then pull out the roll holder from the empty core(B B B B ). Set the paper holder to the roll core (A A A A ), and then lower the lever (B B B B ). Note Insert the paper roll as far as it will go.
Page 360 Maintaining Your Copier If applicable, adjust the roll paper position and lock the lever. You may hardly to adjust the roll paper position when you set 914mm (“36 ). In this case, take out the paper holder, and then release the lock lever. Af- ter you adjust it, put it back to the roll feeder.
Page 361 Loading A Roll Of Paper Note Do not hold the paper knob from side. It may cause you touching a sticky oil. For how to turn the knob without any harm, see the illustration below: Make sure that the paper is not loose. Insert it straight into the roller. Watch carefully to make sure that the flap of the paper is inserted between the feeder and the roller.
Page 362 Maintaining Your Copier Close the Roll Feeder.
Page 363: Troubleshooting
5. Troubleshooting If Something Goes Wrong If you have problems with your copier, consult the following pages. If a service indicator lights up, read the following section. If the original or copy is stuck in the copier; P.63; if the copier won't start, or if copies don't look right, P.71.
Page 364 Troubleshooting The used Empty the toner bottle used toner is full. bottle. P.47.
Page 365: If Jams Occur
If Jams Occur If Jams Occur If the Original is Jammed at the exit Note If the paper or original gets stuck in the copier, remove both original and pa- per. Lift the original table. Very gently pull the original out of the feed-out slot. Be careful not to tear Close the original table.
Page 366: If Sheet Paper Is Jammed In The Feed-In Slot
Troubleshooting If Sheet Paper is Jammed in the Feed-in Slot R CAUTION: • The fusing unit can be very hot. Do not touch any parts under the fusing cover. If necessary, wait until the fusing unit has cooled down. Squeeze the locks on each side of the copier and lift the unit. Pull out the copy paper.
Page 367: If Sheet Paper Is Jammed At The Paper Exit
If Jams Occur If Sheet Paper is Jammed at the Paper Exit R CAUTION: • The fusing unit can be very hot. Do not touch any parts under the fusing cover. If necessary, wait until the fusing unit has cooled down.
Page 368: If Roll Paper Jams
Troubleshooting Close the unit and all covers. Press firmly on both sides until it clicks into place. If Roll Paper Jams If roll paper jams inside the roll feeder, you still might need to check everywhere to remove the entire length of paper. R CAUTION: •...
Page 369 If Jams Occur Note Slide the cutter one way only, otherwise paper waste may pile up inside the machine. Rotate the paper roll in the direction of the arrow until you can see the edge of the paper. Turn the knob anticlockwise about 1/4 to adjust the paper position. Slowly rotate the paper roll until the edge of the paper is fed into the rub- ber part of the roller (A A A A ).
Page 370: If You Cannot See The Roll Paper Jam
Troubleshooting Make sure that the paper is not loose. Insert it straight into the roller. Watch carefully to make sure that the flap of the paper is inserted between the feeder and the roller. Close the Roll Feeder. If You Cannot See the Roll Paper Jam If roll paper jams inside the roll feeder, you still might need to check everywhere to remove the entire length of paper.
Page 371 If Jams Occur Hold the paper (B B B B ), and then slide the cutter (A A A A ). Note Slide the cutter one way only, otherwise paper waste may pile up inside the machine. Turn the knob anticlockwise about 1/4 to adjust the paper position. Slowly rotate the paper roll until the edge of the paper is fed into the rub- ber part of the roller (A A A A ).
Page 372 Troubleshooting Watch carefully to make sure that the flap of the paper is inserted between the feeder and the roller. Close the Roll Feeder.
Page 373: Others
Others Others If a puzzling or recurring problem occurs, check the following before calling a service representative. It's also a good idea to check the P.74 “Do's & Don'ts” to make sure the paper and originals match what the copier can handle. Absolutely Nothing Happens •...
Page 374: Creases
Troubleshooting Creases • Try setting your copy paper sideways. • If long creases appear on copies, try setting your copy paper sideways, or try changing the copy media setting. • If creases appear on copies made to transparent film, try setting your film sheets sideways.
Page 375: Daily Maintenance
Daily Maintenance Daily Maintenance Clean the Exposure Glass & the Platen Plate You should clean the copy and original tables with a damp cloth, and then wipe them with a dry cloth. Clean the exposure glass and the original drive roller with a damp cloth, and then wipe them with a dry cloth.
Page 376: Do's & Don'ts
Troubleshooting Do's & Don'ts R CAUTION: • When you move the machine, unplug the power cord from the wall outlet to avoid fire or electric shock. • When the machine will not be used for a long time, unplug the power cord.
Page 377: Where To Put Your Copier
Where to Put Your Copier Where to Put Your Copier Your copier should be installed by a qualified technician. If you need to trans- port your copier to a distant location, call your service center before the move. You can of course move your copier around your office without calling the serv- ice center.
Page 378: Power Connection
Troubleshooting • Altitudes of over 6500 feet (2000 m) • Areas prone to strong vibrations • Locations directly exposed to cool air from an air conditioner or heat from a nearby heater (Sudden temperature changes may lead to condensation with- in the copier.) •...
Page 379: Access To Machine
Where to Put Your Copier • Make sure the plug is firmly inserted into the power outlet. • Make sure the power outlet is close to the copier and easily accessible at all times. Access To Machine Place the copier near a power source and provide clearance as shown. 1.
Page 380 Troubleshooting...
Page 381: Specifications
6. Specifications Copier Configura- Console tion with roll feeder Process Dry elec- trostatic transfer system Scanning Original moving over a fixed fiber optics array Originals Sheet Original Center Reference Position Original Maximum: Size 914 (W) 3,000mm (L) (36" 118") Minimum: A4 K (210 297mm (L)) (8.5"...
Page 382 Specifications First Copy Within 25 seconds (A1 L , 23" 35",) Copying 3600mm Speed (141.7") per minute Auto Reset 2 minutes Time (can also be turned off or set to 1,3,4 or 5 minutes) Reproduc- Fixed: 1 to tion Ratio Paper Feed manual feed/roll feeder...
Page 383 Copier Dimension 1,080mm (W D H) 623mm 480mm (42.5" 24.5" 18.9") Weight 80kg (176lb) Roll Feeder Number 1 roll (Type780A) 2 roll of load- (Type78 ed pa- per rolls Accept- Width: 210, 257, 297, 364, 420, 515, 594, 660, 728, 800, 841, 880, 914mm Width: able Roll 210, 257,...
Page 384 Specifications Dimen- 1,200mm 720mm 775mm (48 28.3 30.5") 1,200m sion (W D H) 720mm 775mm 28.3 30.5") Weight 78kg (172lb) 86kg (189lb)
Page 385 Options Options • Copy Tray Type 780...
Page 386 INDEX Absolutely Nothing Happens , 71 If Copies Look Wrong , 71 Access To Machine , 77 If Indicator Lights Up , 61 Adding Toner , 50 If Jams Occur , 63 Adjusting Copy Image Density , 30 If Jams Occur Frequently , 71 Adjusting the Fusing Temperature If Roll Paper Jams , 66 Manually , 28...
Page 387 Safety Information , i Setting a Leading Edge Margin/Trailing Edge Margin , 32 Settings You Can Change with User Tools , 42 Setting the Number of Copies (Repeated Copying) , 31 Setting the Roll Paper Holder , 54 Something Happens, but Set Paper or Paper Select Never Appear , 71 Specifications , 79 Synchro Cutting , 21...
