2

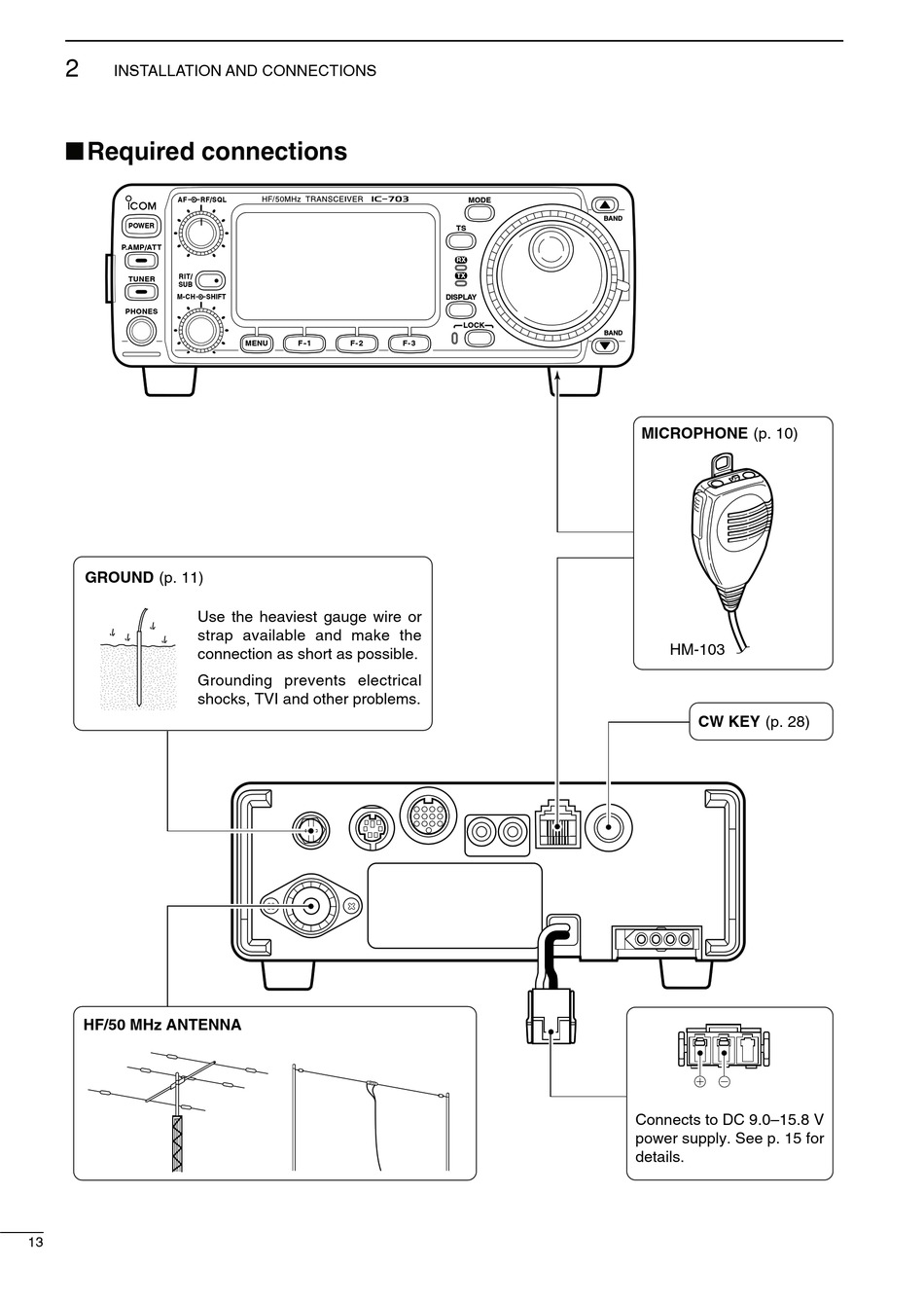

INSTALLATION AND CONNECTIONS
I Required connections
AF
RF SQL
POWER
P.AMP ATT
RIT
TUNER
SUB
M-CH
PHONES
GROUND (p. 11)
Use the heaviest gauge wire or
strap available and make the
connection as short as possible.
Grounding prevents electrical
shocks, TVI and other problems.
HF/50 MHz ANTENNA
13
SHIFT
MENU
F 1
F 2
MODE
TS
RX
TX
DISPLAY
LOCK
F 3
Y
BAND
BAND
Z
MICROPHONE (p. 10)
HM-103
CW KEY (p. 28)
Connects to DC 9.0–15.8 V
power supply. See p. 15 for
details.
