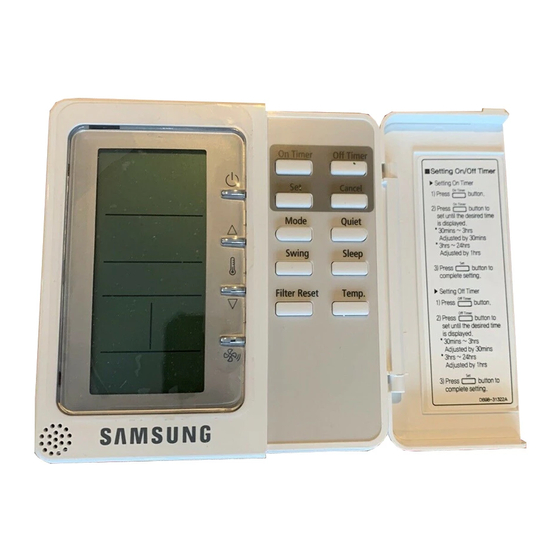

- Page 1 Wired Remote Control MWR-WH02 Air Conditioner installation manual imagine the possibilities Thank you for purchasing this Samsung product. DB98-33322A-05...
- Page 3 Safety Precautions This installation manual describes how to install the wired remote controller. For installation of other optional accessories, refer to the appropriate installation manual. Read carefully this installation manual before WARNING installation and check if the wired remote controller is installed correctly after installation.
-
Page 4: Table Of Contents
Contents IRED REMOTE CONTROLLER AND CCESSORIES ................... 4 Accessories .............................. 4 Dimension ............................... 4 NSTALLING THE IRED REMOTE CONTROLLER ..................5 Installing the Power Supply Cables inside of Indoor Unit ..........5 Installation ............................... 6 Setting the Wired remote controller Options ................ 7 Wired remote controller Error Codes .................. -
Page 5: Wired Remote Controller And Accessories
Wired remote controller and Accessories Accessories The following accessories are supplied with the air conditioner. The number of each accessory is indicated in parentheses. Power cable for Cable Tie (2) Cable Clamp(4) M4X16 Screw(5) indoor unit (1) Communication cable Wire joint (4) User's manual(1) Installation manual(1) 10m Connecting... -
Page 6: Installing The Wired Remote Controller
Installing the Wired remote controller Installing the Power Cables inside of Indoor Unit This is an explanation of power supply cable and communication cable. Make sure that you read this thoroughly before installation. Connector type cable connection Indoor unit terminal block AC Power supply Indoor unit PCB... -
Page 7: Installation
Installing the Wired remote controller (Continued) Installation Open the wired remote controller by pushing up the top cover of the remote controller while holding the rear cover firmly. The wired remote controller opens in the way of slide. Install the rear cover of the wired remote controller on the wall with the supplied screws. After that, arrange the power cables on rear side of the front cover. -
Page 8: Setting The Wired Remote Controller Options
Setting the Wired Remote Controller Options Switch Switch OFF Switch ON SW1 Cooling and Heating Cooling Only Allow wireless remote Disable the wireless remote controller controller Main remote Sub remote controller controller SW4 Temperature display : °C Temperature display : °F Use the wired remote Use the indoor unit controller Temperature... -
Page 9: Wired Remote Controller Error Codes
Installing the Wired remote controller (Continued) Wired remote controller Error Codes The error codes of the wired remote controller, indoor unit, outdoor unit are displayed on the LCD display. Refer to the indoor and outdoor unit technical manuals for the error codes reference. - Page 10 Error display priority Priority 1: Wired remote controller error > Indoor/Outdoor unit error Priority 2: Displays Main indoor unit error (Main Indoor unit = Indoor unit whose option switch K10 is set OFF) Priority 3: Displays the error code of the indoor unit which has earlier Main(COM1) address Priority 4: Displays the error code of the indoor unit which has earlier COM2 address when Main(COM1) addresses is overlapped Display...
-
Page 11: Indoor Unit Tracking With The Wired Remote Controller
Installing the Wired remote controller (Continued) Indoor Unit Tracking with the Wired remote controller Tracking is started automatically after connecting to the power. Total quantity of searched units To execute tracking again after the installation, press the Tracking in buttons at the same time for 5 seconds. progress System is initialized and tracking will re-start. -
Page 12: Connecting The Wired Remote Controller
Connecting the Wired remote controller Individual Control Using one wired remote controller for one indoor unit. Outdoor unit COM1(F1, F2) COM1(F1, F2) Indoor unit RMC:0 RMC:1 RMC:2 COM2(F3, F4) COM2(F3, F4) COM2(F3, F4) Wired remote controller The wired remote controller controls the indoor units, connected to COM2 communication cable, individually regardless of the RMC address. - Page 13 Installing the Wired remote controller (Continued) Group Control - indoor units only Using one wired remote controller for a group of indoor units. Group control of 3 indoor units with one wired remote controller Outdoor unit COM1(F1, F2) COM1(F1, F2) COM1(F1, F2) Indoor unit RMC:0...
- Page 14 SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 2 3 4 5 6 7 8 2 3 4 5 6 7 8 Using 1 MWR-WH02 and 1 MWR-WE00 - Indoor unit and ERV together Outdoor unit COM1(F1, F2) Indoor unit...
-
Page 15: Additional Functions
Additional Functions Service Mode The wired remote controller supports the following service modes. Menu Description Checking and Setting the Indoor Unit Option Code Checking and Setting the Indoor Unit Main/Group Address Checking the Indoor Unit Cycle Data Checking and Setting the Indoor Temperature Compensation for the Wired remote controller Checking the RPM Compensation Checking the EEV Step for the Stopped Indoor Unit during Heating Mode... -
Page 16: Checking And Setting The Indoor Unit Option Code
Checking and Setting the Indoor Unit Option Code In order to check and set the indoor unit option code using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button to enter the indoor unit option code mode. -
Page 17: Checking And Setting The Indoor Unit Main/Group Address
Additional Functions (Continued) Checking and Setting the Indoor Unit Main/ Group Address In order to check and set the indoor unit Main/Group Address using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button and the menu will display . -
Page 18: Checking The Indoor Unit Cycle Data
Checking the Indoor Unit Cycle Data In order to check the indoor unit cycle data using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button twice and the menu will display . Press the button. -
Page 19: Checking And Setting The Indoor Temperature Compensation For The Wired Remote Controller
Additional Functions (Continued) Checking and Setting the Indoor Temperature Compensation for the Wired remote controller In order to check and set the indoor temperature compensation using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . -
Page 20: Checking The Rpm Compensation
Checking the RPM Compensation In order to check the RPM compensation using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. Press the button. -
Page 21: Checking The Eev Step For The Stopped Indoor Unit During The Heating Mode
Additional Functions (Continued) Checking the EEV Step for the Stopped Indoor Unit during the Heating Mode In order to check EEV step when the indoor unit is off during heating mode using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . -
Page 22: Checking The Filter Time Setting
Checking the Filter Time Setting In order to check the filter time setting using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. Press the button. -
Page 23: Checking The Temperature Compensation Value Under The Heating Mode
Additional Functions (Continued) Checking the Temperature Compensation Value under the Heating Mode In order to check the temperature compensation value under heating mode using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. -
Page 24: Checking The Centralized Control Usage
Checking the Centralized Control Usage In order to check the centralized control usage using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. Press the button. -
Page 25: Checking The Drain Pump Usage
Additional Functions (Continued) Checking the Drain Pump Usage In order to check the drain pump usage using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. -
Page 26: Checking The Electric Heater Usage
Checking the Electric Heater Usage In order to check the electric heater usage using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. Press the button. -
Page 27: Checking The Water Coil Usage
Additional Functions (Continued) Checking the Water Coil Usage In order to check the water coil usage using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. -
Page 28: Checking The External Control Usage
Checking the External Control Usage In order to check the external control usage using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. Press the button. -
Page 29: Checking The Connected Indoor Unit/Erv Quantity
Additional Functions (Continued) Checking the Connected Indoor Unit/ERV Quantity In order to check the connected indoor unit/ERV quantity using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. -
Page 30: Checking The Wired Remote Controller Pcb Settings
Checking the Wired remote controller PCB Settings In order to check the DIP switch settings using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. -
Page 31: Checking The Wired Remote Controller Software Version
Additional Functions (Continued) Checking the Wired remote controller Software Version In order to check the wired remote controller software version using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. -
Page 32: Checking And Setting The Fresh Duct Discharge Temperature
Checking and Setting the Fresh Duct discharge temperature In order to check and set the Fresh Duct discharge temperature using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. -
Page 33: Checking And Setting An Indoor Unit Dip Option Code
Additional Functions (Continued) Checking and Setting an indoor unit DIP option code In order to check and set the indoor unit DIP option code using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . -
Page 34: Checking The Update Version Of A Wired Remote Controller Program
Checking the update version of a wired remote controller program In order to check the update version of a wired remote controller program, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. -
Page 35: Checking The Status Of Automatic Esp Setting
Additional Functions (Continued) Checking the status of Automatic ESP setting In order to check the status of Automatic ESP setting by using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. -
Page 36: Setting Automatic Esp Operation And Voltage
Setting Automatic ESP Operation and Voltage In order to set Automatic Air-Volume operation by using the wired remote controller, hold down the buttons at the same time for 5 seconds. The menu will display . Press the button until is displayed. Press the button. - Page 37 Additional Functions (Continued) Press the button until is displayed. Press the button. The current voltage (data #2) will be displayed. Press the button to change Data No. Data No. Description Menu No. 220 V 230 V 240 V Press the button to confirm voltage.
