thomann ignition 2bright Pint TW200 IP MK II User Manual

Hide thumbs Also See for ignition 2bright Pint TW200 IP MK II:
Table of Contents

Advertisement

Quick Links

Download this manual

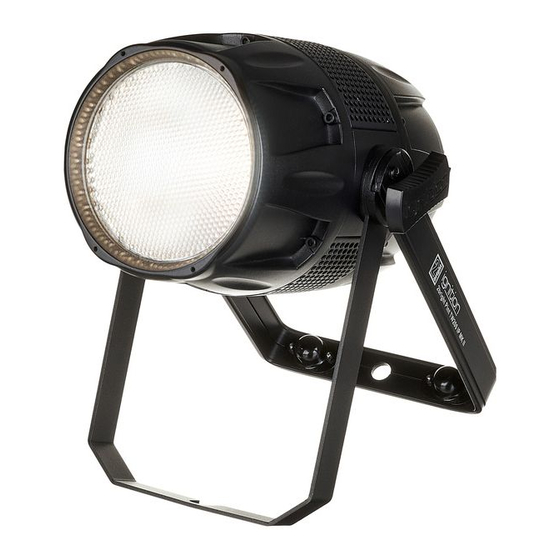

2bright Pint TW200 IP MK II
LED PAR

Advertisement

Table of Contents
loading

Related Manuals for thomann ignition 2bright Pint TW200 IP MK II

Summary of Contents for thomann ignition 2bright Pint TW200 IP MK II

  • Page 1 2bright Pint TW200 IP MK II LED PAR...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 12.01.2023, ID: 556156...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 8 Safety instructions..........................10 Features............................... 13 Installation..............................15 Starting up..............................18 Connections and controls........................19 Operating..............................21 7.1 Starting the device........................... 21 7.2 Operating on the unit........................
  • Page 4 Table of contents 7.10 Functions in 8-channel DMX mode..................46 Technical specifications........................51 Plug and connection assignments....................54 Troubleshooting............................55 Cleaning............................... 57 Protecting the environment......................58 2bright Pint TW200 IP MK II LED PAR...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. 2bright Pint TW200 IP MK II...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.
  • Page 7 General information Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . Text input Text inputs that are carried out on the device are indicated by typewriter font.

  • Page 8: Symbols And Signal Words

    General information 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided.
  • Page 9 General information Warning signs Type of danger Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. 2bright Pint TW200 IP MK II LED PAR...

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 11 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord). Do not modify the mains cable. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present.
  • Page 12 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Risk of fire and overheating The use with closed barn doors can cause fire or overheating in the spotlight. The lifetime of the LEDs will be reduced when using the device with closed barn doors.

  • Page 13: Features

    Features Features The device is suitable as a blinder, strobe and floodlight for stages and all kinds of events. Special features of the device: 1 × 2in1 WW/CW COB LED (200 watt) Adjustable colour temperature from 2700 to 7000 K Control via DMX, RDM and via buttons and display on the unit Blinder channel for halogen effect Intense pulse and strobe effects...
  • Page 14 Features The specified protection class does not make a statement about the weather resistance of the equipment (resistance to changing ambient conditions as well as against the effects of sun‐ light and UV rays). The seals and screw connections of the equipment must be checked regularly to ensure a fault-free operation.

  • Page 15: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 16 Possible damage due to moisture Moisture entering into open connectors (plugs and couplers) of DMX or power cords can cause short circuits. Close unused connectors with end caps intended for this purpose (www.thomann.de). 2bright Pint TW200 IP MK II LED PAR...
  • Page 17 Installation Mounting options You can install the device in hanging or standing position. When in use, the device must always be attached to a solid surface or an approved truss. Use the openings of the bracket provided for mounting. Always work from a stable platform whenever installing, moving or servicing the device. In doing so, the area underneath the device must be cordoned off.

  • Page 18: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.

  • Page 19: Connections And Controls

    Connections and controls Connections and controls ö & 2bright Pint TW200 IP MK II LED PAR...
  • Page 20 Connections and controls 1 Display and function buttons. [MENU] | activates the main menu, toggles between the menu levels or closes a submenu. [DOWN] | decreases the displayed value by one. [UP] | increases the displayed value by one. [ENTER] | opens a submenu or confirms a value. 2 [DMX OUT] | DMX output, designed as 3-pin XLR panel plug (IP65) 3 Locking screws for the brackets 4 Pressure compensation element...

  • Page 21: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. The device is immediately opera‐ tional. 7.2 Operating on the unit Navigating in the menu Press [MENU] to activate the main menu. Press [UP] or [DOWN] to select the desired menu item or to change the respectively dis‐ played value.
  • Page 22 Operating Setting the DMX address Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘DMX Address’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired DMX address between ‘001’ and ‘512’ . Press [ENTER] to accept the selection. This setting is only relevant when the device is controlled via DMX.
  • Page 23 Operating Setting the DMX mode Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘DMX Mode’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired DMX mode (1, 2, 3, 4, 5 or 8 channels). Depending on the selected mode, the display shows ‘1CH’...
  • Page 24 Operating Manual mode / stand-alone operation Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm with [ENTER]. Press [UP] or [DOWN] to select the desired submenu or the desired value. The following sub menus are available: Menu level 2 Menu level 3 Function...
  • Page 25 Operating Rotating the Display Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Display Reverse’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select either ‘On’ (display rotated by 180 °) or ‘Off’ (display not rotated).
  • Page 26 Operating Setting the behaviour on DMX control failure Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘DMX Fail’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select either ‘Hold’...
  • Page 27 Operating Setting the dimmer curve Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Dimmer Curve’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired dimmer curve. DIMMER 100% The following sub menus are available:...
  • Page 28 Operating Menu level 3 Function ‘Stage2’ without fade time: Rise time 0 ms, fall time 1100 ms Fade time 1 s: Rise time 0 ms, fall time 1660 ms Press [ENTER] to accept the selection. Setting the dimmer speed The dimmer speed can only be set for the ‘Stage2’ dimmer curve. Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’...
  • Page 29 Operating Enabling keylock Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘AutoLock’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select either ‘On’ (keylock on) and ‘Off’ (keylock off). Press [ENTER] to accept the selection.
  • Page 30 Operating Setting fan mode Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Fan Mode’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired fan mode. The following sub menus are available: Menu level 3 Function...
  • Page 31 Operating Setting LED repetition rate (PWM) Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘PWM Rate’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select a value for the LED repetition rate. The following table shows the available options.
  • Page 32 Operating Menu level 3 Function ‘6000Hz’ PWM 6 kHz ‘10000Hz’ PWM 10 kHz Press [ENTER] to accept the selection. Resetting the device to factory defaults Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Service’...
  • Page 33 Operating Calibrating colour temperature Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Service’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Calibration’ . Confirm with [ENTER].
  • Page 34 Operating Firmware version display Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’ . Confirm with [ENTER]. Press [UP] or [DOWN] until the display shows ‘Firmware’ . ð The current firmware version is displayed. LED operating hours display Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’...
  • Page 35 Operating Show device temperature Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’ . Confirm with [ENTER]. Press [UP] or [DOWN] until the display shows ‘Temperature’ . ð The current device temperature is displayed. 2bright Pint TW200 IP MK II LED PAR...
  • Page 36 Operating RDM function The device provides an RDM function and is compatible to DMX512 standard. It is possible to recognize every device with RDM from the UID code. Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’ . Confirm with [ENTER].
  • Page 37 Operating Parameter ID Detection com‐ Sent command Received mand command SENSOR_VALUE DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION RESET_DEVICE FACTORY_DEFAULTS 2bright Pint TW200 IP MK II LED PAR...

  • Page 38: Menu Overview

    Operating 7.3 Menu overview DMX Address DMX Mode Stand Alone Settings System Info 001...512 Display Reverse On/O Firmware V1.0 2CH A PWM Rate Backlight On/O LED On Time xxxHrs 2700...7000K 900Hz 2CH B DMX Fail Total Operation Hours xxxHrs 1000Hz WarmWhite 0...255 Hold...

  • Page 39: Functions In 1-Channel Dmx Mode

    Operating 7.4 Functions in 1-channel DMX mode Channel Value Function 000…255 Blinder mode (0 %…100 %) 7.5 Functions in 2-channel DMX mode, variant A Channel Value Function 000…255 Intensity cold white (0 %…100 %) 000…255 Intensity warm white (0 %…100 %) 2bright Pint TW200 IP MK II LED PAR...

  • Page 40: Functions In 2-Channel Dmx Mode, Variant B

    Operating 7.6 Functions in 2-channel DMX mode, variant B Channel Value Function 000…255 Master dimmer intensity from dark (0) to bright (255) 000…255 Colour temperature from 2700 K to 7000 K 7.7 Functions in 3-channel DMX mode Channel Value Function 000…255 Master dimmer intensity from dark (0) to bright (255) 000…255...

  • Page 41: Functions In 4-Channel Dmx Mode

    Operating Channel Value Function 101…170 Strobe pulses, increasing speed 171…180 LED on 181…240 Random strobe effect, increasing speed 241…255 LED on 7.8 Functions in 4-channel DMX mode Channel Value Function 000…255 Master dimmer intensity from dark (0) to bright (255) 000…255 Intensity cold white (0 %…100 %) 000…255...

  • Page 42: Functions In 5-Channel Dmx Mode

    Operating Channel Value Function 031…090 Strobe effect, increasing speed 091…100 LED on 101…170 Strobe pulses, increasing speed 171…180 LED on 181…240 Random strobe effect, increasing speed 241…255 LED on 7.9 Functions in 5-channel DMX mode Channel Value Function 000…255 Master dimmer intensity from dark (0) to bright (255) 000…255 Colour temperature from 2700 K to 7000 K Stroboscope...
  • Page 43 Operating Channel Value Function 021…030 Single strobe pulse 031…090 Strobe effect, increasing speed 091…100 LED on 101…170 Strobe pulses, increasing speed 171…180 LED on 181…240 Random strobe effect, increasing speed 241…255 LED on Dimmer curves 000…010 Default setting of the device 011…020 Dimmer curve ‘Linear’...
  • Page 44 Operating Channel Value Function Delay 0.1 s Delay 0.2 s Delay 0.3 s Delay 0.4 s Delay 0.5 s Delay 0.6 s Delay 0.7 s Delay 0.8 s Delay 0.9 s Delay 1.0 s Delay 1.5 s Delay 2.0 s Delay 3.0 s Delay 4.0 s Delay 5.0 s...
  • Page 45 Operating Channel Value Function Delay 7.0 s Delay 8.0 s Delay 9.0 s Delay 10 s 141…255 Default setting of the device LED repetition rate 000…010 No function 011…020 900 Hz 021…030 1000 Hz 031…040 1100 Hz 041…050 1200 Hz 051…060 1300 Hz 061…070...

  • Page 46: Functions In 8-Channel Dmx Mode

    Operating Channel Value Function 101…110 5000 Hz 111…120 6000 Hz 121…130 10,000 Hz 131…140 Default setting of the device 141…255 No function 7.10 Functions in 8-channel DMX mode Channel Value Function 000…255 Master dimmer intensity from dark (0) to bright (255) 000…255 Intensity cold white (0 %…100 %) 000…255...
  • Page 47 Operating Channel Value Function 021…030 Single strobe pulse 031…090 Strobe effect, increasing speed 091…100 LED on 101…170 Strobe pulses, increasing speed 171…180 LED on 181…240 Random strobe effect, increasing speed 241…255 LED on 000…255 Blinder mode (0 %…100 %), overwrites all dimmer channels 000…255 Colour temperature from 2700 K to 7000 K Dimmer curves...
  • Page 48 Operating Channel Value Function 101…120 Dimmer curve ‘Stage2’ Delay time Delay 0.1 s Delay 0.2 s Delay 0.3 s Delay 0.4 s Delay 0.5 s Delay 0.6 s Delay 0.7 s Delay 0.8 s Delay 0.9 s Delay 1.0 s Delay 1.5 s Delay 2.0 s Delay 3.0 s...
  • Page 49 Operating Channel Value Function Delay 5.0 s Delay 6.0 s Delay 7.0 s Delay 8.0 s Delay 9.0 s Delay 10 s 141…255 Default setting of the device LED repetition rate 000…010 No function 011…020 900 Hz 021…030 1000 Hz 031…040 1100 Hz 041…050...
  • Page 50 Operating Channel Value Function 081…090 2500 Hz 091…100 4000 Hz 101…110 5000 Hz 111…120 6000 Hz 121…130 10,000 Hz 131…140 Default setting of the device 141…255 No function 2bright Pint TW200 IP MK II LED PAR...

  • Page 51: Technical Specifications

    Technical specifications Technical specifications Light source 1 × 2in1 WW/CW COB LED, 200 W 308 mm Optical properties Colour temperature 2700 K to 7000 K POWER IN Beam angle 50 ° 100-240V~50/60Hz PUSH Repetition rate 900 Hz…10 kHz Control 249 mm Buttons and display Number of DMX channels 1, 2, 3, 4, 5, 8...
  • Page 52 Technical specifications Power consumption 135 W Supply voltage 100 - 240 V 50/60 Hz Protection class IP65 Mounting options Hanging, standing Dimensions (W × H × D), with bracket 234 mm × 308 mm × 249 mm Weight 4.2 kg Ambient conditions Temperature range –5 °C…+45 °C...
  • Page 53 Technical specifications Further information Design Outdoor housing, cannon Number of LEDs Colour mixture CW / WW LED type Floor housing Fanless Remote control not possible Wireless DMX Housing colour black 2bright Pint TW200 IP MK II LED PAR...

  • Page 54: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 55: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 56 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. 2bright Pint TW200 IP MK II LED PAR...

  • Page 57: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 58: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 60 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
