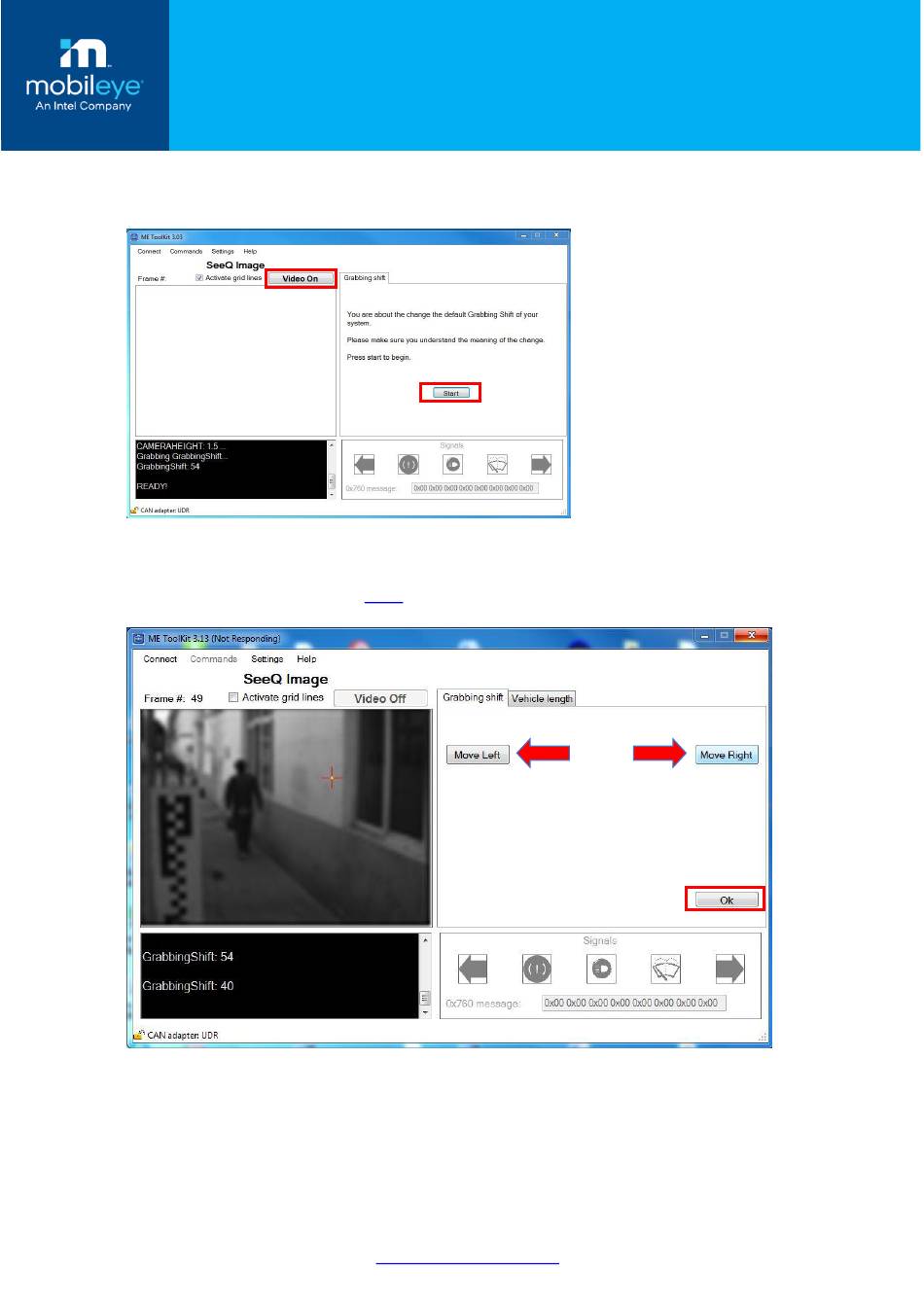

1. Run the ME Toolkit application and wait for the connection with the rear camera to be
established.
2. Click "Video ON" to receive an image from the camera and then click "Start" button.
3. Place the TAC board as close as possible to the side of the vehicle. Put the TAC board in front
of the camera according to the
Visibility
Click the "Move Right" or "Move Left" buttons (according to the scenario) to adjust the image
and Click "OK" to save and burn new changes.
Mobileye Shield+ V2.0| January 2022
Installation Manual v1.1
table
as close as possible to the vehicle`s body and check
Mobileye Proprietary and Confidential
support@mobileye.com
MOBILEYE, AN INTEL COMPANY
WWW.MOBILEYE.COM
