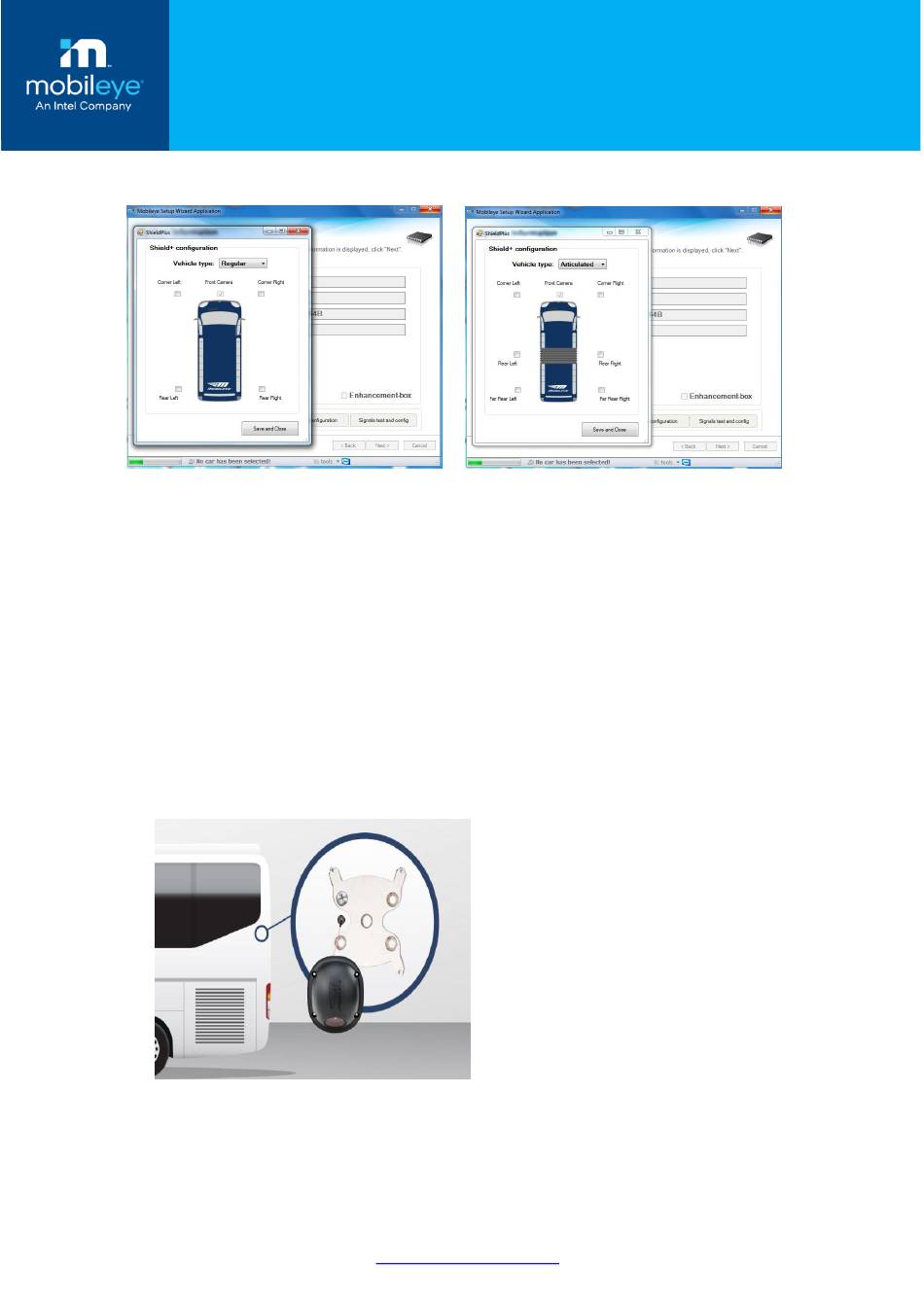

Once the Junction box will be detected, an additional window will pop up at the "System
Information" slide – see images below:
Configuration should be made according to the amount of camera units which will be
installed in addition to the Master camera, and vehicle type (choose from the drop-down
menu - regular or articulated) as described above.
10. Continue with the standard calibration process of the Mobileye 6 series.
7.2 Rear camera installation
❖ Remove the relevant panels to mount all the components and route the cables.
❖ Secure and firmly attach the Junction Box to its final position inside the trimming and
make it accessible for future service and diagnostic purposes.
❖ Go outside and plan two drillings for the rear camera: one for the coax cable to be routed
inside and one to place the metal bracket (screw or rivet) via the black rubber.
❖ Drill the holes, place the cameras on the metal bracket, make sure that the camera is
located at the correct place and route the coax cable into the vehicle (without significant
bending) towards the bridge unit.
