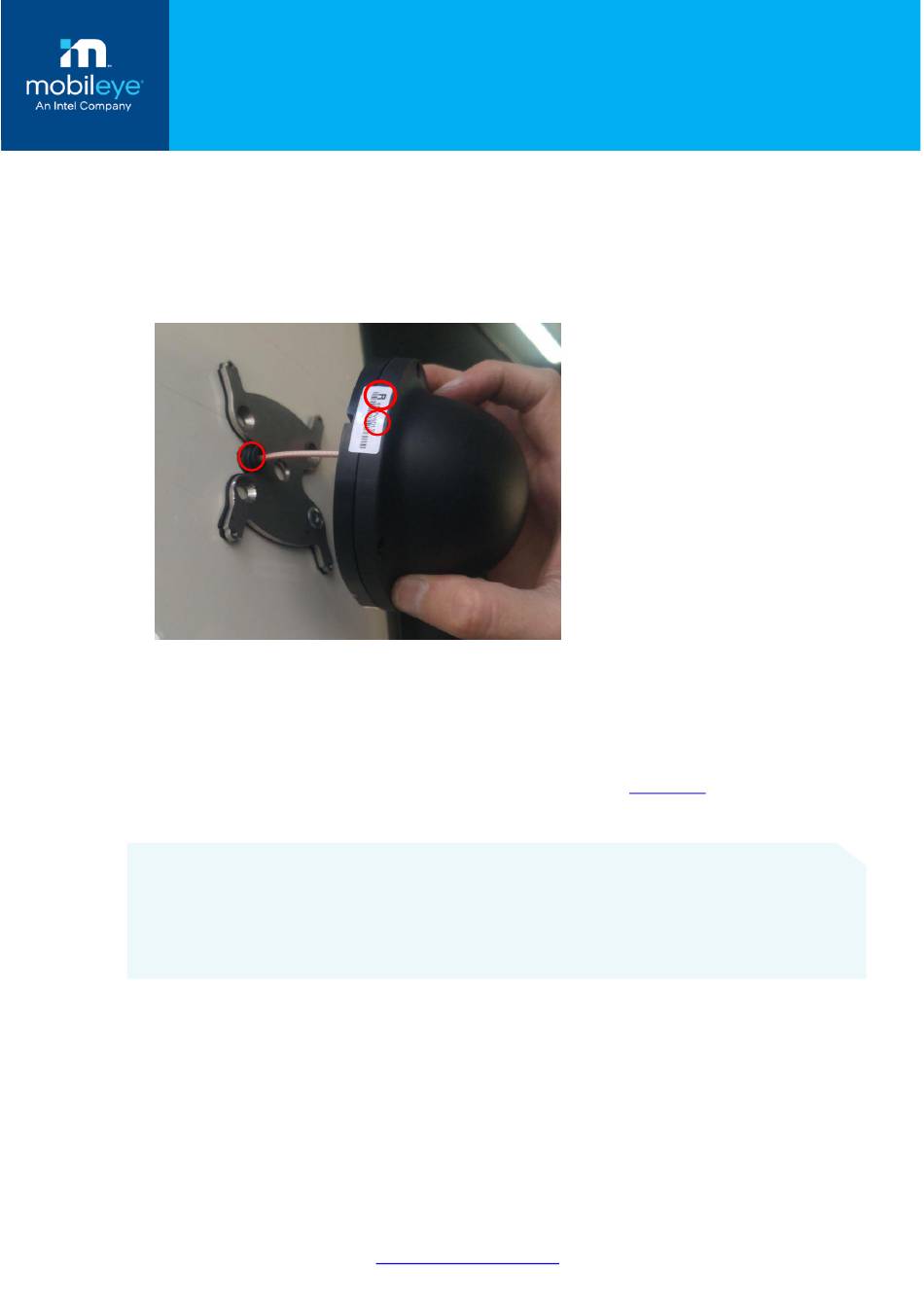

Place the metal mounting bracket on the black rubber in the designated location and drill
(2) 8mm holes:
1. 1 hole to place the metal bracket in a way that it will be possible to slightly adjust the
camera angle (up/down)
2. 1 hole to pass thru the coax cable into vehicle's trimmings
Once completing to drill, use a screw or a rivet to firmly attach the metal bracket
❖ Temporarily place the bridge unit inside the trimming and plug in the coax connector
coming from the Side camera.
❖ Connect the Coax cable from rear camera to Bridge board.
❖ Connect the side camera`s harness to any of the Slave ports.
❖ Mount the side display in the designated place according to the
document, route the cable, and connect it to the JB.
Warning
Disassembling of the side camera in the installation site is forbidden
7.3 Rear camera calibration
❖ Connect the bridge unit to the Junction Box (if a front or another slave camera is
connected, please disconnect before continuing).
❖ Turn the power ON.
Mobileye Shield+ V2.0| January 2022
Installation Manual v1.1
Mobileye Proprietary and Confidential
