Mounting Pad Installation
The gate operator mounts bolted to a custom poured concrete mounting
pad. The pad supports the operator and prevents it from twisting during
operation.
An optional post mount kit is also available (P/N 2120-483) which
allows installation without a concrete mounting pad.
Mounting Pad Specifications
Recommended pad size is 24" x 20" x 18" deep minimum. Pad depth
should be set according to local codes and at least as deep as frost line.
If soil conditions may cause the operator and pad to shift or twist during
operation, anti-rotation legs may be required. Use two 6" diameter, 10"
deep legs to counteract this problem as shown.
5/8" J-bolts may be set into the concrete before it sets following the
dimensions shown, or drilled after the concrete sets.
✓ NOTE: Maximum gate opening angle is approximately 95
degrees, depending on gate width. If larger opening angle is
required, non‑standard positioning of the operator and modified
articulating arms may be required. Contact the factory for
technical information, pricing, and availability.
GATE LINE ON THIS SIDE
20"
14-1/2"
CONDUIT
ENTRY ZONE
24"
14"
2-3/4"
6-3/4"
8-1/2"
1/2" FLEX
CONDUIT
18"
SWR • SWC • SWD Swing Gate Operator Installation Guide
"W" DIMENSION IS 32" FOR
STANDARD APPLICATIONS
(GATE ARM ACCOMODATES
TO 40" "W" IF EXTRA SPACE
IS REQUIRED)
5"
10-1/2"
5"
INSTALLER TIP:
MAKE A WOOD JIG TO
ALIGN AND HOLD J-BOLTS
AND CONDUITS UNTIL
THE CONCRETE SETS
5/8" x 8"
J-BOLTS (4)
TOP OF GATE PLATE
24-7/8" ABOVE THE
TOP OF THE PAD
CONCRETE
OPERATOR
PAD 3D VIEW
IN SOFT SOIL, POUR
TWO 6" DIAMETER
10" DEEP "LEGS" TO
PREVENT ROTATION

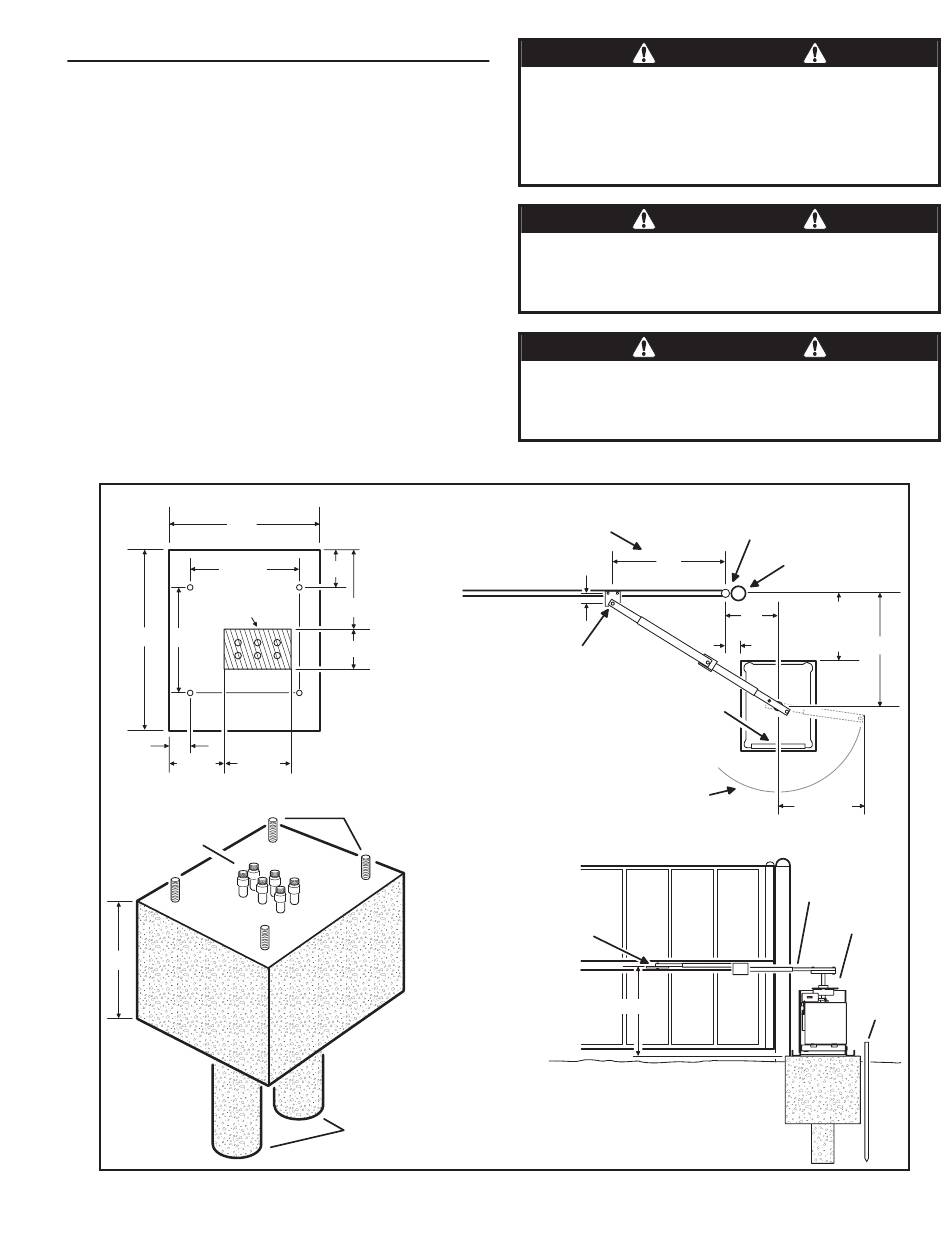

Figure 1. Mounting Pad Specifications
- 3 -
WARNING
The operator is intended for installation only on gates used for
vehicles. Pedestrians must be supplied with a separate access
opening. The pedestrian access opening shall be designed to
promote pedestrian usage. Locate the gate such that persons will
not come into contact with the vehicular gate during the entire
path of travel of the vehicular gate.
WARNING
The gate must be installed in a location so that enough clearance is
supplied between the gate and adjacent structures when opening
and closing to reduce the risk of entrapment. Swing gates shall
not open into public areas.
WARNING
The gate must be properly installed and work freely in both
directions prior to the installation of the gate operator. Do not
adjust the force setting to compensate for an improperly installed,
improperly functioning, or damaged gate.
GATE TOP VIEW
W
(TYP. 32")
2-3/4"
GATE PLATE
ARM HOLE
2-3/4" BEHIND
OPERATOR
CENTERLINE
ACCESS DOOR
OF GATE
FACES AWAY
FROM GATE LINE
BACKSPACE REQUIREMENT
FOR ARM SWING IS 25" STANDARD OR
UP TO 30" WITH FULL ARM EXTENSION
INSIDE VIEW OF GATE
24-7/8"
"RIGHT-HAND"
INSTALLATION
GATE HINGE
GATE POST
W
14"
MINUS
7"
12"
W
25" - 30"
GATE ARM
OPERATOR
EARTH
GROUND
STAKE
