Choosing Good Harmonics

Good harmonics are necessary to minimize wear
and tear on the operator. The gate will have smoother
starts and stops when the arm is installed with good
harmonics. Figure 5 shows an example of good and bad
arm harmonics.

Installing the Gate Arm on the Operator

The hex cap screws (see Figure 6) in the side of the
crank assembly are shipped loose for placement on
the operator drive shaft. Once in place, tighten these
cap screws in place by applying 75 ft-lbs of torque. If
it becomes necessary to remove the crank, you can
do so by loosening these bolts. The arm can also be
disconnected for manual operation of the gate by
removing the disconnect pin.

Setting the Arm Lengths

Most installations will use the standard dimensions
specified. The dimensions shown in Figure 7 can be used
to adjust and set the arm. If non-standard mounting is
required, contact the factory for information.
Once the arm lengths have been determined, use clamps
to temporarily attach the solid bars to their sections of
rectangular tubing. If clamps are unavailable, you may
also tack weld the parts in place. It is recommended that
you check the arm for proper action and full gate travel
before fully welding the parts together . REMOVE THE
GATE ARM BEFORE WELDING! Apply Krylon
gold spray paint or equivalent to touch up welds when
finished.
CAUTION
DO NOT WELD THE GATE ARM WHILE IT IS ATTACHED TO THE
OPERATOR! Connecting the welder's ground to the operator's
frame will cause the arc welding current to pass through the
operator parts, severely damaging or destroying the operator.

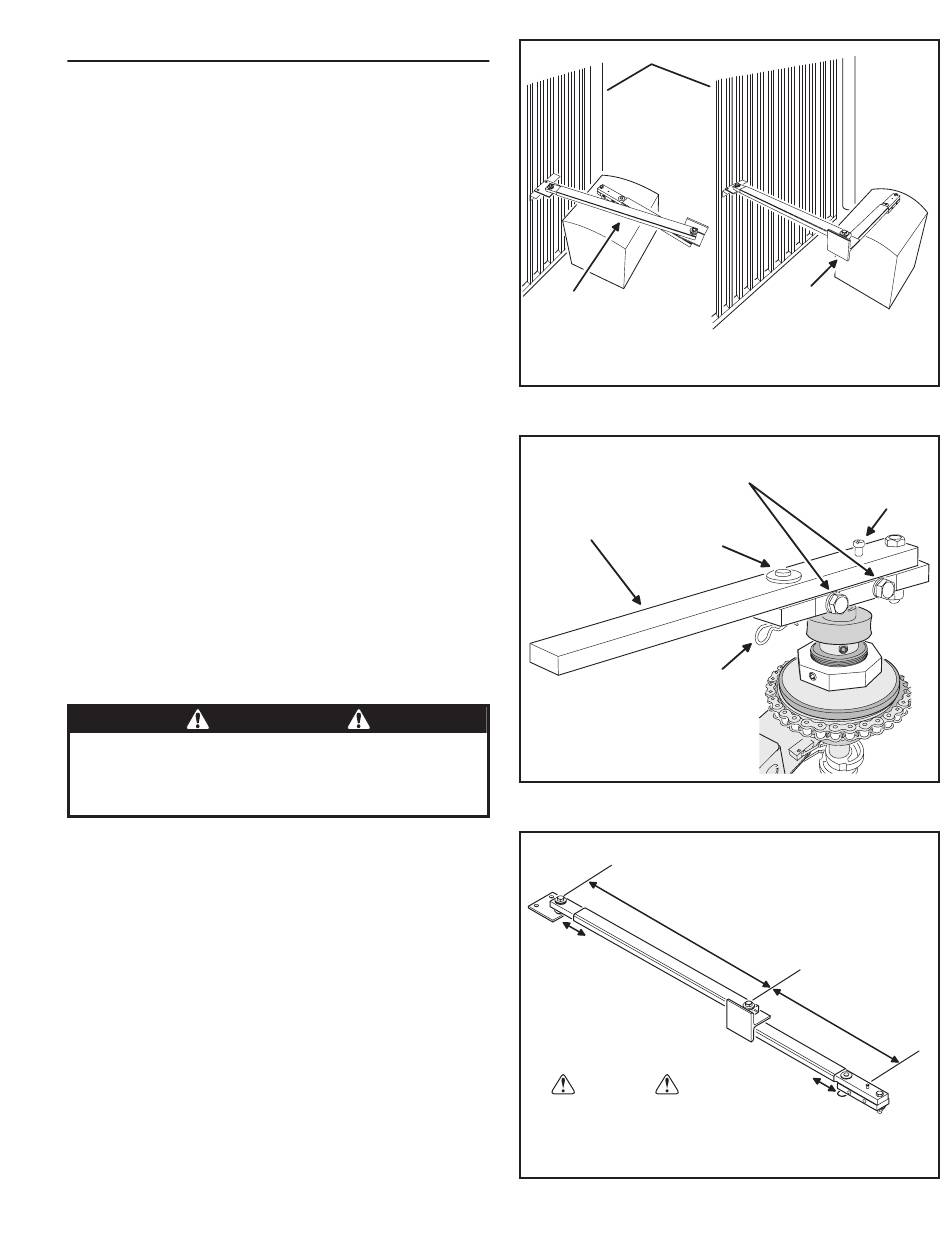

SWR • SWC • SWD Swing Gate Operator Installation Guide
