OPERATING INSTRUCTIONS
SIMATIC

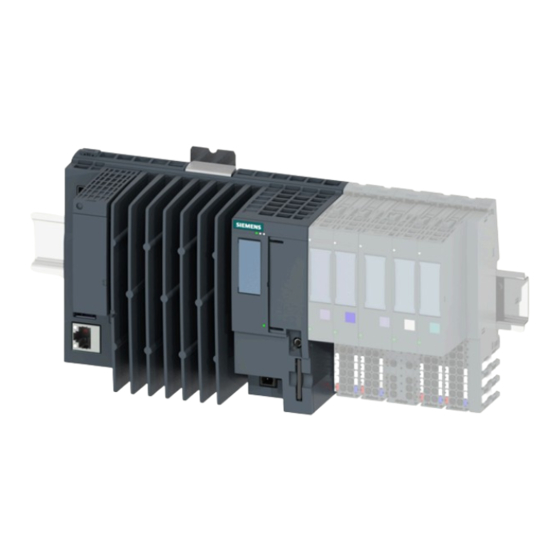

ET 200SP Open Controller
CPU 1515SP PC2 (F/T/TF)
support.industry.siemens.com

Advertisement

Table of Contents
loading

Summary of Contents for Siemens SIMATIC ET 200SP

  • Page 1 Output 03/2023 OPERATING INSTRUCTIONS SIMATIC ET 200SP Open Controller CPU 1515SP PC2 (F/T/TF) support.industry.siemens.com...
  • Page 3 Introduction Safety information Areas of application SIMATIC Product overview ET 200SP Open Controller CPU 1515SP PC2 (F/T/TF) Application planning Installation Operating Instructions Wiring Commissioning Interrupt, error and system messages Functions Maintenance Industrial OS Technical specifications Dimension drawings Spare parts/accessories Appendix 03/2023 List of abbreviations A5E42603425-AC...
  • Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
  • Page 5: Table Of Contents

    Table of contents Introduction ............................7 Documentation on CPU 1515SP PC2..................8 ET 200SP Documentation Guide................... 9 1.2.1 ET 200SP Documentation Guide................... 9 1.2.2 SIMATIC Technical Documentation ..................10 1.2.3 Tool support ........................11 Information about third-party software updates ..............13 Notes on protecting administrator accounts ............... 13 Safety information..........................
  • Page 6 Table of contents Terminal and block diagram ....................42 Electrical configuration....................... 43 Connecting devices to networks ..................44 Securing cables........................45 Commissioning ............................ 47 Notes on commissioning ....................47 Basic commissioning procedure..................47 8.2.1 Requirements ........................48 8.2.2 Preparing commissioning ....................48 8.2.3 Commissioning procedure....................
  • Page 7 14.1 CPU 1515SP PC2 ......................111 Spare parts/accessories........................113 15.1 Accessories/spare parts ....................113 Appendix............................115 Siemens Industry Online Support ..................115 Industry Mall ........................115 Troubleshooting....................... 116 List of abbreviations .......................... 117 Abbreviations ........................117 Glossary ............................. 119 Index ..............................123...
  • Page 8 Table of contents CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 9: Introduction

    Introduction Purpose of the documentation These operating instructions supplement the system manual ET 200SP distributed I/O system. Functions that generally relate to the system are described in this manual. The information provided in these operating instructions and in the system/function manuals supports you in commissioning the CPU 1515SP PC2.
  • Page 10: Documentation On Cpu 1515Sp Pc2

    CPU 1515SP PC2 TF Documentation on CPU 1515SP PC2 The following additional documentation is required to use the CPU 1515SP PC2: • Operating Instructions CPU 1505SP (F/T/TF), CPU 1507S (F), CPU 1508S (F) Version V30.0 (http://support.automation.siemens.com/WW/view/en/109799686) • System Manual STEP 7 Basic/Professional V17 and SIMATIC WinCC V18 (https:// support.industry.siemens.com/cs/ww/en/view/109798671) •...
  • Page 11: Et 200Sp Documentation Guide

    This arrangement enables you to access the specific content you require. You can download the documentation free of charge from the Internet (https:// support.industry.siemens.com/cs/ww/en/view/109742709). Basic information The System Manual describes in detail the configuration, installation, wiring and commissioning of the SIMATIC ET 200SP distributed I/O system.
  • Page 12: Simatic Technical Documentation

    Product Information takes precedence over the device and system manuals. You can find the latest Product Information on the ET 200SP distributed I/O system on the Internet. (https://support.industry.siemens.com/cs/de/en/view/73021864) Manual Collection ET 200SP The Manual Collection contains the complete documentation on the SIMATIC ET 200SP distributed I/O system gathered together in one file.
  • Page 13: Tool Support

    SIOS on your mobile device: Quick introduction to the technical documentation of automation products per video (https://support.industry.siemens.com/cs/us/en/view/109780491) YouTube video: Siemens Automation Products - Technical Documentation at a Glance (https://youtu.be/TwLSxxRQQsA) mySupport With "mySupport" you can get the most out of your Industry Online Support.
  • Page 14 (https:// support.industry.siemens.com/cs/ww/en/view/98161300) PRONETA SIEMENS PRONETA (PROFINET network analysis) is a commissioning and diagnostic tool for PROFINET networks. PRONETA Basic has two core functions: • The "Network analysis" offers a quick overview of the PROFINET topology. It is possible to make simple parameter changes (for example, to the names and IP addresses of the devices).
  • Page 15: Information About Third-Party Software Updates

    Information about third-party software updates This product contains third-party software. Siemens accepts liability with respect to updates/ patches for the third-party software only when these are distributed by Siemens in the context of a Software Update Service contract or officially approved by Siemens. Otherwise, updates/ patches are performed at your own risk.
  • Page 16 Introduction 1.4 Notes on protecting administrator accounts Therefore, make sure that the administrator account is adequately protected to prevent unauthorized changes. To do this, set secure passwords and use a standard user account for regular operation. Other measures, such as the use of security policies, should be applied as required.
  • Page 17: Safety Information

    Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers' exposure to cyber threats.
  • Page 18 Seal the cover to protect the CFast card with the operating system of the CPU 1515SP PC2 from unauthorized access. For more information on Industrial Security, refer to the Internet (https://new.siemens.com/ global/en/products/automation/topic-areas/industrial-security.html). If you have questions about whether it is permissible to install the device in the planned environment, please contact your service representative.
  • Page 19: Notes On Use

    Safety information 2.3 Notes on use • Always pull the mains connector and disconnect the battery before installing or removing modules which are sensitive to ESD. • Handle modules fitted with ESDs only by their edges. • Do not touch any connector pins or conductors on modules containing ESDs. Notes on use WARNING Hazards at an unprotected machine or plant...
  • Page 20 Safety information 2.3 Notes on use CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 21: Areas Of Application

    SIMATIC Safety - Configuring and Programming (https:// support.industry.siemens.com/cs/ww/en/view/54110126). You can find information on using the CPU 1505SP (F) Software Controller in the associated manual (https://support.industry.siemens.com/cs/ww/en/view/109762855) and in the F- product information (https://support.industry.siemens.com/cs/ww/en/view/109478599). Areas of application of technology CPUs Areas of application Areas of application of T-CPUs are motion control applications such as gearing and camming as well as control of kinematics.
  • Page 22 Areas of application 3.2 Areas of application of technology CPUs CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 23: Product Overview

    Product overview Field of application Article number The article number depends on the pre-installed S7-1500 Software Controller and HMI Runtime. You can find an overview of the article numbers in the section Scope of validity of the documentation (Page 7). View of the module The following figure shows the CPU 1515SP PC2: Figure 4-1 CPU 1515SP PC2 with supplied accessories...
  • Page 24: Sample Configuration

    Product overview 4.3 Sample configuration General characteristics • A removable CFast card with the following pre-installations is used as storage medium: – Windows 10 IoT Enterprise operating system (64-bit LTSC 2021) or IndOS – S7‑1500 Software Controller CPU 1505SP, CPU 1505SP F, CPU 1505SP T, CPU 1505SP TF •...
  • Page 25 Camera ⑩ PC/Programming device Figure 4-2 Configuration example with the CPU 1515SP PC2 Reference You can find more information about configuring the ET 200AL modules in the system manual ET 200AL distributed I/O system (https://support.industry.siemens.com/cs/ww/en/view/ 89254965). CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 26: Components

    Product overview 4.4 Components Components Components of the CPU 1515SP PC2 The following table provides an overview of the components of the CPU 1515SP PC2: Table 4-1 Components of the CPU 1515SP PC2 Component Function Figure Mounting rail in accordance The mounting rail is the rack for the with EN 60715 CPU 1515SP PC2.
  • Page 27 Product overview 4.4 Components Component Function Figure BusAdapter The BusAdapter allows free selection of the connection technology for PROFI‐ NET IO. The following versions are available for CPU 1515SP PC2: • For standard RJ45 connector ① (BA 2×RJ45) • For direct connection of the bus ca‐ ②...
  • Page 28 Product overview 4.4 Components Component Function Figure Server module The server module completes the con‐ figuration of the CPU 1515SP PC2 with I/O modules. The server module is included in the CPU's scope of delivery. CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 29: Operator Controls And Connection Elements

    Product overview 4.5 Operator controls and connection elements Operator controls and connection elements View of the module The following figure shows the operator controls and connection elements of the CPU 1515SP PC2: ① Reference identification labels ② Mounting rail release ③ Labeling strips ④...
  • Page 30 Product overview 4.5 Operator controls and connection elements ⑬ X2 PN/ GbE Ethernet connection with integrated display IE(LAN): ⑭ Strain relief ⑮ X62, X63: 2 x USB 2.0 ports ⑯ X60, X61: 2 x USB 3.0 ports ⑰ X70: DisplayPort interface (DPP) Figure 4-3 View of the CPU 1515SP PC2 Slot for CFast card The operating system, Runtime software and project are installed on the supplied SIMATIC CFast card.
  • Page 31: Scope Of Delivery

    Product overview 4.6 Scope of delivery 3, the consecutive numbers are incremented. If, for example, the first MAC address is 08‑00‑06‑6B‑80‑C0, the second MAC address is 08‑00‑06‑6B‑80‑C1. Table 4-2 Assignment of the MAC addresses   Assignment MAC address 1 X2 PN/IE(LAN) •...
  • Page 32 CFast card. The following figure shows, based on an example, where to find the article number on the CFast card: Note To order the various bundles, please use the article number found on the following Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/view/109760163) page, in the" Ordering information" table.
  • Page 33 Product overview 4.6 Scope of delivery • "Certificate of License" (CoL) • Product information Note The scope of delivery no longer includes a USB restore stick We therefore highly recommend that you create your own USB restore stick (Page 68) before using the CPU 1515SP PC2 Open Controller. CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 34 Product overview 4.6 Scope of delivery CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 35: Application Planning

    Application planning Basics Introduction The CPU 1515SP PC2 is open equipment. This means you may only set up the CPU in enclosures, cabinets or electrical equipment rooms and in a dry environment (IP20 degree of protection). The housings, cabinets and electrical operating rooms must guarantee protection against electric shock and spread of fire.
  • Page 36: Unpacking The Device

    • Check the delivery for correctness and completeness. Please inform your Siemens contact partner should you notice any irregularities. • Keep the supplied documentation and licenses. They belong to the device and are the proof that you have purchased the software preinstalled on the CFast card.
  • Page 37: Identification Data

    Application planning 5.4 Installation location WARNING Electric shock and fire hazard from damaged device A damaged device can carry dangerous voltage and trigger a fire in the machine or plant. A damaged device has unpredictable properties and states. Death or severe injury could occur. Make sure that the damaged device is not installed and commissioned accidentally.
  • Page 38 Application planning 5.4 Installation location Mounting rail You must ground the mounting rail separately in the control cabinet. Exception: If you install the rail on grounded, zinc-plated mounting plates, there is no need to ground the rail separately. Note If the ET 200SP distributed I/O system is exposed to vibration and shock loads, both ends of the ET 200SP system assembly must be mechanically fixed to the mounting rail (e.g using 8WA1010-1PH01 ground terminals).
  • Page 39 • This is followed by BaseUnits BU..B (with dark-colored terminal box). • The respective corresponding I/O modules can be connected to the BaseUnits. Suitable combinations of BaseUnits and I/O modules can be found in the ET 200SP System Manual (https://support.industry.siemens.com/cs/ww/en/view/84133942). • The server module completes the installation. Note Install the CPU 1515SP PC2 only with disconnected supply voltage.
  • Page 40: Hardware Configuration

    Application planning 5.5 Hardware configuration Hardware configuration As soon as one of the following rules applies, the maximum configuration has been reached. Maximum mechanical configuration Backplane bus length: Maximum 1 m mounting width (without CPU 1515SP PC2, including server module) Electrical maximum configuration The number of operable I/O modules of a potential group is limited by the •...
  • Page 41: Installation

    Installation Installing the device Requirements The mounting rail is fitted. Required tools 3 to 3.5 mm screwdriver (only to fix the strain relief and dismantle the BusAdapter) Fixing strain relief Fix the strain relief to the top and bottom of the left-hand side of the CPU 1515SP PC2 with the supplied screws.
  • Page 42 Installation 6.1 Installing the device Uninstalling the CPU 1515SP PC2 The BaseUnits with the I/O modules are located to the right of the CPU 1515SP PC2: 1. Switch off the supply voltage on the CPU. 2. Press the mounting rail release button on the first BaseUnit and, at the same time, move the CPU parallel to the left until it comes off the rest of the module group.
  • Page 43: Wiring

    Wiring Notes on connection Note Rules and regulations for operation Observe the information contained in the Wiring section in the system manual ET 200SP distributed I/O system (https://support.industry.siemens.com/cs/ww/en/view/84133942) and in the function manual Designing interference-free controllers function manual (https:// support.industry.siemens.com/cs/ww/en/view/59193566). NOTICE...
  • Page 44: Terminal And Block Diagram

    Wiring 7.2 Terminal and block diagram Terminal and block diagram Block diagram The following figure shows the block diagram for the CPU 1515SP PC2. ① Switch X1 PN(LAN) PROFINET interface X1 ② Electronics PROFINET interface X1 Port 1 ③ Backplane bus interface PROFINET interface X1 Port 2 ④...
  • Page 45: Electrical Configuration

    Wiring 7.3 Electrical configuration Electrical configuration Non-isolated configuration Note Unlike the ET 200SP distributed I/O system, the CPU 1515SP PC2 can only be operated with a non- isolated configuration. The following figure shows the overall configuration of a CPU 1515SP PC2 with power supply from a TN‑S system.
  • Page 46: Connecting Devices To Networks

    Wiring 7.4 Connecting devices to networks ① Master switch ② Short-circuit and overload protection ③ Load current supply (galvanic isolation) ④ This connection is established automatically with the CPU 1515SP PC2. The represented layout of the power connections does not correspond to the actual layout; it was chosen for demonstration purposes only.
  • Page 47: Securing Cables

    Wiring 7.5 Securing cables Ethernet You can use the integrated Ethernet interface X2 PN/IE(LAN) (10/100/1000 Mbps) for communication and data exchange with automation devices, for example, SIMATIC S7. Only ASCII characters are permitted in the name of the X2 PN/IE(LAN) interface in the TIA Portal, e.g.
  • Page 48 Wiring 7.5 Securing cables Procedure Secure the USB and PROFINET cables to the strain relief using cable ties. Figure 7-3 Secured cables CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 49: Commissioning

    Commissioning Notes on commissioning WARNING Improper commissioning in hazardous areas Device failure or risk of explosion in hazardous areas. • Do not commission the device unless it is fully mounted and connected according to the specifications in the section Wiring (Page 41). •...
  • Page 50: Requirements

    1. Connect the power supply. → The PWR LED lights up yellow first, then green. → The device carries out the hardware initialization. 2. Wait until the Siemens logo disappears from the screen. CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 51 Information on users/user groups in Windows A user "Operator" with standard user rights is already created on the Windows system. The user is in a user group "SIEMENS TIA Engineer". This grants the user the rights to use the installed SIMATIC software products.
  • Page 52: Initial Commissioning An Open Controller

    Commissioning 8.3 Initial commissioning an open controller Result • The Windows 10 IoT Enterprise operating system (64-bit LTSC) is installed. • The "Operator" user is logged on automatically. • The Software Controller is ready to use. • For administrative purposes, the "Operator" user can be logged off and the administrator created during commissioning can be logged on.
  • Page 53: Setting The Ip Address

    Commissioning 8.3 Initial commissioning an open controller 5. The following interfaces can be seen in the Open Controller: – Onboard interface X2 (GB Ethernet Windows interface) that is assigned directly to the PC station (1 port) – Exchangeable BusAdapter that is assigned directly to the Software Controller (2 ports) 6.
  • Page 54: Transferring License Keys

    Commissioning 8.3 Initial commissioning an open controller 4. Select the interfaces with which you want to establish the online connection to the device. You have the option of showing all compatible devices by selecting the corresponding option and clicking the "Start search" command. Note The first TIA Portal download must be via the "X2"...
  • Page 55 Make sure to have the "Certificate of License" (CoL) to hand. Reference For additional information on licenses, refer to the Automation License Manager manual. You can find the manual on the CPU 1515SP PC2 under Start > All Programs > Siemens Automation > Documentation and on the Internet (https://support.industry.siemens.com/cs/ww/en/view/ 56956174).
  • Page 56: Switching The Open Controller On/Off

    Commissioning 8.3 Initial commissioning an open controller 8.3.6 Switching the Open Controller on/off Requirements Initial commissioning was successfully completed. Switching on the CPU 1515SP PC2 Proceed as follows to switch on the CPU 1515SP PC2: 1. Switch on the power supply of the CPU. The Boot Manager GRUB2DOS starts. 2.
  • Page 57: Interrupt, Error And System Messages

    Interrupt, error and system messages Status and error display LED display The following figure shows the LED displays of the CPU 1515SP PC2. ① RUN/STOP LED (yellow/green LED) ② ERROR LED (red LED) ③ MAINT LED (yellow LED) ④ POWER LED (yellow/green LED) Figure 9-1 LEDs of the CPU 1515SP PC2 Meaning of the LED displays with active S7-1500 Software Controller...
  • Page 58 Interrupt, error and system messages 9.1 Status and error display The following table shows the meaning of the color combinations of the LED displays in connection with the S7-1500 Software Controller. Table 9-1 Meaning of the LED displays RUN/STOP LED ERROR LED MAINT LED Meaning POWER OFF...
  • Page 59 Interrupt, error and system messages 9.1 Status and error display RUN/STOP LED ERROR LED MAINT LED Meaning Startup (CPU booting) Test of LEDs during startup, inserting a LED flashes red LED flashes yellow LED flashes module. yellow/green LED flashing test CPU defective LED flashes green LED flashes red LED flashes red...
  • Page 60 Interrupt, error and system messages 9.1 Status and error display CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 61: Functions

    Functions 10.1 Monitoring functions 10.1.1 Requirements Introduction The CPU 1515SP PC2 has monitoring functions that you can use with the corresponding monitoring software. The following display, monitoring and control functions are available: • Temperature monitoring • Monitoring the CFast card with the S.M.A.R.T. function •...
  • Page 62: Temperature Monitoring

    Functions 10.1 Monitoring functions 10.1.2 Temperature monitoring Three temperature sensors monitor the temperature at different locations of the CPU 1515SP PC2: • Processor temperature • Temperature in the vicinity of the RAM ICs/blocks • Temperature of the basic module If one of the temperature values exceeds the set temperature threshold, the temperature monitoring triggers a temperature error.
  • Page 63: Retentive Memory Nvram

    Functions 10.5 Benefits of the function: Sleep mode 10.2 Retentive memory NVRAM Retentive memory is non-volatile memory for saving a limited quantity of data in the event of power failure. The data defined as retentive is stored in retentive memory. This data is retained beyond a power-off or power failure.
  • Page 64: Unified Write Filter (Uwf)" Write Filter

    Functions 10.6 "Unified Write Filter (UWF)" write filter 5. To specify switching to sleep mode after a specific period of time, select "Put the computer to sleep:" Your desired time. 6. Save your new settings with "Apply changes". Note The Software Controller does not work when power save mode is enabled. 10.6 "Unified Write Filter (UWF)"...
  • Page 65 Functions 10.6 "Unified Write Filter (UWF)" write filter Loss of data due to frequent write cycles NOTICE Loss of data due to frequent write cycles The number of write cycles on CFast cards is limited due to technical reasons. To prevent data loss, the CFast card must be provided with special protection. To protect the CFast card, enable the "UWF".
  • Page 66 Functions 10.6 "Unified Write Filter (UWF)" write filter CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 67: Maintenance

    Maintenance 11.1 Display resolution The table below shows the resolutions available with the DisplayPort V1.2 standard: DisplayPort V1.2 standard Resolution Refresh rate 720p 1280 x 720 30 Hz 720p 1280 x 720 60 Hz 1080p 1920 x 1280 30 Hz 1080p 1920 x1280 60 Hz...
  • Page 68: Bios Update

    Maintenance 11.3 BIOS update NOTICE CPU volume for S7-1500 Software Controller (0.4 GB RAW) Do not change the CPU volume for Software Controllers. This is the only way to ensure that the Software Controller continues to operate without error. 11.3 BIOS update With the SIMATIC IPC DiagBase software (included in scope of delivery of the CPU 1515SP PC2), you can perform a BIOS update.
  • Page 69 Do not downgrade to an earlier version, for example, from BIOS V02.08_01.00 to BIOS V02.05_16.02. After a downgrade, the Open Controller is unusable! Please send the device in its original packaging to your Siemens representative. Reference You can find additional information in the SIMATIC IPC DiagBase Operating Manual (https:// support.industry.siemens.com/cs/ww/en/view/109749690).
  • Page 70: Backing Up And Restoring Data

    For additional information, please refer to the corresponding product documentation. SIMATIC IPC Service USB flash drive You can use the SIMATIC IPC Service USB flash drives for data backup and restore. You obtain these through the Siemens online ordering system. 11.5 Creating a bootable Restore USB stick As no restore USB stick is included in the scope of delivery, we recommend creating a USB restore stick to restore the CFast card after commissioning the Open Controller.
  • Page 71 Maintenance 11.5 Creating a bootable Restore USB stick Business logic for the creation of the Restore USB stick The following requirements must be met: • You need a USB stick with at least 16 GB free memory. To create the USB stick use, for example, the SIMATIC IPC Service USB FlashDrive (6ES7648-6XA11-0YA0).
  • Page 72: Restoring The Delivery State

    Maintenance 11.6 Restoring the delivery state 5. Confirm by entering "Y" to copy the restoration data from the restore partition to the USB stick. 6. When the copy is complete, press the "Enter" key to exit the script. The USB restore stick for restoring the delivery state is ready. The process is logged in a log file in the directory "E:\TOOLS\CreateRestoreUsb\Logs".
  • Page 73: Updating Software

    5. Switch on the power supply to the CPU 1515SP PC2. The CPU is started. 6. To start the Boot Manager, press <Esc> while the Siemens logo is being displayed. 7. Select the list entry for the USB stick as boot medium in the Boot Manager.
  • Page 74: Windows 10 Iot Enterprise (64-Bit Ltsc 2021)

    Maintenance 11.8 Windows 10 IoT Enterprise (64-bit LTSC 2021) HMI devices During the installation, make sure that you always use the latest drivers for the HMI devices used (SIMATIC Flat Panels). Before you install a new driver version, you must uninstall the old driver version in order to ensure proper operation.
  • Page 75: Sending The Device To Customer Service

    • Remove your CFast card. Sending in the device • Pack the device in its original packaging. • Enclose identification data (Page 35). • Send to your Siemens contact partner. 11.10 Removing and inserting the CFast card Introduction The CPU 1515SP PC2 has a slot for a CFast card. On this card, you will find the operating system, your runtime software, the restore area and, after configuration, the project.
  • Page 76: Recycling And Disposal

    Maintenance 11.11 Recycling and disposal Procedure – Removing the CFast card NOTICE Removing the CFast card during operation Do not remove the CFast card while the CPU 1515SP PC2 Open Controller is running. 1. Remove the seal. 2. Open the cover, using a screwdriver if necessary. 3.
  • Page 77: Industrial Os

    5. After the required number of restarts, check the log file. If it says "All done" at the end, then the BIOS update was successful. Otherwise check the error message and contact Siemens Industry Online Support if necessary. Provide the log file to the Siemens Industry Online Support.
  • Page 78: System Backup And Restoring To Factory State

    "Apt Update" dialog. The "Apt Update" function is described in Industrial OS - Getting Started, Section 2.4.12 (https://support.industry.siemens.com/cs/de/en/view/109795683). The call of the setup settings with the "mel-setup" command is described in section 2.6.
  • Page 79 NOTICE Only install kernel updates provided by Siemens For updates of the Linux kernel, only use SIMATIC Industrial OS versions provided by SIEMENS. Updates that are not provided by Siemens can result in security, stability and compatibility problems. Ensure the consistency and integrity of the downloaded files.
  • Page 80 Industrial OS 12.6 Security updates CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 81: Technical Specifications

    Technical specifications 13.1 Standards and approvals Introduction The general technical specifications cover the following: • The standards and test values that the CPU 1515SP PC2 complies with and fulfills. • The test criteria according to which the CPU 1515SP PC2 was tested. Currently valid markings and approvals Note Information for CPU 1515SP PC2 The currently valid markings and approvals are printed on the CPU 1515SP PC2.
  • Page 82 Siemens AG Digital Factory Factory Automation DF FA TI COS TT Postfach 1963 D-92209 Amberg They are also available for download on the Siemens Industry Online Support (https:// support.industry.siemens.com/cs/de/en/) web pages, keyword "Declaration of Conformity". cULus approval Underwriters Laboratories Inc., complying with • UL 508 (Industrial Control Equipment) •...
  • Page 83 Technical specifications 13.1 Standards and approvals cULus HAZ. LOC. approval Underwriters Laboratories Inc., complying with • UL 508 (Industrial Control Equipment) • CSA C22.2 No. 142 (Process Control Equipment) • ANSI/ISA 12.12.01 • CSA C22.2 No. 213 (Hazardous Location) APPROVED for use in Class I, Division 2, Group A, B, C, D Tx; Class I, Zone 2, Group IIC Tx Installation Instructions for cULus haz.loc.
  • Page 84 Technical specifications 13.1 Standards and approvals ATEX approval In accordance with EN 60079‑15 (Electrical apparatus for potentially explosive atmospheres; Type of protection "n") and EN 60079‑0 (Electrical apparatus for potentially explosive gas atmospheres - Part 0: General Requirements) IECEx approval According to IEC 60079-15 (Explosive atmospheres - Part 15: Equipment protection by type of protection "n") and IEC 60079‑0 (Explosive atmospheres - Part 0: Equipment - General requirements) RCM (C-Tick) Declaration of conformity for Australia/New Zealand...
  • Page 85: Electromagnetic Compatibility

    CPU 1515SP PC2 is not intended for use in residential areas. Using the CPU 1515SP PC2 in residential areas can affect radio and television reception. Reference The certificates for the markings and approvals can be found on the Internet under Siemens Industry Online Support (https://support.industry.siemens.com/cs/de/en/). 13.2...
  • Page 86 High-energy single pulse (surge) according to IEC 61000-4-5   External protective circuit required (see function manual   Designing interference-free controllers (https://   support.industry.siemens.com/cs/ww/en/view/59193566))   • asymmetric coupling ±2 kV (power supply lines) DC with protective elements ±2 kV (signal/data line only > 30 m), with pro‐...
  • Page 87 Technical specifications 13.2 Electromagnetic compatibility Table 13-2 Sinusoidal disturbance variables with RF radiation RF radiation according to IEC 61000-4-3/NAMUR 21 corresponds to degree of se‐ verity Electromagnetic RF field, amplitude-modulated 80 to 1000 MHz; 1.0 to 2.0 GHz 2.0 GHz to 6.0 GHz 10 V/m 3 V/m 80% AM (1 kHz) •...
  • Page 88: Shipping And Storage Conditions

    Technical specifications 13.4 Mechanical and climatic ambient conditions 13.3 Shipping and storage conditions Introduction The CPU 1515SP PC2 exceeds the requirements of IEC 61131‑2 in terms of shipping and storage conditions. The following information applies to modules that are shipped and/or stored in their original packaging.
  • Page 89 Technical specifications 13.4 Mechanical and climatic ambient conditions Test of mechanical ambient conditions The table below provides important information with respect to the type and scope of the test of ambient mechanical conditions. Table 13-9 Test of mechanical ambient conditions Condition tested Test Standard Comment Vibration...
  • Page 90: Information On Insulation, Protection Class, Degree Of Protection And Rated Voltage

    Technical specifications 13.5 Information on insulation, protection class, degree of protection and rated voltage 13.5 Information on insulation, protection class, degree of protection and rated voltage Insulation The insulation is designed according to the requirements of EN 61131-2: 2007. Note In the case of modules with 24 V DC (SELV/PELV) supply voltage, galvanic isolations are tested with 707 V DC (type test).
  • Page 91: Use Of The Et 200Sp In Zone 2 Potentially Explosive Atmospheres

    Static value: Creation as functional extra-low voltage with safe electrical isolation in accordance with IEC 60364-4-41 13.6 Use of the ET 200SP in zone 2 potentially explosive atmospheres See product information Use of subassemblies/modules in a Zone 2 Hazardous Area (https:// support.industry.siemens.com/cs/ww/en/view/19692172). CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 92: Module Data

    Technical specifications CPU 1515SP PC2 Technical specifications The following table shows the technical specifications as of 05/2023. You will find a data sheet including daily updated technical specifications on the Internet (https:// support.industry.siemens.com/cs/ww/en/pv/6ES7677-2DB42-0GB0/td). Article number 6ES7677-2DB42-0GB1 General information   Product type designation...
  • Page 93 Technical specifications 13.7 Module data Article number 6ES7677-2DB42-0GB1 Main memory 8 GB RAM CFast memory card Yes; 128 GB flash memory SIMATIC memory card required Work memory   2 Mbyte • integrated (for program) 7.5 Mbyte • integrated (for data) 20 Mbyte • integrated (for CPU function library of CPU Runtime) Load memory  ...
  • Page 94 Technical specifications 13.7 Module data Article number 6ES7677-2DB42-0GB1 – Industrial Ethernet status LED • Number of ports • integrated switch 2. Interface   Interface types   Yes; Integrated • RJ 45 (Ethernet) – Transmission rate, max. 1 000 Mbit/s – Industrial Ethernet status LED •...
  • Page 95 Technical specifications 13.7 Module data Article number 6ES7677-2DB42-0GB1 Weights   Weight, approx. 0.83 kg CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 96: Technical Specifications Of Cpu 1515Sp Pc2 F

    Technical specifications of CPU 1515SP PC2 F Technical specifications The following table shows the technical specifications as of 05/2023. You will find a data sheet including daily updated technical specifications on the Internet (https:// support.industry.siemens.com/cs/ww/en/pv/6ES7677-2SB42-0GB0/td). Article number 6ES7677-2SB42-0GB1 General information  ...
  • Page 97 Technical specifications 13.7 Module data Article number 6ES7677-2SB42-0GB1 Work memory   3 Mbyte • integrated (for program) 7.5 Mbyte • integrated (for data) 20 Mbyte • integrated (for CPU function library of CPU Runtime) Load memory   320 Mbyte • integrated (on PC mass storage) Backup  ...
  • Page 98 Technical specifications 13.7 Module data Article number 6ES7677-2SB42-0GB1 Yes; Integrated • RJ 45 (Ethernet) 1 000 Mbit/s – Transmission rate, max. – Industrial Ethernet status LED • Number of ports 3. Interface   Interface types   • RS 485 Interface types   RS 485  ...
  • Page 99: Technical Specifications Of Cpu 1515Sp Pc2 T

    Technical specifications of CPU 1515SP PC2 T Technical specifications The following table shows the technical specifications as of 05/2023. You will find a data sheet including daily updated technical specifications on the Internet (https:// support.industry.siemens.com/cs/ww/en/pv/6ES7677-2VB42-0GB0/td). Article number 6ES7677-2VB42-0GB1 General information  ...
  • Page 100 Technical specifications 13.7 Module data Article number 6ES7677-2VB42-0GB1 SIMATIC memory card required Work memory   3 Mbyte • integrated (for program) 7.5 Mbyte • integrated (for data) 20 Mbyte • integrated (for CPU function library of CPU Runtime) Load memory   320 Mbyte • integrated (on PC mass storage) Backup  ...
  • Page 101 Technical specifications 13.7 Module data Article number 6ES7677-2VB42-0GB1 • integrated switch 2. Interface   Interface types   Yes; Integrated • RJ 45 (Ethernet) 1 000 Mbit/s – Transmission rate, max. – Industrial Ethernet status LED • Number of ports 3. Interface   Interface types  ...
  • Page 102: Technical Specifications Of Cpu 1515Sp Pc2 Tf

    Technical specifications of CPU 1515SP PC2 TF Technical specifications The following table shows the technical specifications as of 05/2023. You will find a data sheet including daily updated technical specifications on the Internet (https:// support.industry.siemens.com/cs/ww/en/pv/6ES7677-2WB42-0GB0/td). Article number 6ES7677-2WB42-0GB1 General information  ...
  • Page 103 Technical specifications 13.7 Module data Article number 6ES7677-2WB42-0GB1 SIMATIC memory card required Work memory   3 Mbyte • integrated (for program) 7.5 Mbyte • integrated (for data) 20 Mbyte • integrated (for CPU function library of CPU Runtime) Load memory   320 Mbyte • integrated (on PC mass storage) Backup  ...
  • Page 104 Technical specifications 13.7 Module data Article number 6ES7677-2WB42-0GB1 • integrated switch 2. Interface   Interface types   Yes; Integrated • RJ 45 (Ethernet) 1 000 Mbit/s – Transmission rate, max. – Industrial Ethernet status LED • Number of ports 3. Interface   Interface types  ...
  • Page 105: Technical Specifications Cpu 1515Sp Pc2 - Indos

    Technical specifications 13.7 Module data 13.7.5 Technical specifications CPU 1515SP PC2 - IndOS Technical specifications The following table shows the technical specifications as of 05/2023. You will find a data sheet including daily updated technical specifications on the Internet. Article number 6ES7677-2DB43-0GB1 General information  ...
  • Page 106 Technical specifications 13.7 Module data Article number 6ES7677-2DB43-0GB1 Work memory   2 Mbyte • integrated (for program) 7.5 Mbyte • integrated (for data) 20 Mbyte • integrated (for CPU function library of CPU Runtime) Load memory   320 Mbyte • integrated (on PC mass storage) Backup  ...
  • Page 107 Technical specifications 13.7 Module data Article number 6ES7677-2DB43-0GB1 2. Interface   Interface types   Yes; Integrated • RJ 45 (Ethernet) 1 000 Mbit/s – Transmission rate, max. – Industrial Ethernet status LED • Number of ports 3. Interface   Interface types   • RS 485 Interface types  ...
  • Page 108: Technical Specifications Of Cpu 1515Sp Pc2 F -Indos

    Technical specifications 13.7 Module data 13.7.6 Technical specifications of CPU 1515SP PC2 F -IndOS Technical specifications The following table shows the technical specifications as of 05/2023. You will find a data sheet including daily updated technical specifications on the Internet. Article number 6ES7677-2SB43-0GB1 General information  ...
  • Page 109 Technical specifications 13.7 Module data Article number 6ES7677-2SB43-0GB1 Work memory   3 Mbyte • integrated (for program) 7.5 Mbyte • integrated (for data) 20 Mbyte • integrated (for CPU function library of CPU Runtime) Load memory   320 Mbyte • integrated (on PC mass storage) Backup  ...
  • Page 110 Technical specifications 13.7 Module data Article number 6ES7677-2SB43-0GB1 2. Interface   Interface types   Yes; Integrated • RJ 45 (Ethernet) 1 000 Mbit/s – Transmission rate, max. – Industrial Ethernet status LED • Number of ports 3. Interface   Interface types   • RS 485 Interface types  ...
  • Page 111: S7-1500 Software Controller Cpu 1505Sp (F/T/Tf)

    The CPU 1505SP (F/T/TF) is a PC-based controller of the SIMATIC S7‑1500 Software Controller family. You can find additional information about the CPU 1505SP (F/T/TF) in the relevant manual (https://support.industry.siemens.com/cs/ww/en/view/109762855). For the CPU 1505SP (F/T/TF), please also note the information in the F product information (https:// support.industry.siemens.com/cs/ww/en/view/109478599).
  • Page 112 Technical specifications 13.7 Module data CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 113: Dimension Drawings

    Dimension drawings 14.1 CPU 1515SP PC2 This section contains a dimension drawing of the module mounted on a mounting rail. Always observe the specified dimensions for installation in cabinets. Dimension drawings of the CPU 1515SP PC2 Figure 14-1 Dimension drawing CPU 1515SP PC2, front view CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 114 Dimension drawings 14.1 CPU 1515SP PC2 Figure 14-2 Dimension drawing CPU 1515SP PC2, side view CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 115: Spare Parts/Accessories

    Spare parts/accessories 15.1 Accessories/spare parts Accessories for CPU 1515SP PC2 Table 15-1 Accessories for CPU 1515SP PC2 Description Article number BusAdapter/media converter; 1 unit   • BA 2×FC (PROFINET BusAdapter with FastConnect Ethernet connection) 6ES7193-6AF00-0AA0 6ES7193-6AG00-0AA0 • BA 2xLC (BusAdapter 2x LC glass fiber-optic connectors, for PROFINET) 6ES7193-6AG20-0AA0 •...
  • Page 116 Article number 6ES5710-8MA31 • Length: 830 mm 6ES5710-8MA41 • Length: 2000 mm Online catalog Additional article numbers can be found on the Internet in the online catalog and online ordering system (https://mall.industry.siemens.com). CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 117: Appendix

    Industry Mall The Industry Mall is the catalog and order system of Siemens AG for automation and drive solutions on the basis of Totally Integrated Automation (TIA) and Totally Integrated Power (TIP). You can find catalogs for all automation and drive products on the Internet.
  • Page 118: Troubleshooting

    Appendix A.3 Troubleshooting Troubleshooting Problem Possible cause Remedy CPU 1515SP PC2 does not work. CPU 1515SP PC2 is not supplied with Check the power supply. power. Time and/or date of the CPU 1515SP PC2 not CPU 1515SP PC2 was not connected Check the settings in Windows. correct.
  • Page 119: List Of Abbreviations

    List of abbreviations Abbreviations Abbreviation Term Meaning Alternating current Alternating current Automation License Manager Tool for managing license keys in STEP 7 BIOS Basic Input Output System Basic Input Output System. A set of important software routines used after the startup of the CPU to load the operating system and to provide the routines for data exchange between hard‐...
  • Page 120 List of abbreviations B.1 Abbreviations Abbreviation Term Meaning Power supply Power supply Power Tags Process tags; tags enable data exchange between the compo‐ nents of an automation process, for example, between the HMI device and the controller. Random Access Memory Main or work memory of a computer with direct access, allowing read access to data and editing.
  • Page 121: Glossary

    Glossary Cold restart A startup procedure commencing when the CPU is switched on. Upon a cold restart, the system typically performs some basic hardware checks and then loads the operating system from the hard disk into the work memory. Controller Integrated hardware and software controlling the operation of a specific internal or I/O device (e.g.
  • Page 122 License key The license key is the electronic license stamp of a license. Siemens AG provides a license key for software that is protected by licensing laws. Operating system...
  • Page 123 Glossary SETUP (BIOS setup) A program used to determine information on the device configuration. The device configuration of the CPU 1515SP PC2 is preset. Changes must be made whenever a memory expansion, new modules or drives are to be activated. USB restore stick The USB restore stick is a USB stick you create yourself to reset your system partition or the entire hard disk to the delivery state in the event of an error.
  • Page 124 Glossary CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...
  • Page 125: Index

    Index Degree of protection, 22 General, 22 Interfaces, 22 Power supply, 22 Pre-installations, 22 Alternating current, 117 Climatic ambient conditions, 87 Accessories, 113 Address space, 38 Certificate of Authenticity, 117 Automation License Manager, 117 Certificate of License, 117 Alternating current Commissioning AC, 117 Commissioning procedure, 48 Ambient conditions Creating the configuration, 50 Climatic, 87 Notes, 47 Mechanical, 86 Operator user, 49 Approvals, 79 Procedure, 48...
  • Page 126 Index Data Backup, 68 Gigabit Ethernet, 117 Restoring, 68 Gigabit Ethernet Data backup, 68 GbE, 117 SIMATIC IPC Image & Partition Creator, 68 GRand Unified Bootloader GRUB/GRUB2DOS, 117 Direct current, 117 GRUB/GRUB2DOS Degree of protection, 88 GRand Unified Bootloader, 117 Dimension drawing CPU 1515SP PC2, 111 Direct current DC, 117 Disposal Human Machine Interface, 117 Recycling, 74 HMI devices Downloading a project...
  • Page 127 Index ERROR, 55 Uninstalling the CPU, 40 MAINT, 55 USB load, 38 Meaning, 55 Mounting rail Power, 55 Mounting, 36 RUN/STOP, 55 Multi Media Card License MMC, 117 Certificate of License, 53 Software, 52 License key Backup, 53 Networks Restore, 53 Ethernet, 45 transfer, 52 PROFIBUS, 45 Light Emitting Diode PROFINET, 45 LED, 117 New Technology File System Link Layer Discovery Protocol NTFS, 117 LLDP, 117...
  • Page 128 Index Personal computer Safety information, 16 PC, 117 ESD guidelines, 16 Repairs, 16 Programming device, 117 Safe operation of a plant, 16 Sample configuration, 22 PROFINET, 117 Configuration, 22 Power options Scope, 8 Functions, 61 Documentation, 8 Power supply Scope of delivery, 30 PS, 118 CPU 1515SP PC2, 30 Power Tags CPU 1515SP PC2 F, 30 PT, 118 CPU 1515SP PC2 T, 30 Procedure...
  • Page 129 Index Underwriters Laboratories Inc., 118 Underwriters Laboratories Inc. UL, 118 Unified Write Filter UWF, 118 Universal Serial Bus USB, 118 Updates for installing Windows, 73 Universal Serial Bus, 118 in industrial environments, 83 in mixed areas, 83 in residential areas, 83 Unified Write Filter, 118 Windows Installing updates, 73 Language packs, 72 Wiring, 42 Block diagram, 42 Pin assignment, 42...
  • Page 130 Index CPU 1515SP PC2 (F/T/TF) Operating Instructions, 03/2023, A5E42603425-AC...

Table of Contents
