DI 8x24VDC ST digital input module

(6ES7131-6BF00-
SIMATIC
ET 200SP
DI 8x24VDC ST digital input module
(6ES7131-6BF00-0BA0)
Manual
03/2012
A5E03574157-01
0BA0)

___________________
Preface
___________________
Documentation guide
___________________
Product overview
___________________
Connecting
Parameter
___________________
assignment/addressing
Interrupt, error and system
___________________
messages
___________________
Technical specifications
___________________
Parameter data record
1
2
3
4
5
6
A

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC ET 200SP

Summary of Contents for Siemens SIMATIC ET 200SP

  • Page 1 ___________________ DI 8x24VDC ST digital input module Preface (6ES7131-6BF00- 0BA0) ___________________ Documentation guide ___________________ Product overview SIMATIC ___________________ Connecting ET 200SP Parameter ___________________ DI 8x24VDC ST digital input module assignment/addressing (6ES7131-6BF00-0BA0) Interrupt, error and system ___________________ messages Manual ___________________ Technical specifications ___________________ Parameter data record 03/2012...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Preface

    This device manual complements the system manual ET 200SP Distributed I/O System. General functions of the ET 200SP are described in the system manual ET 200SP distributed I/O system (http://support.automation.siemens.com/WW/view/en/58649293). The information provided in this device manual and the system manual enables you to commission the ET 200SP system.
  • Page 4 Preface DI 8x24VDC ST digital input module (6ES7131-6BF00-0BA0) Manual, 03/2012, A5E03574157-01...

  • Page 5: Table Of Contents

    Table of contents Preface ..............................3 Documentation guide..........................7 Product overview ............................9 Properties of the DI 8x24VDC ST ....................9 Connecting .............................. 11 Terminal assignment........................11 Schematic circuit diagram......................12 Parameter assignment/addressing ......................13 Parameters...........................13 Declaration of parameters......................14 Address space ..........................14 Interrupt, error and system messages ..................... 15 Status and error displays ......................15 Diagnostic messages........................17 Technical specifications...........................
  • Page 6 Table of contents DI 8x24VDC ST digital input module (6ES7131-6BF00-0BA0) Manual, 03/2012, A5E03574157-01...

  • Page 7: Documentation Guide

    Documentation for the ET 200SP distributed I/O system with DI 8×24VDC ST digital input module Number Component Documentation Most important contents ① System ET 200SP distributed I/O system Application planning  (http://support.automation.siemens.com Installation  /WW/view/en/58649293) system Connecting manual  Commissioning  ② BaseUnits...
  • Page 8 Documentation guide DI 8x24VDC ST digital input module (6ES7131-6BF00-0BA0) Manual, 03/2012, A5E03574157-01...

  • Page 9: Product Overview

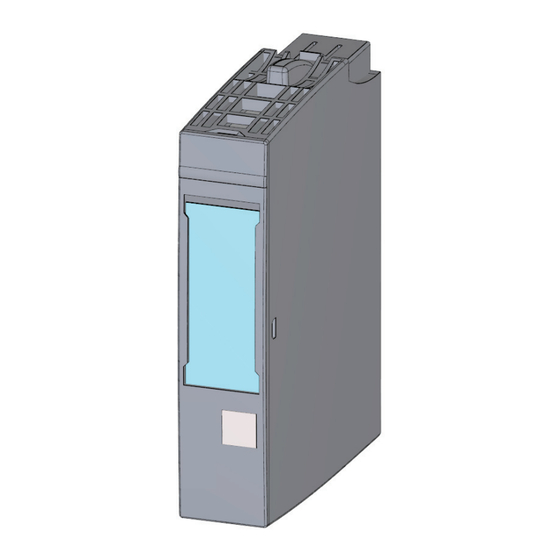

    Product overview Properties of the DI 8x24VDC ST Order number 6ES7131-6BF00-0BA0 View of the module Figure 2-1 View of the DI 8×24VDC ST module DI 8x24VDC ST digital input module (6ES7131-6BF00-0BA0) Manual, 03/2012, A5E03574157-01...
  • Page 10 Product overview 2.1 Properties of the DI 8x24VDC ST Properties ● Technical properties – Digital input module with 8 inputs – Supply voltage L+ – Sink Input (PNP, P-reading) – Suitable for connection of switches and 2-wire sensors in accordance with IEC 61131, type 3 –...

  • Page 11: Connecting

    : Input signal, channel n  L+: Sensor supply  CC01 6ES7193-6CP01-2MA0 24 V DC 2-wire see also system manual ET 200SPDistributed I/O System See also ET 200SP distributed I/O system (http://support.automation.siemens.com/WW/view/en/58649293) DI 8x24VDC ST digital input module (6ES7131-6BF00-0BA0) Manual, 03/2012, A5E03574157-01...

  • Page 12: Schematic Circuit Diagram

    Connecting 3.2 Schematic circuit diagram Schematic circuit diagram Schematic circuit diagram Figure 3-1 Schematic circuit diagram DI 8×24VDC ST DI 8x24VDC ST digital input module (6ES7131-6BF00-0BA0) Manual, 03/2012, A5E03574157-01...

  • Page 13: Parameter Assignment/Addressing

    Parameter assignment/addressing Parameters GSDML file parameters Table 4- 1 Parameters for the digital input module (GSDML file) Parameters Value range Default Configuration in Efficiency range Diagnostics disable Module disable  missing supply voltage L+ enable  Diagnostics disable Module disable ...

  • Page 14: Declaration Of Parameters

    BaseUnit with incoming supply voltage Specifies whether the I/O module is located on a BaseUnit with incoming voltage supply (see system manual ET 200SP distributed I/O system (http://support.automation.siemens.com/WW/view/en/58649293)). Address space Address space of the digital input module DI 8×24VDC ST The following image shows the assignment of the address space.

  • Page 15: Interrupt, Error And System Messages

    Interrupt, error and system messages Status and error displays LED display ① DIAG (green/red) ② Channel status (green) ③ PWR (green) Figure 5-1 LED display Meaning of the LEDs The following tables explain the meaning of the status and error displays. Remedies for diagnostic messages are available in the chapter Diagnostic messages (Page 17).
  • Page 16 Interrupt, error and system messages 5.1 Status and error displays PWR LED Table 5- 1 Meaning of the PWR LED Meaning Supply voltage L+ missing Supply voltage L+ present DIAG LED Table 5- 2 Meaning of the DIAG LED DIAG Meaning Backplane bus supply of the ET 200SP not OK Module is not configured...

  • Page 17: Diagnostic Messages

    Interrupt, error and system messages 5.2 Diagnostic messages Diagnostic messages Digital module error types Module errors are indicated as diagnostics (module status). Table 5- 4 Error types Diagnostic message Error code Meaning Remedy Short-circuit Short-circuit to ground at sensor supply Correct the process wiring Wire break Line to the sensor is interrupted...
  • Page 18 Interrupt, error and system messages 5.2 Diagnostic messages DI 8x24VDC ST digital input module (6ES7131-6BF00-0BA0) Manual, 03/2012, A5E03574157-01...

  • Page 19: Technical Specifications

    Technical specifications Technical specifications Technical specifications of DI 8×24VDC ST Dimensions and weight Dimensions W×H×D (mm) 15×73×58 Weight 28 g Module-specific data Number of inputs Suitable BaseUnit types Unshielded cable length Max. 200 m Shielded cable length Max. 1000 m Parameter length 18 bytes Address space...
  • Page 20 Connecting 2-wire proximity sensor supported Permitted quiescent current Max. 1.5 mA Isochronous mode Jitter within the module Max. 100 μs Supports I&M function Dimensional drawing See device manual ET 200SP BaseUnits (http://support.automation.siemens.com/WW/view/en/58532597/133300) DI 8x24VDC ST digital input module (6ES7131-6BF00-0BA0) Manual, 03/2012, A5E03574157-01...

  • Page 21: Parameter Data Record

    Parameter data record Parameter assignment and structure of parameter data record Parameter assignment in the user program You can configure the module in runtime. Changing parameters in runtime The module parameters are included in data record 128. You can transmit the configurable STEP 7 parameters to the module with the WRREC instruction.
  • Page 22 Parameter data record A.1 Parameter assignment and structure of parameter data record Structure of data record 128 Note Channel 0 includes the diagnostics for the entire module. Figure A-1 Structure of data record 128 Header information The figure below shows the structure of the header information. Figure A-2 Header information DI 8x24VDC ST digital input module (6ES7131-6BF00-0BA0)
  • Page 23 Parameter data record A.1 Parameter assignment and structure of parameter data record Parameters The figure below shows the structure of the parameters for channels 0 to 7. You enable a parameter by setting the corresponding bit to "1". Figure A-3 Structure byte x to x+1 for the channels 0 to 7 Input delay The following table includes the input delay with its codes.
  • Page 24 Parameter data record A.1 Parameter assignment and structure of parameter data record DI 8x24VDC ST digital input module (6ES7131-6BF00-0BA0) Manual, 03/2012, A5E03574157-01...
