Summary of Contents for CDA HG7501 Series

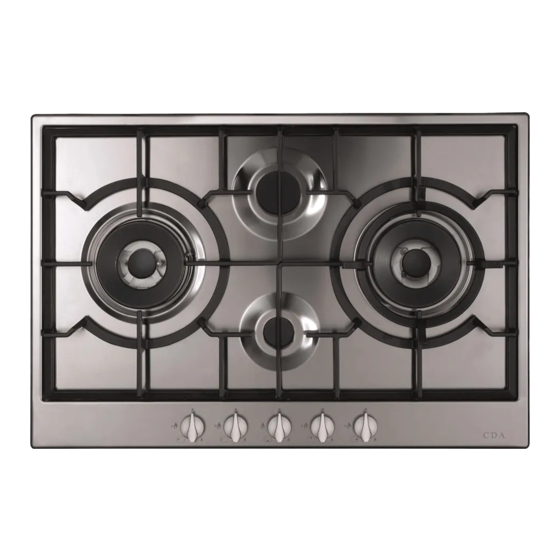

- Page 1 HG7501.. Built-in Cooking Hob Installation, Use and Maintenance www.cda.eu...
-
Page 2: Declaration Of Ce Conformity
The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. -
Page 3: Important Safety Precautions And Recommendations
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment. The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. - Page 4 CAUTION: this appIiance must only be installed in a permanently • ventilated room in compliance with the applicable regulations. Do not carry out cleaning or maintenance operations on the appliance • without having previously disconnected it from the electric power supply.
- Page 5 WARNING: Unattended cooking on a hob with fat or oil can be • dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
- Page 6 ENERGY LABELLING/ECODESIGN Commission regulation (EU) No 66/2014 (implementing Directive 2009/125/EC of the • European Parliament and of the Council). Reference to the measurement and calculation methods used to establish compliance with the above requirements: Standard EN30-2-1 (hobs: gas fired burners). •...
- Page 7 ADVICE ADVICE for the for the INSTALLER INSTALLER...
- Page 8 IMPORTANT : • The appliance is designed and approved for domestic use only and should not be installed in a commercial, semi commercial or communal environment. Your product will not be guaranteed if installed in any of the above environments and could affect any third party or public liability insurances you may have.
-
Page 9: Installation
Installation TECHNICAL INFORMATION FOR THE INSTALLER In order to install the cooker top into the kitchen fixture, a hole with the dimensions shown in fig. 15a has to be made, bearing in mind the following: • A 40mm ventilation gap must be provided between the bottom of the appliance and any cabinetry, draw unit, thermal protection barrier or appliance. - Page 10 Fig. 1a The thermal protection barrier must • removable with the use of a tool for installation and service; heat-resistant; • made from thermal • Cooktop conductivity material. installed Thermal Clearance protection barrier Door Space for Fig. 1b Fig. 1c connections Measures (mm) Description...
-
Page 11: Fastening The Cooktop
FASTENING THE COOKTOP Each cooktop is provided with an installation kit including brackets and screws for fastening the cooktop to benches from 30 to 40mm thick. The kit includes two “F” type brackets (for the front of the cooktop), two “R” type brackets (for the rear of the cooktop) and four self-threading screws “S”. -
Page 12: Provision For Ventilation
PROVISION FOR VENTILATION • The appliance should be installed into a room or space with an air supply in accordance with the current version of BS 5440-2: 2000. • For rooms with a volume of less than 5m - permanent ventilation of 100 cm free area must be provided. -
Page 13: Gas Installation Requirements
Gas Section GAS INSTALLATION REQUIREMENTS Important ! Before installation, make sure that the local distribution conditions (gas • type and pressure) and the adjustment of this appliance are compatible. The appliance adjustment conditions are given on the plate or the label. This appliance must be installed and serviced only by a suitably qualified, •... -
Page 14: Gas Connection
GAS CONNECTION Cat: 2H 3+ Installation to Natural Gas Installation to Natural Gas must conform to the Code of Practice, etc. The supply pressure for Natural Gas is 20 mbar. The installation must conform to the relevant British/European Standards. Installation to LP Gas When operating on Butane gas a supply pressure of 28-30 mbar is required. - Page 15 The fitting (fig. 3) is made up of: 1/2" BSPP (G) parallel 1/2" BSPP (G) parallel – 1 nut “A” (ISO 228-1) male (ISO 228-1) female – 1 elbow fitting “C” – gasket “F” Connection to the Gas Supply Be careful when flexible pipes are used that –...
-
Page 16: Lubrication Of The Gas Taps
GAS MAINTENANCE TABLE FOR THE CHOICE OF THE INJECTORS G30/G31 Cat: II 2H 3+ 28-30/37 mbar 20 mbar Nominal Reduced Ø injector Ø injector BURNERS Power Power [1/100 mm] [1/100 mm] [kW] [kW] Auxiliary (A) 1,00 0,40 Semi-rapid (SR) 1,75 0,45 Triple-ring (TR) 3,80... - Page 17 REPLACEMENT OF THE INJECTORS Auxiliary and If the injectors are not supplied they can be semi-rapid obtained from the “Service Centre”. burner Select the injectors to be replaced according to the “TABLE FOR THE CHOICE OF THE INJECTORS”. nozzle diameters, expressed hundredths of a millimeter, are marked on the body of each injector.
-
Page 18: Cooktop Burners
SETTING THE MINIMUM OF THE COOKTOP BURNERS In the minimum position the flame must have a length of about 4 mm and must remain lit even with a quick turn from the maximum position to that of minimum. The flame adjustment is done in the following way: •... - Page 19 Mains Electricity Connection Incorrect installation may be dangerous and the manufacturer can not be held responsible. Warning! This appliance must be earthed The manufacturer declines all responsibility for any problem caused by failure to observe this rule. THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE.
- Page 21 ADVICE ADVICE for the for the USERS USERS...
- Page 22 Features and Technical Data Fig. 1 7 6 5...
-
Page 23: Gas Burners
GAS BURNERS Auxiliary (A) 1,00 kW Semirapid (SR) 1,75 kW Triple-ring (TR) 3,80 kW Dual (DB) (*) 4,20 kW IMPORTANT: The Dual burner is controlled by two separate knobs; one knob for the inner crown only and one knob for the outer crown only. The inner and outer crown can be used together or separately. - Page 24 How To Use The Cooktop GAS BURNERS Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2) which control the safety valves. Turning the knob, so that the indicator line points to the symbols printed on the panel, achieves the following functions: –...
-
Page 25: Lighting The Burners
LIGHTING THE BURNERS DUAL BURNER - SOME MODELS ONLY To ignite the burner, the following instructions The Dual Burner is a very flexible burner which are to be followed: allows different regulations and optimal cooking. Press in the corresponding knob and turn It comprises one inner and one outer crown: counter-clockwise (fig. -
Page 26: Choice Of The Burner
CHOICE OF THE BURNER On the control panel, near every knob there is a diagram that indicates which burner is controlled by that knob. The suitable burner must be chosen according to the diameter and the capacity used. The burners and pans must be used in accordance with the following instructions: DIAMETERS OF PANS WHICH MAY BE USED ON THE BURNERS BURNERS MINIMUM... - Page 27 WOK STAND (figs. 5a - 5b, 6a - 6b) This special grille for woks should be placed over the pan-rest for the triple-ring or Dual burner. Warning: Using woks without this special grille may cause the burner to malfunction. • Do not use the grille for ordinary, flat-bottomed saucepans.
-
Page 28: General Advice
Cleaning and Maintenance GENERAL ADVICE However special care should be taken around the rear or the underneath of the • Before you begin cleaning, you must appliance as these areas are not designed ensure that the appliance is switched off at the cooker switch. or intended to be touched and may contain sharp or rough edges, that may cause injury. - Page 29 GAS TAPS • Do not let cleaning products come into contact with the valves. • Periodic lubrication of the gas taps must be carried out by specialist personnel only. • In the event of operating faults in the gas taps, call the Service Department. BURNERS These parts must be cleaned using a sponge and soapy water or other suitable non-abrasive products.
- Page 30 Fig. 7 Fig. 8 TRIPLE-RING BURNER Fig. 9...
- Page 31 DUAL BURNER Fig. 10 Fig. 11 Fig. 12...
-
Page 32: Pan Supports
PAN SUPPORTS These parts can be removed and cleaned with appropriate products. After cleaning, they must be well dried and correctly replaced. It is very important to check that the pan supports have been correctly positioned. Failure to do so can cause serious problems. - Page 33 Appliance Servicing CDA provide a quality and effective after-sales service to cover all your servicing needs. Please attach your receipt to this page for safekeeping. Please help us to help you by having the following information available when booking a service-call: Model type, make and model –...
- Page 36 Please contact our Customer Care Department for Service on the details below Customer Care Department Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu www.cda.eu Copyright © CDA 2017...
