Summary of Contents for CDA HC7600

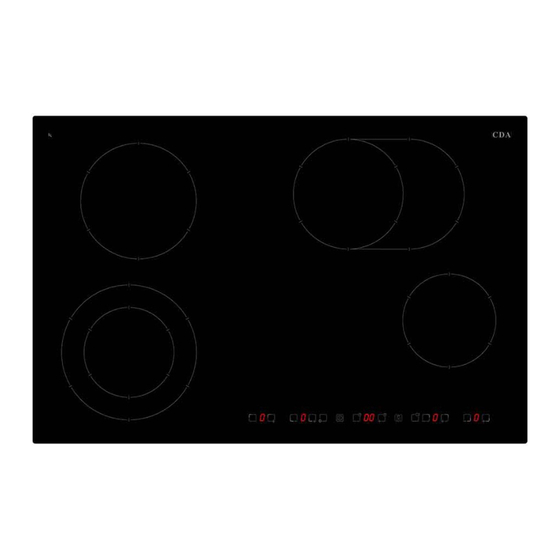

- Page 1 HC7600 Ceramic hob Installation, use and maintenance www.cda.eu...
-
Page 2: Table Of Contents
Contents: Important Important information Using your hob Operating time limiter Dual zone function Extendable zone function Timer Safety key lock Residual heat indicators Efficient use of your hob Care and maintenance Cleaning guide Troubleshooting 17 - 20 Installation Installation - preparation How to install the hob Mains electrical connection Energy efficiency information... -
Page 3: Important
Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model... -
Page 4: Important Information
(EMC) 2014/30/EU. Parts intended to come into contact with food conform to 1935/2004/EC. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. - Page 5 • Do not place hot lids flat on the hob top. A “suction” effect could cause damage to the hob. • Do not drag cookware across the hob top: in the long term, this could cause damage to the hob. •...
-
Page 6: Using Your Hob
Using your hob Zones: 1. Front left 1/2.2kW Ø140/210mm 2. Back left 1.8kW Ø180 mm 3. Back right 1.4/2.2kW Ø170-265mm 4. Front right 1.2kW Ø145 mm Fig. 1 Fig. 2 Control panel: 1. Zone minus sensor 5. Timer minus sensor 2. - Page 7 Please note: If a power level is not set within approximately ten seconds, the hob will switch off automatically. After switching the mains supply on to the hob, or if the mains supply is interrupted and then restored, the safety key lock may be active.
-
Page 8: Operating Time Limiter
Operating time limiter Each zone has an operating time limiter to increase overall efficiency and to prevent the hob from being left on indefinitely. If a zone's heat setting is not changed for a specific duration then the associated zone is automatically switched off and residual heat indicator activated. -
Page 9: Extendable Zone Function
To deactivate the dual zone function • Simply press the dual zone sensor . The LED indicator should extinguish and the zone will return to operating on the inner zone only. Extendable zone function The rear right zone is equipped with an extendable zone function that allows you to extend the heating area for the zone. - Page 10 remaining. In normal use, the timer ending prompts the zone heating to end as well. To set the timer • First, switch on the hob if necessary and set the zone you’d like to be timed to the required power level. Next, touch either of the timer sensors ( ).
-
Page 11: Safety Key Lock
Safety key lock To help prevent accidental use, the hob has a safety key lock which switches controls off temporarily or completely. The safety key lock can be activated when the hob is turned on but not when power has been switched off at, or the appliance disconnected from, the mains. -
Page 12: Efficient Use Of Your Hob
any zone whilst the hob is in use, whilst residual heat indicators are displayed and even for some time afterwards. Please note: In the event of a power cut or failure, the residual heat indicators will not illuminate after the power supply is restored. Also, when there is no power supply to the hob the residual heat indicators will not work, yet in both instances the hob zone(s) may still be hot, so extra care must be taken. -
Page 13: Care And Maintenance
Please note: When using the dual or extendable zone functions, we recommend using pans that fit within the zone markings (i.e. oval hob- proof casserole dishes, sizzle platters etc.). This allows you to use the other zones more safely. • Locating a pan in the centre of the zone markings will ensure optimum efficiency. - Page 14 IMPORTANT - PLEASE NOTE: In the event of any breakage, crack or cracking – even minimal – of the vitroceramic glass, immediately disconnect your appliance to prevent a risk of electric shock and contact CDA Customer Care. Details are on page 16.
-
Page 15: Troubleshooting
The hob is not working and the The electronics touched too briefly (less again and for longer display shows a non-standard are not functioning Call CDA Customer Care than a second) graphic correctly Sensor fields do not The hob is not working and the... - Page 16 16 to arrange a service visit. displayed Should any error code show on the zone displays, or this guide’s steps not resolve an issue, please contact CDA Customer Care for assistance. Contact details are below. Contact CDA Customer Care...
-
Page 17: Installation - Preparation
Installation - preparation Unpacking the hob: Installation above a cupboard unit (with partition panel) - recommended ventilation Take care not to lose, drop or 25mm mishandle any parts. Fitting position of the hob: 35mm This appliance must be, when 500 x 10mm installed, a minimum of 50mm from any back wall and a minimum of 55mm away from any adjacent... - Page 18 If fitting a CDA cooker hood above the hob: If a CDA cooker hood is to be installed above the hob, the height of the hood above the hob must be at least 600mm (650mm is recommended) (Fig.6). If the...
-
Page 19: How To Install The Hob
How to install the hob Overall dimensions of the hob: Width: 770 mm Depth: 510 mm ~ 2 mm Thickness: 45 mm Worktop cut-out dimensions: Width: 750 mm Depth: 490 mm 1. Make the required hole in the worktop. Fig.7 Before doing this, you must check the instructions supplied with any cooker hood to ensure that you will have the required clearance. - Page 20 2. Apply the seal to the underside of the hob on the glass edge as per Fig. 7. Make sure that the worktop is clean and dust free and insert the hob into the cut-out opening. Press the hob firmly into place so that the seal connects with the worktop.
-
Page 21: Mains Electrical Connection
Mains electrical connection Warning! This appliance must be earthed. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.T. and local regulations. Live L: BN - brown Neutral N: BU - blue This appliance is intended to be Earth PE: GNYE -green/yellow... - Page 22 • The current rating of the fuse or circuit breaker protecting this appliance should be marked on the socket outlet. • Assembly and electrical connection should be carried out by specialised personnel. • When installing this product we recommend you seek the help of another individual.
-
Page 23: Energy Efficiency Information
Energy E ciency Information Attribute Symbol Value Units CDA model HC7600 Type of hob Built in Number of cooking zones and/or areas Heating technology (induction cooking Radiant zones and cooking areas, radiant cooking zones cooking zones, solid plates) For circular cooking zones or area: Ø... - Page 24 For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.eu Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 F: 01949 862 003 E: customer.care@cda.eu www.cda.eu...
