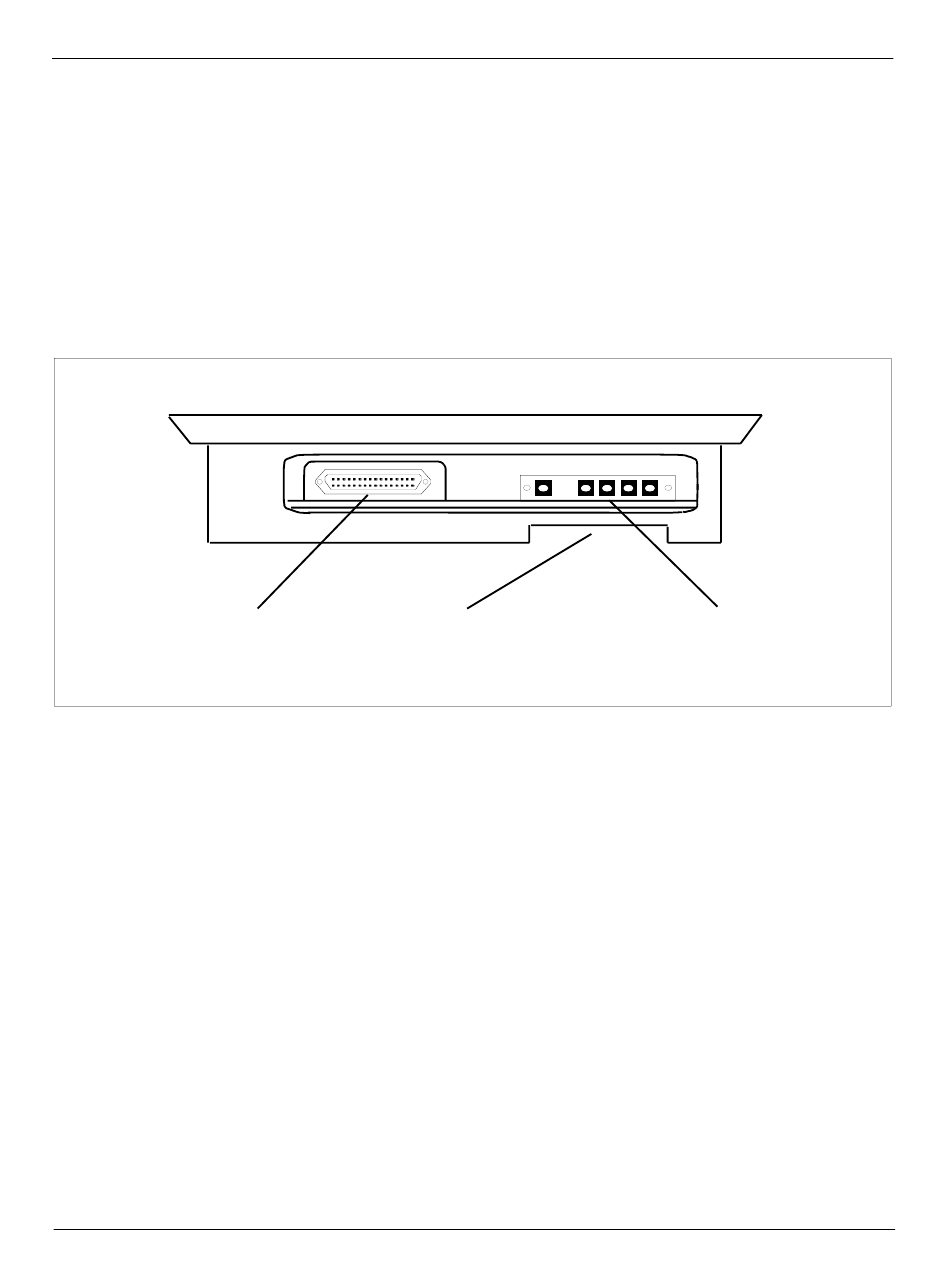

Figure 5-2xxx

Connection of the data terminal and TADO power supply to M3000 digital telephone

RS-232 interface
connector (25 pins)

Configuration notes

To configure the connector pin numbers and the signals associated with each
pin for the standard RS-232-C interface of the M3000 Touchphone, refer to
Table 5-1.
Meridian 1 Options 201, 211 Meridian SL-100 M3000 Touchphone Reference Manual MSL03
Insert the two captive screws in the connector body into the threaded holes in
the header connector, and secure tightly to prevent accidental disconnection
during data terminal operation.
Plug power supply/converter connector securely into power jack that is to the
right of the RS-232-C connector.
Plug power supply/transformer into the nearest ac outlet.
Task is complete.
Exit port for telephone
line and handset unit cord
Installation procedures 5-5
5-pin power connector for
TADO power supply
