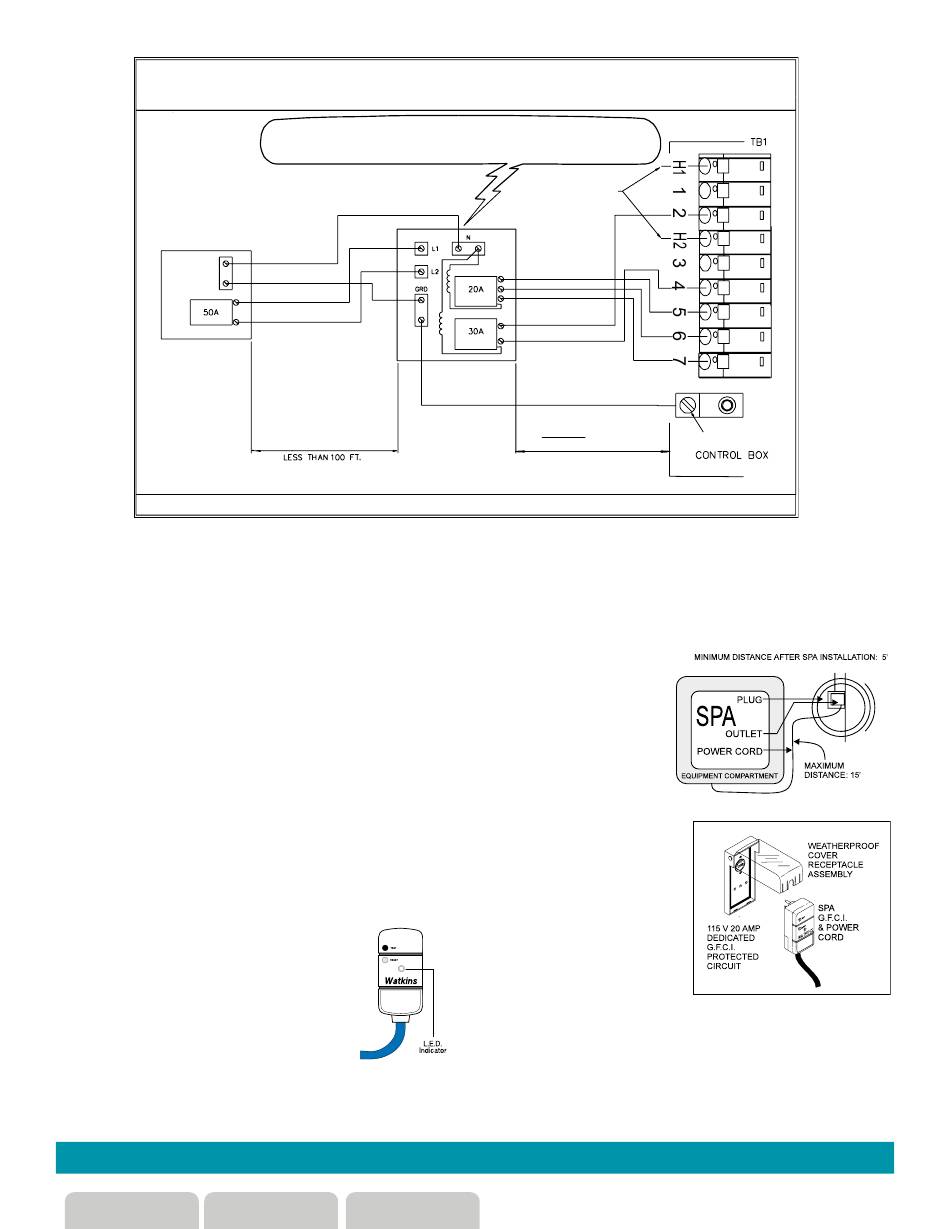

230V, 50 Amp,
2-POLE,
CIRCUIT BREAKER
(NON GFCI)
MAIN SERVICE
ELECTRICAL
PANEL
** Refer to NEC 250-122 (table)
NOTE: The wire connections to GFCI breakers are for reference only. Always ensure the white neutral wire is connected to the load neutral of the 20 amp breaker.
*PROVIDED WITH HOT TUB.
115 VOLT GFCI (
PRODIGY & JETSETTER JJN)
The Ground Fault Circuit Interrupter (GFCI) is a safety device that is
designed to detect as little as 5 milliamps (±1mA) of electrical current
leakage to ground. WATKINS WELLNESS recommends that the GFCI
be tested prior to each use to ensure it is functioning correctly. With
the spa connected to the power supply, push the "Test" button. The
spa should stop operating and the GFCI power indicator will go out.
Wait 30 seconds and then reset the GFCI by pushing the Reset button.
The GFCI power indicator will turn on, restoring power to the spa. If
the interrupter does not perform in this manner, it is an indication of an
electrical malfunction and the possibility of an electric shock. Disconnect
the plug from the receptacle until the fault has been identified and
corrected.
IMPORTANT: Failure to wait 30 seconds before resetting the GFCI may
cause the spa's Power indicator (on the control panel) to blink. If this
occurs, repeat the GFCI test procedure.
Never use the GFCI as a means to disconnect power to the spa (always
unplug it). If the GFCI is tripped while the spa is plugged in, and a power
outage occurs, when power returns the GFCI will automatically reset and
power will flow to the spa.

115 VOLT OPERATION

The spa must be connected to a dedicated 115 volt,
20 amp, GFCI protected, grounded circuit. The term
"dedicated" means the electrical circuit is not being
used or shared for any other electrical items (patio
lights, appliances, garage circuits, etc.). If the spa is
connected to a non-dedicated circuit, overloading will
result in "nuisance tripping" at the main panel. This
requires frequent resetting of the breaker switch at the
house electrical breaker panel and introduces the possibility of damage
or failure of spa equipment. The dedicated circuit must be properly
wired; that is, it must have a 20-amp GFCI circuit breaker in the house
Electrical Requirements
English Spanish
SOVEREIGN (IIN), TRIUMPH (TRHN) & JETSETTER LX (JTN)
230 volt permanently connected model
THE EXACT PHYSICAL LOCATION OF THE TERMINALS ON THE GFCI BREAKER
WILL VARY BETWEEN MANUFACTURERS. CONNECTING THE HOT WIRE TO THE
NEUTRAL TERMINAL WILL CAUSE IRREVERSIBLE DAMAGE TO THE CONTROL BOX.
# 8 AWG WHITE, NEUTRAL
# 10 AWG GREEN, GROUND**
# 8 AWG BLUE, L1
# 8 AWG RED, L2
Page 33
French
IMPORTANT!
FACTORY
WIRED
HEATER
L1 # 12 AWG BLUE
L2 # 12 AWG RED
N # 12 AWG WHITE
L1 # 10 AWG BLUE
L2 # 10 AWG RED
GROUND # 10 AWG GREEN
*SUBPANEL
Minimum 5 FEET
The Subpanel must be
WITH GFCI
within sight of the spa
Do not exceed 50 FEET.
BREAKERS
IMPORTANT: ALL WIRING SHOULD BE COPPER.
breaker panel, #12 AWG or larger wire (including the ground wire) and
the correct polarity throughout the circuit.
NEVER CONNECT THE SPA TO AN
EXTENSION CORD!
A pressure wire connector
is provided on the exterior
surface of the control box,
inside the spa. This is to
permit the connection of a
ground bonding wire between
this point and any metal
equipment, enclosures,
reinforced concrete pad, pipe,
or conduit within 5 feet of
the spa (if needed to comply
with local building code
requirements). The bonding
wire must be at least a
#10-AWG solid copper wire.
Bond the spa to all exposed
metal equipment or fixtures,
handrails, and concrete pad
per N.E.C. Article 680 and all
local codes.
INSTALLATION INSTRUCTIONS
All 115 volt HOT SPRING spa models come equipped with
approximately 15 feet (4.5 m) of useable power cord (this is the
maximum length allowed by Underwriters Laboratory and the National
Electric Code). When the spa is installed, the power cord will come
out of the bottom of the equipment compartment door. For your safety,
GRD
System Ground Terminal
