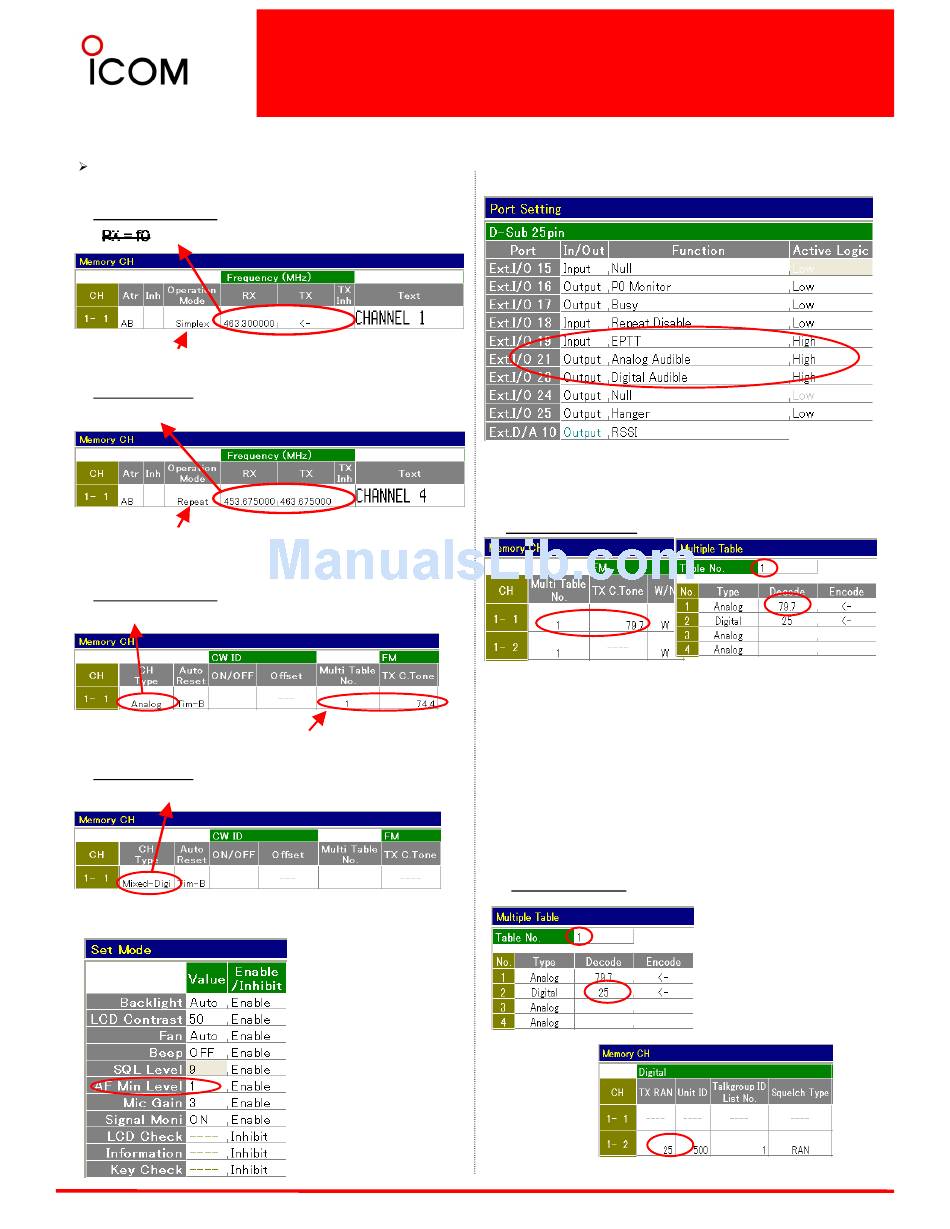

5-2-1 Digital-Analogue Cross Mode -Setting - Icom IC-FR5100 Series Handbook

Repeater Setting
1. Frequency and operation mode setting
Analogue Repeater
TX = f2
Operation Mode Simplex
Digital Repeater
RX = f1 TX = f3
Operation Mode Repeat
2. CH Type and CTCSS/DTCS setting
Analogue Repeater
CH Type = analogue
Necessary to setup when using
CTCSS/DTCS.
Digital Repeater
CH Type = Mixed-Digital
3. AF Min Level setting

5-2-1 Digital-analogue Cross mode -Setting

AF Min Level = 0 is
inhibit Audible output
mode therefore set
AF Min Level = 1
4. External I/O Port Setting
5-1. CTCSS setting
When using CTCSS of the analogue
repeater.
analogue Repeater
Note: Digital Repeater setup is not required.
Note: In order to add CTCSS to the modulation input
from the D-SUB 25pin, TX C.Tone setting is
necessary on top of the Multiple table setting.
5-2. RAN setting
When using RAN of the Digital repeater
Note: analogue Repeater setup is not required
Digital Repeater
